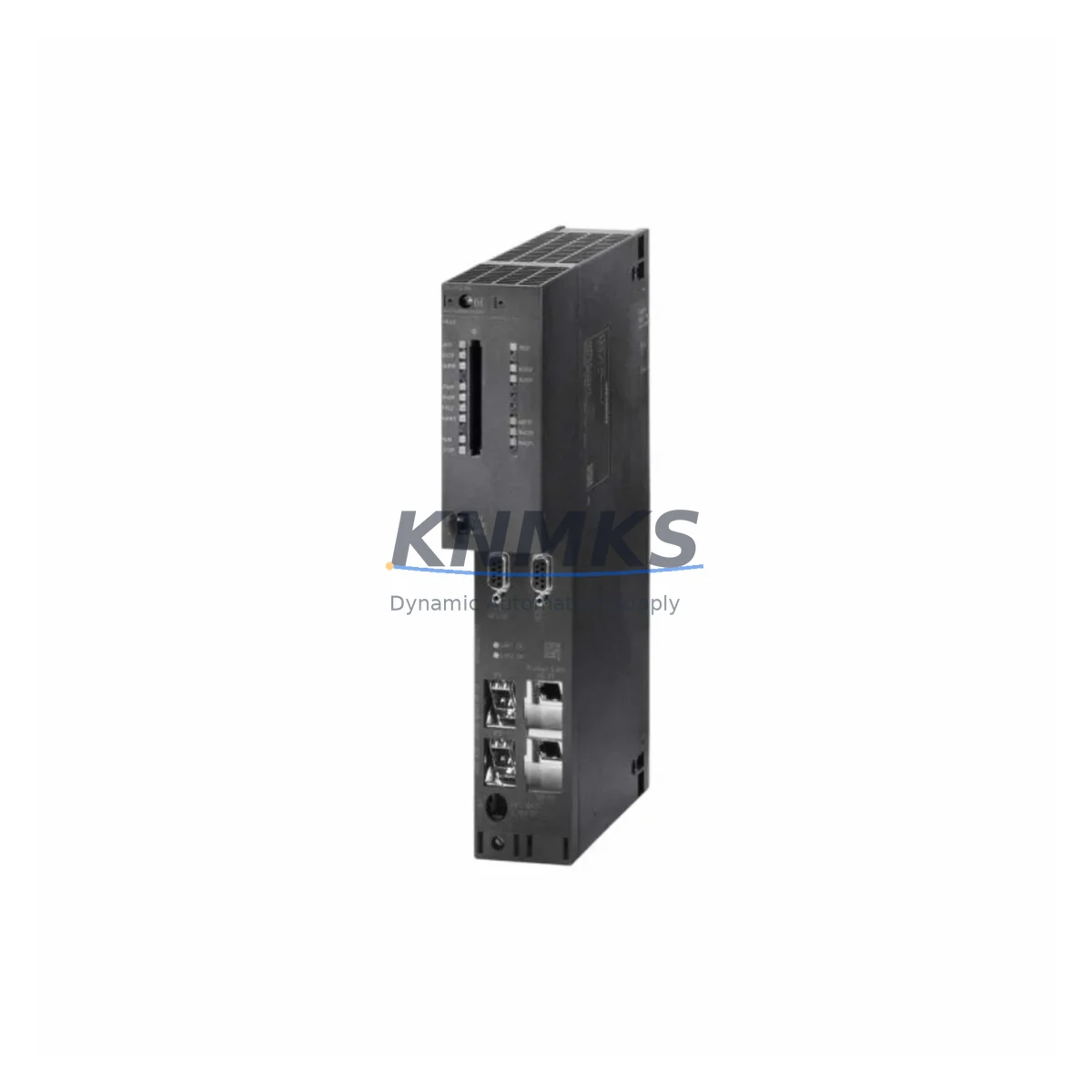

Siemens 6ES7412-5HK06-0AB0 Fail-Safe Redundant CPU S7-400H

Overview

Siemens 6ES7412-5HK06-0AB0 Fail-Safe Redundant CPU S7-400H: Fault-Tolerant Control for Critical Industrial Sites

The Siemens 6ES7412-5HK06-0AB0 is a high-availability, fail-safe redundant CPU module designed for the SIMATIC S7-400H system — one of the most trusted redundant PLC platforms in continuous process industries worldwide. Engineered to eliminate single points of failure in mission-critical control loops, this CPU delivers bumpless switchover between redundant processing units, ensuring uninterrupted operation even when one CPU encounters a fault. For plant engineers and automation managers operating in petrochemical, power generation, mining, water treatment, metallurgy, or port logistics environments, the 6ES7412-5HK06-0AB0 represents a cornerstone component for achieving the highest levels of control system availability and process safety.

In continuous production facilities where an unplanned shutdown can cost tens of thousands of dollars per hour, the 6ES7412-5HK06-0AB0 provides the architectural backbone for fault-tolerant control. Its synchronization mechanism between the two redundant CPUs operates at the sub-millisecond level, ensuring that process variables, output states, and communication data are mirrored in real time. Should the active CPU detect an internal fault, power anomaly, or communication disruption, the standby CPU assumes control within the system’s defined switchover time — without triggering a process upset or safety interlock trip. This capability is indispensable in applications where control interruption, signal drift, or output misfire could result in equipment damage, environmental release, or personnel injury.

The S7-400H platform, of which the 6ES7412-5HK06-0AB0 is the central processing element, is specifically designed to withstand the demanding electrical and mechanical conditions found in heavy industrial environments. The CPU operates reliably across a wide temperature range and is rated for high electromagnetic interference (EMI) environments — a critical requirement in control cabinets located near variable frequency drives, high-voltage switchgear, or large motor starters. Its robust design also addresses the challenges of dust ingress, humidity, and mechanical vibration commonly encountered in mining headframes, offshore platforms, and steel mill control rooms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7412-5HK06-0AB0 as the central processing unit of a redundant control cabinet demands a carefully coordinated protection strategy across all cabinet subsystems. The CPU’s redundancy is only as effective as the reliability of the components surrounding it. In practice, this means pairing the 6ES7412-5HK06-0AB0 with a redundant power supply module such as the Siemens 6ES7407-0KA02-0AA0 PS407, which provides dual-channel 24 VDC supply with automatic load sharing and fault detection — eliminating power interruption as a failure mode. Surge and transient protection at the cabinet entry point, using devices such as the Siemens SITOP PSU8600 series power supply with integrated diagnostics, further shields the CPU from voltage spikes caused by nearby motor switching or lightning-induced transients on field cable runs.

For I/O expansion in the redundant rack, the Siemens 6ES7400-1TA01-0AA0 UR2-H rack provides the physical backplane infrastructure specifically designed for S7-400H redundant configurations, ensuring correct slot assignment and inter-rack communication integrity. Signal modules such as the Siemens 6ES7321-1BL00-0AA0 SM321 digital input module and the Siemens 6ES7322-1BL00-0AA0 SM322 digital output module are commonly deployed alongside the 6ES7412-5HK06-0AB0 to handle field device interfacing in safety interlock and emergency shutdown circuits. For process analog signals — pressure transmitters, temperature sensors, flow meters — the Siemens 6ES7331-7KF02-0AB0 SM331 analog input module provides the high-resolution, isolated signal conditioning required to prevent ground loops and signal drift in long cable runs through electrically noisy plant environments. Communication to SCADA systems or distributed I/O via PROFIBUS DP is handled through dedicated communication processors such as the Siemens 6GK7443-1EX30-0XE0 CP443-1, which maintains network connectivity independently of the CPU’s processing load and supports redundant network topologies.

Together, these components form a layered cabinet protection architecture: redundant power, surge-protected supply, fault-tolerant CPU processing, isolated signal conditioning, and independent communication — each layer reinforcing the overall system’s resistance to control interruption, spurious trips, and unplanned downtime.

Critical Industrial Safety Applications

The Siemens 6ES7412-5HK06-0AB0 is deployed across the most demanding continuous process and safety-critical industries. In petrochemical and refinery applications, it serves as the primary controller in emergency shutdown (ESD) and high-integrity pressure protection systems (HIPPS), where a control system failure could result in catastrophic overpressure events. Its redundant architecture ensures that a single CPU fault does not compromise the integrity of the safety function.

In power generation — including thermal, hydroelectric, and combined-cycle plants — the 6ES7412-5HK06-0AB0 manages turbine control, boiler protection, and grid synchronization sequences where millisecond-level response and continuous availability are non-negotiable. Mining and mineral processing operations rely on this CPU for conveyor interlocking, crusher control, and ventilation management in underground environments where EMI from large drives and the physical harshness of dust and vibration would compromise less robust hardware.

In water and wastewater treatment facilities, the redundant CPU ensures continuous operation of pumping stations, chemical dosing systems, and filtration controls — applications where a control outage can affect public health compliance. Metallurgical and steel mill environments, characterized by extreme heat, heavy vibration, and intense electromagnetic fields from arc furnaces and induction heaters, represent one of the most challenging operating conditions for any control hardware; the 6ES7412-5HK06-0AB0’s industrial-grade design and redundant architecture make it a proven choice for rolling mill automation and ladle handling systems. Port and terminal automation systems — crane controls, automated stacking equipment, and vessel loading/unloading sequences — also benefit from the bumpless switchover capability, preventing load drops or positioning errors that could result from a CPU fault during a critical lift cycle.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7412-5HK06-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions within the confirmed support period, we will provide a replacement or repair at no additional cost. Support requests are processed promptly to minimize any impact on your production schedule.

Q2: How is the 6ES7412-5HK06-0AB0 tested before shipment?
Every unit undergoes a full functional test prior to dispatch. This includes power-on verification, communication interface checks, and confirmation of redundancy synchronization capability. Units that do not pass the pre-shipment test are not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 6ES7412-5HK06-0AB0 compatible with existing S7-400H systems and Siemens engineering tools?
Yes. The 6ES7412-5HK06-0AB0 is fully compatible with the SIMATIC S7-400H redundant rack system and is programmed and configured using Siemens STEP 7 (v5.x) or TIA Portal with the appropriate S7-400H configuration package. It is backward-compatible with existing S7-400H hardware configurations, making it a direct replacement for earlier CPU variants in the same product family without requiring rack or wiring modifications.

Q4: Can you support long-term supply and replacement for this module?
Yes. We maintain ongoing stock of the 6ES7412-5HK06-0AB0 and related S7-400H components to support both planned maintenance programs and emergency replacement requirements. For facilities operating aging S7-400H systems where Siemens has transitioned the product to limited availability, we provide a reliable alternative supply channel with consistent quality, pre-shipment testing, and documented support terms coverage. Contact us to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7412-5HK06-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7412-5HK06-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
