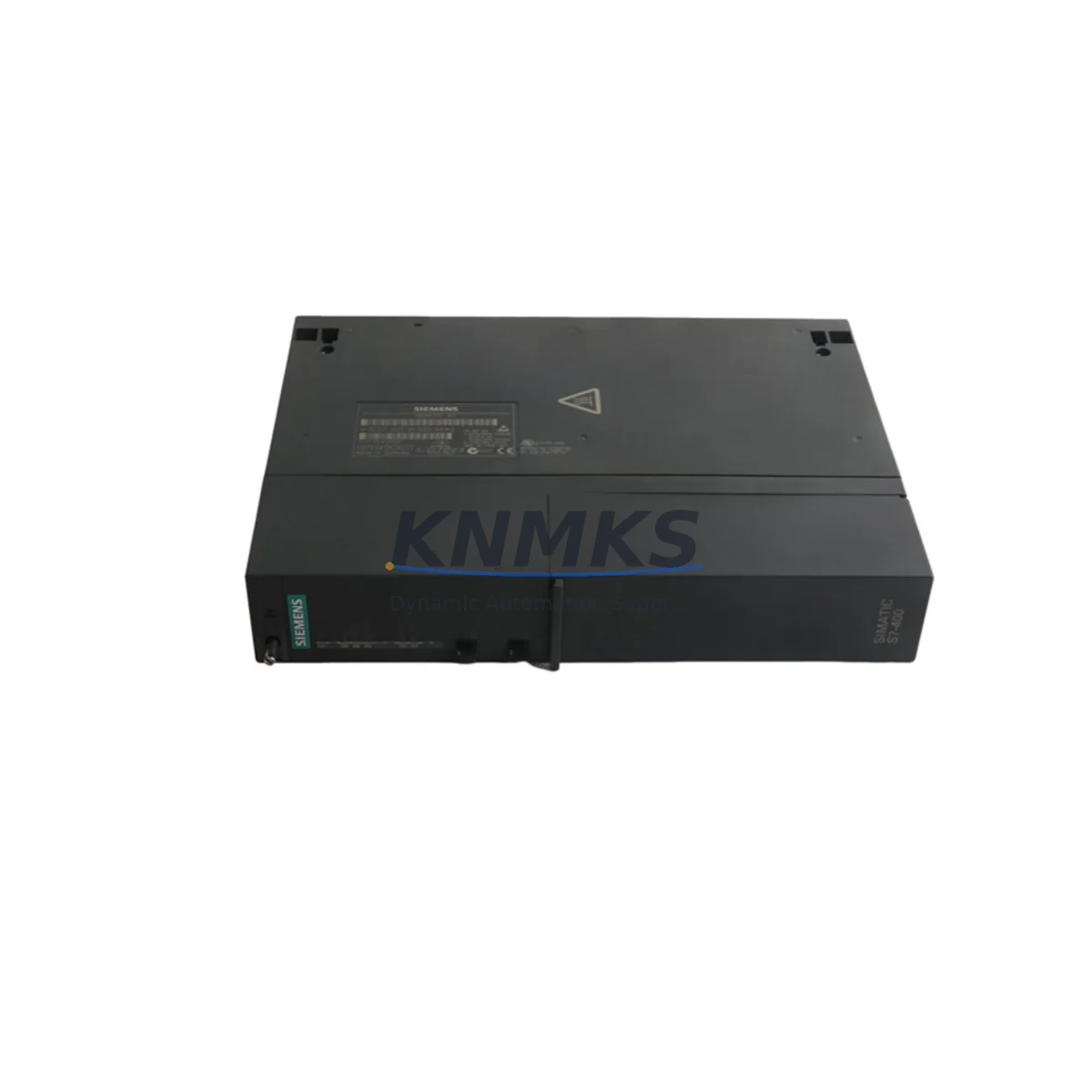

Siemens 6ES7407-0KA02-0AA0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7407-0KA02-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7407-0KA02-0AA0 is the PS 407 10A power supply module designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed high-availability PLC systems in process automation, manufacturing, and critical infrastructure worldwide. As a maintenance-proven spare part, this module is sourced as an original Siemens component, individually tested before shipment, and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned spare parts inventory.

For maintenance engineers managing aging S7-400 control systems, the 6ES7407-0KA02-0AA0 represents a direct, drop-in replacement for failed or degraded power supply modules. Its 10A output capacity supports fully populated S7-400 racks with CPU, communication, and I/O modules operating simultaneously. Procurement engineers sourcing this part for long-term stock can rely on our verified supply chain, pre-shipment functional testing, and documented compatibility confirmation to reduce procurement risk and avoid costly line stoppages.

Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a strategic spare parts buffer for a critical production line, the 6ES7407-0KA02-0AA0 is a high-priority item that should be stocked in any facility running SIMATIC S7-400 infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7407-0KA02-0AA0 in a live S7-400 system, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure stable resumed operation. Maintenance engineers should begin by verifying the incoming AC supply quality — voltage fluctuations or harmonic distortion from variable-frequency drives on the same distribution panel are a common root cause of premature power supply failure. A dedicated AC line filter or isolation transformer upstream of the control cabinet is recommended where supply quality is uncertain.

Beyond the power supply itself, the S7-400 rack backplane should be inspected for signs of oxidation or mechanical damage on the bus connectors. The CPU module — such as the 6ES7414 or 6ES7416 series — should be checked for fault codes logged prior to the failure event, as these may indicate whether the power supply was the primary fault or a downstream consequence. Communication modules such as the CP 443-1 Ethernet or CP 443-5 PROFIBUS cards should be reseated and their status LEDs verified after power restoration.

I/O modules installed in the rack — including digital input/output modules from the SM 421 and SM 422 families — should be inspected for any indication of overvoltage exposure. The 24VDC auxiliary output of the PS 407 powers field sensors and actuators through terminal blocks and marshalling panels; these wiring circuits should be checked for short circuits or ground faults before re-energizing. Signal isolators and surge protection devices on analog input channels are also worth inspecting, as transient events that damage a power supply can simultaneously stress these components.

For facilities using PROFIBUS DP or PROFINET IO field networks, the network termination resistors and cable shielding continuity should be verified as part of the post-replacement commissioning checklist. Finally, fuse elements in the incoming AC distribution — both the main cabinet fuse and any branch circuit protection — should be tested and replaced if there is any doubt about their integrity. Maintaining a small stock of compatible fuses, terminal block bridges, and 24VDC power distribution components alongside the 6ES7407-0KA02-0AA0 spare will significantly reduce total restoration time during an emergency.

Site Replacement Workflow

Replacing the 6ES7407-0KA02-0AA0 on-site is a straightforward procedure for qualified maintenance personnel familiar with the S7-400 platform, but it requires careful sequencing to protect the CPU memory and avoid data loss. Before removing the failed module, confirm whether the CPU is in STOP mode and whether a memory card (MMC) is installed — the SIMATIC S7-400 CPU retains its program on the MMC, so a controlled shutdown followed by module swap and restart will restore the system to its last saved state without reprogramming.

The PS 407 module is located in the leftmost slot of the S7-400 rack. After isolating the incoming AC supply and discharging any residual voltage, the module can be removed by releasing the front panel locking mechanism and sliding it out of the rack. The replacement 6ES7407-0KA02-0AA0 is inserted in the same slot, the AC wiring reconnected to the terminal block on the module front, and the supply re-energized. The module’s green DC5V and DC24V LEDs should illuminate within seconds, followed by the CPU transitioning from STOP to RUN if the restart mode is configured accordingly.

This direct replacement approach eliminates the need for any hardware configuration changes in STEP 7 or TIA Portal, as the PS 407 10A is a standard catalog module with no software parameterization required. For older installations where the 6ES7407-0KA02-0AA0 replaces an earlier revision of the same module, backward compatibility is maintained across all S7-400 rack variants. Documenting the replacement in the site maintenance log — including the module serial number, date, and technician — supports support requests and long-term asset lifecycle tracking.

Spare Parts Support FAQ

Q: Is the 6ES7407-0KA02-0AA0 compatible with all S7-400 rack configurations?
A: Yes. The PS 407 10A module is compatible with all standard S7-400 rack types including UR1, UR2, UR2-H, CR2, and CR3. It occupies the dedicated power supply slot on the left side of the rack and requires no software configuration. Compatibility with your specific rack revision can be confirmed by providing your rack order number prior to shipment.

Q: How is the module tested before shipment?
A: Each 6ES7407-0KA02-0AA0 unit undergoes functional power-on testing to verify DC 5V and DC 24V output voltages, current capacity, and protection circuit operation before packaging. A test report is available upon request. Units are shipped in anti-static packaging with original Siemens labeling and documentation where available.

Q: Can you support long-term or repeat supply of this part?
A: Yes. We maintain ongoing sourcing relationships for SIMATIC S7-400 spare parts and can support scheduled procurement programs, annual maintenance contracts, and emergency stock replenishment. Lead times and availability can be confirmed by contacting our sales team. We recommend customers running critical S7-400 infrastructure maintain at least one PS 407 spare on-site given the age and end-of-sale status of this platform.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover functional defects in the module under normal operating conditions consistent with Siemens specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental parameters. Support requests are processed with return shipping support and replacement or refund at our discretion.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7407-0KA02-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7407-0KA02-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
