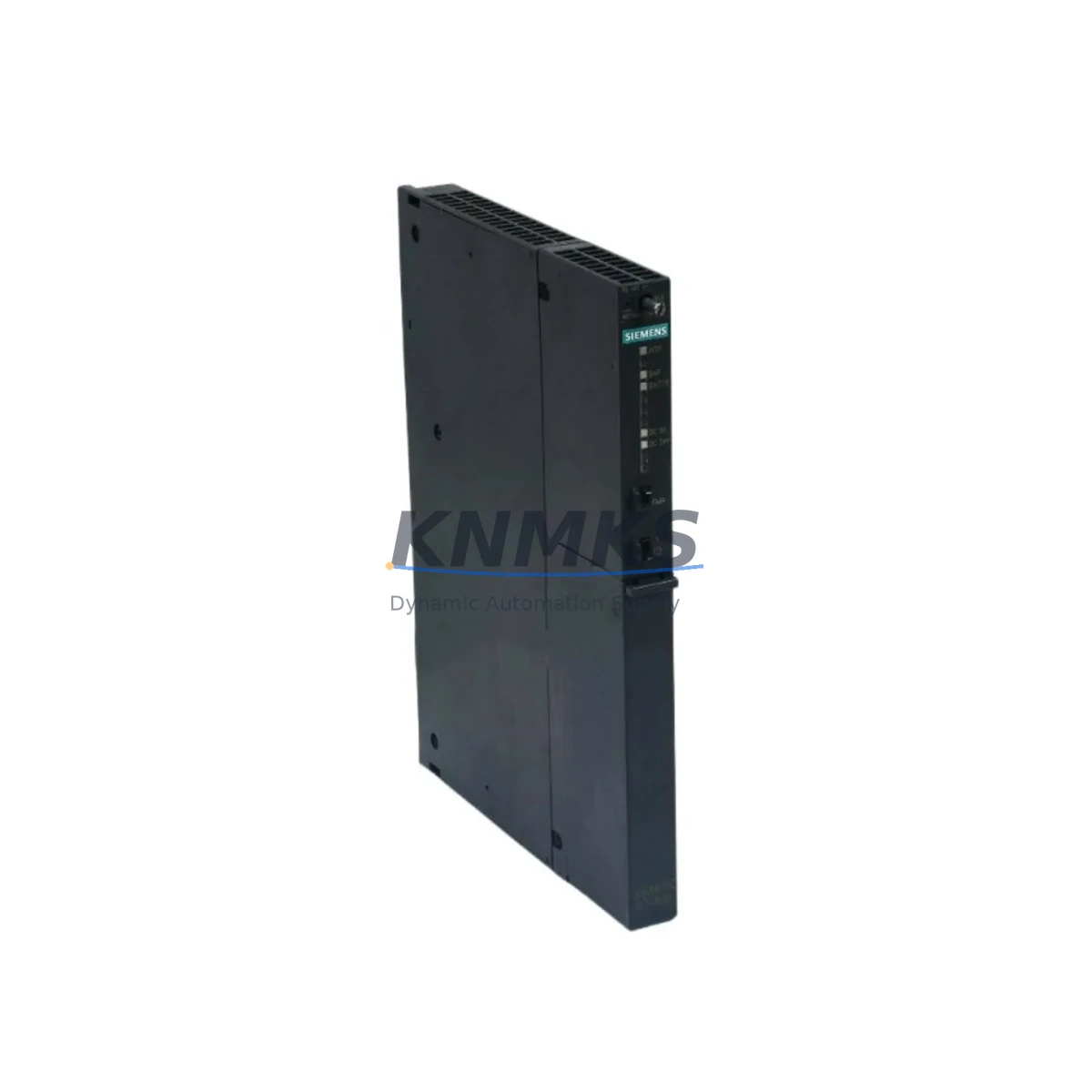

Siemens 6ES7407-0DA01-0AA0 Fail-Safe PS407 4A Power Supply

Overview

Siemens 6ES7407-0DA01-0AA0 Fail-Safe PS407 4A Power Supply: Fault-Protected Power for Critical Industrial Control

The Siemens 6ES7407-0DA01-0AA0 is a 4A rated power supply module from the PS407 series, engineered specifically for the SIMATIC S7-400 programmable logic controller platform. Designed to deliver stable, regulated 24 VDC output to the S7-400 central rack, this module is a foundational component in safety-critical control architectures where uninterrupted power delivery is non-negotiable. Whether deployed in continuous process plants, high-voltage switchgear cabinets, or safety instrumented systems (SIS), the 6ES7407-0DA01-0AA0 provides the electrical backbone that keeps control loops alive under the most demanding field conditions.

In industrial environments where electromagnetic interference, voltage transients, load fluctuations, and ambient temperature extremes are everyday realities, power supply integrity is the first line of defense against unplanned shutdowns. The PS407 4A module incorporates internal surge suppression and short-circuit protection, ensuring that downstream CPU modules — such as the 6ES7412-2XJ05-0AB0 CPU 412-2 or the 6ES7414-3XM05-0AB0 CPU 414-3 — continue to execute control programs without interruption even when the incoming AC supply experiences momentary disturbances. This fail-safe power architecture is essential in applications where a control interruption could trigger a process safety event or cause costly production loss.

The module accepts a wide-range AC input (120/230 VAC, 50/60 Hz) and delivers a tightly regulated 24 VDC output at up to 4A continuous load. Its compact S7-400 rack-mount form factor integrates directly into the CR3 or UR2 central racks alongside communication processors such as the 6GK7443-1EX30-0XE0 CP 443-1 for PROFINET connectivity, or the 6GK7443-5DX05-0XE0 CP 443-5 Extended for PROFIBUS DP master/slave configurations. This tight integration within the S7-400 ecosystem means the power supply is not an isolated component — it is part of a coordinated, redundancy-capable control architecture.

For installations in hazardous or harsh environments — including petrochemical plants, offshore platforms, mining operations, and metallurgical facilities — the 6ES7407-0DA01-0AA0 is rated for operation across a wide temperature range and is designed to withstand the vibration and shock levels typical of heavy industrial machinery. When paired with properly rated 6ES7400-1TA01-0AA0 S7-400 rack assemblies and appropriate cabinet thermal management solutions, the module maintains stable output even in enclosures where ambient temperatures approach the upper operating limit. This thermal resilience directly reduces the risk of cabinet overheating-induced control failures — a leading cause of unplanned downtime in process industries.

Signal integrity across the control system depends on a clean, stable power rail. Voltage sag or ripple on the 24 VDC bus can cause signal drift in analog input modules such as the 6ES7431-7QH00-0AB0 SM 431, leading to false process readings and potential interlock misoperation. The PS407 4A module’s regulated output minimizes this risk, supporting accurate measurement and reliable interlock execution across the entire S7-400 I/O subsystem. In safety instrumented systems operating under IEC 61511 requirements, power supply stability is a documented design requirement — and the 6ES7407-0DA01-0AA0 is a proven solution for meeting that requirement in Siemens-based SIS architectures.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including output voltage accuracy check, load regulation test, and visual inspection for physical integrity. Units are sourced from authorized distribution channels and stored under controlled conditions to preserve long-term reliability. A support terms confirmed by quotation covers all supplied modules against manufacturing defects and functional failure under normal operating conditions, with direct technical support available for compatibility and installation queries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-400 control cabinet is built around coordinated layers of protection — and the 6ES7407-0DA01-0AA0 sits at the center of that strategy as the primary power source for the entire rack. In a typical heavy-industry control cabinet, the PS407 4A module feeds regulated 24 VDC to the CPU and I/O backplane, while upstream AC protection is provided by appropriately rated circuit breakers and surge protective devices (SPDs) installed at the cabinet entry point. This layered approach ensures that transient overvoltages from lightning strikes or switching operations on the plant power network are arrested before they can reach the sensitive electronics of the S7-400 system.

Within the same cabinet, the 6ES7400-1TA01-0AA0 UR2 universal rack provides the physical and electrical bus infrastructure that connects the PS407 module to CPU, communication, and I/O modules. For applications requiring redundant power — such as continuous chemical reactors or critical water treatment dosing systems — a second PS407 module can be installed in a redundant configuration, with automatic switchover ensuring zero-interruption power delivery if the primary supply fails. This redundancy architecture is a standard design practice in SIL 2 and SIL 3 safety loops where power supply failure must not result in a dangerous state.

Communication integrity is equally critical. The 6GK7443-1EX30-0XE0 CP 443-1 PROFINET processor installed in the same rack relies on the stable 24 VDC bus maintained by the PS407 to sustain real-time PROFINET IO communication with distributed field devices. Any power rail instability would manifest as communication timeouts, watchdog trips, or CPU STOP events — all of which represent unacceptable risks in continuous production environments. The PS407 4A module’s tight output regulation and fast transient response directly protect the communication layer from power-induced disruptions.

For digital and analog I/O modules such as the 6ES7421-1BL01-0AA0 SM 421 digital input module and the 6ES7431-7QH00-0AB0 SM 431 analog input module, a stable power supply is the prerequisite for accurate signal acquisition. Voltage ripple or sag on the 24 VDC bus introduces noise into analog measurement chains, potentially causing false readings in temperature, pressure, or flow control loops. The PS407 4A module’s regulated output ensures that these I/O modules operate within their specified supply voltage tolerance, maintaining measurement accuracy and interlock reliability throughout the system’s operational life.

Critical Industrial Safety Applications

The Siemens 6ES7407-0DA01-0AA0 is deployed across a wide spectrum of critical industrial applications where control system reliability directly impacts process safety and production continuity.

In petrochemical and refinery operations, S7-400 systems equipped with PS407 power supplies manage burner management systems (BMS), emergency shutdown (ESD) logic, and compressor anti-surge control. The fail-safe power architecture ensures that safety interlocks remain energized and responsive even during plant-wide power disturbances, preventing dangerous process excursions.

In electric power generation and substation automation, the PS407 4A module supports S7-400 controllers managing turbine governor control, transformer protection relay coordination, and grid synchronization logic. The module’s wide-range AC input accommodates the voltage variations common in utility environments, while its surge protection prevents damage from switching transients on the station service bus.

In mining and mineral processing, where high-power motor drives, conveyor systems, and crushing equipment generate severe electromagnetic interference, the PS407 module’s EMC-compliant design ensures that the S7-400 control system maintains reliable operation despite the hostile electrical environment. Unplanned shutdowns in mining operations carry significant safety and financial consequences, making power supply reliability a critical design parameter.

In water and wastewater treatment facilities, the 6ES7407-0DA01-0AA0 supports S7-400 controllers managing dosing pump sequencing, UV disinfection control, and SCADA communication gateways. Continuous operation is mandated by regulatory requirements, and the PS407’s robust design supports the 24/7 duty cycles typical of municipal water infrastructure.

In metallurgical and steel production environments — characterized by extreme heat, vibration, and electromagnetic noise from arc furnaces and rolling mill drives — the PS407 4A module’s industrial-grade construction and wide operating temperature range make it a reliable choice for S7-400 systems controlling furnace temperature regulation, rolling speed control, and cooling water management.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7407-0DA01-0AA0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering functional failure and manufacturing defects under normal operating conditions. Support requests are processed directly with KNMKS technical support, with replacement or repair turnaround coordinated to minimize your downtime. Contact [email protected] for support terms registration and claim procedures.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7407-0DA01-0AA0 unit undergoes a pre-shipment inspection protocol that includes output voltage accuracy verification at rated load, load regulation measurement, visual inspection for physical damage, and connector integrity check. Units that do not meet specification are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-400 rack configurations?
The 6ES7407-0DA01-0AA0 is designed for installation in Siemens SIMATIC S7-400 central racks, including the UR1, UR2, CR2, and CR3 rack variants. It is compatible with all standard S7-400 CPU modules and I/O expansion configurations. For specific compatibility questions regarding your existing rack configuration or CPU firmware version, contact KNMKS technical support before ordering.

Q4: Can KNMKS support long-term supply and replacement needs for this module?
Yes. KNMKS maintains stock of the 6ES7407-0DA01-0AA0 and related S7-400 power supply variants to support both immediate replacement needs and planned maintenance programs. For facilities managing aging S7-400 installations where original supply chains have been discontinued, KNMKS provides a reliable source of verified, tested replacement modules with documented provenance. Contact our team to discuss volume pricing, scheduled delivery, and long-term supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7407-0DA01-0AA0
SIMATIC Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Siemens 6ES7407-0DA01-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
