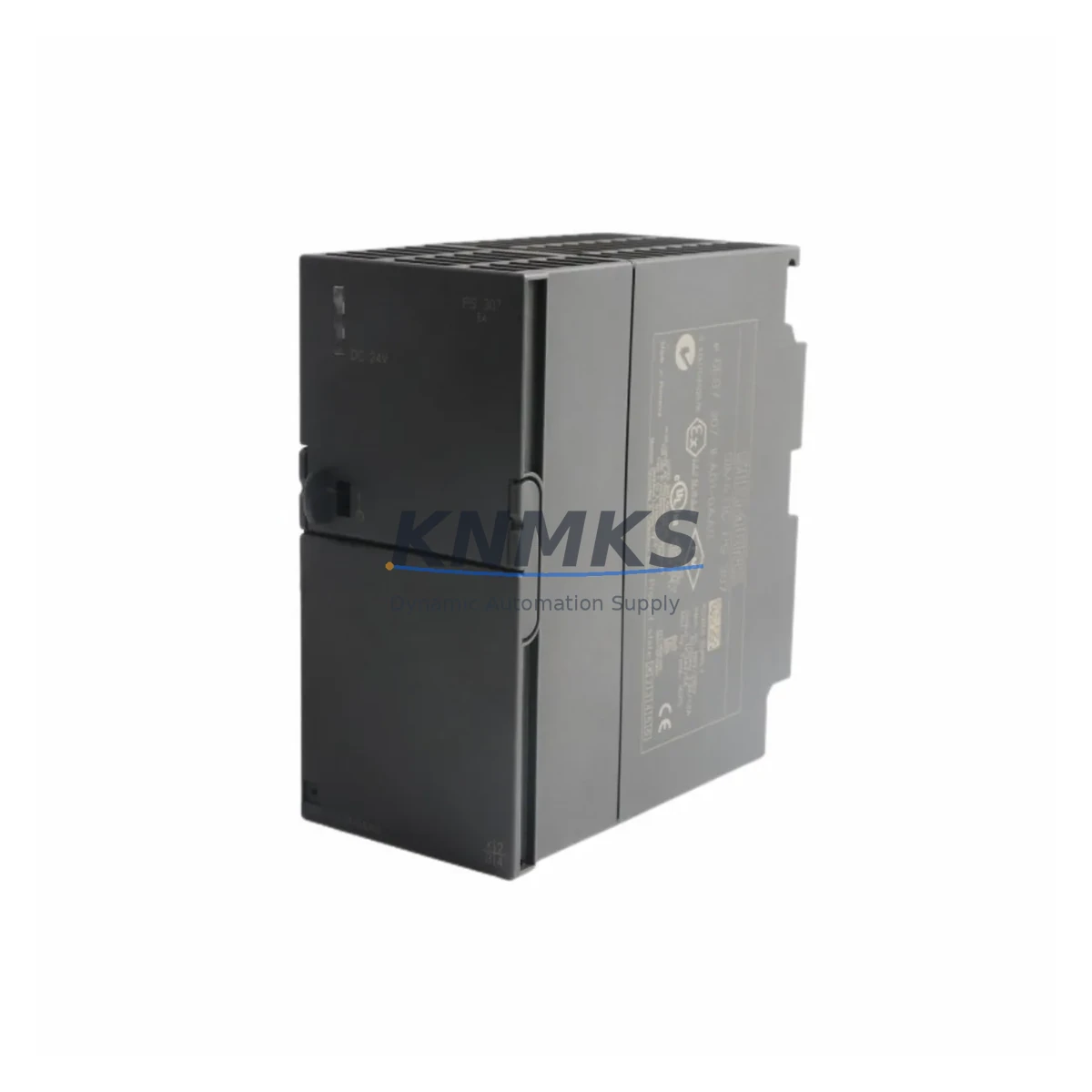

Siemens 6ES7307-1EA01-0AA0 PS-307 5A Fail-Safe Power Supply

Overview

Siemens 6ES7307-1EA01-0AA0 PS-307 5A Fail-Safe Power Supply: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7307-1EA01-0AA0 is a PS-307 series 5A regulated 24VDC power supply module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to operate continuously in demanding industrial environments, this module delivers stable, clean DC power to control racks, I/O modules, and field devices where power interruption or voltage instability can trigger unsafe process states, equipment damage, or unplanned production shutdowns.

In critical industrial control cabinets — whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or continuous discrete manufacturing — the power supply module is the foundational layer of system reliability. The 6ES7307-1EA01-0AA0 is built to sustain that foundation under conditions that challenge lesser components: high electromagnetic interference from variable frequency drives and contactors, voltage surges from inductive load switching, thermal stress from enclosed cabinet environments, mechanical vibration from heavy machinery, and humidity or particulate ingress in non-climate-controlled installations.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including output voltage accuracy, ripple measurement, and overload response testing, ensuring that what arrives on-site is ready for immediate commissioning without field rework or uncertainty.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S7-300 control system is never the product of a single component — it is the result of a carefully coordinated protection architecture across power, logic, I/O, and communication layers. The 6ES7307-1EA01-0AA0 anchors the power layer, but its effectiveness is amplified when paired with complementary modules that address adjacent failure modes.

In high-availability control cabinets, the CPU module — such as the Siemens 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP) — depends on the power supply to maintain uninterrupted program execution and retain process data across power events. Any ripple, sag, or transient that reaches the CPU backplane can corrupt scan cycles, trigger watchdog faults, or force a cold restart that halts the entire controlled process. The 6ES7307-1EA01-0AA0’s regulated output and internal transient suppression prevent these events from propagating upstream.

On the I/O side, digital output modules such as the 6ES7322-1BL00-0AA0 (SM 322 DO 32×24VDC) draw directly from the 24VDC bus. In applications with dense output loading — solenoid valves, relay coils, indicator lamps — current demand can spike during simultaneous activation. The 5A continuous rating of the PS-307 provides adequate headroom for these transient load peaks without voltage collapse that could cause output modules to drop states unexpectedly.

For analog signal integrity, modules like the 6ES7331-7KF02-0AB0 (SM 331 AI 8×13-bit) are particularly sensitive to power quality. Signal drift, offset errors, and noise on analog inputs are frequently traceable to power supply instability rather than sensor faults. A clean, well-regulated 24VDC source is the first line of defense for analog measurement accuracy in process control loops.

In cabinets where PROFIBUS DP communication is critical — connecting distributed I/O, drives, or safety devices — the 6ES7972-0BB52-0XA0 PROFIBUS connector and associated DP network infrastructure rely on stable backplane power to maintain cycle-consistent communication. Power-related CPU resets can cause DP master re-initialization sequences that temporarily orphan field devices, creating dangerous transient states in interlock-dependent processes.

Where redundant power is required for safety-critical applications, a secondary 6ES7307-1EA01-0AA0 unit operating in parallel with a diode decoupling module provides seamless power continuity during primary supply maintenance or failure — a configuration commonly specified in SIL-rated interlock systems and emergency shutdown panels.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where a control interruption can trigger flare events, pressure relief activations, or emergency shutdowns, the PS-307 5A module provides the stable 24VDC foundation for S7-300-based safety interlock systems. Its short-circuit protection and auto-restart capability ensure that transient faults do not cascade into extended process outages.

Power Generation and Substation Automation: Electrical switchgear control panels and generator management systems demand power supplies that remain stable across wide input voltage variations and resist conducted interference from high-current switching. The 6ES7307-1EA01-0AA0’s auto-ranging AC input and regulated DC output make it suitable for both 120VAC and 230VAC grid environments without hardware reconfiguration.

Mining and Mineral Processing: Underground and surface mining operations expose control equipment to vibration, dust, and humidity that accelerate component degradation. The PS-307’s robust construction and wide operating temperature range support reliable operation in conveyor control, crusher automation, and ventilation management systems where unplanned downtime carries significant safety and productivity consequences.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate continuously, with PLC-controlled dosing, pumping, and filtration systems that must maintain precise control under varying load conditions. The 6ES7307-1EA01-0AA0 supports these applications by delivering consistent power to S7-300 racks managing multi-pump sequencing, chemical feed control, and SCADA communication interfaces.

Metallurgical and Steel Production: Rolling mills, furnace control systems, and ladle handling equipment generate intense electromagnetic interference from high-power drives and induction heating systems. The EMC-compliant design of the PS-307 series ensures that control logic remains unaffected by the conducted and radiated noise inherent in these environments.

Port and Marine Logistics: Crane control systems, ship-to-shore equipment, and automated terminal operations require power supplies that tolerate the mechanical shock and vibration of heavy-lift operations. The DIN-rail mounted 6ES7307-1EA01-0AA0 integrates directly into S7-300 control racks deployed in crane operator cabins and port automation panels.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7307-1EA01-0AA0?
The support terms confirmed by quotation cover manufacturing defects, component failures, and functional non-conformance under normal operating conditions as specified in the Siemens datasheet. Units that fail within the confirmed support period are replaced or repaired at no charge. The confirmed support period begins from the confirmed shipment date and applies to all units supplied by KNMKS.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7307-1EA01-0AA0 unit undergoes functional verification prior to dispatch, including output voltage accuracy check at rated load, ripple and noise measurement, overload protection response confirmation, and visual inspection for physical integrity. This process ensures that units arrive on-site in verified working condition, reducing commissioning risk and field troubleshooting time.

Q3: Is this module compatible with all S7-300 CPU and I/O configurations?
The 6ES7307-1EA01-0AA0 is designed as the standard power supply module for the SIMATIC S7-300 platform and is compatible with all S7-300 profile rail configurations, CPU modules, and signal modules that draw from the 24VDC backplane bus. It is not compatible with S7-400 or S7-1500 platforms, which use different power supply form factors and voltage architectures.

Q4: Can KNMKS support long-term supply continuity for this part number?
Yes. KNMKS maintains stock of the 6ES7307-1EA01-0AA0 and actively manages inventory to support both immediate replacement needs and planned maintenance programs. For customers with scheduled maintenance windows or multi-site deployments requiring consistent supply, we recommend contacting our sales team to discuss volume reservation and lead-time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7307-1EA01-0AA0
SIMATIC Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Siemens 6ES7307-1EA01-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
