Siemens 6ES7307-1KA00-0AA0 Fail-Safe PS307 Power Supply

Overview

Siemens 6ES7307-1KA00-0AA0 Fail-Safe PS307 Power Supply: Fault-Protected Power for Critical Industrial Control

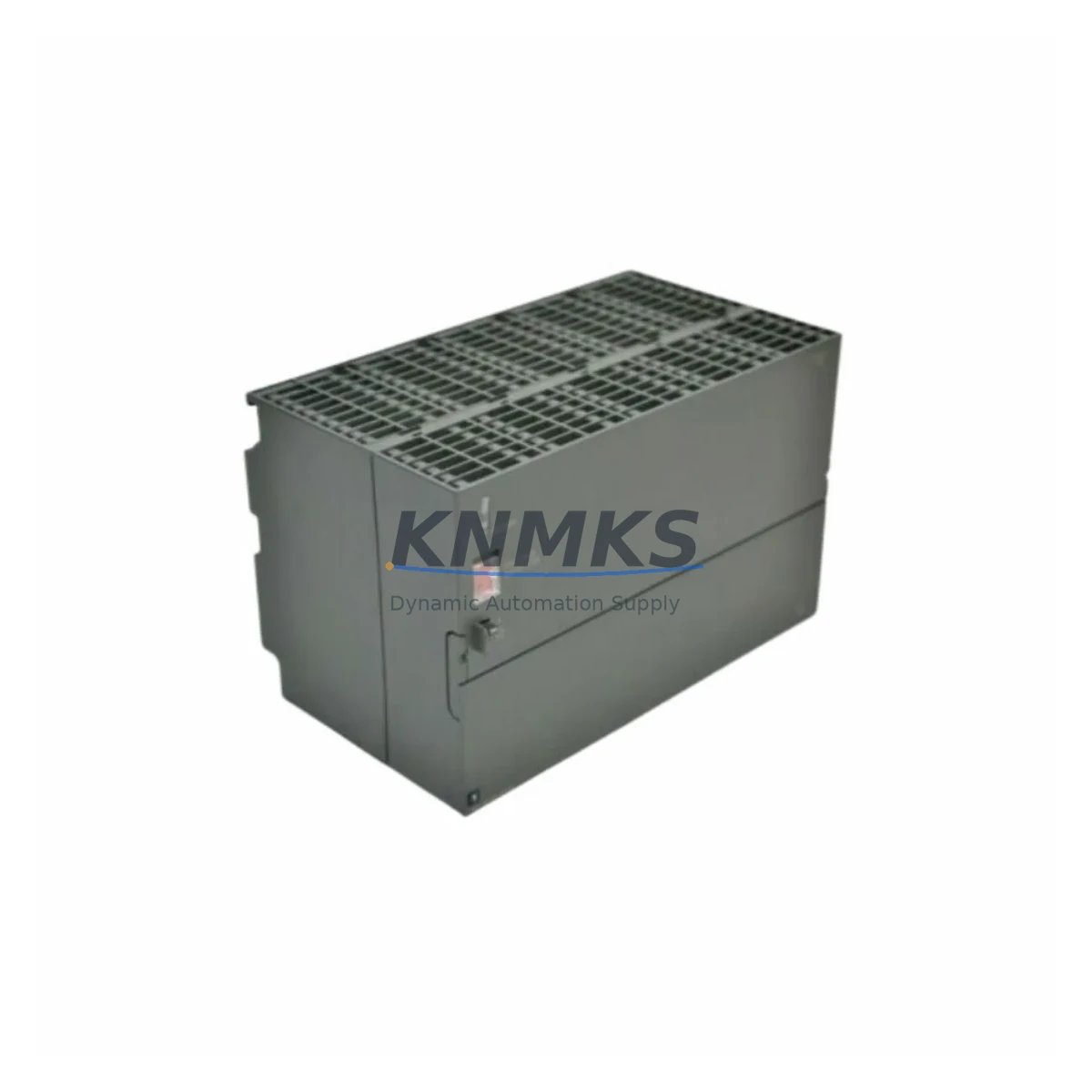

The Siemens 6ES7307-1KA00-0AA0 is a PS307 series 10A, 24VDC regulated power supply module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to deliver uninterrupted, stable DC power in the most demanding industrial environments, this module is a cornerstone of fail-safe control cabinet architecture across continuous process industries, heavy manufacturing, and safety-critical automation systems.

In industrial facilities where unplanned downtime translates directly into production loss, equipment damage, or personnel risk, the integrity of the 24VDC power rail is non-negotiable. The 6ES7307-1KA00-0AA0 addresses this requirement with a robust power conversion design that maintains output stability under fluctuating AC input conditions (120/230VAC selectable), load transients, and harsh electromagnetic environments. Its built-in short-circuit and overload protection mechanisms ensure that downstream S7-300 CPU modules, signal modules such as SM321 digital input cards and SM322 digital output cards, and field instrumentation remain protected from power anomalies that could trigger spurious trips or uncontrolled shutdowns.

For control engineers specifying power architecture in safety instrumented systems (SIS) or high-availability control loops, the PS307 10A module provides the current headroom necessary to support fully populated S7-300 racks — including CPU 315-2 DP or CPU 317-2 PN/DP processors, multiple I/O expansion modules, and communication processors such as the CP 343-1 Ethernet module — without voltage sag or thermal derating under sustained load. This is particularly critical in applications where the PLC governs interlock logic, emergency shutdown sequences, or motor control center (MCC) coordination.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The 6ES7307-1KA00-0AA0 functions as the power foundation of the S7-300 rack, but its effectiveness in protecting the overall control loop depends on the quality of the surrounding architecture. In high-risk or continuous-process environments, engineers typically pair this PS307 module with a Siemens 6ES7315-2EH14-0AB0 CPU 315-2 PN/DP as the central processing unit, leveraging PROFIBUS DP or PROFINET IO for deterministic field communication with distributed I/O stations.

To guard against voltage surges and transient spikes on the AC supply side — common in facilities with large motor drives, welding equipment, or generator-backed power systems — a DEHN or Phoenix Contact surge protection device (SPD) rated for Type 2 protection is recommended upstream of the PS307 input terminals. On the DC output side, where the 24VDC rail feeds safety relays, solenoid valves, and field transmitters, a Siemens SITOP PSE200U selective current limiting module provides zone-level fault isolation, preventing a single field short-circuit from collapsing the entire 24VDC bus and triggering a full system shutdown.

In cabinets with high thermal loads — particularly those housing variable frequency drives (VFDs), soft starters, or multiple PLC racks — thermal management is a critical reliability factor. Pairing the PS307 with a Siemens SINAMICS G120 or equivalent drive module in a shared cabinet requires careful attention to heat dissipation and airflow zoning. Cabinet cooling units or filtered fan assemblies should be sized to maintain internal ambient temperature below the PS307’s 60°C operating limit. Additionally, for applications requiring redundant power or battery-backed operation during grid interruptions, a Siemens SITOP UPS1600 DC UPS module can be integrated on the 24VDC rail to provide seamless ride-through during momentary power failures, protecting the CPU’s active program execution and preventing data loss in retentive memory areas.

Communication integrity is equally important in safety-critical loops. Where the S7-300 system communicates over PROFIBUS DP with remote I/O stations or drives, the Siemens CP 342-5 PROFIBUS communication processor provides dedicated bus management, offloading communication tasks from the CPU and ensuring deterministic cycle times even under high network load. This architecture is particularly valuable in interlock-heavy applications where communication latency could delay a safety response.

Critical Industrial Safety Applications

The 6ES7307-1KA00-0AA0 PS307 10A module is deployed across a wide range of safety-critical and continuous-process industrial environments where power supply failure is not an acceptable operational risk:

Petrochemical and Refinery Plants: In hazardous area control rooms and marshalling cabinets, the PS307 powers S7-300 PLCs governing burner management systems (BMS), emergency shutdown (ESD) logic, and pressure relief interlock sequences. Stable 24VDC output is essential to prevent spurious trips that could trigger costly flare events or unplanned unit shutdowns.

Electric Power Generation and Substation Automation: In thermal power plants and hydroelectric facilities, S7-300 systems equipped with PS307 power supplies manage turbine control, excitation systems, and protection relay coordination. The module’s EMI resistance is critical in environments with high-voltage switching transients and ground potential rise events.

Mining and Mineral Processing: Conveyor control systems, crusher interlocks, and ventilation safety circuits in underground and surface mining operations rely on robust 24VDC power rails. The PS307’s overload protection prevents power rail collapse during motor start inrush events on large belt conveyor drives.

Water and Wastewater Treatment: SCADA-integrated S7-300 systems controlling pump stations, dosing systems, and UV disinfection units require continuous, clean DC power. The PS307 supports 24/7 unattended operation in humid, chemically aggressive environments typical of water treatment facilities.

Metallurgy and Steel Production: In rolling mill control systems and electric arc furnace (EAF) automation, the PS307 must withstand extreme electromagnetic interference from high-current bus bars and thyristor drives. Its compliance with industrial EMC standards ensures signal integrity for connected I/O modules and field sensors.

Port and Maritime Automation: Ship-to-shore crane control systems, automated stacking cranes (ASC), and vessel loading arm automation use S7-300 PLCs in salt-air, high-vibration environments. The PS307’s wide operating temperature range and robust construction support reliable operation in these mechanically demanding applications.

Safety and Quality FAQ

Q1: What support terms and pre-shipment testing does the 6ES7307-1KA00-0AA0 carry?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. Prior to dispatch, each PS307 module undergoes functional power-on testing to verify output voltage regulation, current capacity, and protection circuit operation. Test records are available upon request for quality-critical procurement processes.

Q2: Is this module compatible with all S7-300 CPU and I/O configurations?
Yes. The 6ES7307-1KA00-0AA0 is the standard 10A power supply for the SIMATIC S7-300 platform and is compatible with all S7-300 profile rails, CPU modules (including CPU 312, 314, 315, 317, and 319 variants), digital and analog signal modules, function modules (FM), and communication processors (CP). It provides sufficient current for fully populated racks in demanding multi-module configurations.

Q3: How does this power supply protect against field-side faults and surges?
The PS307 incorporates internal short-circuit and overload protection on the 24VDC output, preventing sustained fault currents from damaging connected modules or field devices. For upstream AC surge protection, we recommend pairing with a Type 2 SPD. For DC-side zone isolation, a SITOP selective current limiting module provides additional fault containment. These measures collectively protect the control system from both field-originated and supply-originated disturbances.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
We maintain dedicated inventory of the 6ES7307-1KA00-0AA0 to support planned maintenance schedules, emergency replacements, and capital project procurement. For facilities operating S7-300 systems in extended lifecycle or brownfield environments, we recommend establishing a consignment or blanket order arrangement to ensure spare availability without lead-time risk. Contact our technical sales team to discuss long-term supply agreements.
