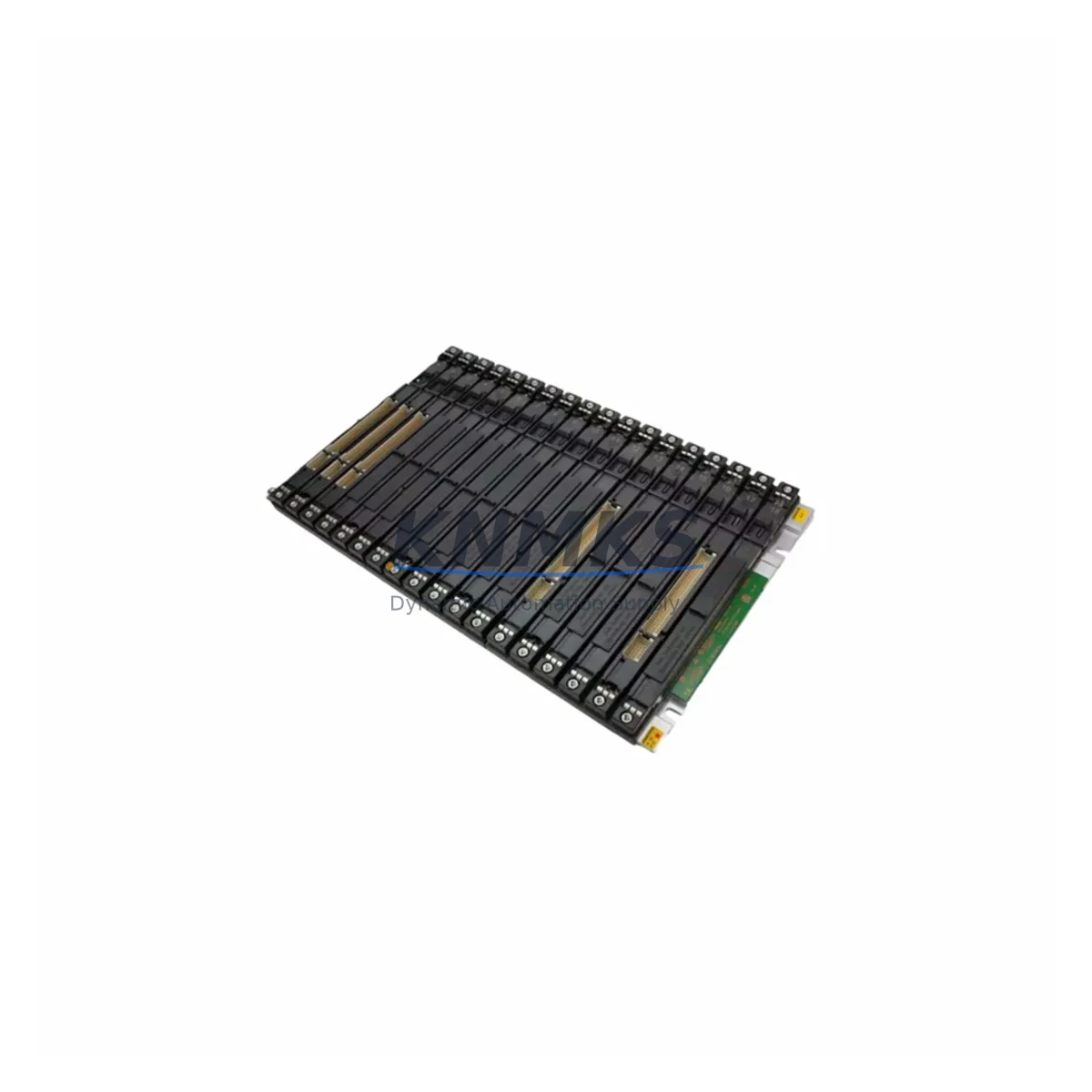

Siemens 6ES7400-1TA11-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7400-1TA11-0AA0 is a rack interface module designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed process automation architectures in heavy industry, power generation, chemical processing, and automotive manufacturing. As legacy S7-400 systems approach end-of-support milestones, maintaining a verified stock of the 6ES7400-1TA11-0AA0 is a critical element of any plant’s spare parts strategy. This module governs the communication backbone between the central processing unit and the expansion rack, making it a single point of failure that demands immediate replacement capability when degradation or fault conditions are detected.

KNMKS supplies the 6ES7400-1TA11-0AA0 as an original Siemens spare part, pre-tested prior to shipment, with a support terms confirmed by quotation and multi-region stock availability to support both emergency callouts and scheduled annual maintenance windows. Each unit is verified for firmware compatibility and physical integrity before dispatch, ensuring that your maintenance team can install and commission the replacement without additional validation delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7400-1TA11-0AA0 rack interface module is flagged during a control cabinet inspection or triggers a diagnostic fault in STEP 7 or TIA Portal, the replacement workflow should extend beyond the module itself. Maintenance engineers should simultaneously inspect the 6ES7400-1JA11-0AA0 central processing unit for any co-occurring CPU faults, as rack communication errors frequently mask underlying processor issues. The 6ES7307-1EA80-0AA0 PS 307 power supply module should be load-tested to confirm stable 24 V DC output, since voltage sag on the backplane bus is a common root cause of intermittent interface module faults.

I/O integrity checks should cover the 6ES7421-1BL00-0AA0 digital input module and associated 6ES7422-1BL00-0AA0 digital output module installed in the expansion rack served by this interface. Signal continuity across the rack bus connector and the inter-rack cable assembly — typically a 6ES7468-1BB50-0AA0 IM 468 connecting cable — must be verified before the new interface module is powered up. Corroded or mechanically stressed cable connectors are a frequent cause of repeat faults after module replacement.

For sites running PROFIBUS DP field devices, the 6GK1500-0FC10 PROFIBUS connector termination resistors and bus topology should be audited during the same maintenance window. Relay output modules and signal isolators in the same cabinet should be checked for contact wear and insulation resistance, particularly in high-cycle applications. Maintaining a cabinet-level spare kit that includes the 6ES7400-1TA11-0AA0 alongside a matched power supply, at least one I/O module per type, and a spare inter-rack cable reduces mean time to repair (MTTR) from hours to under 30 minutes for most S7-400 expansion rack faults.

Site Replacement Workflow

Step 1 — Fault Isolation: Use STEP 7 HW Config or TIA Portal diagnostics to confirm the 6ES7400-1TA11-0AA0 as the fault source. Document the slot position, rack number, and any active alarms before powering down the affected rack segment.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Disconnect the inter-rack cable from both the sending IM (in the central rack) and the receiving IM (6ES7400-1TA11-0AA0 in the expansion rack) before removing the module. This prevents bus contention errors on the remaining active racks.

Step 3 — Module Swap: Insert the replacement 6ES7400-1TA11-0AA0 into the correct slot. The module is keyed and tool-free; confirm the front connector locks positively. Reconnect the inter-rack cable and verify cable seating at both ends.

Step 4 — Power-Up and Diagnostics: Restore power to the expansion rack. Monitor the module’s LED status indicators — RUN (green) and BUS FAULT (red) — during startup. A clean startup shows RUN steady green with no BUS FAULT indication. Confirm all I/O modules in the expansion rack return to active status in the diagnostics view.

Step 5 — Functional Verification: Execute a controlled I/O test sequence to confirm signal integrity across all channels in the expansion rack. Log the replacement in your maintenance management system (CMMS) and update the spare parts inventory to trigger reorder of the consumed 6ES7400-1TA11-0AA0 unit.

This workflow is compatible with both hot-standby and standard S7-400 configurations. For redundant systems, consult the Siemens S7-400H system manual for the correct switchover procedure before initiating rack maintenance.

Spare Parts Support FAQ

Q1: Is the 6ES7400-1TA11-0AA0 compatible with all S7-400 expansion rack configurations?
The 6ES7400-1TA11-0AA0 is designed for use as the receive interface module (IM) in S7-400 expansion racks (ER1, ER2) and is paired with a corresponding send IM in the central rack. Compatibility depends on the specific IM pairing defined in your HW Config. Verify the send IM part number in your existing configuration before ordering to confirm the correct IM pair is maintained.

Q2: What pre-shipment testing does KNMKS perform on the 6ES7400-1TA11-0AA0?
Each unit undergoes functional power-on testing, backplane bus communication verification, and physical inspection for connector integrity and housing condition. Units that do not pass all test criteria are not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: How should the 6ES7400-1TA11-0AA0 be stored as a long-term spare?
Store in original anti-static packaging in a dry environment between -40 °C and +70 °C with relative humidity below 95% non-condensing. Avoid storage near strong electromagnetic fields. Inspect the module annually for connector oxidation and replace anti-static packaging if damaged. KNMKS recommends a maximum storage period of five years before functional re-verification.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions as specified in the Siemens S7-400 system manual. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental parameters. KNMKS provides direct RMA support with replacement dispatch typically within 48 hours of fault confirmation.
