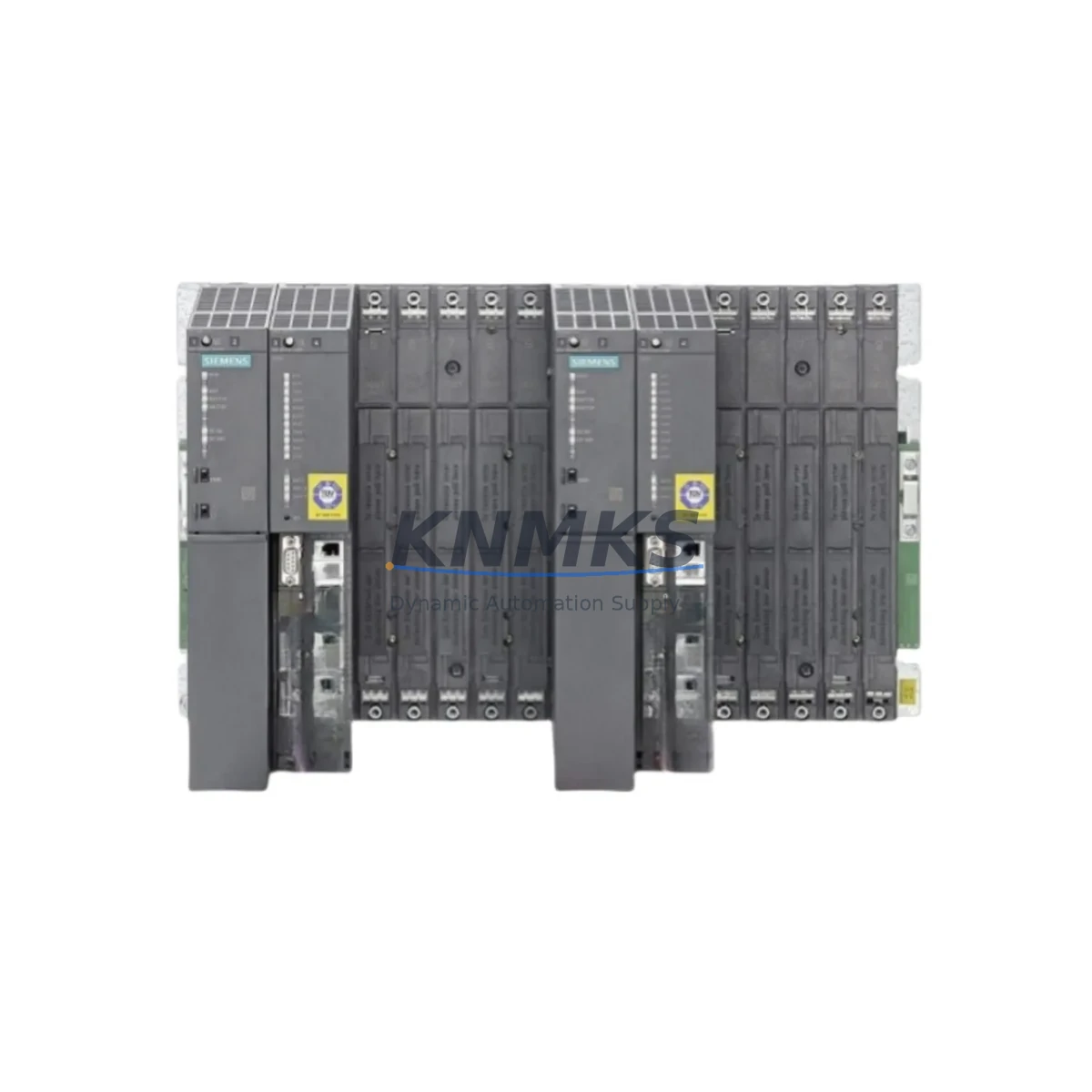

Siemens 6ES7400-0HR01-4AB0 Migration-Ready Power Supply

Overview

Siemens 6ES7400-0HR01-4AB0 Migration-Ready Power Supply for Legacy Control Systems

The Siemens 6ES7400-0HR01-4AB0 is a high-reliability power supply module engineered for the SIMATIC S7-400 programmable logic controller platform. As legacy S7-400 installations approach end-of-life or require capacity expansion, this module serves as a verified drop-in replacement and retrofit solution for aging control cabinets across process automation, manufacturing, and infrastructure sectors. Whether you are replacing a failed PS407 unit, upgrading an existing rack configuration, or migrating from an earlier S7-400 power supply variant, the 6ES7400-0HR01-4AB0 delivers the electrical stability and backplane compatibility required to maintain continuous plant operation.

Industrial facilities running SIMATIC S7-400 systems often face the challenge of sourcing discontinued or hard-to-find power supply modules. The 6ES7400-0HR01-4AB0 addresses this directly — it is stocked and available for immediate dispatch, with each unit undergoing pre-shipment functional testing to confirm output voltage regulation, inrush current behavior, and backplane interface integrity before leaving the warehouse.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7400-0HR01-4AB0 into an existing S7-400 control system requires a structured pre-retrofit assessment. Begin by auditing the total power consumption of all modules currently installed in the rack — including CPU modules such as the 6ES7412 or 6ES7416 series, digital and analog I/O modules, and any installed communication processors. The power supply must have sufficient headroom above the combined load to prevent nuisance shutdowns during peak demand cycles.

Terminal wiring on the AC input side should be inspected and re-torqued to manufacturer specification during the replacement procedure. If the existing installation uses a 6ES7405 or 6ES7407 series power supply, note that the terminal block layout and mounting footprint are consistent with the 6ES7400-0HR01-4AB0, simplifying the physical swap. However, always cross-reference the rated output current to ensure the replacement unit meets or exceeds the original specification.

For systems that include CP 443-1 or CP 443-5 communication modules for PROFINET or PROFIBUS network connectivity, no changes to the communication configuration are required following a power supply replacement — the network topology and station addresses remain intact. Similarly, if the rack hosts a 6ES7460 or 6ES7461 send/receive module for inter-rack communication, the inter-rack fiber or copper link does not need to be reconfigured.

Where the control cabinet also contains an OP 17 or TP 177 HMI panel connected via MPI, operators should be advised that the HMI connection will be interrupted during the power-down window. Confirm that the HMI project is backed up and that the MPI address assignment is documented before beginning work. After power restoration, verify that the HMI re-establishes communication with the CPU automatically — in most S7-400 configurations this occurs within 30 seconds of CPU run mode resumption.

If the retrofit scope extends beyond the power supply to include I/O expansion — for example, adding ET 200M distributed I/O stations connected via PROFIBUS-DP — the 6ES7400-0HR01-4AB0 provides the stable backplane power foundation required to support expanded rack configurations without introducing voltage sag on the P-bus.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a power supply in a live S7-400 system. The recommended approach is to schedule the replacement during a planned maintenance window, with the CPU placed in STOP mode and the rack de-energized before the module is removed. This protects the integrity of the user program stored in the CPU’s load memory and prevents any risk of partial write operations to retentive data areas.

Before de-energizing the rack, use STEP 7 or TIA Portal to perform an online upload of the current CPU program and hardware configuration to a programming device. Store this backup on a secure engineering workstation. This ensures that if any unexpected issue arises during the replacement — such as a CPU memory card fault triggered by the power interruption — the program can be restored without delay.

The physical replacement of the 6ES7400-0HR01-4AB0 is a tool-free operation: the module is released by its front latch and slides out of the rack slot. The replacement unit is inserted and locked in the same manner. After re-energizing, observe the module’s LED status indicators — a steady green RUN indicator on the power supply confirms that output voltage is within specification and the backplane bus is energized correctly.

For facilities where continuous control is critical and a cold-standby rack is not available, consider pre-staging the replacement 6ES7400-0HR01-4AB0 on-site in advance of the maintenance window. This eliminates lead-time risk and allows the physical swap to be completed in under 15 minutes, keeping the total control system downtime to a minimum. All units supplied are pre-tested and ready for immediate installation.

Retrofit Support FAQ

Q1: Is the 6ES7400-0HR01-4AB0 a direct replacement for other PS407 series power supplies?
The 6ES7400-0HR01-4AB0 is compatible with standard S7-400 racks and shares the PS407 form factor. Before ordering, confirm the output current rating of your existing unit and verify that the replacement meets or exceeds the total rack load. If your current installation uses a higher-output PS407 variant, ensure the replacement specification is matched accordingly.

Q2: Does replacing the power supply require any changes to the CPU program or hardware configuration?
No program or hardware configuration changes are required for a like-for-like power supply replacement. The CPU retains its program in load memory during a controlled power-down. After the replacement and power restoration, the CPU will resume normal operation from its last saved state. No re-download of the STEP 7 or TIA Portal project is necessary unless a CPU memory fault is detected.

Q3: What pre-shipment testing is performed on each unit?
Each 6ES7400-0HR01-4AB0 unit undergoes functional verification prior to dispatch, including output voltage regulation checks, backplane interface continuity, and visual inspection for physical integrity. Units are packaged in anti-static protective packaging suitable for international freight. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q4: What is the typical lead time and are units available from stock?
Units are maintained availability confirmed by RFQ for immediate dispatch. Standard international shipping lead times apply depending on destination. For urgent retrofit requirements or bulk procurement for planned maintenance programs, contact the sales team directly to confirm current inventory levels and arrange priority dispatch.
