Siemens 6ES7392-1BM01-0AA0 Spare Part for S7-300 Uptime

Overview

Siemens 6ES7392-1BM01-0AA0 Spare Part for S7-300 Uptime

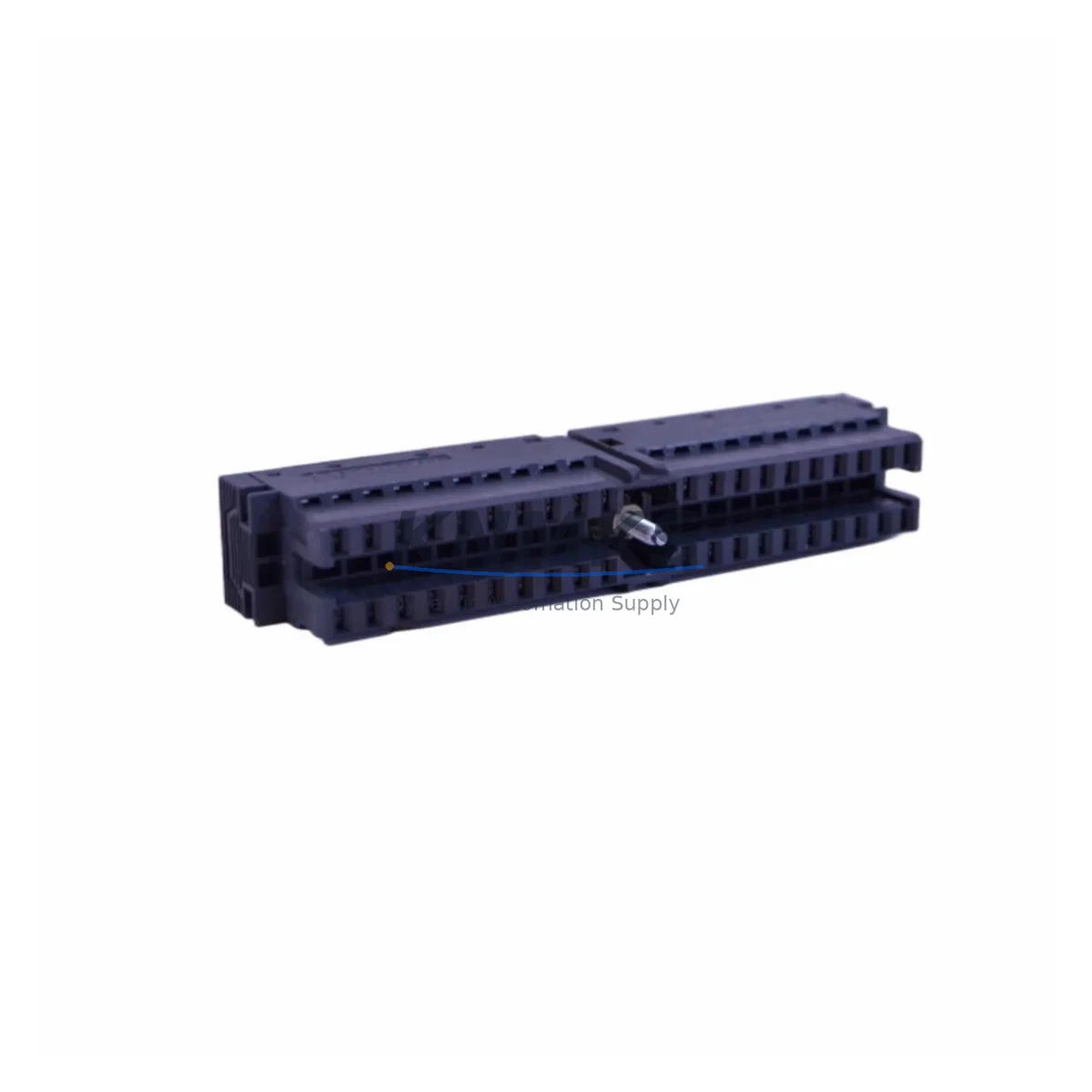

The Siemens 6ES7392-1BM01-0AA0 is a 40-pin screw-type front connector designed for SIMATIC S7-300 signal modules (SM) and function modules (FM). As a critical interface component between field wiring and the PLC module, this front connector is a high-priority spare in any S7-300 maintenance program. Its robust screw terminal design supports reliable field connections under vibration, thermal cycling, and the demanding conditions of continuous industrial operation.

Maintenance engineers managing SIMATIC S7-300 automation systems recognize that front connector failures — caused by terminal fatigue, corrosion, or mechanical damage during routine servicing — can halt production lines without warning. Stocking the 6ES7392-1BM01-0AA0 as a ready spare eliminates unplanned downtime caused by connector-related faults and supports rapid module swap-out during scheduled or emergency maintenance windows.

Each unit supplied by KNMKS is sourced from authorized channels, pre-shipment tested for terminal integrity and dimensional compliance, and backed by a support terms confirmed by quotation. Fast dispatch from regional stock ensures your maintenance team receives the part when it matters most.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 6ES7392-1BM01-0AA0 front connector during a planned or emergency maintenance event, a thorough control cabinet inspection is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should simultaneously verify the condition of the associated S7-300 signal module — such as the 6ES7321-1BL00-0AA0 (32-channel DI) or 6ES7322-1BL00-0AA0 (32-channel DO) — checking for burnt terminals, discoloration, or module fault LEDs that may indicate upstream wiring issues.

The 6ES7307-1EA01-0AA0 PS 307 power supply module should be inspected for output voltage stability, as undervoltage conditions accelerate terminal oxidation and connector wear. Verify that the 6ES7390-1AE80-0AA0 DIN rail and 6ES7390-5CA00-0AA0 bus connector are seated correctly, as mechanical misalignment can stress the front connector interface over time.

For systems with analog I/O, check the 6ES7331-7KF02-0AB0 or 6ES7332-5HF00-0AB0 analog modules for signal drift that may indicate poor terminal contact at the front connector level. Where signal isolation is required, inspect any installed signal isolators or barriers in the same I/O loop. Fuse holders and miniature circuit breakers protecting field circuits should also be tested for continuity and proper rating. Finally, review the 6ES7315-2AG10-0AB0 CPU module’s diagnostic buffer for any historical I/O faults that correlate with the connector’s service history — this data supports root-cause analysis and informs future spare parts stocking decisions.

Site Replacement Workflow

The 6ES7392-1BM01-0AA0 is a plug-in replacement that does not require CPU reconfiguration or STEP 7 / TIA Portal reprogramming when swapped on the same module type. Follow this workflow to minimize downtime:

1. Preparation: Confirm the replacement connector matches the pin count (40-pin) and terminal type of the installed unit. Download the existing wiring diagram from the plant documentation system before disconnecting any field wires.

2. Safe Isolation: Place the S7-300 CPU in STOP mode. De-energize the affected I/O circuit using the appropriate MCB or isolator. Verify zero voltage at the front connector terminals with a calibrated multimeter.

3. Wiring Transfer: Label each field wire before removal. Disconnect wires from the old connector and re-terminate onto the new 6ES7392-1BM01-0AA0, following the original wiring diagram. Torque screw terminals to the specified value (typically 0.5–0.6 Nm) to ensure reliable contact.

4. Reconnection and Test: Plug the new front connector onto the signal module. Restore power and return the CPU to RUN mode. Verify all I/O channel states in the diagnostic display or via STEP 7 / TIA Portal online monitoring. Confirm field device responses match expected values.

5. Documentation: Record the replacement in the plant maintenance log, including the date, technician ID, and new connector serial/batch number. Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow supports legacy S7-300 system life extension, reduces mean time to repair (MTTR), and maintains full compatibility with existing module configurations without requiring hardware or software changes.

Spare Parts Support FAQ

Q1: Is the 6ES7392-1BM01-0AA0 compatible with all S7-300 40-pin signal modules?
Yes. The 6ES7392-1BM01-0AA0 is the standard 40-pin screw-type front connector for SIMATIC S7-300 SM and FM modules with a 40-pin interface. It is interchangeable across compatible module types within the S7-300 family. Always verify the pin count of your installed module before ordering — S7-300 also uses 20-pin connectors (6ES7392-1AJ00-0AA0) for smaller modules.

Q2: What is the recommended inventory quantity for a production facility running multiple S7-300 racks?
Industry best practice for facilities with 5 or more S7-300 racks is to maintain a minimum buffer of 5–10 units of the 6ES7392-1BM01-0AA0. For high-criticality lines or systems with limited OEM lead times, a 12-month forward stock based on historical replacement frequency is recommended. KNMKS supports blanket order arrangements for volume procurement.

Q3: How does KNMKS verify authenticity and functionality before shipment?
Every 6ES7392-1BM01-0AA0 unit undergoes pre-shipment inspection covering terminal continuity, mechanical fit verification, and dimensional compliance against OEM specifications. Units are sourced from authorized supply channels and packaged in anti-static, moisture-resistant packaging. A support terms confirmed by quotation is provided from the date of shipment.

Q4: Can KNMKS support long-term supply for end-of-life S7-300 systems?
Yes. KNMKS maintains forward stock of S7-300 spare parts including front connectors, signal modules, and power supply components to support legacy system life extension programs. Long-term supply agreements with scheduled delivery and price protection are available. Contact our technical sales team to discuss your site’s specific requirements and annual consumption forecast.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7392-1BM01-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7392-1BM01-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
