Siemens 6ES7390-1AE80-0AA0 S7-300 Mounting Rail Spare

Overview

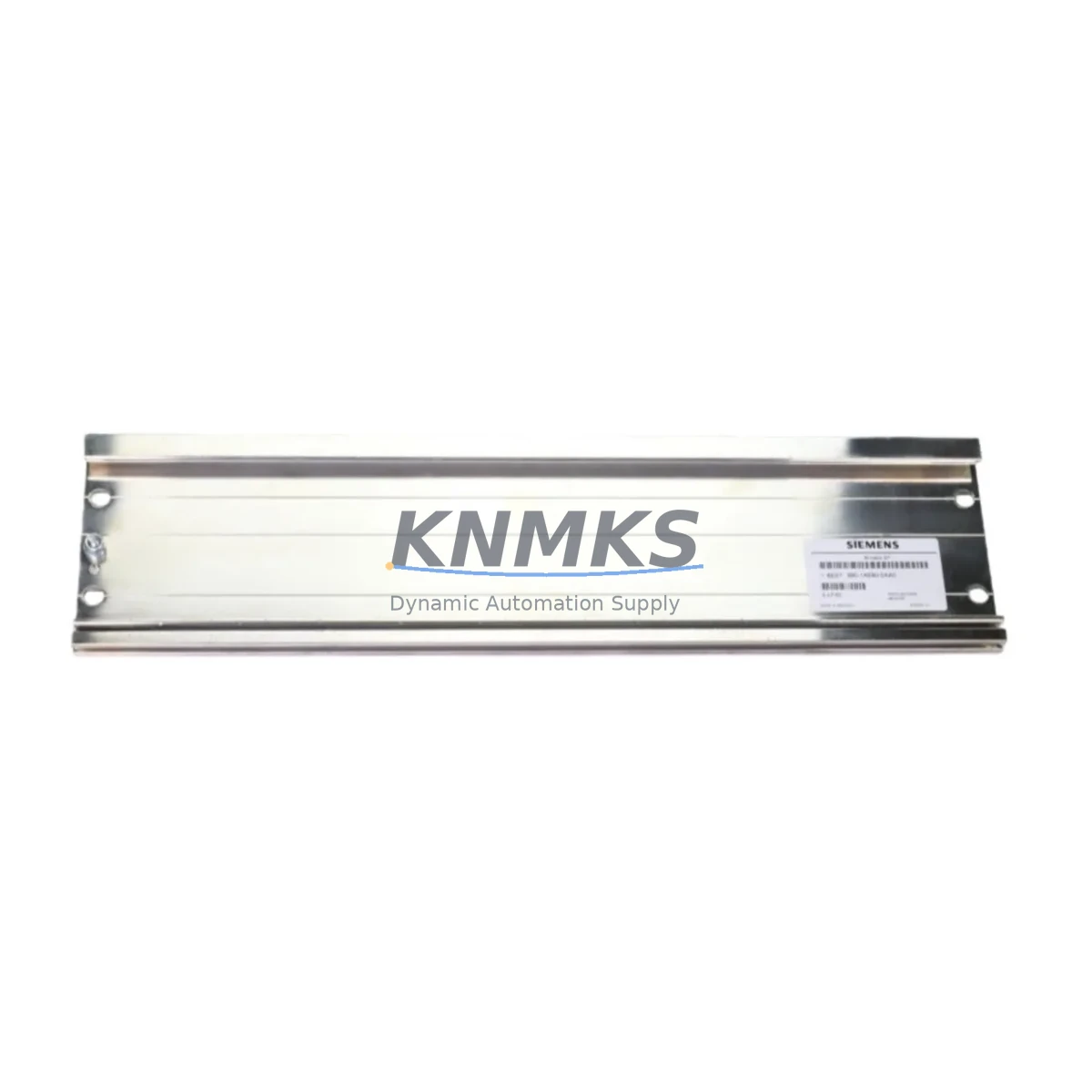

Siemens 6ES7390-1AE80-0AA0 S7-300 Mounting Rail Spare: Factory-Proven Structural Foundation for Continuous Uptime

The Siemens 6ES7390-1AE80-0AA0 is a 480 mm DIN mounting rail engineered specifically for the SIMATIC S7-300 programmable logic controller platform. As the structural backbone of every S7-300 control cabinet assembly, this mounting rail supports the secure installation of CPU modules, signal modules (SM), function modules (FM), communication processors (CP), and power supply units (PS). In industrial environments where vibration, thermal cycling, and continuous operation are the norm — including petrochemical plants, automotive assembly lines, water treatment facilities, and energy distribution substations — the mechanical integrity of this rail directly determines system reliability and mean time between failures.

Sourced as an original Siemens spare part, the 6ES7390-1AE80-0AA0 is manufactured to the same dimensional and material tolerances as the rail supplied in new S7-300 rack assemblies. Maintenance engineers and procurement teams can specify this part with confidence, knowing that module alignment, grounding continuity, and bus connector seating will meet factory specifications without shimming, modification, or field adaptation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a mounting rail replacement is identified during a scheduled cabinet inspection or following a mechanical incident — such as a cabinet drop, forklift impact, or corrosion-induced deformation — the replacement scope should extend beyond the rail itself. A thorough maintenance plan for an S7-300 rack rebuild includes verification of the Siemens 6ES7307-1EA01-0AA0 PS 307 power supply module to confirm output voltage stability and inrush current protection remain within specification. The 6ES7321-1BL00-0AA0 SM 321 digital input module and associated 6ES7322-1BL00-0AA0 SM 322 digital output module should be reseated and their bus connectors inspected for pin deformation or oxidation after any rail disturbance.

Communication integrity must also be validated. The 6ES7341-1CH02-0AE0 CP 341 serial communication processor, if installed in the rack, requires re-termination of RS-232/RS-422/RS-485 signal cables and verification of baud rate settings after module removal and reinstallation. For racks incorporating PROFIBUS DP, the 6ES7315-2AG10-0AB0 CPU 315-2 DP network address and DP master configuration should be confirmed against the project documentation before returning the system to service.

Terminal blocks and field wiring connected to I/O modules should be inspected for torque compliance and insulation integrity. Fuse elements protecting 24 VDC field circuits — typically 2 A or 4 A rated — should be tested or replaced as part of the rail rebuild. Signal isolators and surge protection devices installed on analog input channels are frequently overlooked during rail replacements; these components should be functionally verified before the system is returned to automatic mode. The overall cabinet grounding path, from the 6ES7390-1AE80-0AA0 rail through the PE busbar to the main earth terminal, must be measured with a low-resistance ohmmeter to confirm continuity below 0.1 Ω.

Site Replacement Workflow

Replacing the 6ES7390-1AE80-0AA0 in an active S7-300 installation follows a structured sequence to minimize downtime and eliminate configuration errors:

1. Pre-Shutdown Documentation: Export the current CPU program and hardware configuration using SIMATIC Manager or TIA Portal. Record module slot assignments, I/O addresses, and CP communication parameters. Photograph the cabinet wiring layout before disconnection.

2. Controlled Shutdown: Place the process in a safe state using the HMI or SCADA system. Switch the CPU to STOP mode. De-energize the PS 307 power supply and lock out the cabinet supply breaker per site LOTO procedures.

3. Module Removal: Disconnect all field wiring from I/O module front connectors, labeling each connector with its slot position. Remove bus connectors between modules. Extract modules in reverse order from right to left, storing them in anti-static packaging.

4. Rail Replacement: Remove the damaged 6ES7390-1AE80-0AA0 rail from the cabinet backplate. Install the replacement rail, torquing mounting screws to the cabinet manufacturer’s specification. Verify the rail is level and the PE bonding strap is securely connected.

5. Reassembly and Verification: Reinstall modules in their original slot positions. Reconnect bus connectors and field wiring. Restore power and confirm the CPU transitions to RUN mode without hardware faults. Verify I/O signal states against the pre-shutdown baseline using the online diagnostics view.

6. Return to Service: Confirm process values are within normal operating range at the HMI. Document the replacement in the site maintenance log, recording the part number, serial number, installation date, and technician name.

Spare Parts Support FAQ

Q1: Is the 6ES7390-1AE80-0AA0 compatible with all S7-300 CPU and module variants?
Yes. The 480 mm rail is dimensionally compatible with all SIMATIC S7-300 modules, including CPU 312 through CPU 319, all SM 300 series signal modules, FM 300 function modules, and CP 300 communication processors. The rail profile conforms to DIN EN 50022, ensuring correct module locking and bus connector alignment across the entire S7-300 product family.

Q2: How should this spare part be stored to maintain long-term serviceability?
Store the 6ES7390-1AE80-0AA0 in its original packaging in a dry, temperature-controlled environment (10 °C to 40 °C, relative humidity below 75% non-condensing). Avoid stacking heavy items on the rail to prevent deformation of the DIN profile. Inspect the rail for corrosion or mechanical damage before installation if it has been in storage for more than 24 months.

Q3: What testing is performed before shipment?
Each 6ES7390-1AE80-0AA0 unit is dimensionally inspected and visually verified for surface finish, profile straightness, and mounting hole alignment before dispatch. Units are packaged to prevent transit damage. A support terms confirmed by quotation cover manufacturing defects and dimensional non-conformance from the date of delivery.

Q4: Can KNMKS support long-term supply commitments for S7-300 spare parts?
Yes. KNMKS maintains stock of S7-300 structural and electronic spare parts to support customers operating legacy automation systems beyond the standard product lifecycle. Long-term supply agreements, blanket purchase orders, and consignment stock arrangements are available for maintenance teams managing large S7-300 installed bases. Contact our technical sales team to discuss your site’s specific inventory requirements.
