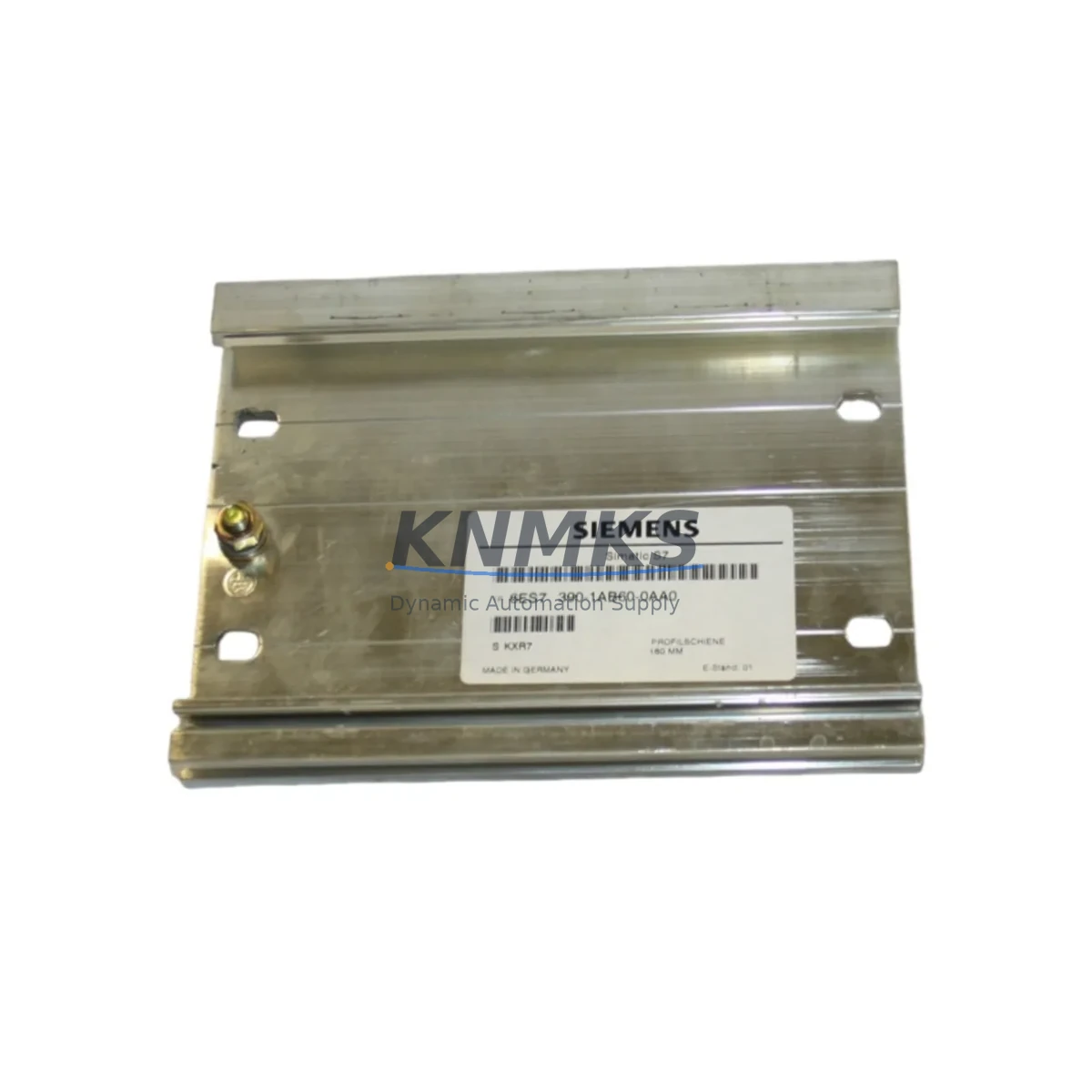

Siemens 6ES7390-1AB60-0AA0 Migration-Ready Profile Rail: Legacy S7-300 System Retrofit and Control Cabinet Upgrade

The Siemens 6ES7390-1AB60-0AA0 is a 2000mm DIN-standard profile rail engineered for SIMATIC S7-300 programmable logic controller systems. As industrial facilities worldwide accelerate the retirement of aging control architectures, this profile rail serves as a foundational mechanical component in rack-level retrofits, control cabinet rebuilds, and phased migration projects targeting legacy Siemens S7-200, S7-300, and early S7-400 installations. Whether you are replacing a corroded or dimensionally incompatible mounting rail in an existing cabinet or constructing a new sub-rack to house replacement I/O modules during a staged cutover, the 6ES7390-1AB60-0AA0 provides the dimensional precision and grounding continuity required for reliable long-term operation.

In retrofit planning, the profile rail is rarely considered in isolation. Engineers replacing end-of-life S7-300 CPU modules — such as the CPU 314 or CPU 315-2 DP — must verify that the replacement CPU, along with its associated SM 321 digital input modules, SM 322 digital output modules, and SM 331 analog input modules, can be physically accommodated on the new rail segment. The 6ES7390-1AB60-0AA0’s 2000mm length provides ample capacity for full-width rack configurations, including installations that incorporate the IM 360 or IM 361 interface modules for multi-rack expansion. When migrating from a single-rack to a distributed I/O topology using ET 200M remote I/O stations, the profile rail also serves as the mechanical backbone for the IM 153-x interface module and its associated signal modules at the remote drop.

Power budget verification is a critical pre-installation step. Before mounting modules on the 6ES7390-1AB60-0AA0, engineers must calculate the aggregate current draw of all installed modules against the capacity of the PS 307 power supply module (5 VDC and 24 VDC rails). Exceeding the backplane bus current rating — typically 1.2 A on the 5 V rail for standard S7-300 configurations — will cause intermittent faults or prevent the CPU from entering RUN mode. Terminal wiring adaptation is equally important: when replacing older S7-300 signal modules with current-generation equivalents, front connector pinouts must be verified against the original wiring diagrams to avoid I/O mapping errors that could corrupt process control logic.

Backplane interface compatibility is maintained through the S7-300’s passive bus connector system. The 6ES7390-1AB60-0AA0 accepts standard U-connector bus connectors (6ES7390-0AA00-0AA0 series), which must be installed between adjacent modules before rail mounting is finalized. Module slot addressing is determined by physical position on the rail, so any change in module count or arrangement requires a corresponding update to the hardware configuration in STEP 7 or TIA Portal. Failure to synchronize the hardware configuration with the physical rack layout will result in configuration mismatch faults at CPU startup.

For facilities migrating from STEP 7 Classic (v5.x) to TIA Portal, the profile rail change itself is transparent to the software migration process. However, engineers should confirm that the replacement CPU firmware version is compatible with the target TIA Portal release before committing to the hardware cutover. HMI screen updates — particularly for WinCC flexible panels communicating via MPI or PROFIBUS DP — should be validated in simulation mode prior to live commissioning to avoid operator interface disruptions during the transition window.

Installation space confirmation is mandatory before ordering. The 6ES7390-1AB60-0AA0 at 2000mm full length may require trimming or substitution with a shorter variant (such as the 6ES7390-1AE80-0AA0 at 480mm or the 6ES7390-1AF30-0AA0 at 530mm) depending on cabinet depth and available vertical clearance. Mounting hole spacing follows the standard S7-300 rail pattern, ensuring compatibility with existing cabinet mounting points without drilling modifications in most standard enclosures.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A complete S7-300 rack retrofit typically involves more than the profile rail itself. Engineers should audit the full bill of materials before initiating a cabinet outage. In addition to the 6ES7390-1AB60-0AA0 rail, a standard retrofit kit for a mid-size S7-300 rack may include replacement bus connectors, a PS 307 10A power supply module for adequate current headroom, one or more SM 321 DI 32×DC 24V digital input modules, SM 322 DO 32×DC 24V/0.5A digital output modules, and — where analog process signals are involved — SM 331 AI 8×13Bit analog input modules. For systems with PROFIBUS DP field devices, the CP 342-5 communications processor may need to be re-addressed and re-parameterized following the rack rebuild.

Signal isolation requirements should be assessed during the retrofit planning phase. Where legacy wiring uses unshielded cables or where ground loops are suspected, signal isolators or repeaters may be required between field devices and the new S7-300 I/O modules to maintain measurement accuracy and prevent spurious fault trips. Programming cable access — via the MPI port on the CPU or through a PC adapter such as the PC Adapter USB A2 — must be confirmed before the cutover window begins to ensure that program uploads, hardware configuration downloads, and online diagnostics can be performed without delay.

Downtime Control During System Migration

Minimizing unplanned downtime during a profile rail replacement or full rack retrofit requires disciplined pre-outage preparation. Before the maintenance window opens, engineers should perform a full program backup from the CPU to a PC running STEP 7 or TIA Portal, including all data blocks, function blocks, and hardware configuration files. A printed or PDF copy of the I/O wiring diagram should be available at the cabinet to guide terminal reconnection without reliance on live system access.

Where process continuity is critical, a phased migration approach — replacing one rack segment at a time while maintaining control through a parallel rack or a temporary bypass — can reduce the effective outage window to the time required for a single rack swap and program download. After module reinstallation on the new 6ES7390-1AB60-0AA0 rail, the CPU should be powered up in STOP mode first to allow hardware configuration verification before transitioning to RUN. Online comparison between the downloaded hardware configuration and the physically installed modules will immediately flag any slot assignment discrepancies, allowing correction before process restart.

Field commissioning should include a point-by-point I/O verification against the original signal list, confirmation of PROFIBUS DP node addresses for all connected field devices, and a timed cycle test to verify that scan time performance meets the original control system specification. All test results should be documented and retained as part of the retrofit completion record.

Retrofit Support FAQ

Q: Is the 6ES7390-1AB60-0AA0 a direct replacement for shorter S7-300 profile rails?
A: The 6ES7390-1AB60-0AA0 is the 2000mm variant and is mechanically compatible with all S7-300 modules. For installations with limited cabinet space, shorter variants (480mm, 530mm, 830mm) are available. The rail can be cut to length in the field using a standard metal saw, provided cut ends are deburred and grounding continuity is verified after trimming.

Q: What pre-shipment testing is performed on this rail?
A: Each unit undergoes dimensional inspection and surface finish verification prior to shipment. Rails are individually packaged to prevent transit damage. A support terms confirmed by quotation cover manufacturing defects from the date of shipment.

Q: Do I need to update my STEP 7 hardware configuration after replacing the profile rail?
A: The profile rail itself is not a configurable object in STEP 7 or TIA Portal. However, if the rail replacement is accompanied by any change in module count, slot positions, or module types, the hardware configuration must be updated and downloaded to the CPU before returning the system to RUN mode.

Q: What is the stock availability and lead time?
A: We maintain in-stock inventory of the 6ES7390-1AB60-0AA0 to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 1–3 business days. Contact [email protected] or +86 18359268345 for volume pricing and expedited shipping options.
