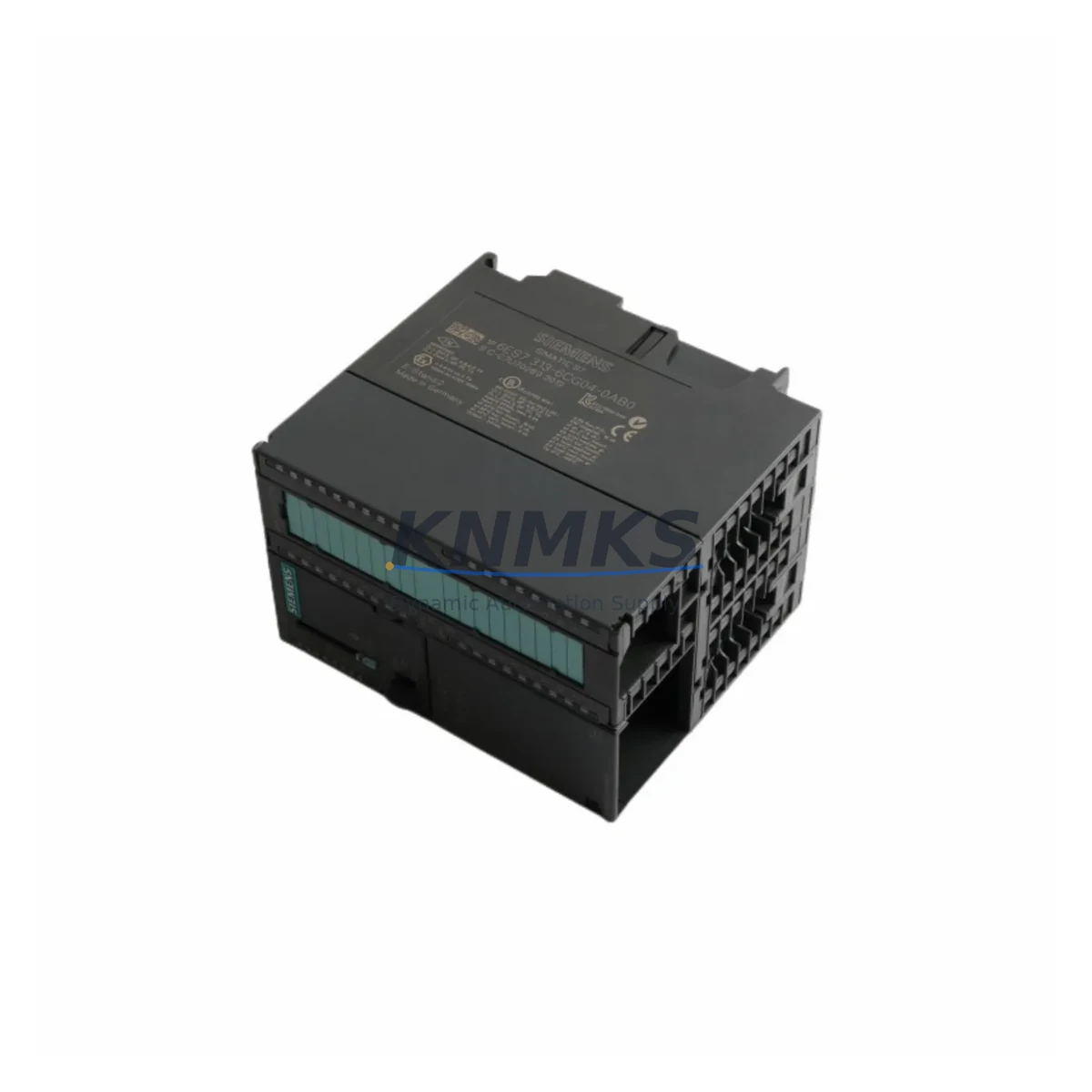

Siemens 6ES7354-1AH01-0AE0 Migration-Ready Positioning Module

Overview

Siemens 6ES7354-1AH01-0AE0 Migration-Ready Positioning Module for Legacy Control Systems

The Siemens 6ES7354-1AH01-0AE0 is a single-axis positioning function module (FM 354) designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems approach end-of-life and spare parts availability tightens, the FM 354 remains a critical component in retrofit and modernization projects across manufacturing, packaging, machine tool, and process automation environments. This module provides closed-loop single-axis positioning control via incremental or absolute encoders, and integrates directly into the S7-300 backplane without additional interface hardware.

For maintenance engineers managing aging control cabinets, the 6ES7354-1AH01-0AE0 is a direct drop-in replacement for failed or end-of-life FM 354 units. It retains full compatibility with existing STEP 7 project configurations, preserving axis parameter blocks, traversing programs, and reference point routines without requiring reprogramming from scratch. Pre-shipment functional testing is performed on every unit prior to dispatch, and each module is covered by a support terms confirmed by quotation from the date of delivery.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an FM 354 in a live production environment requires careful pre-migration planning to avoid extended downtime and configuration loss. Before removing the failed module, engineers should export the existing axis parameter data blocks (DB) and traversing program blocks from the STEP 7 project. If the original project files are unavailable, the parameter blocks can often be read back from the CPU memory using a compatible MPI programming cable such as the PC Adapter USB A2 (6ES7972-0CB20-0XA0), provided the CPU is still operational.

Terminal wiring on the 40-pin front connector should be documented or photographed before disconnection. The encoder cable shield grounding, drive enable signal routing, and reference cam input wiring are the most common sources of commissioning errors after a module swap. If the existing front connector is damaged or corroded, a replacement 40-pin front connector for S7-300 signal modules should be sourced alongside the FM 354 unit to avoid delays on-site.

In systems where the S7-300 rack also houses a CP 343-1 Ethernet communication processor or a CP 342-5 PROFIBUS DP master, the slot addressing must be verified after module replacement. The FM 354 is addressed by its physical slot position, and any change in rack layout will require an update to the hardware configuration in STEP 7 and a download to the CPU. If the rack also contains an SM 321 digital input module or SM 322 digital output module sharing the same rack segment, their addresses are unaffected by the FM 354 swap, but the overall hardware configuration download will briefly interrupt CPU communication with all modules in the rack.

For systems where the HMI is a SIMATIC TP or OP panel connected via MPI, the axis status and position displays linked to the FM 354 data blocks will resume normal operation once the new module is parameterized and the axis reference point routine is completed. No HMI screen modifications are required if the data block structure is preserved. In cases where the control cabinet also includes a PS 307 power supply module, verify that the 24 VDC load current budget accommodates the FM 354’s supply current draw alongside other installed modules before powering up the new configuration.

Downtime Control During System Migration

Minimizing unplanned downtime during an FM 354 replacement begins with advance preparation. Having a tested, pre-verified replacement module on the shelf — rather than sourcing after failure — is the single most effective downtime reduction measure for positioning-critical production lines. Each 6ES7354-1AH01-0AE0 unit shipped from stock has undergone pre-shipment functional testing to confirm encoder interface integrity, drive output signal quality, and backplane communication, reducing the risk of receiving a non-functional replacement during an emergency.

The physical module swap on an S7-300 rack takes under five minutes. The majority of migration time is consumed by axis re-parameterization, reference point re-establishment, and test traversal runs to confirm position accuracy. If the original STEP 7 project with axis parameter data blocks is available and intact, re-parameterization can be completed in under 30 minutes by an experienced engineer. Documenting the axis parameters — including software limit switches, acceleration ramps, and reference point offset — before any failure occurs is strongly recommended as part of a preventive maintenance program.

For facilities operating multiple S7-300 systems with FM 354 modules, maintaining a minimum stock of one spare unit per production line significantly reduces mean time to repair (MTTR). Long-term supply availability for the 6ES7354-1AH01-0AE0 is supported through our inventory program, with stock held to cover both emergency single-unit orders and planned multi-unit retrofit projects.

Retrofit Support FAQ

Q: Is the 6ES7354-1AH01-0AE0 a direct replacement for an existing FM 354 in my S7-300 rack?
A: Yes. The 6ES7354-1AH01-0AE0 is a direct slot-compatible replacement for FM 354 modules in any standard S7-300 rack. The backplane bus connector, front connector pinout, and STEP 7 hardware configuration entry are identical. Existing axis parameter data blocks and traversing programs are fully reusable without modification, provided the STEP 7 project files are available.

Q: What wiring checks are required before powering up the replacement module?
A: Verify encoder cable connections (A, B, Z channels and shield grounding), drive enable and analog output wiring to the servo amplifier or frequency inverter, reference cam and limit switch inputs, and the 24 VDC supply on the front connector. Confirm that the front connector locking mechanism is fully engaged before applying power. Incorrect encoder shield grounding is the most frequent cause of position noise after a module replacement.

Q: Does each unit undergo testing before shipment?
A: Yes. Every 6ES7354-1AH01-0AE0 unit is functionally tested prior to dispatch to verify backplane communication, encoder interface response, and drive output signal integrity. A support terms confirmed by quotation is provided from the date of delivery, covering hardware defects under normal operating conditions.

Q: Can this module be used in a TIA Portal project or only in STEP 7 V5.x?
A: The FM 354 is natively supported in STEP 7 V5.x. In TIA Portal environments, the module can be integrated using the STEP 7 V5.x project migration path or via the legacy S7-300 hardware support in TIA Portal with the appropriate FM 354 GSD/HSP file. Full TIA Portal native function block support is not available for this module; STEP 7 V5.x remains the recommended programming environment for FM 354 commissioning and diagnostics.
