Siemens 6ES7350-1AH03-0AE0 Fail-Safe Counter for Industrial Control

Overview

Siemens 6ES7350-1AH03-0AE0 Fail-Safe Counter for Industrial Control Reliability

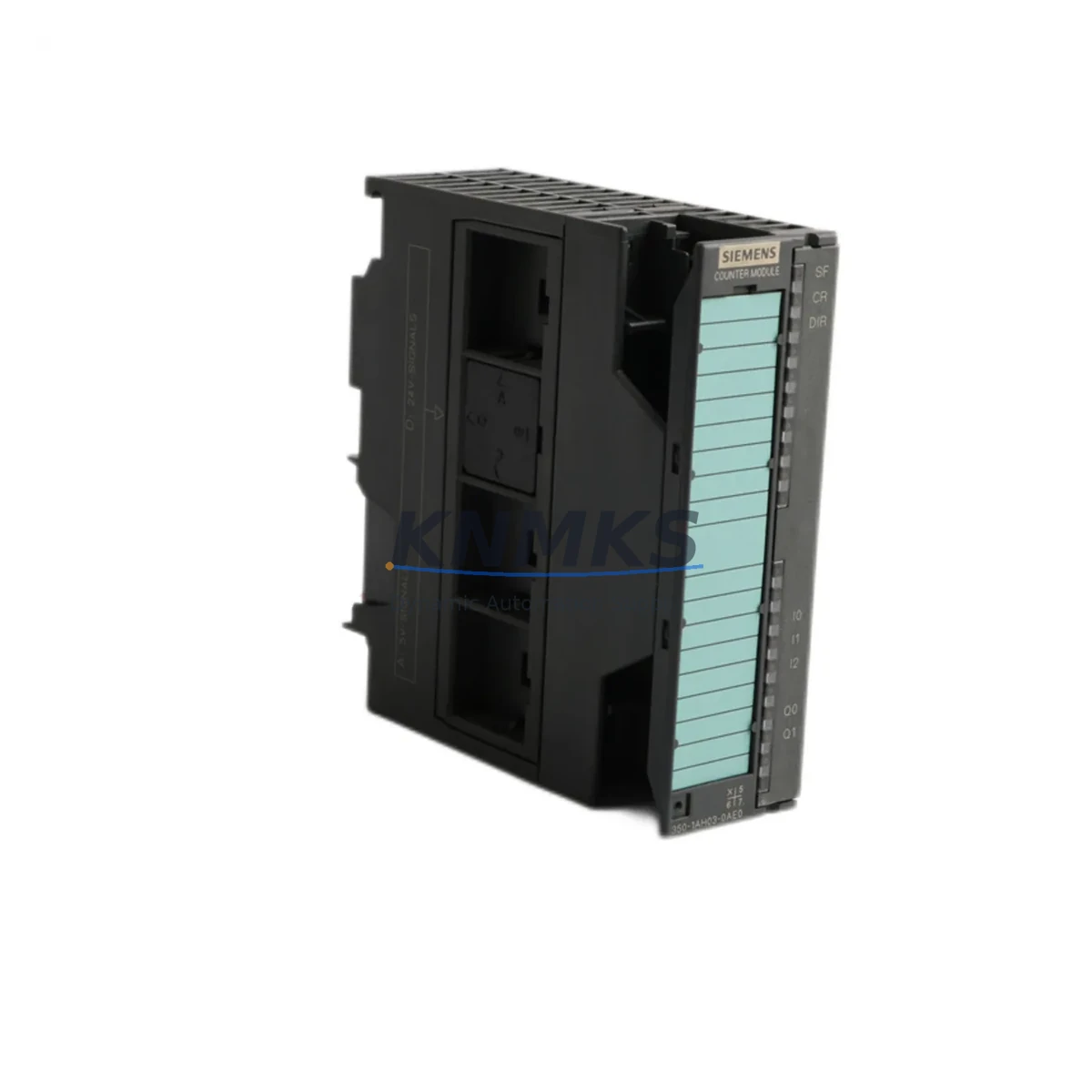

The Siemens 6ES7350-1AH03-0AE0 (FM350-1) is a high-speed function module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to meet the demanding requirements of continuous industrial production environments, this counter module delivers precise, fail-safe pulse counting and frequency measurement in applications where control interruption is not an option. Whether deployed in heavy-load control cabinets, high electromagnetic interference (EMI) zones, dusty or humid field enclosures, or high-temperature and high-vibration installations, the FM350-1 maintains signal integrity and operational stability under conditions that would compromise lesser components.

In critical interlock circuits and safety loops — such as those found in petrochemical processing, power generation, and metallurgical plants — signal drift and counting errors can trigger unplanned shutdowns or, worse, unsafe machine states. The 6ES7350-1AH03-0AE0 addresses these risks through hardware-level counting logic that operates independently of the CPU scan cycle, ensuring that high-frequency encoder pulses, proximity switch signals, and incremental position feedback are captured without loss, even during communication anomalies or momentary power fluctuations on the backplane bus.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including counter channel integrity checks, input threshold validation, and backplane communication handshake testing. This ensures that replacement modules arrive ready for immediate installation, minimizing mean time to repair (MTTR) in critical field scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the FM350-1 counter module does not operate in isolation. Its reliability is interdependent with the quality of surrounding components. The Siemens 6ES7307-1EA01-0AA0 PS307 power supply module provides stable 24 V DC rail power, buffering the backplane against voltage sags and transient surges that could corrupt counter register values mid-cycle. Alongside it, the Siemens 6ES7315-2EH14-0AB0 CPU315-2 PN/DP serves as the central processing unit, polling the FM350-1’s count results via the internal backplane bus and executing the associated interlock logic in the user program.

For applications requiring digital output actuation based on counter thresholds — such as batch cutoff, position-based valve control, or conveyor indexing — the Siemens 6ES7322-1BL00-0AA0 SM322 32-channel digital output module provides the switching capacity needed to drive contactors, solenoids, and indicator lamps without loading the FM350-1’s own output channels. In environments with high conducted EMI, pairing the counter module with properly specified Siemens SIMATIC S7-300 shielding bus connectors and ferrite-core cable assemblies on encoder signal lines is essential to prevent false counts caused by radiated interference from variable frequency drives (VFDs) or large motor starters in the same cabinet.

Where the control system extends to distributed I/O or remote field panels, the Siemens 6ES7153-1AA03-0XB0 ET200M interface module enables the S7-300 rack — including the FM350-1 — to be deployed as a PROFIBUS DP slave, extending the counter function to remote locations without sacrificing cycle-time performance. For cabinet thermal management in high-ambient-temperature installations, integrating a Siemens SIPLUS series conformal-coated variant or a dedicated cabinet air conditioner rated for the enclosure’s heat dissipation budget ensures the FM350-1 remains within its 0–60 °C operating envelope even during peak summer production runs.

Critical Industrial Safety Applications

The 6ES7350-1AH03-0AE0 is deployed across a broad spectrum of safety-critical and production-critical industrial environments:

Petrochemical & Refinery Plants: In continuous process units, the FM350-1 monitors pump rotation counts and flow totalizers, providing the PLC with accurate throughput data for interlock logic. A counting error in this context could result in overfill conditions or missed shutdown triggers. The module’s hardware-independent counting ensures that even during CPU-intensive scan cycles, no pulse is lost.

Power Generation & Substation Automation: Turbine speed monitoring and generator synchronization sequences rely on precise frequency measurement. The FM350-1’s 500 kHz counting capability makes it suitable for high-pole-count tachometer inputs, where accurate speed feedback is essential for safe grid synchronization and overspeed protection.

Mining & Mineral Processing: Conveyor belt indexing, crusher rotation monitoring, and skip hoist position tracking in underground and surface mining operations expose control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The FM350-1’s robust mechanical design and cabinet-rated IP20 protection, combined with a properly sealed enclosure, supports reliable operation in these demanding conditions.

Water & Wastewater Treatment: Flow meter pulse counting for dosing control and pump run-hour accumulation for predictive maintenance scheduling are typical FM350-1 applications in water utilities. Accurate pulse totalization directly impacts chemical dosing accuracy and regulatory compliance.

Metallurgy & Steel Mills: Rolling mill position control and coil length measurement require sub-millisecond counting response. The FM350-1’s autonomous counting operation — independent of the CPU scan — ensures that high-speed encoder feedback from rolling stands is captured without scan-cycle-induced latency.

Port & Marine Logistics: Crane hoist position tracking and ship-loader belt speed monitoring in salt-air, high-humidity port environments demand components with proven corrosion resistance and stable signal processing. The FM350-1, installed in a properly rated enclosure with appropriate cable gland sealing, meets these operational requirements.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7350-1AH03-0AE0?
The support terms confirmed by quotation cover manufacturing defects, functional failures under normal operating conditions, and backplane interface faults. Support requests are supported by KNMKS directly, with replacement dispatch prioritized for critical production applications. The confirmed support period begins from the confirmed dispatch date.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7350-1AH03-0AE0 unit undergoes functional verification prior to dispatch, including counter channel operation checks, input signal threshold validation, and backplane communication handshake confirmation. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-300 CPU variants and rack configurations?
The FM350-1 (6ES7350-1AH03-0AE0) is compatible with all standard SIMATIC S7-300 racks and CPU variants that support function modules via the S7-300 backplane bus, including CPU312 through CPU319 series. It is not compatible with S7-400, S7-1200, or S7-1500 platforms. For mixed-rack configurations, slot assignment must comply with Siemens hardware configuration rules in STEP 7 or TIA Portal (with legacy support).

Q4: Can KNMKS support long-term supply and emergency replacement for this module?
Yes. KNMKS maintains stock of the 6ES7350-1AH03-0AE0 and its associated FM350-1 series components to support both planned maintenance schedules and emergency breakdown replacements. For facilities with critical uptime requirements, we recommend establishing a consignment or buffer stock arrangement. Contact our technical sales team to discuss long-term supply agreements and lead-time guarantees tailored to your maintenance strategy.
