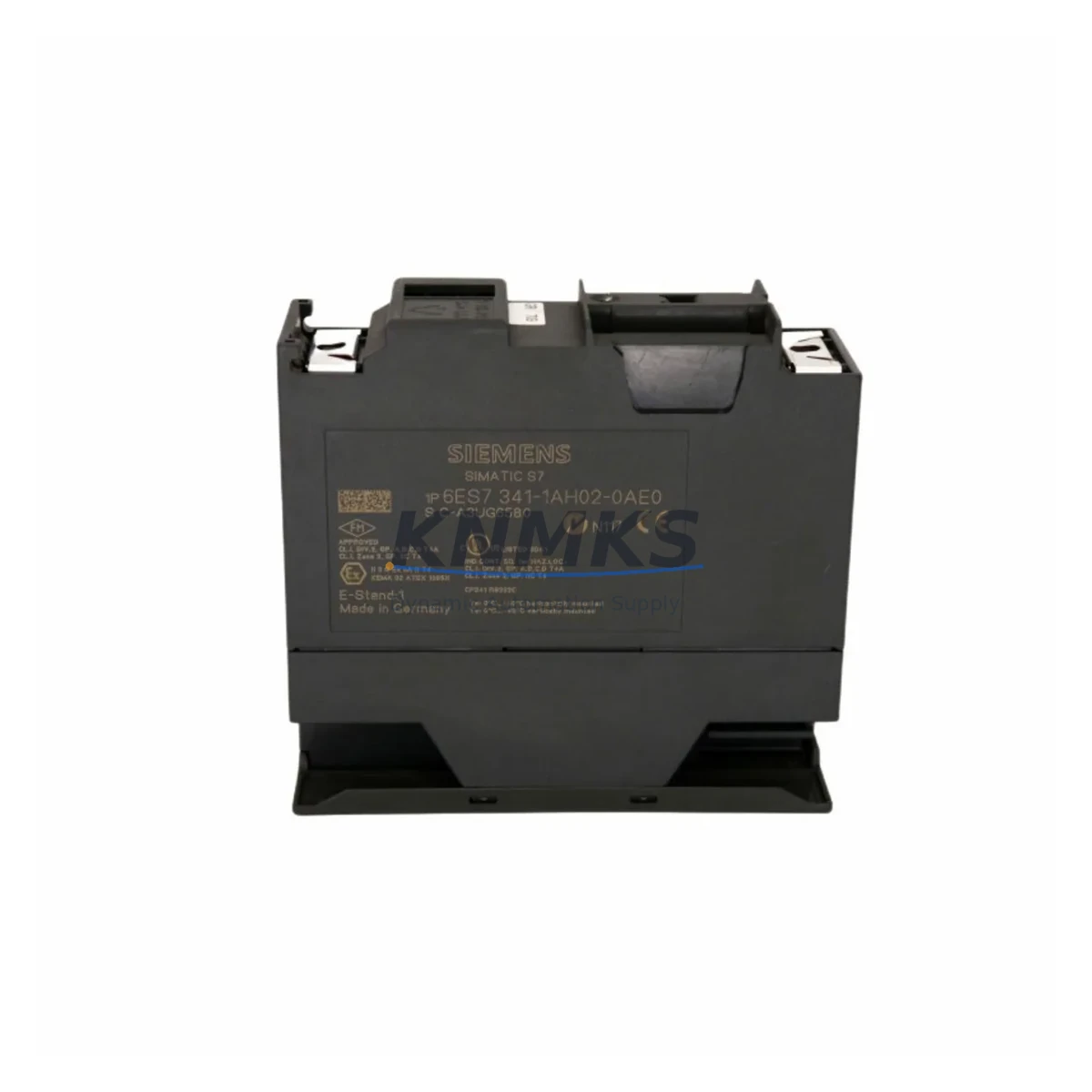

Siemens 6ES7341-1AH02-0AE0 Fail-Safe Serial CP for S7-300

Overview

Siemens 6ES7341-1AH02-0AE0 Fail-Safe Serial CP for S7-300: Fault-Protected Communications for Critical Industrial Reliability

The Siemens 6ES7341-1AH02-0AE0 is a CP 341 Communications Processor designed for the SIMATIC S7-300 programmable logic controller platform. In continuous production environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port terminals, and heavy manufacturing — uninterrupted serial communication between the PLC and field devices is not optional. It is a safety-critical requirement. The 6ES7341-1AH02-0AE0 is engineered to meet that requirement, delivering robust, fail-safe serial data exchange across RS-232C, RS-422, and RS-485 interfaces under the most demanding industrial conditions.

Control interruptions caused by signal drift, communication timeouts, or hardware faults in the communications layer can cascade into unplanned shutdowns, process upsets, or — in safety-critical applications — dangerous equipment states. The CP 341 module addresses these risks through hardware-level surge protection, galvanic isolation on serial interfaces, and deterministic communication protocols that maintain data integrity even in high electromagnetic interference (EMI) environments. Whether the cabinet is located adjacent to variable-frequency drives, high-voltage switchgear, or large motor starters, the 6ES7341-1AH02-0AE0 maintains stable, low-latency serial communication without signal degradation or spurious faults.

In control cabinet deployments where the S7-300 rack hosts multiple I/O modules — such as the SM 321 digital input module, SM 322 digital output module, or SM 331 analog input module — the CP 341 serves as the dedicated serial gateway, offloading communication processing from the CPU and ensuring that the main control loop is not disrupted by serial polling cycles. This architectural separation is particularly valuable in safety interlock systems, where CPU scan time must remain predictable and deterministic. Pairing the 6ES7341-1AH02-0AE0 with a redundant power supply module such as the PS 307 ensures that communication capability is maintained even during power fluctuations or momentary supply interruptions.

In harsh field environments — dusty mineral processing plants, humid coastal installations, high-vibration compressor stations, or high-temperature furnace control rooms — the CP 341’s industrial-grade construction provides the mechanical and thermal resilience required for long-term, maintenance-free operation. The module is rated for operation across a wide ambient temperature range and is designed to withstand the vibration and shock levels typical of heavy industrial machinery. When deployed alongside the IM 360/361 interface modules in distributed S7-300 rack configurations, the 6ES7341-1AH02-0AE0 maintains communication integrity across extended rack distances without introducing additional failure points.

For facilities managing aging DCS or SCADA systems that rely on legacy serial protocols — Modbus RTU, 3964(R), RK512, or ASCII — the CP 341 provides a validated, drop-in migration path that preserves existing field wiring and protocol logic while upgrading the PLC platform to current SIMATIC S7-300 hardware. This makes the 6ES7341-1AH02-0AE0 a strategic spare parts investment for plant engineers planning multi-year control system lifecycle extensions without full system replacement.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including serial interface continuity checks, firmware version confirmation, and communication loop testing. Stock is maintained to support both emergency replacement and planned maintenance schedules, with global shipping available to support multi-site deployments across Asia, Europe, the Middle East, and the Americas.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S7-300 control cabinet is a system — not a collection of individual modules. The 6ES7341-1AH02-0AE0 CP 341 performs its protective communication role most effectively when integrated with a coherent cabinet architecture. In high-availability control panels, the CP 341 is typically installed alongside a Siemens PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0), which provides regulated 24 VDC to the S7-300 rack and protects against mains voltage fluctuations that could otherwise cause communication resets or CPU faults. For applications requiring CPU redundancy, the CP 341 complements S7-300 CPU 315F-2 PN/DP fail-safe CPUs, where the serial communication channel handles legacy field device integration while the PN/DP interface manages higher-level PROFINET or PROFIBUS networks.

In cabinets where signal conditioning is required for analog field instruments — pressure transmitters, temperature sensors, flow meters — the SM 331 analog input module (e.g., 6ES7331-7KF02-0AB0) works in parallel with the CP 341 to bring both analog process values and serial device data into the S7-300 CPU simultaneously. For digital safety interlock circuits, the SM 326 F-DI fail-safe digital input module provides the SIL-rated discrete input layer, while the CP 341 handles the serial communication backbone connecting to remote RTUs, drives, or weighing systems. In extended rack configurations, the IM 360/361 interface module pair allows the CP 341 to be installed in an expansion rack up to 10 meters from the central rack, maintaining full communication functionality without signal degradation across the backplane extension.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 6ES7341-1AH02-0AE0 is deployed in emergency shutdown (ESD) panel communication networks, where it provides the serial link between the S7-300 safety PLC and Modbus RTU-based field instruments — pressure relief valve positioners, gas detection controllers, and flame scanner interfaces. Communication failure in these circuits is not a nuisance fault; it is a safety event. The CP 341’s galvanic isolation and surge protection ensure that transient voltages from field cable faults do not propagate into the PLC backplane.

In power generation and substation control, the module serves as the serial interface between S7-300 PLCs and legacy protection relays, energy meters, and AVR (automatic voltage regulator) systems that communicate via RS-485 Modbus RTU. Its ability to handle multi-drop RS-485 networks with up to 32 nodes makes it well-suited for substation bay control applications where multiple IEDs must be polled from a single serial master.

In mining and mineral processing, where conveyor control systems, crusher PLCs, and slurry pump stations operate in high-dust, high-vibration environments, the CP 341’s robust mechanical construction and wide operating temperature range ensure reliable serial communication between the S7-300 and remote operator panels, weigh feeders, and variable-speed drive controllers. Unplanned communication loss in these applications can result in conveyor pile-ups, crusher overloads, or pump cavitation — all of which carry significant equipment damage and safety risk.

In water and wastewater treatment, the module integrates S7-300 PLCs with SCADA systems via serial Modbus RTU, supporting remote monitoring of pump stations, dosing systems, and filtration controls across geographically distributed sites. In metallurgical and steel plant applications, the CP 341 handles serial communication in rolling mill control systems, ladle furnace automation, and continuous casting line PLCs, where high ambient temperatures and strong electromagnetic fields from induction heating equipment demand the module’s full EMI immunity capability.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the 6ES7341-1AH02-0AE0?
All units are covered by a 12-month KNMKS support terms from the date of shipment. This covers hardware defects, communication interface failures, and firmware-related functional issues identified under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7341-1AH02-0AE0 unit undergoes a structured pre-shipment verification process that includes: serial interface continuity and isolation testing on RS-232C, RS-422, and RS-485 ports; firmware version confirmation against the current Siemens release baseline; backplane connector inspection; and a functional communication loop test. Units that do not pass all checks are quarantined and not dispatched.

Q3: Is the 6ES7341-1AH02-0AE0 compatible with all S7-300 CPUs and STEP 7 / TIA Portal?
Yes. The CP 341 is compatible with all standard SIMATIC S7-300 CPUs. Configuration is performed using STEP 7 (v5.x) with the appropriate loadable function blocks (FBs) for the selected protocol (ASCII, 3964(R), Modbus RTU). TIA Portal users can integrate the module via the HSP (Hardware Support Package) for legacy S7-300 hardware. Protocol-specific loadable drivers are available from Siemens and are compatible with this hardware revision.

Q4: Can KNMKS support long-term spare parts supply for multi-site S7-300 deployments?
Yes. KNMKS maintains stock of the 6ES7341-1AH02-0AE0 and related S7-300 modules to support both emergency replacement and planned maintenance programs. For multi-site or multi-unit procurement, volume pricing and reserved stock arrangements are available. Contact our technical sales team at [email protected] or +86 18359268345 to discuss your spare parts strategy and delivery schedule.
