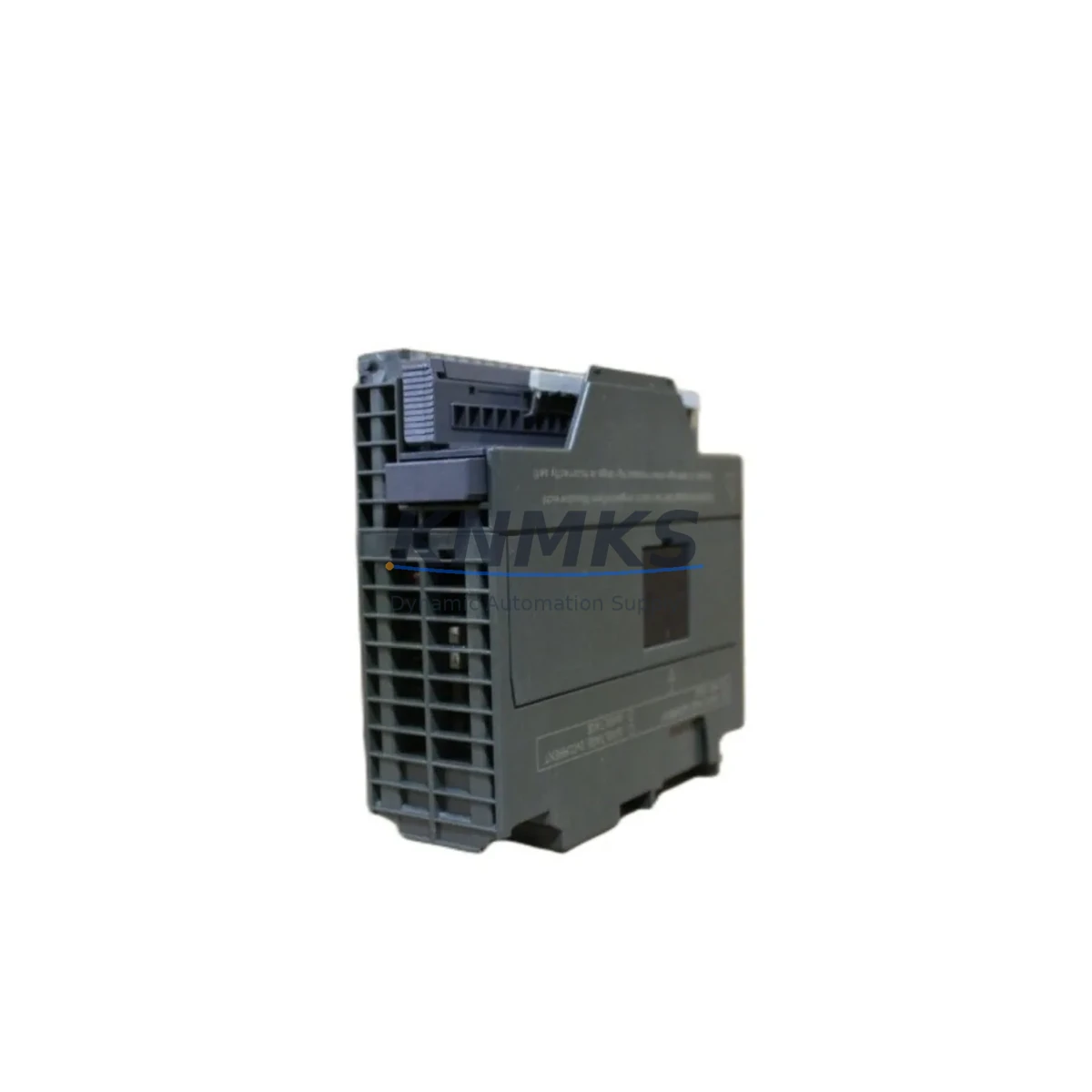

SIEMENS 6ES7335-7HG02-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The SIEMENS 6ES7335-7HG02-0AB0 is a high-resolution analog input/output module belonging to the SM335 series, designed for integration into SIMATIC S7-300 programmable logic controller systems. As a maintenance-proven spare part, it is a critical component for facilities that depend on continuous process control, precision signal acquisition, and reliable analog data exchange between field instruments and the PLC rack. Whether you are managing a scheduled annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for aging S7-300 infrastructure, the 6ES7335-7HG02-0AB0 delivers the original SIEMENS performance specification your system was commissioned with.

Maintenance engineers and procurement teams working with SIMATIC S7-300 installations recognize the SM335 module as a high-speed analog I/O device capable of simultaneous input and output processing. Its 4-channel analog input and 2-channel analog output architecture, combined with a cycle time as fast as 1 ms per channel, makes it indispensable in applications requiring tight closed-loop control — including servo drives, pressure regulation, flow metering, and temperature profiling in process industries. Sourcing a genuine replacement from a verified supplier with pre-shipment testing and a support terms confirmed by quotation eliminates the risk of counterfeit modules that can introduce measurement drift, communication faults, or rack instability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7335-7HG02-0AB0 is flagged during routine control cabinet inspection or fails during production, the replacement scope should extend beyond the module itself. A thorough site assessment by the maintenance engineer should include verification of the PS307 or PS305 power supply module supplying the S7-300 rack — voltage ripple or insufficient current capacity can cause analog measurement instability even after a module swap. The SM321 or SM322 digital I/O modules sharing the same rack should be checked for bus connector integrity, as a damaged bus connector can corrupt data exchange across all slots.

Field wiring connected to the 6ES7335-7HG02-0AB0’s analog terminals should be inspected for shielding continuity, terminal torque, and signal ground isolation. In high-noise environments, a signal isolator or analog signal conditioner installed upstream of the module inputs can prevent common-mode interference from degrading measurement accuracy. If the system uses a CP343-1 or CP343-1 Advanced communication processor for PROFINET or Industrial Ethernet connectivity, firmware compatibility with the replacement module should be confirmed before commissioning.

For S7-300 systems with an IM360/IM361 expansion interface module, verify that the rack expansion bus is intact and that the replacement SM335 module is seated in a slot within the supported address range configured in STEP 7 or TIA Portal. Procurement teams building a spare parts kit for S7-300 control cabinets should also stock front connector 6ES7392-1AM00-0AA0 (40-pin screw-type) compatible with the SM335, as worn or corroded front connectors are a common cause of intermittent analog signal faults that are misdiagnosed as module failure.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module’s order number and firmware version via the STEP 7 hardware configuration or TIA Portal device view. Document the existing I/O address assignment and channel configuration (input range, output range, interference frequency suppression setting) before removal.

Step 2 — Safe isolation: Place the CPU in STOP mode. De-energize the 24 V DC supply to the rack using the cabinet isolator. Do not remove the module under power — the SM335 is not hot-swap capable in standard S7-300 configurations.

Step 3 — Module removal and inspection: Disconnect the front connector (retain it — the wiring remains on the front connector). Remove the module from the rail. Inspect the bus connector pins on the removed module and the adjacent slot for damage or contamination.

Step 4 — Replacement installation: Install the 6ES7335-7HG02-0AB0 onto the rail. Reconnect the existing front connector. Restore power and set the CPU to RUN mode. The module will be recognized automatically if the hardware configuration matches.

Step 5 — Functional verification: Using STEP 7 or TIA Portal online diagnostics, confirm all analog channels report values within expected engineering unit ranges. Perform a loop test on each output channel. Log the replacement in the maintenance record with date, technician ID, and module serial number.

This workflow minimizes downtime to under 30 minutes for a prepared maintenance team and ensures system compatibility is maintained without requiring a hardware reconfiguration download in most cases.

Spare Parts Support FAQ

Q1: Is the 6ES7335-7HG02-0AB0 a direct drop-in replacement for earlier SM335 revisions?
Yes, in the vast majority of S7-300 installations the 6ES7335-7HG02-0AB0 is backward compatible with earlier SM335 hardware revisions. The existing front connector and STEP 7 hardware configuration can be retained without modification. In rare cases involving very early firmware CPUs, a GSD or hardware catalog update in STEP 7 may be required — this is confirmed during pre-shipment compatibility review upon request.

Q2: How is the module tested before shipment?
Each unit undergoes functional power-on testing and analog channel verification prior to dispatch. Modules are inspected for physical integrity, bus connector condition, and firmware version. A test report is available upon request for critical maintenance orders. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What is the long-term supply availability for this module?
The 6ES7335-7HG02-0AB0 is stocked to support long-term maintenance requirements for S7-300 systems operating beyond the standard product lifecycle. We maintain buffer inventory specifically for industrial customers with multi-year maintenance contracts or aging automation infrastructure. Blanket purchase orders and scheduled delivery arrangements are available to support annual maintenance planning cycles.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions consistent with SIEMENS SM335 specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated environmental parameters. In the event of a support terms claim, a replacement unit is dispatched after fault verification, minimizing the impact on your production schedule.
