Siemens 6ES7334-0CE01-0AA0 Migration-Ready Analog I/O Module

Overview

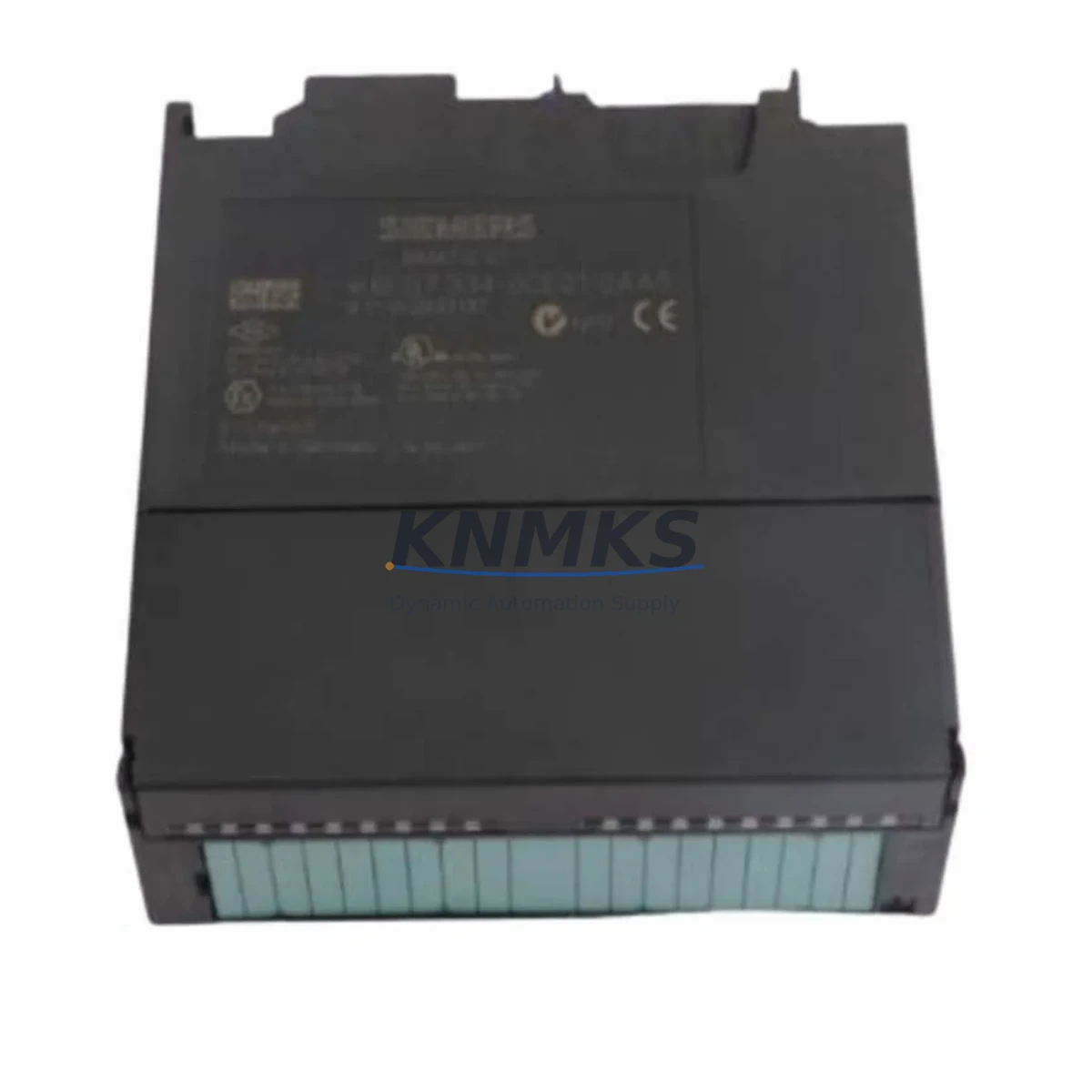

Siemens 6ES7334-0CE01-0AA0 Migration-Ready Analog I/O Module for Legacy Control Systems

The Siemens 6ES7334-0CE01-0AA0 is an SM334 analog input/output module designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems approach end-of-life and spare parts become increasingly scarce, the 6ES7334-0CE01-0AA0 remains a critical component for engineers managing retrofit projects, control cabinet upgrades, and production line continuity. This module provides 4 analog inputs and 2 analog outputs, supporting voltage and current signal ranges compatible with the S7-300 backplane architecture. Every unit is sourced from verified supply channels, pre-shipment tested, and backed by a support terms confirmed by quotation.

For maintenance teams operating aging SIMATIC S7-300 installations, sourcing a verified replacement 6ES7334-0CE01-0AA0 is often the fastest path to restoring production without committing to a full platform migration. This module slots directly into the S7-300 rack, requires no firmware modification for standard configurations, and retains full compatibility with existing STEP 7 and TIA Portal project files referencing the SM334 hardware configuration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 6ES7334-0CE01-0AA0 into an existing S7-300 retrofit project, engineers must account for several interdependent system elements. The module occupies a standard slot in the S7-300 rack — confirm available slot positions in the UR1 or UR2 rack before ordering, particularly in densely populated control cabinets where space allocation may already be constrained by digital I/O modules such as the SM321 or SM322 series.

Power budget verification is essential. The S7-300 power supply module — typically a PS 307 5A or PS 307 10A — must have sufficient headroom to support the additional analog module load alongside existing CPU, communication, and I/O modules. In systems where the PS 307 is already near capacity, a supplementary 24 VDC supply or load distribution review may be required before the retrofit proceeds.

Terminal wiring for the 6ES7334-0CE01-0AA0 uses the standard S7-300 front connector (20-pin). When replacing a failed analog module, photograph or document the existing wiring before removal. Signal types — voltage versus current — must be confirmed against the field instrument specifications, and the internal jumper configuration on the module must match the intended signal range. Incorrect jumper settings are a common source of commissioning errors during analog module replacements.

For systems communicating over PROFIBUS DP, the CP 342-5 or integrated PROFIBUS interface on the CPU (e.g., CPU 315-2 DP) handles network communication independently of the analog module slot. The 6ES7334-0CE01-0AA0 does not require individual PROFIBUS addressing — it is addressed through the S7-300 rack slot assignment in STEP 7 Hardware Configuration. After physical installation, download the updated hardware configuration to the CPU and perform a warm restart to activate the new module address mapping.

In projects involving HMI integration — particularly WinCC flexible or SIMATIC HMI TP/MP panels — verify that analog tag addresses referencing the replaced module’s I/O byte offsets remain consistent after the hardware configuration download. If the slot position changes during the retrofit, tag addresses in the HMI project must be updated accordingly to prevent process value display errors. Signal isolators or barriers may also be required when field instruments operate at extended cable distances or in electrically noisy environments.

Downtime Control During System Migration

Minimizing unplanned downtime during an S7-300 analog module replacement requires preparation before the maintenance window begins. Back up the existing STEP 7 or TIA Portal project — including the hardware configuration, symbol table, and program blocks — to a secure offline location. If the CPU supports memory card backup, use it as an additional recovery point.

Before powering down the rack, document the current process values on all analog channels. This provides a reference baseline for post-installation verification and helps identify any signal discrepancies caused by wiring errors or jumper misconfiguration. Where process continuity is critical, coordinate with the operations team to place the affected control loops in manual mode at the DCS or SCADA level before the CPU is stopped.

Physical module swap on the S7-300 rack is straightforward: remove the front connector (which retains wiring), release the module locking mechanism, slide out the old module, insert the 6ES7334-0CE01-0AA0, and reattach the front connector. Power up the rack, download the hardware configuration if the slot assignment has changed, and perform channel-by-channel signal verification using a calibrated signal source or loop calibrator. A structured commissioning checklist — covering power-on sequence, CPU RUN mode confirmation, analog input scaling verification, and output signal test — reduces the risk of overlooked errors and supports a controlled return to automatic operation.

Every 6ES7334-0CE01-0AA0 unit shipped from our inventory undergoes pre-shipment functional testing to confirm analog channel integrity, backplane communication, and output signal accuracy. This reduces on-site commissioning time and lowers the risk of receiving a non-functional module during a time-critical maintenance event.

Retrofit Support FAQ

Q: Is the 6ES7334-0CE01-0AA0 a direct drop-in replacement for a failed SM334 module in an existing S7-300 rack?
A: Yes. The 6ES7334-0CE01-0AA0 is the standard SM334 analog I/O module for the S7-300 platform. It installs into any standard S7-300 rack slot and is recognized by STEP 7 and TIA Portal without hardware reconfiguration, provided the slot assignment remains unchanged. Verify jumper settings for signal type before installation.

Q: What pre-shipment testing is performed on each unit?
A: Each module undergoes functional verification covering analog input channel accuracy, analog output signal integrity, and backplane bus communication prior to shipment. Test records are available on request. All units are covered by a support terms confirmed by quotation from the shipment date.

Q: Can this module be used in S7-300 systems communicating over PROFIBUS DP or MPI?
A: Yes. The 6ES7334-0CE01-0AA0 operates on the S7-300 internal P-bus and is fully compatible with S7-300 CPUs using PROFIBUS DP or MPI for network communication. The module does not require individual network addressing — it is managed through the CPU’s hardware configuration.

Q: What is the availability and lead time for the 6ES7334-0CE01-0AA0?
A: Units are available from stock. Standard orders ship within 1–3 business days. For bulk procurement or long-term supply agreements supporting extended maintenance programs, contact our sales team to discuss inventory reservation and supply continuity arrangements.

—
