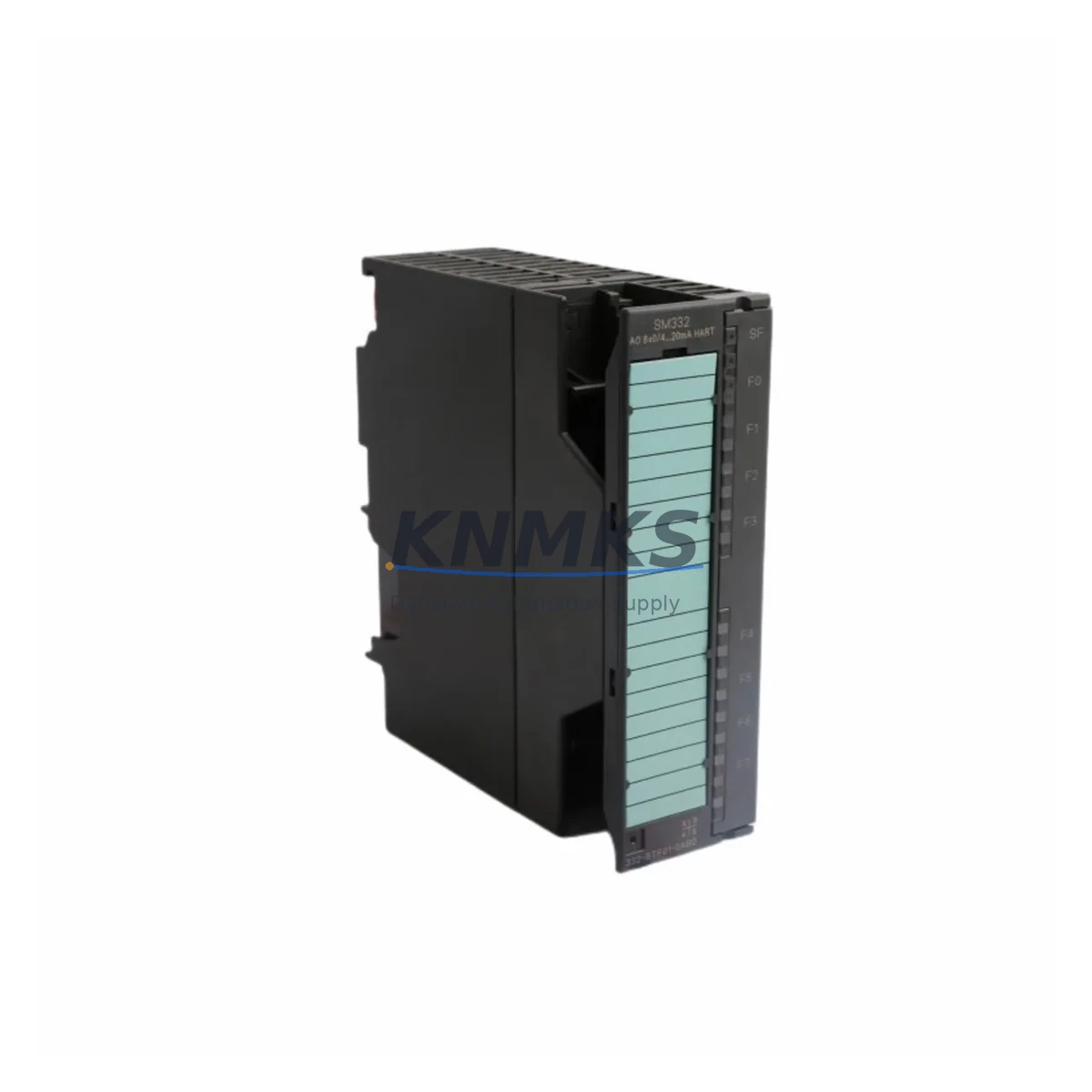

Siemens 6ES7332-8TF01-0AB0 Fail-Safe Analog Output Module

Overview

Siemens 6ES7332-8TF01-0AB0 Fail-Safe Analog Output Module: Critical Industrial Control Reliability

The Siemens 6ES7332-8TF01-0AB0 is an SM332 8-channel analog output module engineered for safety-critical and continuous-process industrial environments. Designed for integration within the SIMATIC S7-300 programmable logic controller platform, this module delivers precision analog signal output with fail-safe architecture, making it a cornerstone component in control cabinets where unplanned downtime, signal drift, or output misconfiguration can result in process hazards, equipment damage, or production loss.

In demanding industrial settings — including petrochemical plants, power generation facilities, metallurgical operations, water treatment stations, and continuous manufacturing lines — the integrity of analog output signals directly governs actuator positioning, valve control, variable-speed drive commands, and process loop regulation. The 6ES7332-8TF01-0AB0 is purpose-built to maintain output fidelity under high electromagnetic interference (EMI), voltage transients, surge events, and thermal stress, ensuring that control loops remain stable even when the surrounding electrical environment is hostile.

Unlike standard analog output modules, the SM332 8TF01 variant incorporates safety-rated output channels capable of participating in safety instrumented system (SIS) architectures. This allows plant engineers to consolidate standard and safety-related output functions within a single S7-300 rack, reducing cabinet footprint, simplifying wiring, and lowering the total number of field devices required for interlock and shutdown loop coverage.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7332-8TF01-0AB0 analog output module operates as part of a layered protection architecture. Its performance depends on — and contributes to — the stability of adjacent modules and power infrastructure. For reliable cabinet operation, it is typically deployed alongside the Siemens 6ES7307-1EA01-0AA0 PS307 24 VDC power supply module, which provides regulated, filtered DC power to the S7-300 rack and protects against mains voltage fluctuations that could otherwise cause output channel errors or module resets.

Signal integrity on the output side is further protected when the cabinet includes proper shielding and grounding, particularly in environments where variable-frequency drives (VFDs) or large motor starters generate conducted EMI. In such installations, the Siemens 6ES7321-1BL00-0AA0 SM321 32-channel digital input module is often co-located in the same rack to handle interlock feedback signals, while the 6ES7332-8TF01-0AB0 manages the analog command outputs to control valves and positioners.

For communication-intensive cabinets where the S7-300 CPU must exchange data with SCADA systems, distributed I/O, or safety controllers, the Siemens 6GK7343-1EX30-0XE0 CP343-1 Industrial Ethernet communication processor is commonly installed in the same rack. This ensures that analog output setpoints can be updated in real time from the control room without introducing latency or communication faults that could cause output drift or actuator hunting.

In safety loop applications — such as emergency shutdown (ESD) systems or burner management systems (BMS) — the 6ES7332-8TF01-0AB0 may be paired with a Siemens 6ES7315-2FJ14-0AB0 CPU315F-2 PN/DP fail-safe CPU, which provides the SIL-rated processing backbone for the entire safety instrumented function. Additionally, surge protection devices such as the Phoenix Contact TRABTECH series or equivalent DIN-rail surge arresters are recommended at the cabinet entry points to prevent transient energy from reaching the module’s output terminals.

For cabinets operating in dusty, humid, or high-vibration environments — common in mining, port operations, and heavy manufacturing — cabinet climate control units and anti-vibration mounting accessories should be considered to maintain the module’s operating parameters within specification and extend its service life between planned maintenance intervals.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, hydrocracker reactors, and compressor control systems, the 6ES7332-8TF01-0AB0 provides the analog output signals required to position control valves, regulate flow controllers, and command variable-speed pumps. Its fail-safe output architecture ensures that in the event of a CPU fault or communication loss, outputs revert to a defined safe state, preventing runaway process conditions or overpressure events.

Power Generation and Substation Automation: In coal-fired, gas turbine, and hydroelectric power plants, analog output modules govern turbine governor setpoints, boiler feedwater control, and excitation system commands. The EMI resilience of the 6ES7332-8TF01-0AB0 is critical in these environments, where high-voltage switching events and large transformer fields can induce noise on signal cables. Its galvanic isolation between channels and the backplane bus prevents ground loops from corrupting output values.

Metallurgical and Steel Mill Operations: Rolling mill drives, electric arc furnace electrode regulators, and continuous casting machine controls all require stable, high-resolution analog output signals. The 8-channel capacity of the SM332 8TF01 allows a single module to command multiple drive systems simultaneously, reducing rack slot consumption and simplifying spare parts inventory management.

Water and Wastewater Treatment: Dosing pump control, aeration blower speed regulation, and sludge dewatering press control are typical analog output applications in water treatment facilities. The module’s ability to operate reliably in high-humidity environments (up to 95% RH non-condensing) makes it suitable for pump stations and wet well control panels where condensation is a persistent concern.

Mining and Mineral Processing: Conveyor belt speed control, crusher feed rate regulation, and flotation cell level control in mining operations demand analog output modules that can withstand vibration, dust ingress, and wide temperature swings. The 6ES7332-8TF01-0AB0’s robust design and IP20 protection, combined with proper cabinet sealing, supports reliable operation in these harsh field conditions.

Port and Marine Automation: Ship-to-shore crane drives, automated stacking crane systems, and vessel mooring control systems increasingly rely on S7-300-based control architectures. The fail-safe analog output capability of the 6ES7332-8TF01-0AB0 supports the safety interlock requirements of heavy lifting and load-handling applications where output signal loss must result in a controlled, safe stop rather than an uncontrolled load drop.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7332-8TF01-0AB0?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and module-level faults confirmed through diagnostic testing. Support requests are processed with priority to minimize downtime impact on critical production sites.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Every 6ES7332-8TF01-0AB0 unit undergoes a full functional test prior to dispatch. This includes verification of all 8 analog output channels across the specified current and voltage output ranges, backplane communication integrity checks, and isolation resistance verification. Test records are available upon request for quality documentation purposes.

Q3: Is this module compatible with all S7-300 CPU variants and existing racks?
The SM332 6ES7332-8TF01-0AB0 is designed for the SIMATIC S7-300 platform and is compatible with standard S7-300 racks and backplane buses. For safety-rated applications, it must be used in conjunction with a fail-safe CPU (F-CPU) such as the CPU315F or CPU317F series. Compatibility with specific CPU firmware versions and safety program configurations should be verified against the Siemens hardware compatibility matrix for the target installation.

Q4: Can long-term supply and replacement support be guaranteed for end-of-life or legacy S7-300 installations?
Yes. We maintain dedicated inventory of the 6ES7332-8TF01-0AB0 and related S7-300 spare parts to support legacy installations where the original product line has been discontinued or has extended lead times through standard distribution channels. Our supply commitment is designed to support planned maintenance cycles, emergency replacements, and multi-year spare parts agreements for critical infrastructure operators.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7332-8TF01-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7332-8TF01-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
