Siemens 6ES7332-7ND02-0AB0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7332-7ND02-0AB0 Maintenance-Proven Spare Part for Factory Uptime

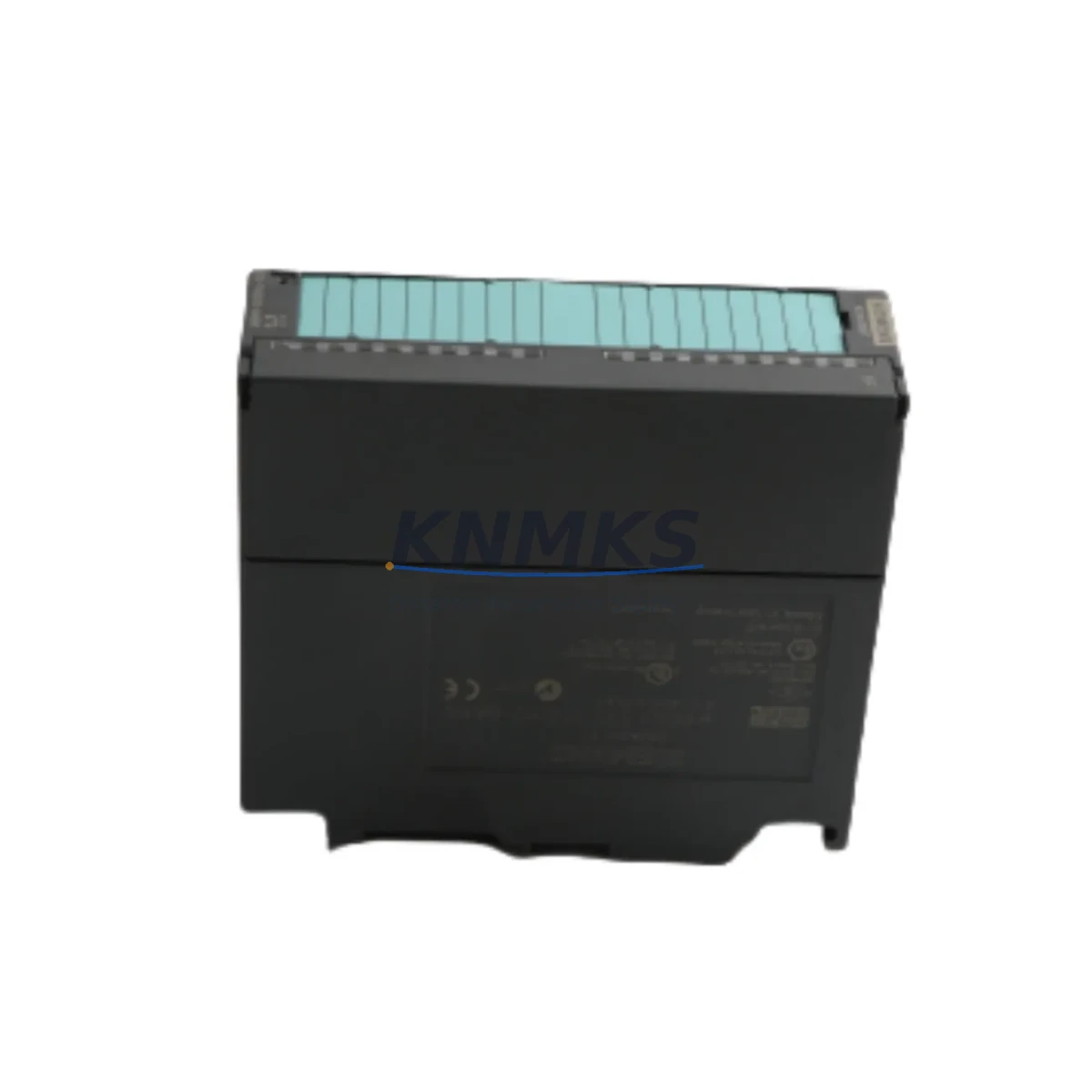

The Siemens 6ES7332-7ND02-0AB0 is an SM 332 analog output module designed for the SIMATIC S7-300 programmable logic controller platform. With four high-resolution analog output channels and a wide output range supporting both current (0–20 mA / 4–20 mA) and voltage (±10 V / 0–10 V) signals, this module is a critical interface between the S7-300 CPU and field actuators including control valves, variable-speed drives, and positioners. Maintaining a verified replacement unit in your spare parts inventory is a proven strategy for reducing unplanned downtime in continuous process and discrete manufacturing environments.

For maintenance engineers managing aging S7-300 installations, the 6ES7332-7ND02-0AB0 represents a direct, back-to-back compatible replacement for earlier SM 332 variants. The module slots into the standard S7-300 backplane without hardware modification, and channel parameterization is retained in the CPU project — minimizing recommissioning time during an emergency swap. Procurement engineers sourcing this module should confirm the firmware revision of the target CPU and the STEP 7 or TIA Portal project version to ensure full compatibility before deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 6ES7332-7ND02-0AB0 during a planned shutdown or responding to an unplanned fault, maintenance engineers should treat the swap as an opportunity to inspect the broader analog output circuit and the surrounding control cabinet environment. A systematic inspection reduces the risk of repeat failures and extends the operational life of the S7-300 system.

Begin with the 24 VDC power supply feeding the S7-300 rack — a degraded power supply unit such as the Siemens SITOP PSU100S or equivalent can cause intermittent analog output errors that are misdiagnosed as module faults. Verify output voltage stability under load before reinstalling the replacement module. Next, inspect the S7-300 backplane bus connector (the U-connector linking adjacent modules) for oxidation or mechanical damage; a faulty bus connector is a common root cause of module communication errors on aged installations.

Check the front connector wiring (20-pin screw or spring-cage connector) for loose terminations, corroded contacts, and correct shielding of analog signal cables. Unshielded or improperly grounded signal cables introduce noise that degrades output accuracy, particularly in 4–20 mA loops driving control valves or variable-frequency drives. If the plant uses signal isolators or loop-powered isolators between the SM 332 output and the field device, verify isolator integrity and confirm the loop burden remains within the module’s specified load impedance range.

For installations where the 6ES7332-7ND02-0AB0 drives electropneumatic positioners or I/P converters, inspect the positioner feedback wiring and confirm that the analog input module receiving the position feedback — such as the SM 331 6ES7331-7KF02-0AB0 — is also functioning correctly. A paired AO/AI module failure pattern is common in high-cycle valve control applications. Additionally, review the CPU 315-2 DP or CPU 317-2 PN/DP diagnostic buffer for any recorded hardware faults associated with the module slot, and confirm that the STEP 7 hardware configuration matches the physical slot assignment after reinstallation.

Where the S7-300 system communicates over PROFIBUS DP, verify that the DP master interface module and network termination resistors are intact, as communication interruptions during a module swap can trigger watchdog faults in downstream ET 200 distributed I/O stations. Finally, check the miniature circuit breakers and fuse terminals (e.g., Phoenix Contact or Weidmüller fuse terminal blocks) protecting the 24 VDC distribution to the analog output field circuits — a blown fuse on an output channel is frequently overlooked during fault isolation.

Site Replacement Workflow

The 6ES7332-7ND02-0AB0 is a direct plug-in replacement for earlier SM 332 analog output modules on the S7-300 platform. The following workflow is recommended to minimize downtime and ensure system compatibility:

Step 1 — Isolate and de-energize: Place the CPU in STOP mode via the mode selector switch or STEP 7 / TIA Portal online interface. De-energize the 24 VDC supply to the affected rack section. Disconnect the front connector from the faulty module — the front connector retains all field wiring and can be transferred directly to the replacement module without rewiring.

Step 2 — Module swap: Release the module locking screw, slide the faulty 6ES7332-7ND02-0AB0 out of the slot, and insert the replacement unit. Reconnect the front connector. Verify that the bus connector is fully seated between adjacent modules.

Step 3 — Parameterization verification: Re-energize the rack and switch the CPU to RUN mode. The S7-300 CPU will automatically download the stored module parameters from the project. Confirm that all four analog output channels are active and that the process values displayed in the STEP 7 or TIA Portal variable table match expected setpoints.

Step 4 — Loop verification: Using a calibrated loop calibrator or multimeter, verify the output signal at the field terminal for each active channel. Confirm that the field device (valve, drive, or positioner) responds correctly to the commanded output value. Document the as-found and as-left readings in the maintenance record.

This workflow is applicable to both emergency replacements during unplanned downtime and scheduled module exchanges during annual turnarounds. Keeping a pre-tested, pre-parameterized spare on the shelf reduces mean time to repair (MTTR) to under 30 minutes for experienced maintenance teams.

Spare Parts Support FAQ

Q1: Is the 6ES7332-7ND02-0AB0 compatible with all S7-300 CPU versions?
The SM 332 6ES7332-7ND02-0AB0 is compatible with all standard S7-300 CPUs that support analog output modules, including the CPU 312, 314, 315-2 DP, 317-2 PN/DP, and 319-3 PN/DP. Compatibility with specific firmware revisions should be confirmed against the Siemens product compatibility matrix for your installed CPU version. The module is parameterized via STEP 7 V5.x or TIA Portal V13 and above.

Q2: How is the module tested before shipment?
Each 6ES7332-7ND02-0AB0 unit is powered up and functionally tested on a live S7-300 test rack prior to shipment. Output channel accuracy, isolation integrity, and bus communication are verified. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for this module?
For plants operating more than two S7-300 racks with SM 332 analog output modules, maintaining a minimum of one spare 6ES7332-7ND02-0AB0 per production line is recommended. Given that this module is in the mature phase of its product lifecycle, procurement engineers should consider establishing a blanket stock agreement to secure supply against allocation constraints. Long lead times from distribution channels make on-shelf inventory the most reliable downtime mitigation strategy.

Q4: Can this module replace older SM 332 variants such as the 6ES7332-5HD01-0AB0?
The 6ES7332-7ND02-0AB0 (4-channel, high-resolution) is not a direct channel-count replacement for the 6ES7332-5HD01-0AB0 (8-channel). However, it can serve as a functional replacement in applications where only four output channels are required, with the STEP 7 hardware configuration updated to reflect the new module order number. Always verify the channel assignment in the PLC program before commissioning the replacement module in a live system.
