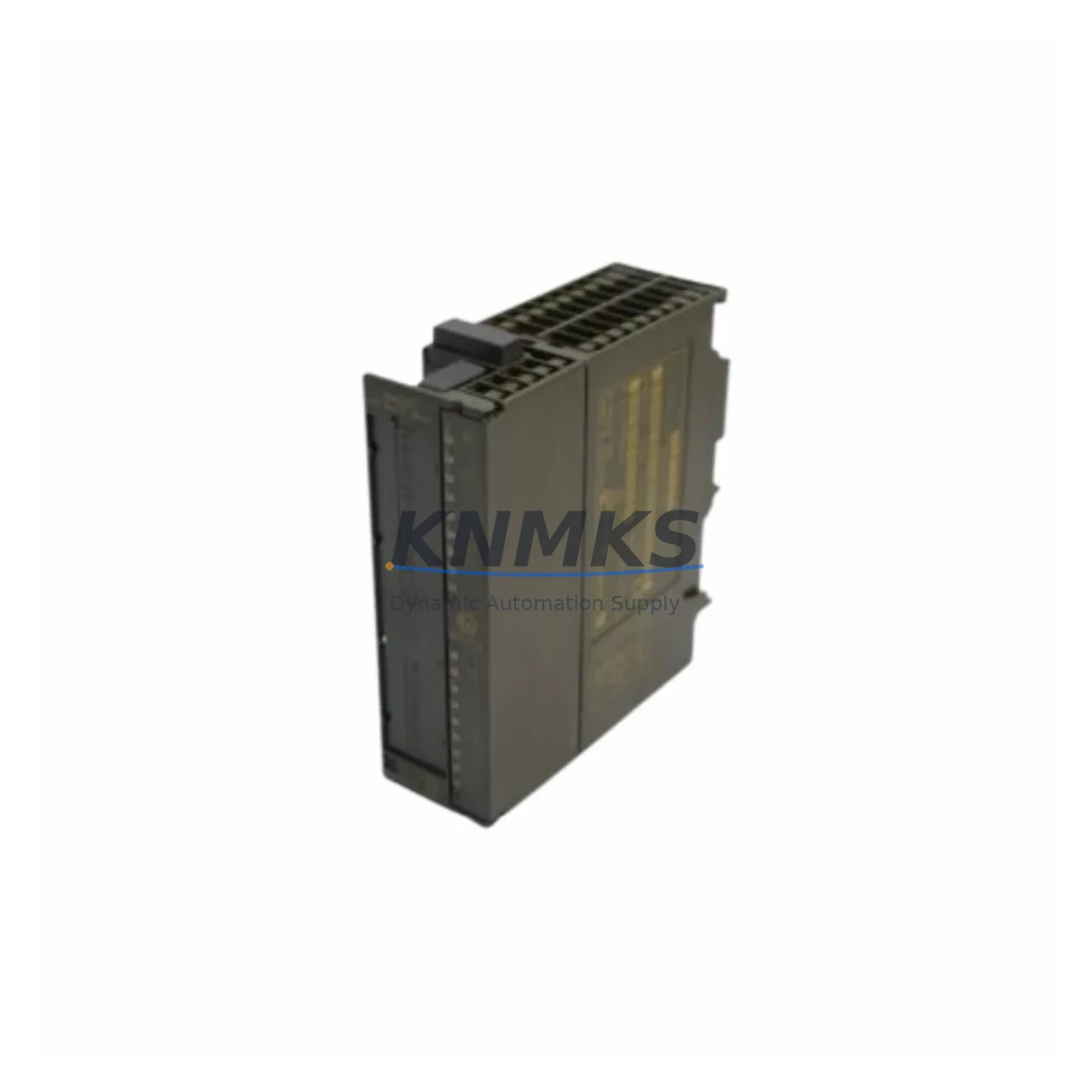

Siemens 6ES7332-5RD00-0AB0 Fail-Safe Analog Output Module

Overview

Siemens 6ES7332-5RD00-0AB0 Fail-Safe Analog Output Module: Fault-Tolerant Control for Critical Industrial Sites

The Siemens 6ES7332-5RD00-0AB0 is a 4-channel analog output module (SM 332) engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to deliver deterministic, high-precision signal output in demanding industrial environments, this module is a cornerstone component for control engineers who cannot afford unplanned downtime, signal drift, or output instability in continuous production processes.

In petrochemical plants, power generation facilities, metallurgical lines, and water treatment stations, analog output accuracy is not a convenience — it is a safety requirement. The 6ES7332-5RD00-0AB0 provides ±0.1% output accuracy across its full operating range, ensuring that actuators, control valves, variable-frequency drives, and positioners receive precise command signals even under fluctuating load conditions or electrical noise.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving continuous industrial processes, the 6ES7332-5RD00-0AB0 operates as part of a tightly integrated protection architecture. Its analog output channels are typically paired with the Siemens 6ES7321-1BL00-0AA0 digital input module (SM 321, 32-channel) to form a complete I/O layer that handles both discrete interlock signals and precision analog command outputs within the same S7-300 rack.

For power supply integrity — a critical factor in preventing output signal collapse during grid fluctuations — the module relies on a stable DC 24 V rail delivered by units such as the Siemens 6EP1334-2BA20 SITOP PSU100S power supply. This regulated supply ensures that even during upstream voltage sags or transient surges, the analog output channels maintain their commanded values without drift or reset.

In cabinets exposed to high electromagnetic interference from variable-frequency drives, large motor starters, or arc welding equipment nearby, the Siemens 6ES7390-1AE80-0AA0 shielding bus connector and proper cable segregation practices are essential companions to the 6ES7332-5RD00-0AB0. Shielded twisted-pair wiring routed away from power conductors significantly reduces common-mode noise injection into the analog output loop.

For communication-layer protection, the module’s host CPU — typically a Siemens 6ES7315-2EH14-0AB0 CPU 315-2 PN/DP — manages the backplane communication and ensures that output values are refreshed at deterministic scan cycle intervals. Any communication anomaly between the CPU and the SM 332 module triggers a safe-state output (configurable to 0 V / 0 mA or last value hold), preventing uncontrolled actuator movement during a controller fault.

Surge protection at the field terminal level is further reinforced by installing Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices on the 4–20 mA loops feeding critical control valves or positioners. This two-layer protection — module-level EMC compliance plus field-level surge arrestors — is the recommended architecture for hazardous area boundary cabinets in petrochemical and mining installations.

Critical Industrial Safety Applications

The 6ES7332-5RD00-0AB0 is deployed across a wide range of safety-critical and production-critical industrial environments where analog output precision directly affects process safety and equipment protection.

In petrochemical and refinery operations, the module drives 4–20 mA signals to control valve positioners on feed streams, reflux loops, and pressure let-down stations. A signal drift of even 0.5% in these applications can result in off-spec product, pressure exceedances, or activation of safety instrumented system (SIS) trips. The SM 332’s ±0.1% accuracy and surge immunity make it a reliable choice for these interlock-adjacent control loops.

In electric power generation and substation automation, the module provides setpoint signals to automatic voltage regulators (AVRs) and governor control systems. Its ability to maintain stable output under high-frequency electrical noise — common in switchgear rooms and transformer bays — ensures that generator excitation and turbine speed control remain within safe operating bands.

In mining and mineral processing, where conveyor drives, crusher motors, and slurry pump VFDs generate severe harmonic disturbances, the 6ES7332-5RD00-0AB0 maintains output integrity across its full current range. Its IEC 60068-2-6 vibration compliance also makes it suitable for installation in mobile or semi-mobile processing equipment subject to mechanical shock.

In water and wastewater treatment facilities, the module controls dosing pump speeds, aeration blower VFDs, and chemical feed systems via 4–20 mA outputs. Continuous 24/7 operation in humid, chemically aggressive environments demands the module’s full operating temperature range and non-condensing humidity tolerance.

In metallurgical and steel mill applications, the module is used in rolling mill tension control, furnace temperature setpoint delivery, and hydraulic servo valve command systems. The combination of 12-bit resolution and fast output settling time ensures that these high-dynamic-response control loops remain stable under rapid load changes.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7332-5RD00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional anomalies that occur under normal operating conditions as specified in the Siemens SM 332 technical manual. It does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling. Support requests are processed with full technical support and replacement dispatch within agreed lead times.

Q2: What pre-shipment testing is performed before the module is dispatched?
Every 6ES7332-5RD00-0AB0 unit undergoes a full functional output verification test prior to shipment. This includes channel-by-channel output accuracy verification across voltage and current ranges, backplane communication integrity check, and visual inspection for connector and housing condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-300 CPU variants and existing SM 332 installations?
The 6ES7332-5RD00-0AB0 is fully compatible with the SIMATIC S7-300 backplane and is a direct functional replacement for earlier SM 332 analog output module variants. It is supported by STEP 7 V5.x and TIA Portal engineering environments. For mixed-rack configurations with other SM 300 series I/O modules, no additional hardware adaptation is required.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. This module is maintained in forward stock specifically to support 12-month spare parts buffer programs for industrial maintenance teams. For customers operating large S7-300 fleets in continuous production environments, bulk procurement agreements and reserved stock allocations are available to eliminate lead-time risk during planned maintenance shutdowns or emergency replacement scenarios. Contact our sales team to discuss long-term supply arrangements.
