Siemens 6ES7332-5HF00-0AB0 Migration-Ready Analog Output for Legacy S7-300 Control Systems

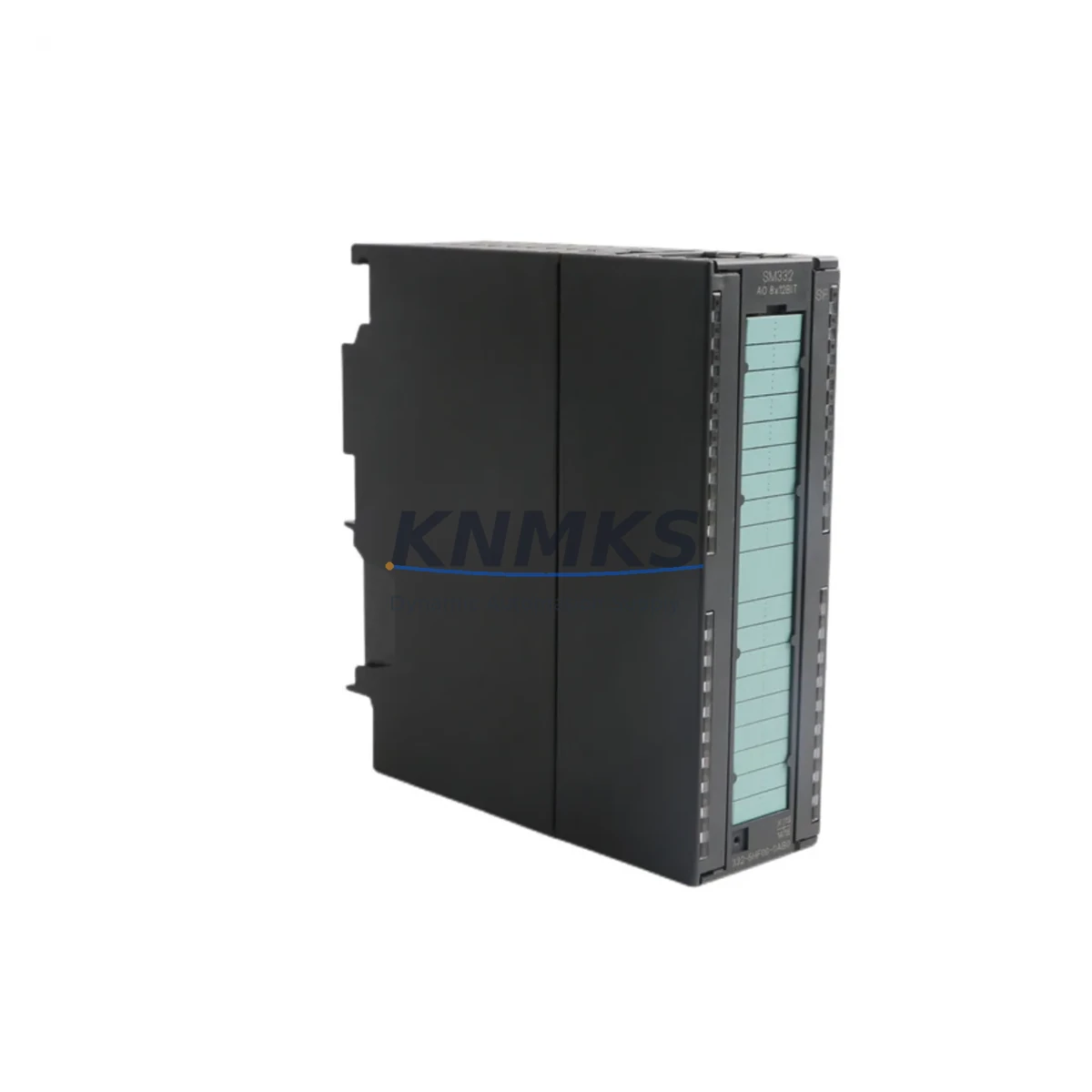

The Siemens 6ES7332-5HF00-0AB0 is an SM332 series 8-channel analog output module designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 installations approach end-of-life and OEM support windows close, this module has become a critical spare part and retrofit component for automation engineers managing aging control cabinets across process, manufacturing, and utilities sectors. KNMKS maintains verified stock of the 6ES7332-5HF00-0AB0 with full functional testing, traceability documentation, and a support terms confirmed by quotation on every unit shipped.

Each 6ES7332-5HF00-0AB0 provides 8 analog output channels configurable for voltage (±10 V) or current (0–20 mA / 4–20 mA) signals, making it suitable for direct replacement in existing S7-300 racks without signal rewiring in most standard configurations. The module slots into the S7-300 backplane via the standard 40-pin bus connector and is addressed through the CPU’s I/O configuration in STEP 7 or TIA Portal in compatibility mode. Output resolution is 12 bits, consistent with the original SM332 specification, ensuring that existing PID loops, valve positioners, and variable-frequency drive references continue to operate within calibrated tolerances after module swap.

Before installing a replacement 6ES7332-5HF00-0AB0, engineers should verify the rack slot assignment and module address in the existing STEP 7 hardware configuration (HW Config). If the original module was configured with a specific diagnostic interrupt or process interrupt setting, those parameters must be replicated in the replacement module’s properties dialog to avoid CPU fault responses on startup. The 40-pin front connector with field wiring should be transferred directly from the failed module to the replacement unit — terminal assignments are identical across SM332 production runs, eliminating the need to re-terminate field cables during the swap.

Power budget confirmation is an important pre-installation step. The 6ES7332-5HF00-0AB0 draws load current from the S7-300 backplane’s 5 VDC bus as well as the external 24 VDC supply connected at the front connector. When replacing a failed module in a fully loaded rack — particularly one that also houses communication modules such as the CP 343-1 Lean or CP 343-5 PROFIBUS interface, or additional SM321/SM322 digital I/O modules — the rack’s power supply module (PS 307 or PS 305 series) should be checked against its rated output current to confirm headroom remains adequate after the swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6ES7332-5HF00-0AB0 into an aging S7-300 control system requires a structured approach that accounts for the interdependencies between modules sharing the same rack and backplane. In a typical process control cabinet, the SM332 analog output module operates alongside digital input modules (SM321 series), digital output modules (SM322 series), and in many installations, a CP 343-1 Lean Ethernet communication module that handles SCADA connectivity or MES data exchange. When planning the replacement, engineers should document the current rack layout, slot assignments, and module order before powering down — this information is essential for restoring the HW Config correctly if the STEP 7 project file is not current.

For installations where the S7-300 CPU (such as a CPU 315-2 DP or CPU 317-2 PN/DP) communicates with remote I/O via PROFIBUS DP, the analog output module replacement does not affect the PROFIBUS network topology or DP slave addressing. However, if the control cabinet also contains a DP/PA coupler linking PROFIBUS DP to PROFIBUS PA field instruments, the PA segment should be verified for continuity after the rack power cycle that accompanies the module swap. Similarly, if an IM 360/IM 361 interface module pair is used to extend the rack configuration across multiple mounting rails, the inter-rack communication link should be confirmed operational after the replacement procedure.

Signal isolation requirements should be reviewed during retrofit planning. In applications where the 6ES7332-5HF00-0AB0 drives long cable runs to field devices — particularly in environments with significant electrical noise from variable-frequency drives or large motor starters — signal isolators or loop-powered barriers may already be installed between the module’s output terminals and the field device inputs. These isolators remain in place and do not require reconfiguration during a like-for-like module swap. If the original module showed signs of output drift or channel failure attributable to ground loop issues, the retrofit is an appropriate time to review the grounding scheme at the front connector and confirm that the cable shield termination follows Siemens’ recommended practice for the SM332 series.

HMI screen updates are generally not required for a like-for-like 6ES7332-5HF00-0AB0 replacement, since the module’s I/O addresses and data types remain unchanged. However, if the retrofit is part of a broader migration from a SIMATIC S7-300 platform to a newer S7-1500 or ET 200SP distributed I/O architecture, HMI tag databases and faceplates will need to be reviewed and updated to reflect the new controller’s memory organization and data block structure. In such cases, the analog output module replacement serves as a bridge solution that extends the operational life of the existing installation while the broader migration project is planned and budgeted.

Downtime Control During System Migration

Minimizing unplanned downtime during a module swap on a live S7-300 system requires preparation that begins well before the maintenance window. The first step is to export the current STEP 7 project from the CPU’s online memory using the “Upload to PG” function, creating a verified backup of the program blocks, hardware configuration, and data blocks as they exist in the running system — not just the last saved version on the engineering station. This backup should be stored on a separate medium and verified readable before the maintenance window begins.

During the swap itself, the CPU should be placed in STOP mode before removing the 6ES7332-5HF00-0AB0 from the rack. Removing an analog output module while the CPU is in RUN mode can cause the CPU to enter STOP due to an I/O access error, but it can also result in undefined output states on the remaining channels during the brief period of backplane disruption — a risk that is unacceptable in process applications where analog outputs drive control valves or actuators. With the CPU in STOP and the 24 VDC external supply to the front connector de-energized, the front connector can be unplugged, the module released from the rail, and the replacement unit installed in the same slot within a few minutes.

After installing the replacement 6ES7332-5HF00-0AB0, the CPU should be returned to RUN mode and the analog output channels verified against expected values using the STEP 7 Variable Table (VAT) or the TIA Portal Watch Table before handing control back to the process. For critical loops, a manual override at the field device (e.g., placing a control valve in manual at the positioner) during the verification step provides an additional layer of protection against unexpected output transients. Total planned downtime for a prepared, like-for-like swap is typically 15–30 minutes, including verification — well within the maintenance windows available in most continuous process environments.

Retrofit Support FAQ

Q: Is the 6ES7332-5HF00-0AB0 a direct drop-in replacement for other SM332 variants such as the 6ES7332-5HD01-0AB0 (4-channel) or 6ES7332-5HB01-0AB0 (2-channel)?
A: No. While all SM332 modules share the same S7-300 backplane interface and front connector form factor, the channel count and parameterization differ between variants. The 6ES7332-5HF00-0AB0 is specifically an 8-channel module. Substituting it for a 4-channel or 2-channel variant requires updating the HW Config to reflect the new module type and verifying that the additional output channels do not conflict with existing address assignments in the CPU’s I/O map.

Q: What pre-shipment testing is performed on KNMKS-supplied 6ES7332-5HF00-0AB0 units?
A: Every unit undergoes functional output verification across all 8 channels in both voltage and current output modes prior to shipment. Channel-to-channel isolation, output accuracy against the 12-bit specification, and backplane communication integrity are confirmed. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can the 6ES7332-5HF00-0AB0 be used in a TIA Portal project targeting an S7-300 CPU?
A: Yes. TIA Portal supports S7-300 hardware in compatibility mode, and the SM332 8AO module (6ES7332-5HF00-0AB0) is available in the TIA Portal hardware catalog. The module’s parameterization — output type, diagnostic settings, and substitution value behavior — can be configured within TIA Portal’s device configuration view. No changes to existing STEP 7 program logic are required for a like-for-like replacement.

Q: What is the typical lead time and stock availability for the 6ES7332-5HF00-0AB0?
A: KNMKS maintains buffer stock of the 6ES7332-5HF00-0AB0 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For volume orders or long-term supply agreements supporting multi-site maintenance programs, contact our sales team to discuss inventory reservation and pricing. All units are supplied with a support terms confirmed by quotation and full traceability documentation.
