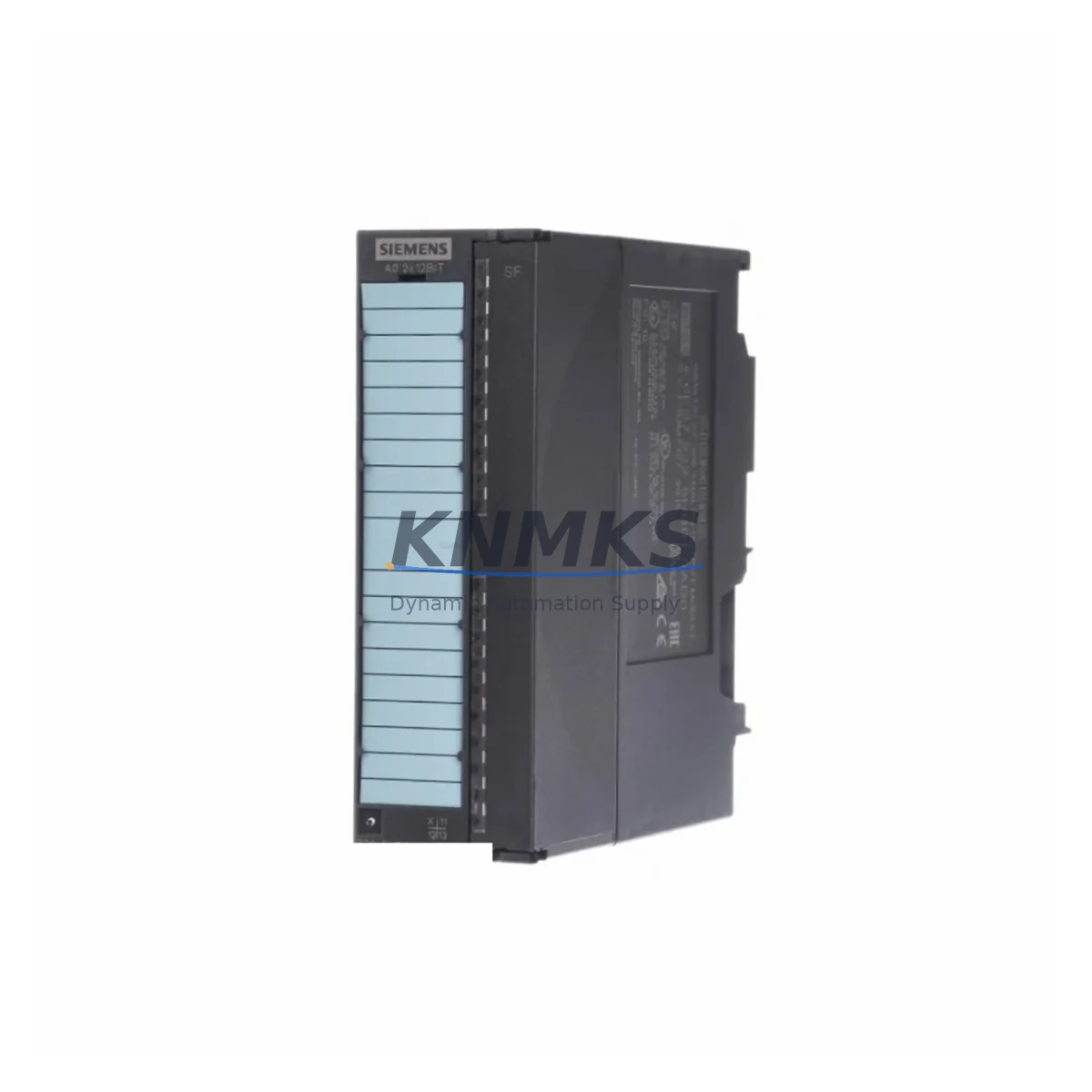

The SIEMENS 6ES7332-5HB01-0AB0 is an SM332 8-channel analog output module designed for the SIMATIC S7-300 programmable logic controller platform. In industrial facilities where continuous process control is non-negotiable — from chemical dosing lines and water treatment plants to automotive assembly and food processing — this module serves as the critical interface between the PLC and field actuators such as control valves, variable frequency drives, and positioners. Maintaining a verified spare of the 6ES7332-5HB01-0AB0 in your cabinet inventory is one of the most cost-effective strategies for protecting against unplanned downtime caused by analog output failure.

Each unit supplied by KNMKS is sourced from authorized distribution channels, individually tested for output accuracy across all 8 channels, and shipped with a support terms confirmed by quotation. Our quality control process includes functional verification under load conditions, visual inspection of the backplane connector, and confirmation of firmware compatibility with STEP 7 V5.x and TIA Portal environments. Units are packaged in anti-static ESD-safe materials and dispatched within 3–5 business days of order confirmation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7332-5HB01-0AB0 analog output module is flagged during routine cabinet inspection or fails during a production shift, the replacement process rarely ends with the module itself. Experienced maintenance engineers know that analog output faults are frequently symptomatic of upstream or downstream issues that must be addressed simultaneously to prevent repeat failures and ensure a clean restart.

Begin by verifying the 24 VDC backplane supply rail. A degraded PS307 or PS305 power supply module delivering marginal voltage will stress analog output circuitry over time, causing drift and eventual channel failure. Confirm supply voltage at the rack bus connector before installing the replacement 6ES7332-5HB01-0AB0. If the supply is borderline, schedule the power supply for replacement during the same maintenance window.

Next, inspect the SM321 or SM322 digital I/O modules sharing the same rack. Shared rack faults — particularly ground loops introduced by improperly shielded field cables — can induce noise on analog channels. Check cable shielding continuity and grounding at the cabinet entry point. Ensure all analog signal cables are routed separately from power cables and that shield terminations are connected at one end only.

For systems using CP343-1 or CP343-1 Advanced communication processors, verify that the Ethernet or PROFIBUS connection to the SCADA or DCS layer remains stable after the module swap. A module replacement that triggers a rack reconfiguration can occasionally cause the CP module to drop its connection, requiring a manual re-establishment of the communication link.

If the S7-300 rack includes a SM374 simulation module or any SM338 position input module, confirm that their configuration data in the hardware catalog remains intact after the CPU restarts. Analog output modules in the same rack share the same CPU scan cycle, and any hardware configuration mismatch will generate a diagnostic alarm that prevents the new module from going online.

Finally, review the terminal block wiring on the front connector of the 6ES7332-5HB01-0AB0. The 20-pin front connector is field-removable, which simplifies hot-swap procedures, but terminal screws should be re-torqued to specification (0.5–0.6 Nm) and wire ferrules inspected for corrosion or loosening — particularly in high-vibration or high-humidity environments. Maintaining a spare front connector pre-wired and labeled in the cabinet significantly reduces replacement time during emergency callouts.

Site Replacement Workflow

The 6ES7332-5HB01-0AB0 is a direct drop-in replacement for earlier SM332 variants including the 6ES7332-5HB00-0AB0. The hardware configuration in STEP 7 or TIA Portal must be updated to reflect the correct order number if the firmware revision differs, but in most cases the module can be swapped without modifying the PLC program. Follow this field-proven sequence to minimize downtime:

Step 1 — Safe State: Place the CPU in STOP mode via the mode selector switch or from the programming device. Confirm all analog outputs have de-energized and that field actuators (valves, drives) are in their safe positions before proceeding.

Step 2 — Front Connector Removal: Unlock and remove the 20-pin front connector. Label the connector with the slot number if not already marked. The connector retains all field wiring and can be transferred directly to the replacement module.

Step 3 — Module Extraction: Release the module locking screw at the top of the module, slide it upward off the backplane bus connector, and remove it from the DIN rail. Inspect the backplane bus connector on the rack for bent pins or contamination before inserting the replacement.

Step 4 — Replacement Installation: Insert the new 6ES7332-5HB01-0AB0, engage the backplane connector, and secure the locking screw. Re-attach the front connector. Power the rack and return the CPU to RUN mode.

Step 5 — Verification: From STEP 7 or TIA Portal, perform a module diagnostics read to confirm the new module is recognized without faults. Force each output channel to a known value and verify the corresponding field signal at the actuator terminal. Document the replacement in the maintenance log with date, technician ID, and new module serial number.

This workflow is applicable to S7-300 racks in both centralized and distributed configurations. For racks operating in ET 200M remote I/O mode via IM153 interface modules, the same procedure applies with the additional step of confirming the IM153 link status after CPU restart.

Spare Parts Support FAQ

Q1: Is the 6ES7332-5HB01-0AB0 compatible with all S7-300 CPU variants?
Yes. The SM332 8-channel analog output module is compatible with all S7-300 CPUs including the CPU 312, 314, 315-2 DP, 317, and 319 series. It is also compatible with ET 200M distributed I/O configurations using IM153-x interface modules. Hardware configuration must be performed in STEP 7 V5.5 or TIA Portal V13 and above to ensure correct module recognition and diagnostic reporting.

Q2: What is your inventory availability and lead time for the 6ES7332-5HB01-0AB0?
KNMKS maintains buffer stock of the 6ES7332-5HB01-0AB0 to support emergency replacement requirements. Standard orders are dispatched within 3–5 business days. For customers managing planned annual shutdowns or building a 12-month spare parts inventory, we recommend contacting our sales team at [email protected] to discuss volume pricing and reserved stock arrangements. Long-term supply agreements are available for facilities with multiple S7-300 installations.

Q3: How is each unit tested before shipment?
Every 6ES7332-5HB01-0AB0 unit undergoes a multi-point functional test prior to dispatch. Testing includes output signal verification across all 8 channels in both voltage and current modes, backplane connector integrity check, and visual inspection for physical damage. Units that pass all test criteria are assigned a test record number and packaged in ESD-safe anti-static bags with desiccant. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

Q4: Can I use this module as a long-term replacement for an obsolete or discontinued SM332 variant?
Yes. The 6ES7332-5HB01-0AB0 is the current production variant of the SM332 8-channel analog output module and serves as the recommended replacement for earlier order numbers including the 6ES7332-5HB00-0AB0. SIEMENS continues to support the S7-300 platform with spare parts availability, and KNMKS is committed to maintaining long-term supply of this module to support facilities with extended system lifecycles. If your installation requires a migration path to S7-1500 or ET 200SP in the future, our technical team can advise on compatible analog output alternatives.
