Siemens 6ES7331-7RD00-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7331-7RD00-0AB0 Fail-Safe Analog Input Module: Fault Protection and Critical Industrial Field Reliability

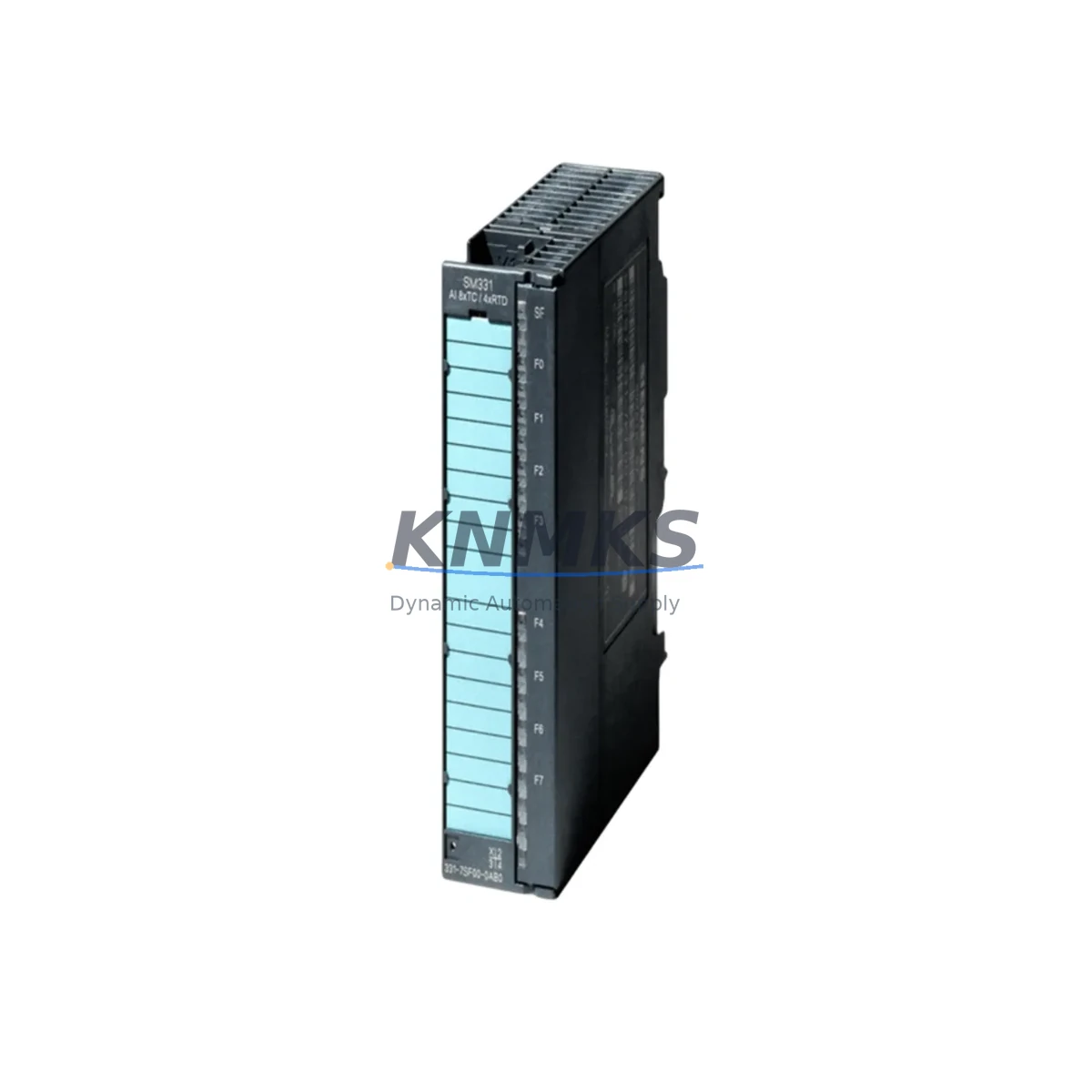

The Siemens 6ES7331-7RD00-0AB0 is an SM331 series 8-channel analog input module engineered for the S7-300 programmable logic controller platform. Designed to meet the demanding requirements of continuous production environments, critical safety interlocks, and heavy-duty control cabinet installations, this module delivers precision signal acquisition from RTD (resistance temperature detector) and thermocouple (TC) sources under conditions of high electromagnetic interference, dust, humidity, elevated temperature, and mechanical vibration. Its robust architecture directly addresses the most common causes of unplanned downtime in industrial automation: signal drift, power fluctuation, communication anomalies, surge impact, and cabinet overheating.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines, the integrity of analog measurement is non-negotiable. A single miscalibrated temperature reading or a drifted process signal can trigger false shutdowns, missed alarms, or — far worse — undetected hazardous conditions. The 6ES7331-7RD00-0AB0 is built to eliminate these failure modes through hardware-level isolation, high-resolution conversion, and validated compatibility with the S7-300 backplane and CP communication modules.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog input acquisition is only one layer of a robust control cabinet protection strategy. In high-stakes installations, the 6ES7331-7RD00-0AB0 operates alongside complementary S7-300 components to form a complete, fault-tolerant measurement and control architecture. The Siemens 6ES7321-1BL00-0AA0 SM321 digital input module handles discrete field signals — limit switches, proximity sensors, and emergency stop feedback — ensuring that both analog and digital domains are covered within the same rack. For output-side protection, the Siemens 6ES7322-1BL00-0AA0 SM322 digital output module drives actuators and solenoid valves with the same backplane-level isolation that protects the analog inputs from ground loops and surge events.

Power integrity is critical in cabinets where multiple modules share a 24 VDC rail. The Siemens 6EP1333-3BA00 SITOP PSU100S power supply provides regulated, surge-protected DC power with diagnostic output signaling, preventing voltage sag from propagating into the analog measurement chain. In environments with high electromagnetic interference — such as variable frequency drive (VFD) enclosures or motor control centers — the Siemens 6ES7390-1AE80-0AA0 S7-300 rail and proper shielding bus assemblies are used to mechanically and electrically anchor the SM331 module, minimizing vibration-induced connector fatigue and EMI coupling.

For communication-intensive architectures where the S7-300 CPU must exchange process data with SCADA systems or distributed I/O via PROFIBUS, the Siemens 6GK7343-1EX30-0XE0 CP343-1 Ethernet communication processor provides deterministic data transfer without burdening the CPU scan cycle. In safety-rated loops where SIL 2 or SIL 3 compliance is required, the Siemens 6ES7326-1BK02-0AB0 SM326 F-DI fail-safe digital input module complements the analog measurement layer by providing certified discrete safety inputs within the same S7-300 chassis — enabling a unified, validated safety architecture without additional gateway hardware.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous distillation columns, reactor temperature monitoring, and heat exchanger control loops, the 6ES7331-7RD00-0AB0 provides the high-resolution RTD measurement required to detect thermal runaway conditions before they escalate. Its galvanic isolation prevents ground potential differences between field instruments and the control room from corrupting measurement data — a common failure mode in large-footprint process plants with multiple earthing points.

Power Generation and Substation Automation: Turbine bearing temperature monitoring, generator winding protection, and transformer thermal management all depend on accurate, drift-free RTD acquisition. The SM331 module’s 15-bit resolution and per-channel isolation make it suitable for integration into protection relay panels where measurement accuracy directly influences trip decisions.

Mining and Mineral Processing: Conveyor belt motor temperature monitoring, crusher bearing surveillance, and flotation cell process control in dusty, vibration-intensive environments demand modules that maintain calibration stability without frequent field recalibration. The 6ES7331-7RD00-0AB0’s wide operating temperature range and robust mechanical design support continuous operation in these conditions.

Water and Wastewater Treatment: Pump motor thermal protection, chemical dosing temperature control, and aeration basin process monitoring benefit from the module’s multi-sensor type support — allowing a single module to serve both RTD-based temperature loops and thermocouple-based high-temperature measurement points within the same installation.

Metallurgy and Steel Production: Furnace temperature profiling, ladle preheating control, and rolling mill process monitoring require thermocouple inputs capable of measuring across wide temperature spans with high linearity. The SM331’s support for Type K, J, and B thermocouples covers the full range from ambient to extreme process temperatures encountered in steelmaking.

Port Logistics and Heavy Lifting: Crane motor thermal monitoring, hydraulic system temperature surveillance, and environmental monitoring in coastal salt-air environments place unique demands on analog input hardware. The module’s IP20 protection combined with proper cabinet sealing and conformal coating of adjacent components ensures long-term reliability in these corrosive, high-humidity field conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7331-7RD00-0AB0?
Every unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes pre-shipment functional verification including channel-level signal injection testing to confirm measurement accuracy and backplane communication integrity. Documentation of test results is available upon request for quality-critical procurement processes.

Q2: Is this module compatible with both STEP 7 Classic and TIA Portal engineering environments?
Yes. The 6ES7331-7RD00-0AB0 is fully supported under STEP 7 V5.x (Classic) and is also configurable via TIA Portal when used with S7-300 hardware configurations. Hardware configuration files (GSD/HSP) are available for both environments, ensuring seamless integration into existing or new S7-300 projects without requiring hardware modification.

Q3: Can this module replace an existing SM331 unit in a running plant without reconfiguration?
In most cases, yes — provided the replacement unit carries the same order number (6ES7331-7RD00-0AB0) and firmware revision. The module is a direct drop-in replacement for installed SM331 units of the same variant. For plants running older firmware revisions, a brief CPU restart and hardware configuration download may be required. KNMKS recommends verifying the firmware version against the existing installation before deployment in safety-critical loops.

Q4: What is the long-term supply availability for this module?
KNMKS maintains stock of the 6ES7331-7RD00-0AB0 as part of a strategic spare parts program supporting S7-300 installations with 12–36 month supply horizons. For facilities managing aging S7-300 infrastructure, we recommend establishing a consignment or blanket order arrangement to ensure continuity of supply as the module approaches end-of-catalog status. Contact our technical sales team to discuss long-term procurement planning tailored to your maintenance schedule.
