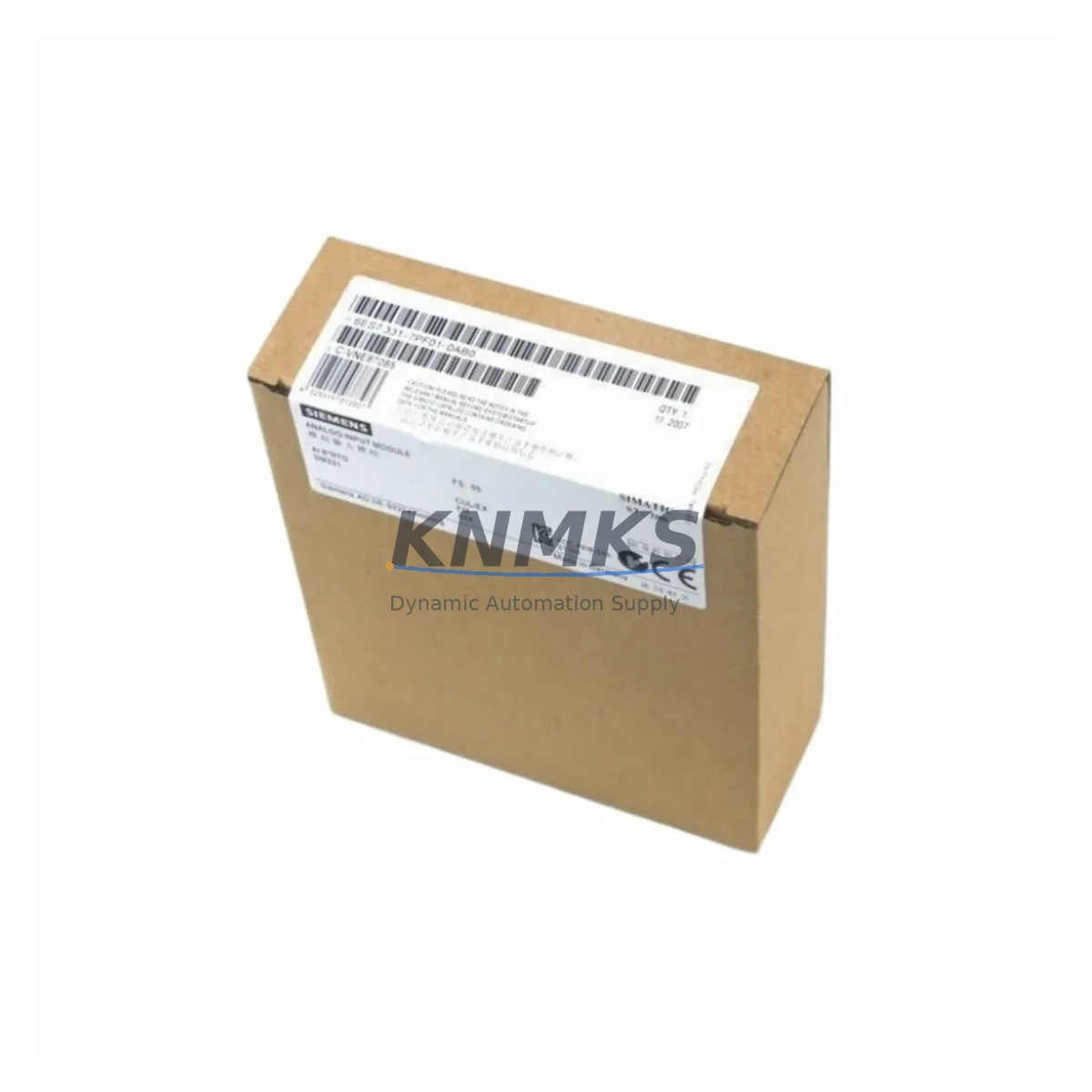

Siemens 6ES7331-7PF01-0AB0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7331-7PF01-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7331-7PF01-0AB0 is an SM331 series 8-channel analog input module designed for the SIMATIC S7-300 programmable logic controller platform. In industrial environments where process continuity is non-negotiable — from chemical dosing lines and water treatment facilities to automotive assembly and discrete manufacturing — this module serves as a critical signal acquisition node. Maintaining a verified spare of the 6ES7331-7PF01-0AB0 in your on-site inventory is one of the most cost-effective strategies for reducing unplanned downtime and protecting production throughput.

At KNMKS, every 6ES7331-7PF01-0AB0 unit is sourced from authorized supply chains, individually tested prior to dispatch, and backed by a support terms confirmed by quotation. Our global distribution network ensures fast lead times for maintenance engineers and procurement teams operating under tight shutdown windows or emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7331-7PF01-0AB0 analog input module fails or degrades in signal accuracy, the fault rarely exists in isolation. Experienced maintenance engineers know that a thorough site inspection must extend beyond the module itself to the surrounding electrical infrastructure. Before or during replacement, the following components should be inspected and verified:

The SM321 digital input modules (e.g., 6ES7321-1BL00-0AA0) sharing the same S7-300 rack should be checked for contact wear or blown fuses, as cross-rack faults can cause misleading diagnostics. The PS307 power supply module (e.g., 6ES7307-1EA01-0AA0) supplying DC 24V to the rack must be verified for stable output voltage — voltage ripple above specification is a common root cause of analog signal drift. Inspect the SM332 analog output modules in the same cabinet for correlated faults, particularly in closed-loop control applications where input and output modules interact directly.

Signal wiring integrity is equally critical. Shielded twisted-pair cables connecting field transmitters to the 6ES7331-7PF01-0AB0 should be inspected for insulation damage, loose terminal connections on terminal blocks (such as Weidmüller or Phoenix Contact DIN rail types), and ground loop issues. For 4–20mA current loop circuits, verify that signal isolators or loop-powered barriers upstream of the module are functioning within specification, as a degraded isolator can introduce offset errors that mimic module failure.

If the S7-300 system uses CP343-1 or CP343-1 Advanced communication processors for PROFINET or Industrial Ethernet connectivity, confirm that the communication module is not generating bus errors that could mask or amplify analog I/O faults. Similarly, inspect the IM360/IM361 interface modules if the 6ES7331-7PF01-0AB0 is installed in an expansion rack — backplane communication faults between racks are a frequently overlooked failure mode. Finally, review the OP/TP HMI panel alarm logs for historical analog fault codes that may indicate a developing failure pattern rather than a sudden fault event.

Site Replacement Workflow

Replacing the 6ES7331-7PF01-0AB0 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Begin by placing the affected CPU in STOP mode and documenting the current module configuration using STEP 7 or TIA Portal’s hardware configuration export. Power down the rack segment before removing the faulty module — the S7-300 backplane does not support hot-swap for standard SM modules.

Insert the replacement 6ES7331-7PF01-0AB0 into the same slot position. The module’s parameter assignment is stored in the CPU, so upon power-up and transition to RUN mode, the CPU will automatically download the channel configuration to the new module — no manual re-parameterization is required in most standard configurations. Verify analog input readings against known reference signals (e.g., a calibrated 4–20mA source) before returning the system to automatic operation.

For legacy S7-300 systems approaching end-of-life, the 6ES7331-7PF01-0AB0 remains fully compatible with all S7-300 CPU generations, making it an ideal long-term spare for extending system service life without requiring a full migration to S7-1500 or ET 200SP platforms. Stocking 1–2 units per production line is a widely adopted strategy among maintenance teams managing aging SIMATIC installations.

Spare Parts Support FAQ

Q1: Is the 6ES7331-7PF01-0AB0 compatible with all S7-300 CPU models?
Yes. The SM331 6ES7331-7PF01-0AB0 is compatible with all SIMATIC S7-300 CPUs from CPU 312 through CPU 319, as well as ET 200M distributed I/O configurations using IM153 interface modules. Always verify the hardware configuration in STEP 7 or TIA Portal to confirm slot assignment and parameter settings before installation.

Q2: What is included in KNMKS’s pre-shipment testing for this module?
Each 6ES7331-7PF01-0AB0 unit undergoes functional power-on testing, channel signal verification across multiple input ranges, and visual inspection for physical damage or counterfeit indicators. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: How should I manage long-term spare parts inventory for S7-300 analog modules?
Given Siemens’ published end-of-life roadmap for the S7-300 platform, procurement teams are advised to establish a strategic buffer stock of critical modules including the 6ES7331-7PF01-0AB0. A recommended approach is to maintain a minimum of one spare per active production line, with annual inventory reviews aligned to planned maintenance shutdowns. KNMKS supports long-term supply agreements with guaranteed stock availability.

Q4: What support terms and return policy applies to the 6ES7331-7PF01-0AB0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In the event of a support terms claim, KNMKS provides advance replacement support to minimize production downtime. Contact our technical team at [email protected] for RMA procedures and support terms claim processing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7331-7PF01-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7331-7PF01-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
