Siemens 6ES7331-7PF00-0AB0 Fail-Safe Analog Input for Industrial Control

Overview

Siemens 6ES7331-7PF00-0AB0 Fail-Safe Analog Input for Industrial Control Reliability

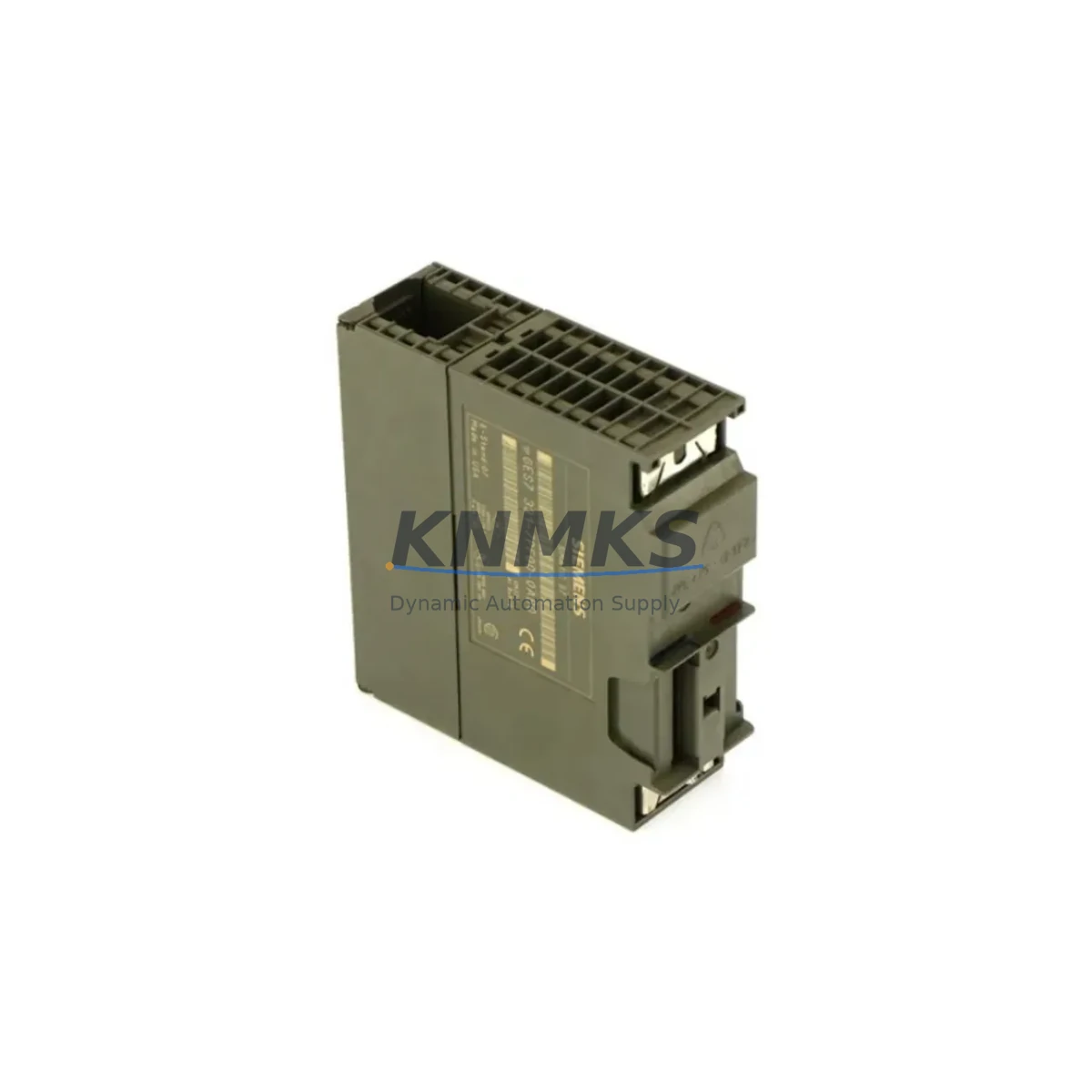

The Siemens 6ES7331-7PF00-0AB0 (SM331) is an 8-channel analog input module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, and continuous manufacturing — this module delivers precision signal acquisition with built-in fail-safe characteristics that protect critical control loops from unplanned interruption.

In high-stakes automation architectures, analog signal integrity is non-negotiable. The 6ES7331-7PF00-0AB0 addresses the full spectrum of field-level threats: signal drift caused by ground loops or cable aging, electromagnetic interference from variable frequency drives and high-current switchgear, power supply fluctuations from unstable grid feeds, and communication anomalies arising from noise-coupled backplane signals. Its galvanically isolated input channels suppress common-mode interference and prevent fault propagation between field instruments and the CPU, maintaining measurement accuracy even when adjacent equipment generates transient surges or high-frequency noise.

Control cabinet environments present compounding risks — heat buildup from densely packed components, vibration from nearby motors or compressors, and humidity ingress in non-climate-controlled enclosures. The SM331 module is rated for an operating temperature range of 0°C to +60°C and withstands the mechanical shock and vibration profiles typical of industrial panel installations. Its compact S7-300 rail-mount form factor integrates directly with the CPU 314, CPU 315-2 DP, and CPU 317-2 PN/DP processors, as well as the IM153-2 interface module for distributed ET 200M rack configurations — enabling consistent analog acquisition across both centralized and remote I/O architectures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog acquisition in a control cabinet depends on a coordinated protection architecture. The 6ES7331-7PF00-0AB0 performs optimally when paired with a stable 24 VDC power supply such as the Siemens SITOP PSU100S 6EP1334-2BA20, which provides regulated, ripple-free DC power with overload and short-circuit protection — directly reducing the risk of measurement offset caused by supply noise. For surge protection on field signal cables entering the cabinet, surge protection devices such as the Phoenix Contact TRABTECH or equivalent DIN-rail surge arresters should be installed at the cable entry point to clamp transient overvoltages before they reach the module’s input terminals.

In distributed architectures using the ET 200M platform, the IM153-2 interface module (6ES7153-2BA02-0XB0) manages PROFIBUS DP communication between the remote rack and the S7-300 CPU, ensuring that analog data from the 6ES7331-7PF00-0AB0 is transmitted with deterministic cycle times even under high bus load. For applications requiring safety-rated interlocking — such as emergency shutdown (ESD) systems or burner management — the Siemens F-SM analog input module (6ES7336-4GE00-0AB0) provides SIL 2-capable acquisition and can be deployed in the same rack alongside the SM331 to handle safety-critical measurement channels while standard channels handle process monitoring.

Cabinet thermal management is equally critical. When the SM331 operates alongside CPU modules, digital I/O cards, and communication processors in a fully populated S7-300 rack, heat dissipation must be managed through proper spacing, forced-air ventilation, or cabinet air conditioning units. Monitoring cabinet internal temperature via a dedicated temperature sensor connected to a spare SM331 channel provides early warning of thermal exceedance before it affects module performance or triggers CPU fault responses.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7331-7PF00-0AB0 is deployed to acquire pressure transmitter, flow meter, and temperature sensor signals feeding into safety instrumented systems (SIS). Its galvanic isolation prevents ground potential differences between field instruments and the control room from corrupting measurement data — a critical requirement in hazardous area installations where signal integrity directly affects process safety.

In electric power generation and substation automation, the SM331 module acquires analog feedback from current transformers, voltage transducers, and generator excitation systems. Its high common-mode rejection ratio (CMRR) ensures accurate readings even in environments with strong electromagnetic fields generated by high-voltage switchgear and power transformers.

Mining and mineral processing operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The SM331’s robust mechanical design and wide operating temperature range make it suitable for installation in surface and underground control rooms where environmental conditions exceed those of standard industrial facilities. In water and wastewater treatment plants, the module acquires flow, level, pH, and dissolved oxygen signals from field transmitters distributed across large geographic areas, supporting SCADA systems that require continuous, uninterrupted data acquisition for regulatory compliance and process optimization.

In metallurgical and steel production facilities, the 6ES7331-7PF00-0AB0 handles thermocouple and RTD inputs from furnace temperature control loops, where measurement accuracy and response time directly affect product quality and energy efficiency. Its multi-range configurability — supporting J, K, N, and S type thermocouples as well as Pt100 and Pt1000 RTDs — eliminates the need for separate signal conditioning hardware in mixed-sensor installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7331-7PF00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions as specified in the Siemens SM331 product manual. It includes module replacement or repair at no additional cost. Support requests require the original purchase documentation and a description of the fault condition observed.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7331-7PF00-0AB0 unit undergoes full functional verification prior to dispatch. This includes channel-by-channel analog input accuracy testing across multiple signal ranges, backplane communication verification, and visual inspection for physical damage. Test results confirm the module meets Siemens factory specifications before shipment.

Q3: Is the 6ES7331-7PF00-0AB0 compatible with both central S7-300 racks and ET 200M distributed racks?
Yes. The SM331 module is fully compatible with the S7-300 central rack and with ET 200M distributed I/O racks using IM153-x interface modules. It is supported by STEP 7 V5.x and TIA Portal V13 SP1 and later for hardware configuration and diagnostics. No firmware modification is required for distributed rack deployment.

Q4: Can long-term supply continuity be guaranteed for this module?
Stock is maintained for the 6ES7331-7PF00-0AB0 to support both immediate replacement needs and planned maintenance programs. For facilities requiring guaranteed availability over multi-year maintenance contracts, forward stock reservation and scheduled delivery programs are available. Contact the sales team to discuss volume commitments and lead-time containment arrangements.
