Siemens 6ES7331-7HF01-0AB0 Migration-Ready Analog Input for Legacy Control Systems

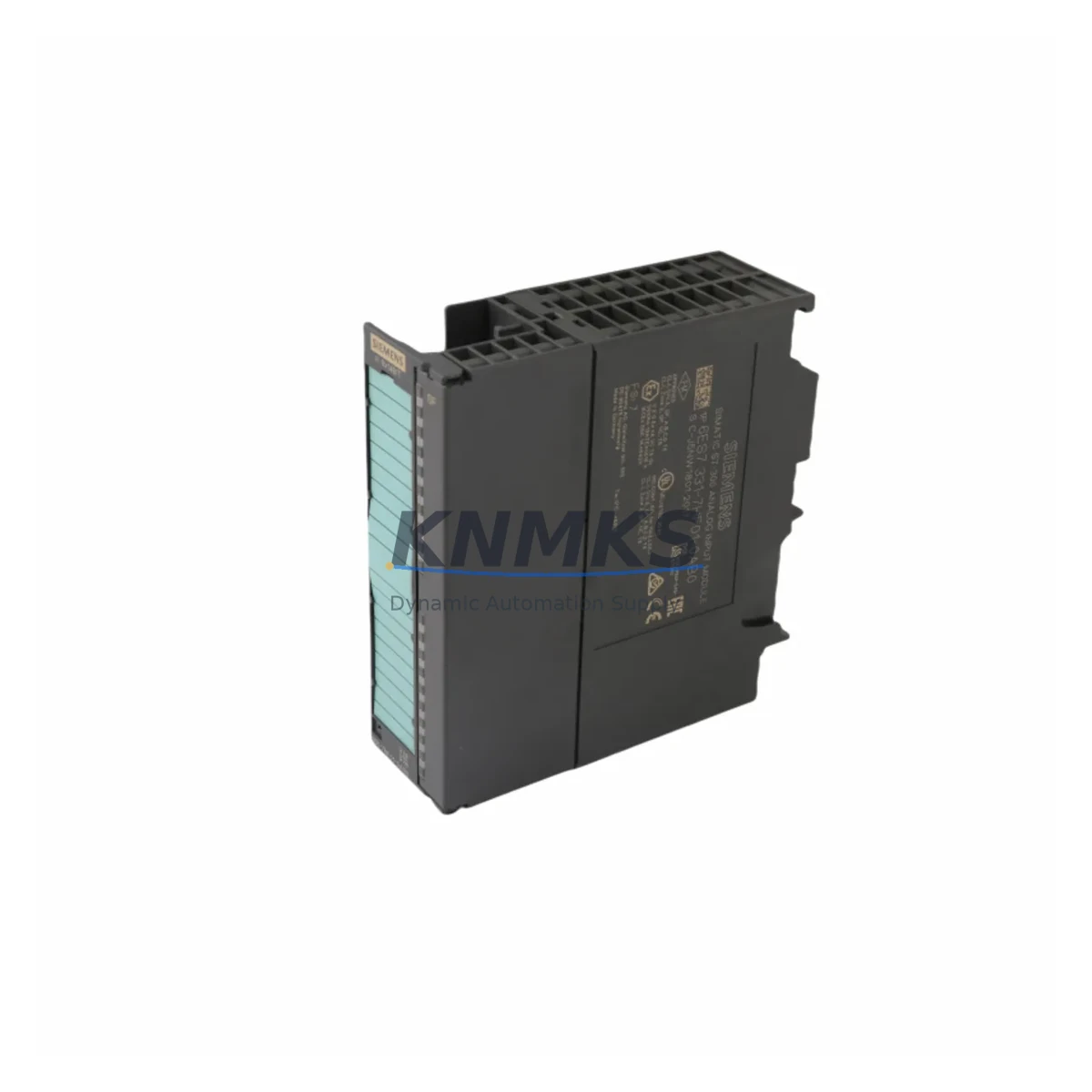

The Siemens 6ES7331-7HF01-0AB0 is an SM331 8-channel analog input module engineered for the SIMATIC S7-300 rack-based PLC platform. As Siemens progressively phases out the S7-300 product line in favor of the S7-1500 and ET 200SP distributed I/O systems, engineering teams managing aging production lines, process control cabinets, and DCS-integrated automation cells face increasing pressure to source verified replacement modules before scheduled maintenance windows close. This listing provides a migration-ready, pre-tested unit backed by a support terms confirmed by quotation, dispatched from multi-region stock to minimize lead time on both emergency and planned replacement orders.

The 6ES7331-7HF01-0AB0 accepts 8 analog input channels configurable for voltage (±10 V, ±5 V, 1–5 V) and current (0–20 mA, 4–20 mA) signals, with a resolution of up to 15 bits plus sign. It mounts directly into any S7-300 rail alongside the CPU 315-2 DP, CPU 317-2 PN/DP, or CPU 319-3 PN/DP without requiring additional bus adapters. The module communicates over the S7-300 backplane bus and is addressed via the hardware configuration in STEP 7 or TIA Portal in S7-300 compatibility mode, making it a direct drop-in replacement for failed or end-of-life units in existing racks.

For sites running mixed analog signal types across the same rack — for example, combining thermocouple inputs handled by the SM331 6ES7331-7KF02-0AB0 with the standard voltage/current channels of this module — the 6ES7331-7HF01-0AB0 slots into the same 40-pin front connector footprint, preserving existing terminal wiring without re-labeling or re-routing. Engineers replacing this module during a partial rack upgrade should also verify the power budget on the PS 307 power supply module, as adding or swapping analog modules can shift the 5 VDC backplane load. The CP 343-1 Lean communication processor, if present in the same rack, should remain unaffected by the module swap provided the slot addressing in the hardware configuration is preserved.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6ES7331-7HF01-0AB0 in a live S7-300 system requires a structured approach to avoid unplanned downtime and signal mapping errors. Before the replacement window opens, the engineering team should export the current STEP 7 project and document the hardware configuration, paying particular attention to the module’s slot number, I/O address range, and any channel-specific parameter assignments such as smoothing level, interference frequency suppression, and diagnostic interrupt enable settings. These parameters are stored in the HW Config object and must be re-downloaded to the CPU after the new module is seated.

Terminal wiring on the 40-pin front connector can be transferred directly to the replacement module without modification, provided the existing connector is in good condition. If the front connector shows signs of corrosion or terminal fatigue — common in cabinets with high ambient humidity or vibration — it is advisable to replace the connector simultaneously using a spare 6ES7392-1AJ00-0AA0 front connector. This avoids intermittent contact faults that can be misdiagnosed as module failures after commissioning.

For racks that also house the SM321 6ES7321-1BL00-0AA0 digital input module or the SM322 6ES7322-1BL00-0AA0 digital output module, the backplane bus load calculation should be revisited if any modules are being added or upgraded during the same maintenance window. The PS 307 5A power supply module provides 5 A at 24 VDC; exceeding the backplane current budget will cause intermittent CPU faults that are difficult to trace without a full load audit. The IM 360/IM 361 expansion rack interface modules, if used to extend the rack configuration beyond 8 slots, should also be verified for firmware compatibility with the current CPU firmware version.

Sites migrating from S7-300 to S7-1500 in a phased approach — keeping the existing S7-300 rack operational during Phase 1 while preparing the S7-1500 hardware in parallel — will find that the 6ES7331-7HF01-0AB0 provides a cost-effective bridge solution. It allows the existing analog signal infrastructure to remain in service without rewiring, while the migration team validates the new TIA Portal program logic, HMI screen mappings on WinCC or TP700 Comfort panels, and PROFINET network topology changes required for the S7-1500 platform.

Downtime Control During System Migration

Minimizing control system downtime during an analog input module replacement depends on preparation quality, not replacement speed. The most effective approach is to treat the module swap as a three-phase operation: pre-outage preparation, physical replacement, and post-replacement verification — each with defined acceptance criteria before proceeding to the next phase.

During pre-outage preparation, the team should confirm that the replacement 6ES7331-7HF01-0AB0 has been bench-tested against a known-good signal source, that the STEP 7 or TIA Portal project backup is current and accessible offline, and that all field instruments connected to the module’s input channels have been identified and their expected signal ranges documented. For 4–20 mA loop-powered transmitters, confirm that the loop power supply remains active during the module swap to avoid nuisance alarms in the DCS or SCADA system.

During physical replacement, power down only the affected rack segment if the system architecture permits partial de-energization. Remove the front connector first, then release the module from the rail. Seat the replacement module, reconnect the front connector, and restore power. The CPU will detect the new module during its startup diagnostic cycle; if the hardware configuration matches, the CPU will transition to RUN mode without requiring a manual download. If the CPU faults on startup, a HW Config download from the STEP 7 programming station will resolve the mismatch.

Post-replacement verification should include a channel-by-channel signal check against the process values visible in the SCADA or HMI system, confirmation that no diagnostic alarms are active in the CPU diagnostic buffer, and a 15-minute observation period under normal process load before returning the system to automatic control. Documenting the replacement with a timestamped entry in the site maintenance log — including the old and new module serial numbers — supports support requests and future audit requirements.

Retrofit Support FAQ

Q1: Is the 6ES7331-7HF01-0AB0 a direct replacement for the 6ES7331-7HF00-0AB0?
Yes. The -0AB0 suffix denotes the current production revision. The 6ES7331-7HF00-0AB0 is an earlier revision of the same SM331 8-channel analog input module. Both share the same slot footprint, front connector pinout, and STEP 7 hardware catalog entry. No changes to the hardware configuration or terminal wiring are required when substituting the current revision for the earlier one.

Q2: Can this module be used in an S7-300 rack managed by a CPU 315-2 DP running PROFIBUS DP?
Yes. The 6ES7331-7HF01-0AB0 communicates over the S7-300 backplane bus, not directly over PROFIBUS DP. It is compatible with all S7-300 CPUs regardless of the fieldbus interface on the CPU. The PROFIBUS DP network topology and device addressing are unaffected by an analog input module replacement within the local rack.

Q3: What pre-shipment testing is performed on this unit?
Each unit is functionally tested prior to dispatch. Testing includes power-on verification, channel-by-channel signal injection across the configured input ranges, and diagnostic register readback to confirm no internal faults are present. Units that do not pass all test criteria are quarantined and not dispatched. A support terms confirmed by quotation from the dispatch date covers any defects identified during normal operation.

Q4: How quickly can this module be dispatched, and is stock held in multiple regions?
Yes. Inventory is maintained across multiple regional warehouses to support both emergency replacement orders and scheduled maintenance outages. Standard dispatch is same-day or next business day for in-stock units. For large-quantity orders or long-term supply agreements covering multiple planned outages, contact the sales team to discuss reserved stock arrangements and volume pricing.
