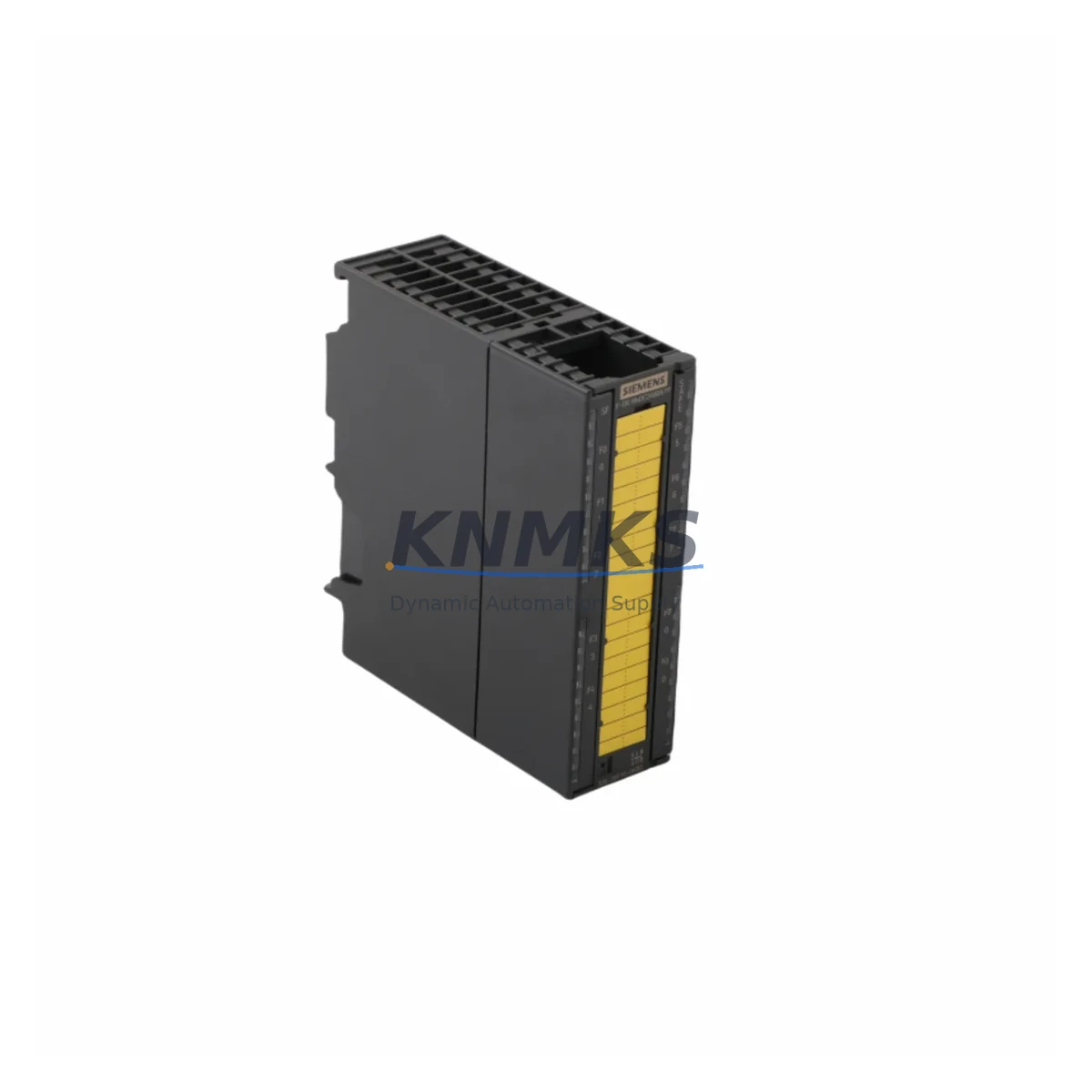

Siemens 6ES7326-2BF10-0AB0 Fail-Safe F-DO Output Module

Overview

Siemens 6ES7326-2BF10-0AB0 Fail-Safe F-DO Output Module for Industrial Control Reliability

The Siemens 6ES7326-2BF10-0AB0 is a high-integrity fail-safe digital output module (SM 326 F-DO) engineered for safety-critical automation environments where unplanned shutdowns, control loop interruptions, and actuator misfires carry unacceptable operational and safety risk. Designed for integration into the Siemens SIMATIC S7-300 safety controller platform, this module delivers certified SIL 3 (IEC 61508) and Performance Level e (EN ISO 13849-1) protection across 8 independent 24 VDC / 2 A output channels — making it a cornerstone component in emergency shutdown systems (ESD), safety instrumented systems (SIS), and critical interlock circuits across heavy industry.

In continuous production environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, and port automation systems — a single output module failure can cascade into process trips, equipment damage, or personnel hazard. The 6ES7326-2BF10-0AB0 addresses this risk through hardware-level redundancy, internal cross-circuit monitoring, and automatic safe-state switching. When a fault is detected — whether from signal drift, wiring short, load loss, or internal diagnostics — the module drives all outputs to a defined safe state without requiring CPU intervention, ensuring that actuators, solenoid valves, and motor contactors respond correctly even under worst-case fault conditions.

The module’s robust design tolerates the demanding electrical environment of industrial control cabinets: high electromagnetic interference (EMI) from variable frequency drives such as the Siemens SINAMICS G120 series, inductive load switching transients, and power supply fluctuations. When paired with a Siemens PS 307 or PS 305 24 VDC power supply module, the system maintains stable output voltage within the ±5% tolerance required for reliable solenoid and relay actuation, even during grid disturbances or surge events. The 6ES7326-2BF10-0AB0 is fully compatible with the Siemens ET 200M distributed I/O interface module (IM 153-2) for remote safety I/O deployment in field junction boxes, extending fail-safe control to geographically distributed actuator clusters without compromising SIL integrity.

For applications involving dusty, humid, or thermally stressed enclosures — common in cement plants, offshore platforms, and food processing facilities — the module’s conformal-coated PCB and IP20-rated housing (within a sealed cabinet) provide reliable protection against particulate ingress and condensation-induced leakage currents that would otherwise cause spurious trips or latent faults. Vibration resistance to IEC 60068-2-6 ensures stable operation in environments with continuous mechanical excitation from pumps, compressors, and rotating machinery.

Integration with the Siemens S7-300 CPU 315F-2 PN/DP or CPU 317F-2 DP safety CPUs via the PROFIBUS DP backplane is straightforward using STEP 7 with the S7 Distributed Safety F-Library. The module supports F-address assignment, PROFIsafe protocol communication, and CRC-protected data exchange, ensuring that every output command is verified end-to-end from the safety CPU to the field actuator. This architecture eliminates the risk of undetected common-cause failures that could simultaneously compromise multiple output channels — a critical requirement in SIL 3 loop design.

For control cabinet builders designing safety relay circuits, the 6ES7326-2BF10-0AB0 can be coordinated with Siemens 3SK1 safety relays and 3RQ1 coupling relays to create a layered protection strategy: the F-DO module handles the primary safe-state switching, while the downstream safety relay provides galvanic isolation and mechanical redundancy for the final switching element. This combination is widely used in machine guarding, press brake safety circuits, and robotic cell interlocks where Category 4 / PLe is mandated by machinery directive compliance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the 6ES7326-2BF10-0AB0 requires a coordinated selection of complementary modules to ensure end-to-end protection from power input to field actuator. At the power layer, the Siemens PS 307 10A stabilized power supply provides the regulated 24 VDC rail that feeds both the S7-300 backplane and the F-DO load supply, with sufficient current headroom to handle simultaneous switching of all 8 output channels without voltage droop. For applications requiring uninterrupted operation during brief grid outages, a Siemens UPS module or equivalent DC buffer capacitor bank is recommended upstream of the PS 307.

At the input layer, the Siemens 6ES7326-1BK02-0AB0 SM 326 F-DI fail-safe digital input module provides the SIL 3-rated signal acquisition for emergency stop buttons, safety door switches, and light curtain outputs — forming the complete safety loop from sensor to actuator within a single S7-300 rack. For analog process variables such as pressure, temperature, and flow — critical in petrochemical and power plant safety instrumented functions — the Siemens 6ES7336-4GE00-0AB0 SM 336 F-AI fail-safe analog input module extends the safety architecture to continuous process measurement without requiring external signal conditioners.

Communication integrity is maintained through the Siemens CP 342-5 PROFIBUS DP communication processor, which provides deterministic, time-stamped data exchange between the safety CPU and remote ET 200M stations in the field. For cabinets exposed to high-frequency EMI from adjacent VFD panels, ferrite core filters on the PROFIBUS cable and shielded cable termination at both ends are essential to prevent communication timeouts that could trigger spurious safe-state activations. The Siemens SINAMICS G120 drive’s integrated Safe Torque Off (STO) function can be coordinated with the F-DO output to achieve a certified drive-level safe state without additional safety relays in the motor circuit.

For final switching elements, the Siemens 3SK1111-1AB30 safety relay provides the galvanic isolation and mechanical contact redundancy required when the F-DO output drives high-current loads such as hydraulic valve solenoids or motor contactors rated above 2 A. This relay also provides the manual reset function required by IEC 62061 for safety functions with automatic restart inhibit — a common requirement in press, injection molding, and robotic welding applications.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7326-2BF10-0AB0 is deployed in emergency shutdown (ESD) panels controlling blowdown valves, isolation valves, and deluge system actuators. Its SIL 3 rating satisfies the requirements of IEC 61511 for safety instrumented functions (SIF) protecting against loss of containment, overpressure, and fire/gas events. The module’s ability to detect open-load and short-circuit faults on each output channel independently allows maintenance teams to identify wiring degradation before it becomes a safety-critical failure — reducing proof-test intervals and lowering the probability of failure on demand (PFD).

In power generation and substation automation, the module controls turbine trip solenoids, generator field breaker coils, and transformer protection relay outputs. The deterministic PROFIsafe response time — typically under 10 ms from fault detection to safe-state output — meets the fast trip requirements of turbine overspeed protection and generator loss-of-excitation protection schemes. Paired with a redundant S7-400H CPU configuration via the ET 200M interface, the 6ES7326-2BF10-0AB0 supports hot-standby architectures that eliminate single points of failure in the protection chain.

In mining and mineral processing, the module is used in conveyor belt safety systems, crusher interlock panels, and hoisting machine brake control circuits. The high vibration and dust tolerance of the S7-300 platform — combined with the F-DO module’s internal diagnostics — ensures reliable operation in underground and open-pit environments where conventional relay-based safety systems suffer from contact wear, coil insulation degradation, and mechanical fatigue. The support terms confirmed by quotation and multi-region stock availability support planned maintenance outages and emergency replacement scenarios with minimal lead time.

In water and wastewater treatment, the 6ES7326-2BF10-0AB0 controls chemical dosing pump interlocks, high-level overflow prevention valves, and UV disinfection system safety shutoffs. The module’s resistance to humidity and condensation — critical in wet process areas — combined with its low power dissipation (reducing cabinet internal temperature rise) makes it well-suited for compact control panels in pump stations and treatment plant MCC rooms.

In metallurgical and steel plant applications, the module drives cooling water valve interlocks, furnace atmosphere control solenoids, and rolling mill emergency stop actuators. The ability to sustain reliable output switching in the presence of high-frequency electromagnetic interference from arc furnaces and induction heaters — without false triggering or communication loss — is a key differentiator versus non-safety-rated output modules in these environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7326-2BF10-0AB0?
The support terms confirmed by quotation cover all functional defects, safety channel failures, communication faults, and hardware failures arising under normal operating conditions. It includes free replacement or repair of the module and applies from the date of shipment. Support requests are processed with priority to minimize downtime impact on critical production assets.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7326-2BF10-0AB0 unit undergoes full functional verification prior to shipment: all 8 output channels are individually tested for correct switching, load monitoring response, and safe-state activation under simulated fault conditions. PROFIsafe communication integrity and F-address configuration are verified using a reference S7-300 test rack. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is this module compatible with both new and existing S7-300 safety installations?
Yes. The 6ES7326-2BF10-0AB0 is a direct replacement for existing SM 326 F-DO installations in S7-300 racks. It is compatible with all S7-300 safety CPUs (315F, 317F series) and ET 200M IM 153-2 interface modules. No hardware modifications to the rack or backplane are required. STEP 7 project configuration is retained when replacing a module of the same order number, minimizing recommissioning effort.

Q4: Can long-term supply be guaranteed for this end-of-catalog module?
Yes. KNMKS maintains dedicated multi-region stock of the 6ES7326-2BF10-0AB0 specifically to support customers with long-horizon maintenance contracts, scheduled outage replacement programs, and emergency breakdown scenarios. Stock levels are reviewed quarterly and replenished proactively. Customers with recurring demand can contact our team to establish a long-term supply agreement with reserved inventory allocation and priority dispatch commitment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7326-2BF10-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7326-2BF10-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
