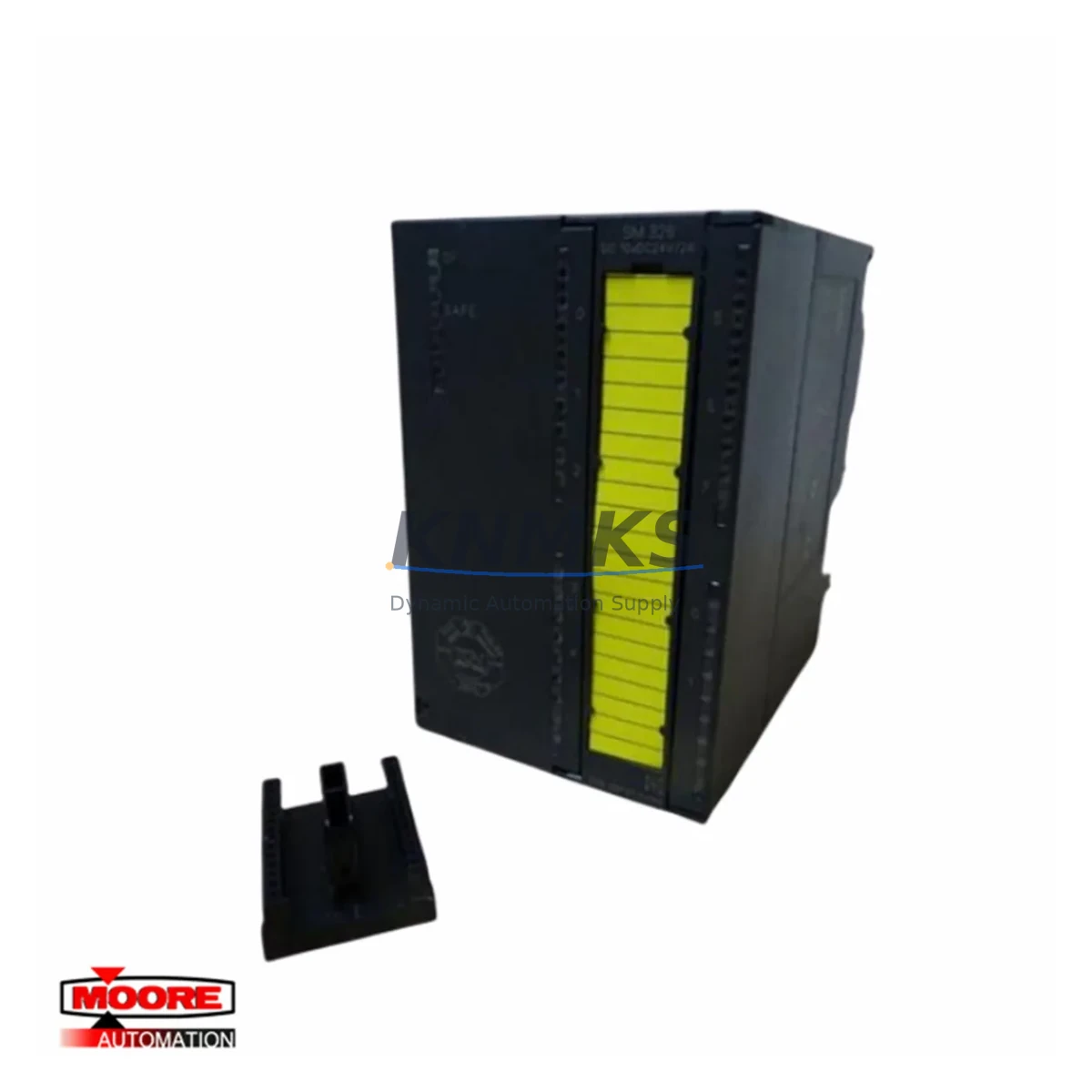

Siemens 6ES7326-1RF00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7326-1RF00-0AB0 is a fail-safe digital input module (F-DI) designed for the SIMATIC S7-300 programmable logic controller platform. In safety-critical manufacturing environments — including automotive assembly, chemical processing, food and beverage lines, and heavy industrial facilities — this module serves as the primary interface between field-level safety sensors and the S7-300 CPU’s safety program. Maintaining a verified spare of the 6ES7326-1RF00-0AB0 in your on-site inventory is a fundamental requirement for any maintenance team committed to minimizing unplanned downtime and sustaining continuous production.

When this module fails or degrades, the entire safety loop it monitors is compromised. Emergency stop circuits, light curtains, safety door interlocks, and two-hand control devices connected to this F-DI module will cease to report correctly to the F-CPU, triggering a controlled safety shutdown. Without a pre-qualified replacement on hand, recovery time can extend from hours to days — particularly when sourcing from standard distribution channels that may not stock legacy S7-300 safety components. Procurement engineers and maintenance planners should treat the 6ES7326-1RF00-0AB0 as a Tier-1 critical spare, with at least one unit held in the control room or maintenance workshop at all times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7326-1RF00-0AB0 in a live S7-300 safety system is not an isolated task. A disciplined maintenance engineer will treat this module swap as an opportunity to inspect the entire safety-related electrical circuit and surrounding control cabinet components. Before powering down the rack, verify the status of the 6ES7326-2BF01-0AB0 F-DO module (fail-safe digital output) that typically drives the actuators controlled by the same safety function — a degraded output module can mask the root cause of a safety trip and lead to repeat failures.

Inspect the 24 V DC power supply unit feeding the S7-300 rack (commonly a Siemens SITOP PSU100S or equivalent industrial DIN-rail PSU). Voltage ripple or marginal current capacity under load is a frequent but overlooked contributor to F-DI module faults. Check the front connector wiring on the 6ES7326-1RF00-0AB0 for terminal corrosion, loose crimps, or insulation damage — particularly on the sensor supply lines and the test pulse outputs used for cross-circuit monitoring.

Review the S7-300 backplane and profile rail for mechanical integrity. Loose module seating caused by vibration or thermal cycling can produce intermittent bus communication errors that are misdiagnosed as module failures. If the installation uses an IM 360 / IM 361 expansion interface module to connect remote racks, verify the inter-rack cable continuity and connector seating before concluding the F-DI module is the sole fault source.

For sites running mixed safety and standard I/O in the same cabinet, also inspect the SM 321 standard digital input modules and any CP 343-1 or CP 343-5 communication processors sharing the same rack. A communication processor fault can disrupt the F-CPU’s ability to read safety data, generating alarms that appear to originate from the F-DI module. Finally, check the 24 V fuse protection on each sensor supply circuit — blown fuses on the sensor side will cause the F-DI to report a discrepancy error and initiate a safety shutdown even when the module itself is fully functional.

Site Replacement Workflow

Before removing the 6ES7326-1RF00-0AB0, place the F-CPU in STOP mode and confirm that all downstream actuators controlled by the associated safety function have reached a safe state. Document the existing front connector wiring layout using a photograph or wiring diagram — the 40-pin front connector carries both sensor inputs and test pulse outputs, and incorrect reconnection will cause the module to fail its internal consistency check on startup.

Remove the front connector as a single assembly (it retains wiring), then release the module from the backplane bus connector by pressing the release lever and sliding the module forward. Install the replacement 6ES7326-1RF00-0AB0 by reversing this sequence, ensuring the bus connector engages fully before tightening the mounting screw. Reconnect the front connector and verify that the terminal assignments match the original configuration.

After power-up, the F-CPU will perform an automatic F-module acceptance check. In STEP 7 Safety or TIA Portal Safety Advanced, navigate to the F-module properties and confirm the module signature matches the expected value. If the replacement module carries a different firmware revision, a new F-module acceptance may be required — this is a standard procedure and does not indicate a compatibility problem. Once accepted, perform a functional test of each connected safety sensor before returning the line to production. This workflow typically achieves full recovery within 45 to 90 minutes for a prepared maintenance team, compared to 4 to 8 hours when sourcing the replacement reactively.

Spare Parts Support FAQ

Q: Is the 6ES7326-1RF00-0AB0 compatible with all S7-300 F-CPUs?
A: The module is compatible with Siemens SIMATIC S7-300 fail-safe CPUs, including the CPU 315F-2 PN/DP and CPU 317F-2 DP. Compatibility with a specific CPU revision should be confirmed against the module’s hardware and firmware version using the Siemens SIMATIC compatibility tool or the product manual. All units supplied are verified against known-compatible firmware baselines before shipment.

Q: What pre-shipment testing is performed on this spare?
A: Each 6ES7326-1RF00-0AB0 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, input channel continuity checks, and visual inspection for physical damage or connector wear. Units that do not pass all checks are not shipped. A support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q: How many units should we hold in our maintenance inventory?
A: For production lines where the S7-300 safety system is on the critical path, a minimum of one spare 6ES7326-1RF00-0AB0 is recommended per installed F-DI module in the facility. High-availability sites with multiple S7-300 safety racks should consider holding two units to cover simultaneous failures during peak production periods. Long-term supply agreements are available for facilities requiring guaranteed stock over a 12- to 36-month horizon.

Q: Can this module replace an older revision of the 6ES7326-1RF00-0AB0?
A: In most cases, yes. Siemens maintains backward compatibility within the 6ES7326-1RF00-0AB0 product line across hardware revisions. However, if the installed F-CPU firmware predates the replacement module’s firmware, an F-module re-acceptance procedure in STEP 7 Safety or TIA Portal Safety Advanced will be required. This is a standard commissioning step and does not affect safety integrity. Contact our technical team with your CPU order number and firmware version for a pre-sale compatibility confirmation.
