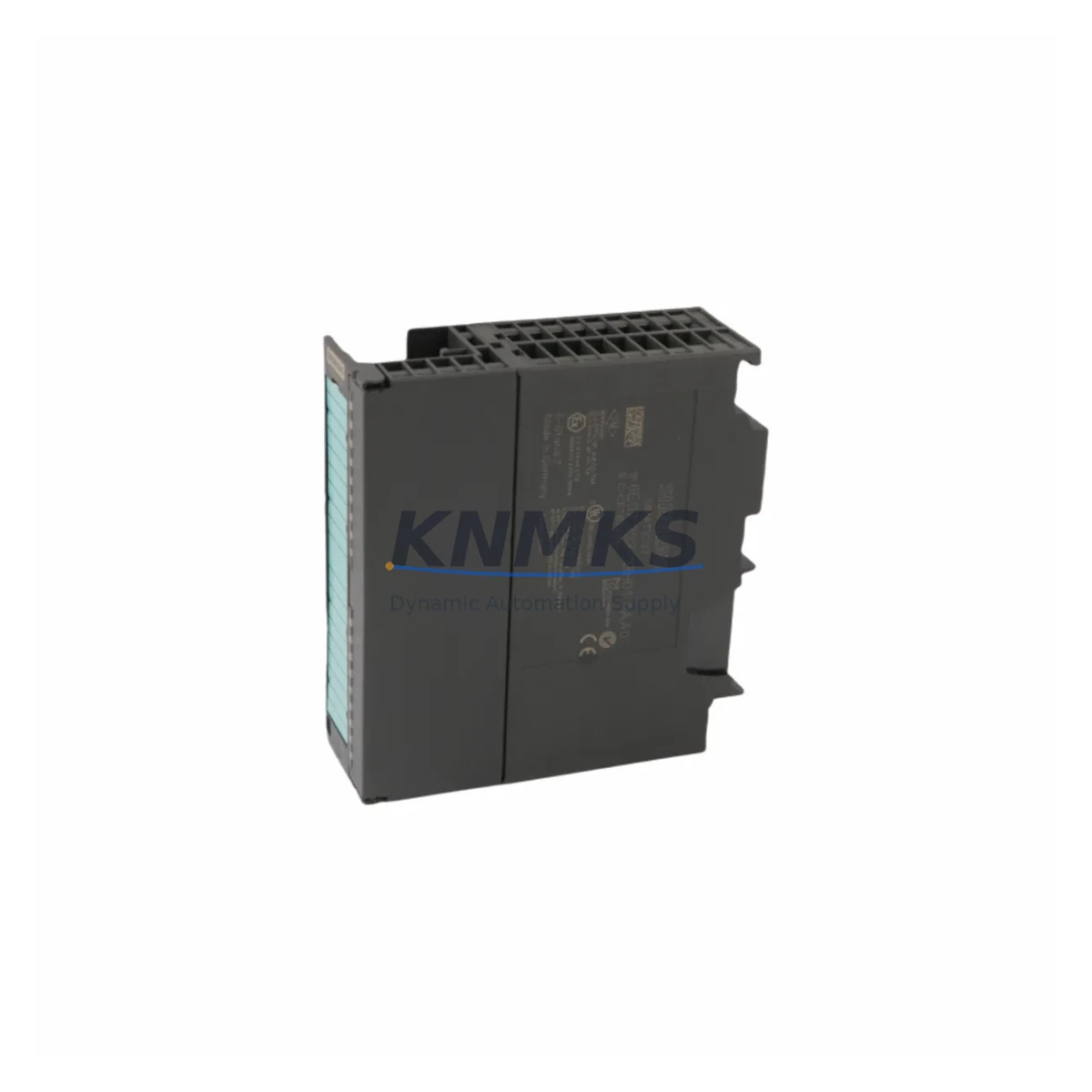

Siemens 6ES7323-1BH01-0AA0 Fail-Safe Digital I/O Module

Overview

Siemens 6ES7323-1BH01-0AA0 Fail-Safe Digital I/O Module: Fault Protection and Critical Industrial Field Reliability

The Siemens 6ES7323-1BH01-0AA0 is a high-performance SM 323 series digital input/output module designed for the SIMATIC S7-300 programmable logic controller platform. With 16 digital inputs and 16 digital outputs integrated in a single compact housing, this module delivers deterministic signal processing and robust fault-tolerant operation across the most demanding industrial environments — from petrochemical control rooms and power generation switchgear panels to mining conveyor interlocks, water treatment SCADA systems, and continuous steel rolling lines.

In critical production facilities where unplanned downtime carries severe safety and financial consequences, the 6ES7323-1BH01-0AA0 provides the signal integrity and electrical isolation necessary to maintain control loop continuity. Its optocoupler-isolated inputs suppress ground loops and transient voltage spikes that commonly cause spurious trips in high-electromagnetic-interference (EMI) environments such as variable-frequency drive (VFD) cabinets, large motor control centers, and arc furnace control systems. The module’s 24 VDC operating voltage and wide input signal threshold tolerance ensure reliable state detection even when supply rails fluctuate under heavy load switching — a common failure mode in industrial power distribution systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7323-1BH01-0AA0 operates as the primary field interface layer, bridging the CPU’s logic execution with physical actuators and sensors. To ensure the entire cabinet meets industrial safety and availability standards, it is typically deployed alongside complementary modules and protective components.

The Siemens 6ES7321-1BL00-0AA0 SM 321 32DI digital input module is commonly installed in the same rack to expand discrete sensor acquisition capacity for safety interlocks, emergency stop circuits, and process limit switches. For analog process variables such as temperature, pressure, and flow — critical in petrochemical and water treatment applications — the Siemens 6ES7331-7KF02-0AB0 SM 331 8AI analog input module provides high-resolution 12-bit signal conditioning with configurable input ranges, reducing the risk of signal drift that can trigger false process shutdowns.

Power supply integrity is foundational to cabinet reliability. The Siemens 6EP1333-3BA00 SITOP PSU100S 24 VDC / 5 A power supply unit delivers regulated, filtered 24 VDC with built-in overload and short-circuit protection, ensuring the 6ES7323-1BH01-0AA0 and its field devices receive stable operating voltage even during load transients caused by simultaneous output switching. For surge and transient protection at the cabinet entry point, Siemens 5SD7484-1 surge protection devices are recommended to clamp lightning-induced and switching transients before they reach sensitive I/O circuitry.

Communication reliability is equally critical. In distributed architectures where the S7-300 CPU communicates over PROFIBUS DP, the Siemens 6GK1500-0FC10 PROFIBUS bus connector with integrated termination resistor ensures signal reflection-free data transmission across long cable runs in electrically noisy environments. For cabinets requiring redundant communication paths or integration with PROFINET-based supervisory systems, the Siemens 6GK7343-1EX30-0XE0 CP 343-1 Ethernet communication processor provides deterministic TCP/IP and S7 communication without burdening the CPU’s processing cycle.

Together, these components form a layered protection strategy: clean power delivery, isolated signal acquisition, protected output switching, surge-clamped field wiring, and deterministic communication — all working in concert to minimize the probability of control interruption, spurious output activation, or communication timeout that could compromise process safety or trigger an unplanned shutdown.

Critical Industrial Safety Applications

The 6ES7323-1BH01-0AA0 is deployed across a broad spectrum of safety-critical and continuous-process industries where control system reliability is non-negotiable.

In petrochemical and refinery plants, this module interfaces with solenoid valve actuators, high-integrity pressure protection system (HIPPS) sensors, and emergency shutdown (ESD) relay outputs. Its galvanic isolation prevents ground potential differences between field instruments and the control system from inducing fault currents that could cause spurious valve actuation or ESD activation.

In thermal and hydroelectric power generation, the module monitors turbine protection relay contacts, generator excitation control signals, and switchgear position feedback. The transistor output’s electronic short-circuit protection prevents a shorted field cable from propagating damage to the backplane bus or adjacent modules — a critical feature in high-availability generation assets where module replacement requires a planned outage window.

In underground and open-pit mining operations, the 6ES7323-1BH01-0AA0 controls conveyor belt interlocks, ventilation fan starters, and dewatering pump contactors in environments characterized by coal dust, high humidity, and mechanical vibration. Its rated vibration resistance (up to 1 g at 58–150 Hz) and wide operating temperature range ensure consistent performance without signal dropout or output chatter.

In municipal water and wastewater treatment facilities, the module manages pump station start/stop sequences, valve position control, and alarm relay outputs across geographically distributed lift stations connected via PROFIBUS DP or PROFINET. Its low power dissipation (≤ 5.5 W) reduces cabinet thermal load, extending the service life of adjacent components in sealed, non-air-conditioned enclosures.

In metallurgical and steel rolling mills, where high-current motor drives generate intense electromagnetic interference, the module’s EMC-compliant design and optocoupler isolation maintain signal integrity on digital inputs monitoring roll gap sensors, cooling water flow switches, and emergency stop chains — preventing the nuisance trips and false alarms that disrupt production rhythm and increase scrap rates.

In port and maritime terminal automation, the module controls crane hoist interlocks, spreader position sensors, and anti-collision relay outputs in salt-air, high-humidity environments. Its non-condensing humidity rating (up to 95% RH) and corrosion-resistant housing support reliable long-term operation without accelerated contact degradation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7323-1BH01-0AA0?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and component-level faults identified under normal operating conditions consistent with Siemens’ published specifications. Support terms service includes functional verification testing, repair or replacement at our discretion, and return shipping. Damage resulting from incorrect wiring, overvoltage beyond the rated supply range, or physical impact is assessed case by case. Contact [email protected] to initiate a support terms claim.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7323-1BH01-0AA0 unit undergoes a multi-point functional inspection prior to dispatch: input signal threshold verification across all 16 channels, output switching test under rated load, backplane bus communication check, isolation resistance measurement, and visual inspection for connector pin integrity and housing condition. Units that do not pass all test points are quarantined and not shipped. A test record is available upon request for critical spare part procurement.

Q3: Is this module compatible with all S7-300 CPU variants and ET 200M remote I/O stations?
Yes. The 6ES7323-1BH01-0AA0 is compatible with all SIMATIC S7-300 CPUs from CPU 312 through CPU 319, including fail-safe CPU variants (CPU 315F, CPU 317F). It is also fully compatible with ET 200M distributed I/O stations using IM 153-1 and IM 153-2 interface modules, enabling deployment in remote field panels up to 1,000 m from the central rack via PROFIBUS DP. Configuration is performed through STEP 7 or TIA Portal V13 and above using the standard hardware catalog.

Q4: Can long-term supply and replacement support be guaranteed for this module?
KNMKS maintains dedicated stock of the 6ES7323-1BH01-0AA0 to support planned maintenance schedules, emergency replacements, and multi-year spare parts agreements for industrial operators. We supply both new-production units and certified refurbished modules with full functional test documentation. For facilities requiring guaranteed availability under a service level agreement (SLA), contact our technical sales team at [email protected] or +86 18359268345 to discuss long-term supply commitments and consignment stock arrangements.
