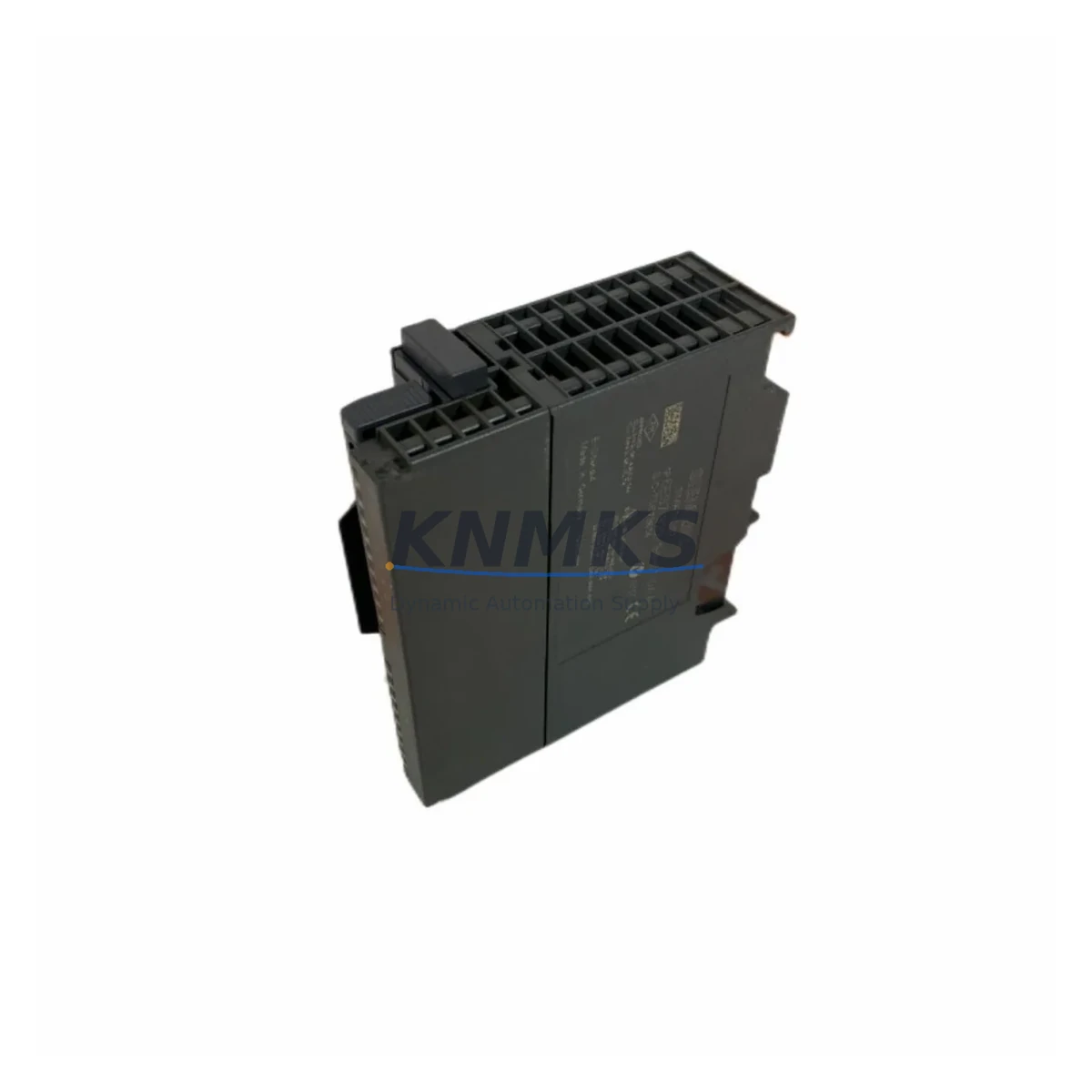

Siemens 6ES7322-1HH01-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7322-1HH01-0AA0 is an SM 322 relay digital output module designed for the SIMATIC S7-300 programmable logic controller platform. With 8 relay output channels rated at 230 V AC / 30 V DC and a proven track record in discrete manufacturing, process control, and utility automation, this module is a critical spare for any maintenance engineer managing S7-300-based control cabinets. Sourced as an original Siemens component, each unit is inspected and tested prior to shipment, backed by a support terms confirmed by quotation, and available for fast international dispatch to minimize unplanned downtime.

For maintenance and procurement engineers responsible for aging S7-300 installations, securing a verified replacement for the 6ES7322-1HH01-0AA0 is a proactive step that directly reduces mean time to repair (MTTR). Relay output modules are among the highest-wear components in any PLC cabinet — contact degradation, coil fatigue, and insulation breakdown are common failure modes in high-cycle or high-inrush applications. Keeping one or two units on the shelf as part of a structured spare parts inventory strategy is standard practice in facilities with continuous production requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7322-1HH01-0AA0 relay output module fails or shows signs of contact wear, the replacement procedure should be treated as an opportunity for a broader cabinet health check. Maintenance engineers should simultaneously verify the condition of the associated PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0), which feeds the S7-300 backplane — a marginal power supply can accelerate relay contact degradation and cause intermittent output faults that are difficult to diagnose under load.

The S7-300 backplane rack and its bus connectors should be inspected for oxidation or mechanical stress, particularly in high-vibration environments. Loose or corroded bus connectors are a common root cause of module communication errors that are incorrectly attributed to the output module itself. While the cabinet is open, inspect the CPU module (such as the CPU 315-2 DP, 6ES7315-2AH14-0AB0) for battery status and firmware revision — an outdated CPU firmware can cause compatibility issues with replacement I/O modules.

For the output field wiring, check the terminal blocks and wiring ducts connected to the relay outputs. Relay modules driving inductive loads (contactors, solenoid valves, motor starters) should have surge suppression diodes or RC snubber circuits installed at the load side — their absence significantly shortens relay contact life. If the application involves frequent switching of 24 V DC loads, consider whether a solid-state SM 322 variant (e.g., 6ES7322-1BL00-0AA0, 16-channel transistor output) would be more appropriate for future installations.

Communication integrity should also be verified: if the S7-300 rack uses a CP 343-1 Ethernet communication processor or a DP/PA coupler for PROFIBUS field devices, confirm that the module addressing and GSD files remain consistent after the output module swap. Finally, review the fuse protection for each output group — the 6ES7322-1HH01-0AA0 uses external fusing, and blown or undersized fuses are a frequent cause of apparent module failure that can be resolved without module replacement.

Site Replacement Workflow

Step 1 — Isolation: Place the CPU in STOP mode via the mode selector switch or STEP 7 / TIA Portal. De-energize the output load circuits at the field distribution board. Do not rely solely on the CPU STOP state to isolate relay outputs — relay contacts are mechanically independent of the CPU state.

Step 2 — Documentation: Photograph the existing wiring and record the slot address of the module in the rack. The 6ES7322-1HH01-0AA0 is a plug-and-play replacement for the same slot — no hardware configuration change is required in STEP 7 or TIA Portal if the module type and revision are identical.

Step 3 — Removal: Disconnect the front connector (20-pin) by pressing the release lever. Slide the module off the DIN rail. The front connector retains all field wiring and can be transferred directly to the replacement module.

Step 4 — Installation: Clip the replacement 6ES7322-1HH01-0AA0 onto the rail, reconnect the front connector, and restore power. The module will be recognized automatically by the CPU without requiring a download.

Step 5 — Verification: Use the diagnostic buffer in STEP 7 / TIA Portal to confirm no module faults are present. Perform a forced output test on each channel before returning the system to AUTO mode.

This workflow typically achieves a complete module swap in under 20 minutes for a trained technician, making the 6ES7322-1HH01-0AA0 one of the most field-serviceable modules in the S7-300 family.

Spare Parts Support FAQ

Q1: Is this an original Siemens 6ES7322-1HH01-0AA0 or a compatible replacement?
This is an original Siemens-branded module. Each unit is sourced through verified industrial supply channels and undergoes pre-shipment functional testing. A test report is available on request. We do not supply third-party compatible substitutes for this part number.

Q2: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority dispatch of a replacement unit. Physical damage caused by incorrect installation, overvoltage, or field wiring faults is excluded.

Q3: Can I use this module to replace a 6ES7322-1HH00-0AA0 (earlier revision)?
Yes. The -1HH01- revision is the direct successor to the -1HH00- revision and is fully backward compatible in terms of hardware configuration, front connector pinout, and STEP 7 / TIA Portal module catalog entry. No configuration changes are required.

Q4: Do you support long-term supply for ongoing maintenance contracts?
Yes. We maintain stock of the 6ES7322-1HH01-0AA0 and can support blanket purchase orders, scheduled releases, and annual maintenance contract supply agreements. For facilities managing multiple S7-300 racks, we recommend establishing a minimum stock level of 1–2 units per rack as part of a structured critical spare parts program. Contact our team to discuss volume pricing and lead time commitments.
