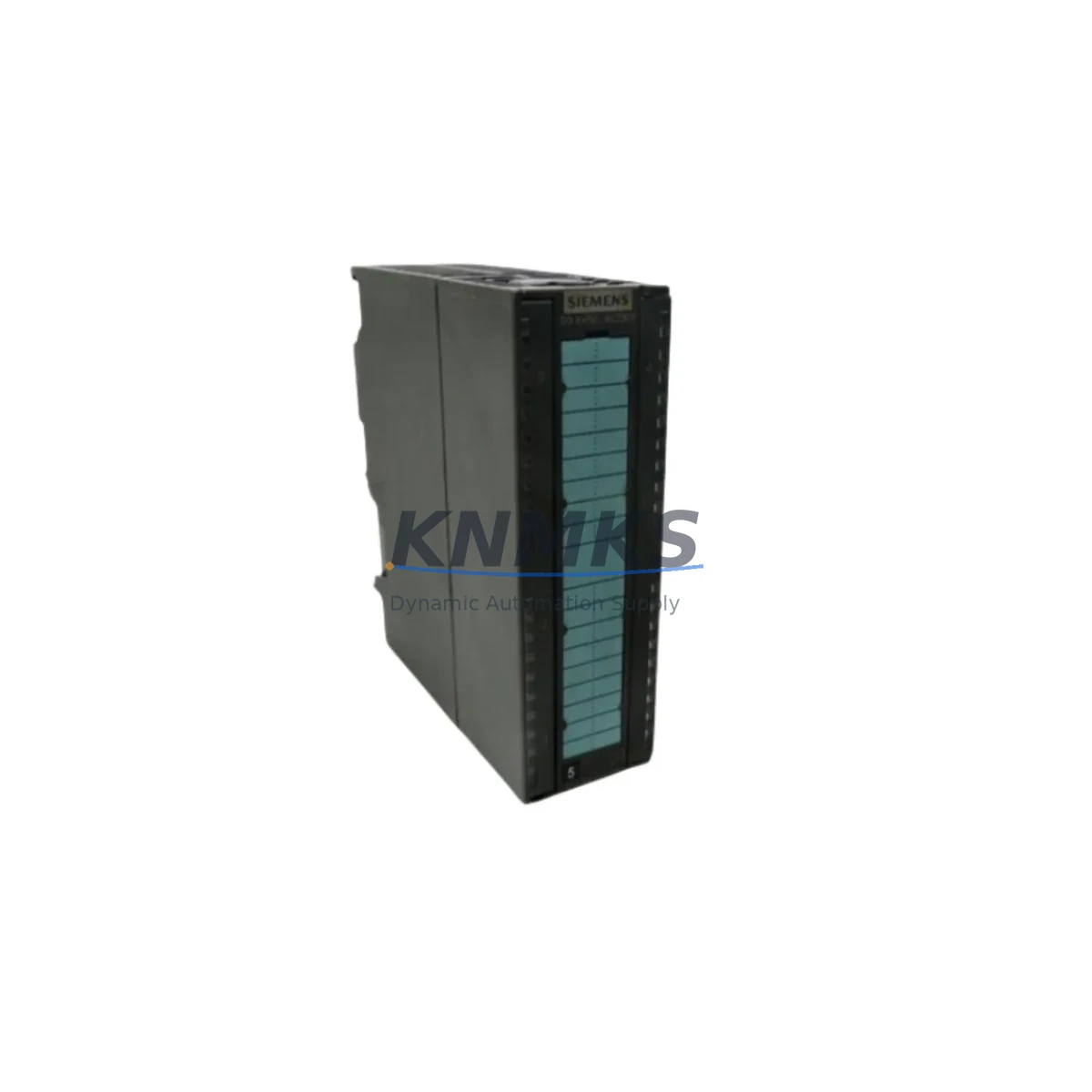

The SIEMENS 6ES7322-1HF10-0AA0 is a 16-channel 24 VDC digital output module designed for the SIMATIC S7-300 programmable logic controller platform. As a maintenance-proven spare part, it supports continuous factory operation by enabling fast field replacement during scheduled shutdowns, emergency fault isolation, and annual overhaul cycles. Each unit supplied by KNMKS is sourced as an original component, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation — giving maintenance engineers and procurement teams the confidence to stock this module as a long-term line item in their spare parts inventory.

In high-availability production environments — including automotive assembly, food processing, chemical dosing, and discrete manufacturing — the 6ES7322-1HF10-0AA0 drives actuators, solenoid valves, motor contactors, and indicator lamps directly from the S7-300 backplane. Its 0.5 A per channel output rating and short-circuit protection make it a reliable workhorse in demanding control cabinet environments. When this module is flagged during a fault scan or routine inspection, a verified replacement on the shelf eliminates the risk of extended downtime caused by sourcing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7322-1HF10-0AA0 in the field, a disciplined maintenance engineer will not stop at the module itself. The S7-300 control cabinet ecosystem requires a coordinated inspection of adjacent components to prevent repeat faults and ensure the replacement holds under production load.

Begin with the 24 VDC load power supply — typically a SITOP PSU100S or equivalent — feeding the output module’s load circuit. A degraded power supply delivering voltage below 22 VDC under full load will cause intermittent output faults that mimic module failure. Verify output voltage under rated current before re-energizing the new module.

Next, inspect the SM 321 digital input module (e.g., 6ES7321-1BH02-0AA0) paired in the same rack. Input and output modules in the same control loop often experience correlated wear from the same electrical disturbances. A damaged input module may generate false process signals that stress the replacement output module prematurely.

Check the S7-300 backplane bus connector and rack slot contacts. Oxidized or mechanically stressed bus connectors are a common root cause of intermittent module communication errors. Clean contacts and verify seating torque before inserting the replacement 6ES7322-1HF10-0AA0.

Review the terminal block wiring on the front connector (20-pin). Loose or corroded terminals on the load side — particularly on channels driving inductive loads such as solenoid valves or motor starters — can cause voltage spikes that degrade output transistors over time. Re-torque all terminals and inspect for discoloration indicating thermal stress.

Inspect the load-side fuse protection. Each output group should be protected by appropriately rated fuses or miniature circuit breakers. Blown fuses that are replaced without identifying the root cause will damage the new module. Verify fuse ratings match the connected load current.

Finally, confirm the CP 343-1 or CP 341 communication module configuration if the S7-300 system uses PROFINET or serial communication for process data exchange. A communication module fault can mask output module diagnostics in STEP 7 or TIA Portal, leading to misdiagnosis. Verify the communication module’s LED status and diagnostic buffer before closing the cabinet.

Site Replacement Workflow

The 6ES7322-1HF10-0AA0 is a direct plug-in replacement for earlier S7-300 digital output modules of the same channel count and voltage class. No hardware modification to the rack or backplane is required. The replacement procedure follows standard SIMATIC S7-300 hot-swap guidelines where the CPU supports it, or a controlled cold-swap sequence for safety-critical lines:

Step 1 — Isolate: Switch the affected output group to safe state via the CPU program or manual override. De-energize the load circuit at the load power supply breaker. Do not remove the module under live load.

Step 2 — Document: Record the front connector wiring layout and channel assignments before disconnecting. Photograph the terminal block if the as-built drawing is not current.

Step 3 — Remove and Inspect: Extract the front connector, release the module locking screw, and slide the module out of the rack slot. Inspect the bus connector pins and the slot contacts for damage or contamination.

Step 4 — Insert Replacement: Slide the 6ES7322-1HF10-0AA0 replacement into the same slot. Secure the locking screw. Re-attach the front connector, verifying terminal torque.

Step 5 — Verify in STEP 7 / TIA Portal: Power up the rack and confirm the module appears in the hardware configuration without fault. Run a channel-by-channel output test before returning the line to production.

Step 6 — Update Maintenance Log: Record the replacement date, module serial number, and any observations. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 6ES7322-1HF10-0AA0 still available for long-term supply?
Yes. KNMKS maintains stock of the 6ES7322-1HF10-0AA0 to support legacy S7-300 installations through their operational lifecycle. Long-term supply agreements covering 12–36 months of forward inventory are available for sites with multiple S7-300 racks or high-consumption maintenance programs. Contact [email protected] to discuss volume and scheduling terms.

Q2: How is each unit tested before shipment?
Every 6ES7322-1HF10-0AA0 unit undergoes functional output testing under rated 24 VDC load conditions prior to dispatch. Channel-by-channel output verification and short-circuit protection checks are performed. A support terms confirmed by quotation is issued from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module replace older S7-300 digital output variants in the same rack?
The 6ES7322-1HF10-0AA0 is compatible with the standard S7-300 backplane and is interchangeable with other 16-channel 24 VDC SM 322 output modules of the same electrical class. Verify the hardware configuration in STEP 7 or TIA Portal matches the module order number to avoid diagnostic mismatches. No rack modification is required for direct slot replacement.

Q4: What is the recommended spare parts stocking strategy for S7-300 sites?
For sites operating more than four S7-300 racks, a minimum of two 6ES7322-1HF10-0AA0 units on-hand is recommended to cover emergency replacement without production interruption. Annual consumption planning should account for module age, operating environment (temperature, vibration, humidity), and the criticality of the controlled process. KNMKS can support scheduled replenishment orders aligned to your annual maintenance budget cycle.
