Siemens 6ES7322-1BL00-0AA0 Spare Part for Factory Uptime

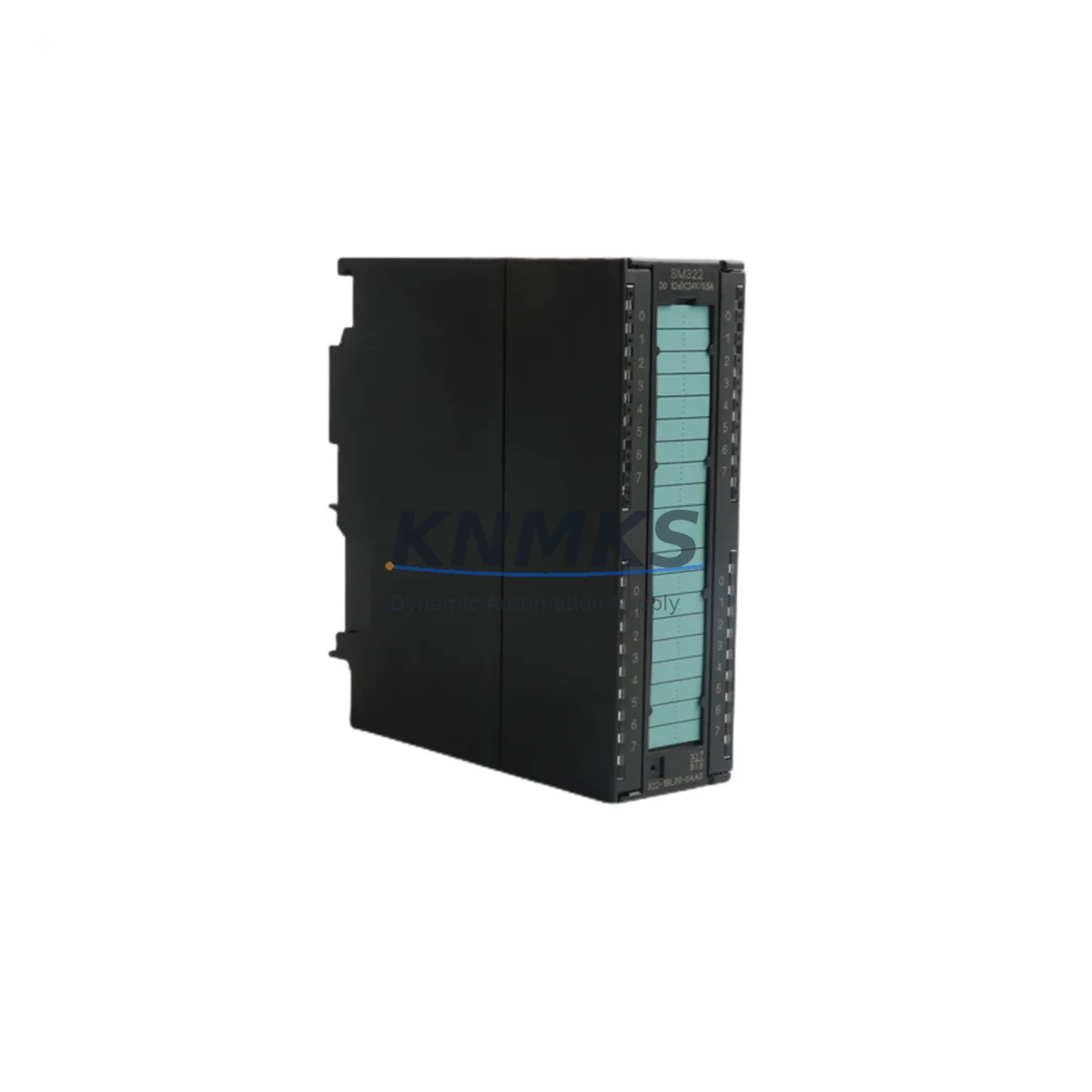

The Siemens 6ES7322-1BL00-0AA0 is a SM 322 series digital output module designed for the SIMATIC S7-300 PLC platform, providing 32 transistor outputs at 24 VDC / 0.5 A per channel. As a maintenance-proven spare part, it is a critical component for sustaining continuous factory operation across discrete manufacturing, process automation, and utility control applications. KNMKS stocks this module as an original spare to support rapid field replacement, minimizing unplanned downtime and protecting production schedules.

Maintenance engineers and procurement teams rely on the 6ES7322-1BL00-0AA0 to restore output control capability in S7-300 racks without requiring system reconfiguration. The module slots directly into any S7-300 rack backplane and is recognized automatically by STEP 7 and TIA Portal project configurations, preserving existing I/O addressing and ladder logic without modification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7322-1BL00-0AA0 in a live S7-300 control cabinet, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure a clean restoration. Begin by verifying the 24 VDC field power supply — a Siemens PS 307 or equivalent power supply module should be checked for output voltage stability and ripple, as degraded supply voltage is a common root cause of output module failure. Inspect the backplane bus connector on the rack for bent pins or oxidation, and confirm that the adjacent CPU module (such as a 6ES7315-2AG10-0AB0 or 6ES7317-2AK14-0AB0) shows no fault LEDs before re-energizing the rack.

Check all 40-pin front connector wiring for loose terminations, insulation damage, or incorrect load connections. Inductive loads such as solenoid valves and relay coils must be fitted with appropriate freewheeling diodes or RC snubbers to protect the transistor outputs from back-EMF. If the control cabinet includes intermediate relay modules — such as Siemens 3RQ1 or Phoenix Contact PLC-RSC relay terminals — verify their coil ratings match the 24 VDC output specification of the 6ES7322-1BL00-0AA0.

For cabinets with mixed I/O, also inspect the companion digital input module (e.g., 6ES7321-1BL00-0AA0 SM 321 32DI) and any analog I/O modules sharing the same rack, as power distribution faults can affect multiple slots simultaneously. If the system includes a CP 343-1 or CP 343-1 Advanced communications processor for PROFINET or Industrial Ethernet connectivity, confirm that the network link is restored and the CPU returns to RUN mode after module replacement. Signal isolation barriers or surge protection devices on field wiring should also be inspected as part of the corrective maintenance cycle.

Procurement engineers building annual spare parts kits for S7-300 systems should consider stocking the 6ES7322-1BL00-0AA0 alongside the corresponding input module and at least one spare CPU module to cover the most common failure scenarios in a single maintenance event. KNMKS provides long-term supply continuity for this module with consistent stock availability, pre-shipment functional testing, and support terms confirmed by quotation coverage on every unit.

Site Replacement Workflow

Step 1 — Safe Isolation: Switch the CPU to STOP mode via the mode selector or STEP 7 / TIA Portal online interface. De-energize the 24 VDC field power supply feeding the output module. Do not remove the module under live field voltage.

Step 2 — Front Connector Removal: Unlock and remove the 40-pin front connector from the existing module. Label or photograph the wiring layout before disconnection if the connector is not already coded.

Step 3 — Module Extraction: Release the module locking screw and slide the 6ES7322-1BL00-0AA0 out of the rack slot. Note the slot number for correct reinstallation.

Step 4 — New Module Installation: Insert the replacement 6ES7322-1BL00-0AA0 into the same rack slot. Secure the locking screw. Reconnect the front connector — the mechanical coding key prevents incorrect connector seating.

Step 5 — System Restart and Verification: Re-energize the field power supply. Switch the CPU back to RUN mode. Confirm that the SF and EXTF LEDs on the new module are off and that all output channels respond correctly to the PLC program. Perform a functional test of connected actuators before returning the line to production.

This direct slot-for-slot replacement approach preserves the existing hardware configuration and requires no changes to the STEP 7 or TIA Portal project, making it the fastest path to production recovery for maintenance teams managing legacy S7-300 installations.

Spare Parts Support FAQ

Q1: Is the 6ES7322-1BL00-0AA0 compatible with all S7-300 CPU variants?
Yes. The SM 322 module is compatible with all standard S7-300 CPUs, including the CPU 312, 314, 315, 317, and 319 series. It connects via the standard S7-300 backplane bus and is addressed through STEP 7 hardware configuration or TIA Portal device configuration without any firmware dependency on the CPU version.

Q2: How is each unit tested before shipment?
Every 6ES7322-1BL00-0AA0 supplied by KNMKS undergoes pre-shipment functional verification, including power-on self-test confirmation, output channel continuity check, and visual inspection for physical damage. Units are shipped with protective packaging to prevent ESD and mechanical damage in transit.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides replacement or repair support for any unit that fails within the confirmed support period, subject to inspection confirming the failure is not caused by incorrect installation, overvoltage, or field wiring faults.

Q4: Can KNMKS support long-term supply for S7-300 spare parts programs?
Yes. KNMKS maintains ongoing stock of the 6ES7322-1BL00-0AA0 and related S7-300 modules to support annual maintenance contracts, shutdown spare kits, and emergency procurement. For volume requirements or scheduled delivery programs, contact [email protected] or call +86 18359268345 to discuss supply agreements.
