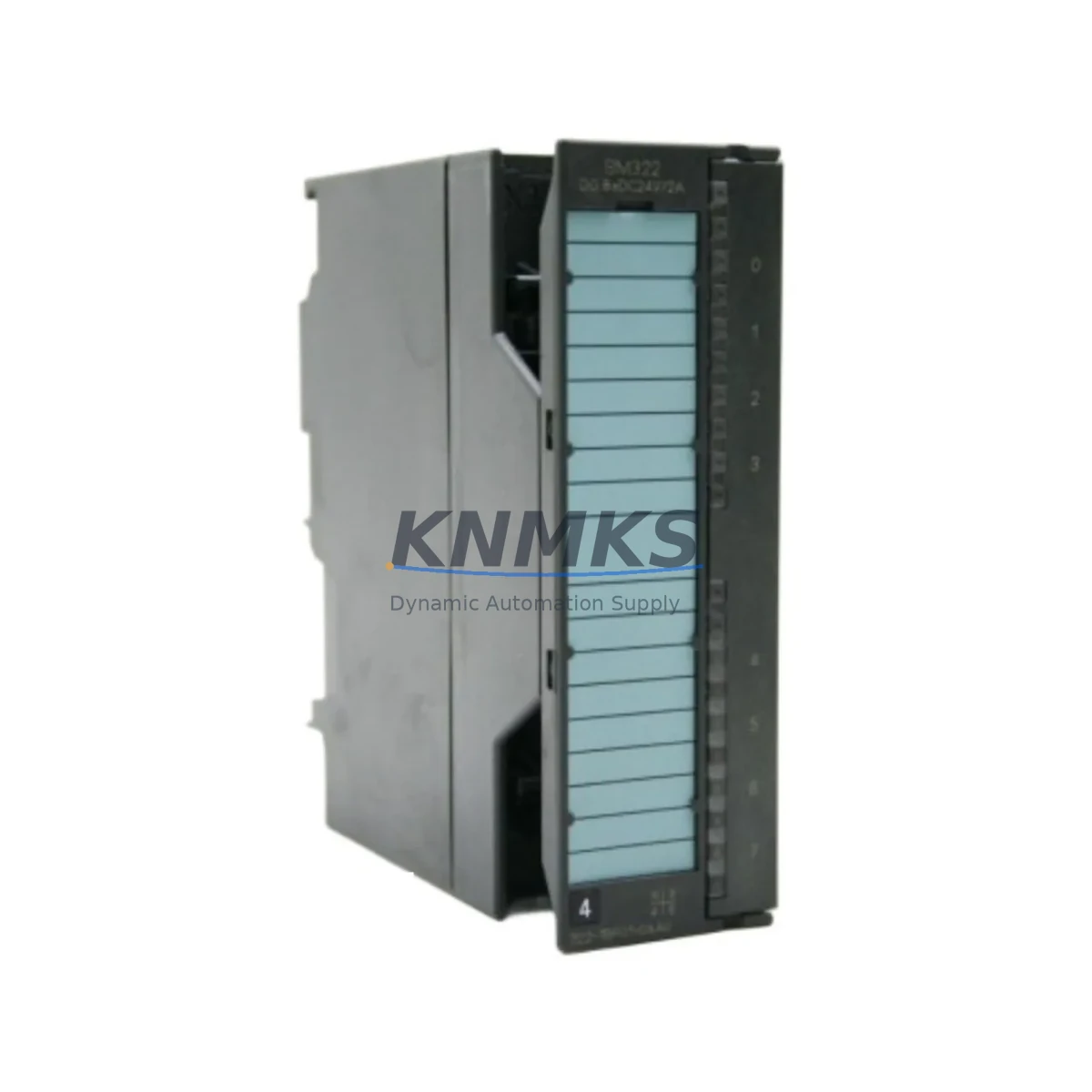

Siemens 6ES7322-1BF01-0AA0 Fail-Safe Digital Output S7-300

Overview

Siemens 6ES7322-1BF01-0AA0 Fail-Safe Digital Output S7-300: Fault-Tolerant Control for Critical Industrial Sites

The Siemens 6ES7322-1BF01-0AA0 is an 8-channel DC 24V/0.5A digital output module engineered for the SIMATIC S7-300 platform. Designed to meet the demanding requirements of continuous production environments, critical interlock circuits, and high-load control cabinets, this module delivers consistent, fail-safe signal switching where unplanned downtime carries serious operational and safety consequences. Whether deployed in petrochemical plants, power generation facilities, metallurgical lines, or water treatment stations, the 6ES7322-1BF01-0AA0 provides the output reliability that industrial safety engineers depend on.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving continuous process lines, output module reliability is only as strong as the surrounding protection architecture. The 6ES7322-1BF01-0AA0 is typically deployed alongside the Siemens 6ES7321-1BH02-0AA0 16-channel digital input module, forming a matched I/O pair on the same S7-300 rack — ensuring synchronized signal acquisition and actuation with minimal propagation delay. For power conditioning, the Siemens 6EP1333-2BA20 SITOP PSU100S 24VDC stabilized power supply is the recommended upstream source, providing regulated, low-ripple DC power that prevents voltage sag from triggering false output states during motor start surges.

In cabinets exposed to high electromagnetic interference — common in variable frequency drive (VFD) environments, arc furnace control rooms, or high-current switchgear panels — the output module benefits from proper shielding and the use of Siemens 6XV1830-0EH10 PROFIBUS cable with drain wire grounding to suppress common-mode noise on the communication bus. Where safety interlock circuits require hardwired redundancy, the Siemens 3SK1111-1AB30 safety relay is frequently integrated in series with the digital output channels to enforce de-energize-to-trip logic, ensuring that a CPU fault or communication loss results in a safe output state rather than an uncontrolled actuation. For thermal management in sealed or poorly ventilated enclosures, the Siemens 6ES7390-1AE80-0AA0 S7-300 rack with adequate slot spacing and the optional cabinet fan tray assembly helps maintain module junction temperatures within specification, preventing thermally induced output drift or premature IGBT degradation.

Critical Industrial Safety Applications

The Siemens 6ES7322-1BF01-0AA0 is field-proven across a broad range of safety-critical industrial applications:

Petrochemical & Refinery Plants: Used in emergency shutdown (ESD) pre-alarm output circuits and burner management system (BMS) actuator control, where output signal integrity under high-temperature, high-humidity, and H₂S-laden atmospheres is non-negotiable. The module’s optocoupler isolation prevents ground loop currents from corrupting output states in multi-cabinet distributed control architectures.

Power Generation & Substation Automation: Deployed in turbine governor control panels and transformer protection relay output circuits. Its surge-withstand capability is critical in environments where switching transients from high-voltage bus operations can couple into 24VDC control wiring, causing spurious output trips or relay chatter.

Mining & Mineral Processing: Installed in conveyor interlock control systems and crusher protection panels operating in dusty, vibration-intensive environments. The module’s IEC 68-2-6 vibration compliance ensures contact integrity under continuous mechanical stress from heavy machinery.

Water & Wastewater Treatment: Controls pump station valve actuators and dosing system solenoids in high-humidity, corrosive-atmosphere pump rooms. The non-condensing humidity rating and conformal coating options on associated S7-300 racks extend service life in these chemically aggressive environments.

Metallurgy & Steel Mills: Manages rolling mill auxiliary drive enable signals and ladle transfer car control outputs in environments with extreme thermal cycling, radiated heat, and high-frequency electromagnetic emissions from induction furnaces.

Port & Marine Automation: Used in ship-to-shore crane PLC control panels and bulk material handling systems where salt-fog resistance, vibration tolerance, and reliable operation across wide ambient temperature swings are essential for uninterrupted cargo operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7322-1BF01-0AA0?
The support terms confirmed by quotation cover manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions as specified in the Siemens S7-300 system manual. Support requests are supported with replacement dispatch or documented resolution support, subject to return inspection. confirmed support period begins from the date of confirmed shipment.

Q2: What pre-shipment testing is performed on this module?
Every 6ES7322-1BF01-0AA0 unit undergoes functional output channel verification, isolation resistance testing, and backplane communication handshake validation prior to dispatch. Modules are shipped in anti-static packaging with individual inspection records available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all S7-300 CPU variants and existing racks?
Yes. The 6ES7322-1BF01-0AA0 is compatible with all standard SIMATIC S7-300 CPUs (including CPU 312, 314, 315, 317, and 319 series) and mounts on any standard S7-300 DIN rail rack without hardware modification. It is fully interchangeable with earlier SM 322 series output modules in the same slot position, making it a direct drop-in replacement for field upgrades or emergency spares.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance contracts?
We maintain dedicated safety stock of the 6ES7322-1BF01-0AA0 to support planned maintenance schedules, emergency breakdowns, and multi-year service contracts. For projects requiring guaranteed supply over 12–36 month horizons, blanket order arrangements with reserved inventory allocation are available. Contact our technical sales team to discuss volume pricing and supply assurance agreements.
