Siemens 6ES7321-1FH00-0AA0 Fail-Safe Digital Input Module S7-300

Overview

Siemens 6ES7321-1FH00-0AA0 Fail-Safe Digital Input Module S7-300: Fault-Tolerant Control for Critical Industrial Environments

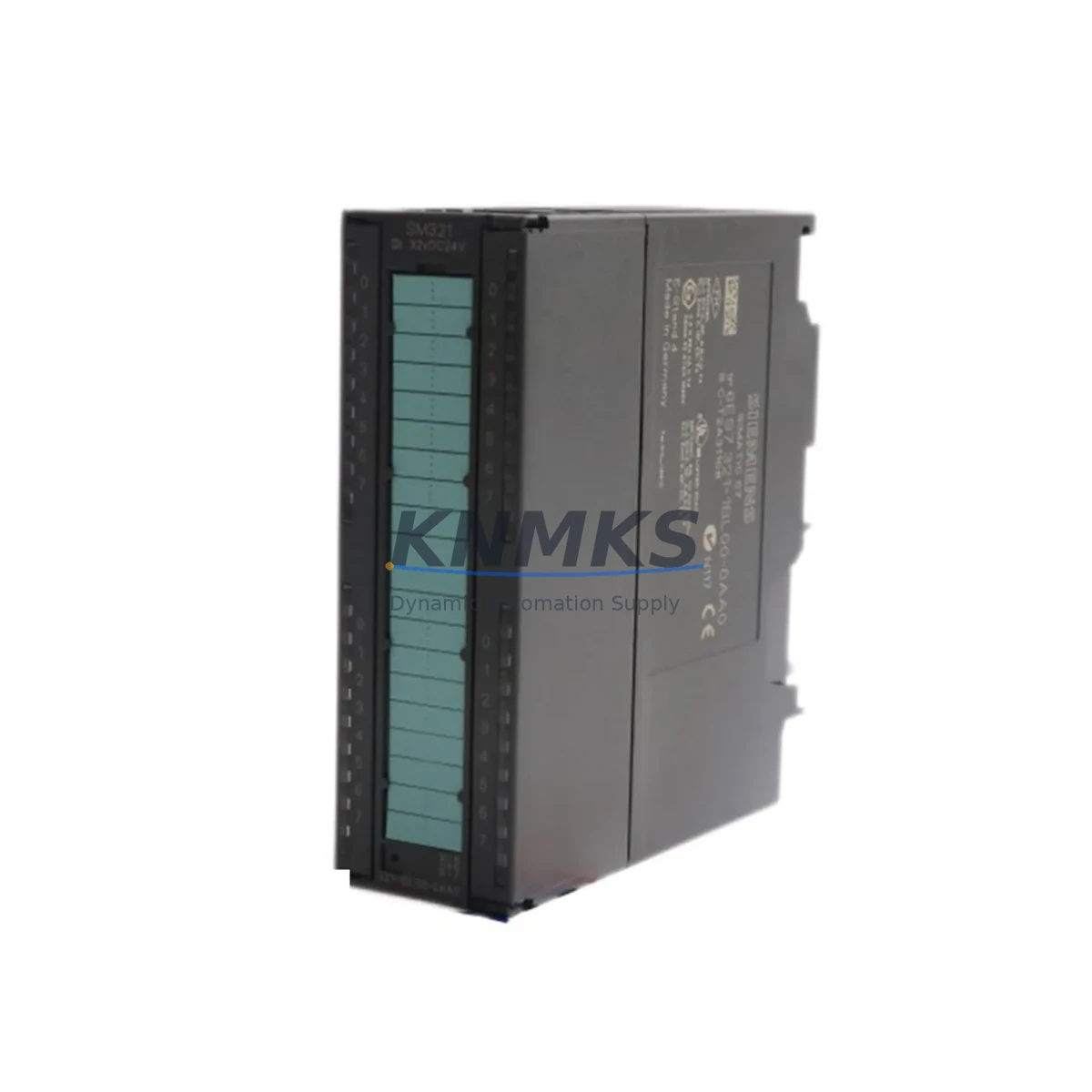

The Siemens 6ES7321-1FH00-0AA0 is a 16-channel, 24 VDC digital input module from the SM321 series, engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to meet the demanding requirements of continuous production environments, this module delivers reliable signal acquisition in applications where control interruption, signal drift, or input misread can trigger unplanned shutdowns, safety interlock failures, or process damage. Every unit in our inventory has undergone pre-shipment functional verification to confirm channel integrity, terminal continuity, and backplane communication before dispatch.

In high-electromagnetic-interference environments — including variable-frequency drive cabinets, large motor control centers, arc furnace control rooms, and high-voltage switchgear panels — the 6ES7321-1FH00-0AA0 maintains stable input recognition through its built-in surge suppression and EMI-hardened signal conditioning circuitry. This makes it a preferred replacement module for aging S7-300 systems operating in petrochemical plants, power generation facilities, mining extraction sites, water treatment stations, metallurgical processing lines, and port automation infrastructure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7321-1FH00-0AA0 digital input module operates as part of a layered protection architecture. Field sensor signals — from pressure switches, limit switches, flow transmitters, and emergency stop circuits — are routed through this module’s optocoupler-isolated channels before entering the CPU’s scan cycle. This isolation barrier prevents ground loops and transient voltages from propagating into the controller backplane, protecting the CPU 315-2 DP (6ES7315-2AH14-0AB0) and adjacent I/O modules from surge-induced faults.

For power supply stability within the same cabinet, the PS 307 power supply module (6ES7307-1EA01-0AA0) provides regulated 24 VDC to the S7-300 rack, ensuring that input signal thresholds remain consistent even during mains voltage fluctuations. In applications where the control cabinet is exposed to high-vibration environments — such as compressor stations or heavy press lines — the SM321 digital input module 6ES7321-1BL00-0AA0 (32-channel variant) is often deployed in parallel racks to expand input capacity without compromising signal integrity.

Communication reliability is maintained through the CP 342-5 PROFIBUS communication processor (6GK7342-5DA02-0XE0), which handles deterministic fieldbus data exchange between the S7-300 CPU and distributed I/O nodes in the field. For safety-critical interlock loops, the SM326 fail-safe digital input module (6ES7326-1BK02-0AB0) is commonly installed alongside the SM321 to handle SIL-rated emergency shutdown inputs, while the standard SM321 manages non-safety process monitoring channels. This combination allows engineers to segregate safety and standard I/O within the same rack, reducing wiring complexity and simplifying maintenance access.

In cabinets subject to high dust ingress or condensation risk — common in cement plants, coastal port facilities, and outdoor substations — additional thermal management through the SIEMENS SIMATIC ET 200M distributed I/O station may be considered to relocate I/O closer to the field while keeping the main CPU cabinet in a controlled environment. This architecture extends the operational life of the 6ES7321-1FH00-0AA0 and reduces the frequency of spare parts replacement cycles.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, hydrocracker control systems, and compressor anti-surge loops, the 6ES7321-1FH00-0AA0 acquires discrete signals from high-integrity pressure switches, solenoid valve position feedback, and flame detector outputs. Its optocoupler isolation prevents hazardous area ground potential differences from corrupting the control system, supporting reliable interlock response times within the S7-300 scan cycle.

Power Generation and Substation Automation: Turbine control panels, generator protection relay interfaces, and transformer monitoring systems rely on fast, noise-immune digital input acquisition. The SM321 module’s configurable input delay — adjustable from 0.1 ms to 20 ms — allows engineers to filter contact bounce from high-voltage relay outputs without masking genuine trip signals, a critical requirement in grid-connected generation assets.

Mining and Mineral Processing: Conveyor belt safety systems, crusher interlock circuits, and ventilation fan status monitoring in underground and open-pit mining operations demand modules that withstand vibration, dust, and wide temperature swings. The 6ES7321-1FH00-0AA0’s robust mechanical design and wide operating temperature range make it a dependable choice for these high-cycle, high-consequence applications.

Water and Wastewater Treatment: Pump station control panels, chemical dosing interlock systems, and overflow alarm circuits in municipal and industrial water treatment facilities benefit from the module’s stable 24 VDC input recognition, even when signal cables run long distances through electrically noisy environments alongside variable-speed pump drives.

Metallurgy and Steel Production: Electric arc furnace control systems, rolling mill interlock panels, and ladle transfer car position monitoring generate extreme electromagnetic interference. The SM321’s EMI-hardened input circuitry maintains reliable signal acquisition in these environments, reducing nuisance trips and protecting downstream process equipment from control-induced damage.

Port and Maritime Automation: Ship-to-shore crane control systems, automated stacking crane interlock panels, and bulk material handling conveyors in port terminals require I/O modules that perform consistently in high-humidity, salt-air environments. The 6ES7321-1FH00-0AA0’s sealed terminal design and corrosion-resistant construction support long service intervals in these demanding coastal installations.

Safety and Quality FAQ

Q1: Does every 6ES7321-1FH00-0AA0 unit ship with a support terms confirmed by quotation?
Yes. All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional defects in the module’s input circuitry, backplane interface, and terminal block assembly. Support requests are supported with replacement dispatch and technical documentation.

Q2: What pre-shipment testing is performed on each module?
Each 6ES7321-1FH00-0AA0 undergoes a full functional verification before dispatch, including channel-by-channel input signal response testing, backplane communication handshake confirmation, and visual inspection of terminal blocks and housing integrity. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this module a direct drop-in replacement for existing S7-300 installations?
Yes. The 6ES7321-1FH00-0AA0 is fully compatible with the standard S7-300 backplane and requires no hardware modification for installation. It is recognized by STEP 7 and TIA Portal hardware configuration tools. Existing wiring to the 40-pin front connector is retained without change, minimizing downtime during replacement.

Q4: Can KNMKS support long-term spare parts supply for multi-site S7-300 deployments?
Yes. KNMKS maintains stock of the 6ES7321-1FH00-0AA0 and related S7-300 I/O modules to support planned maintenance programs, emergency replacements, and multi-year spare parts agreements. For large-volume or scheduled procurement requirements, contact our technical sales team to discuss availability, lead times, and consolidated shipment options.
