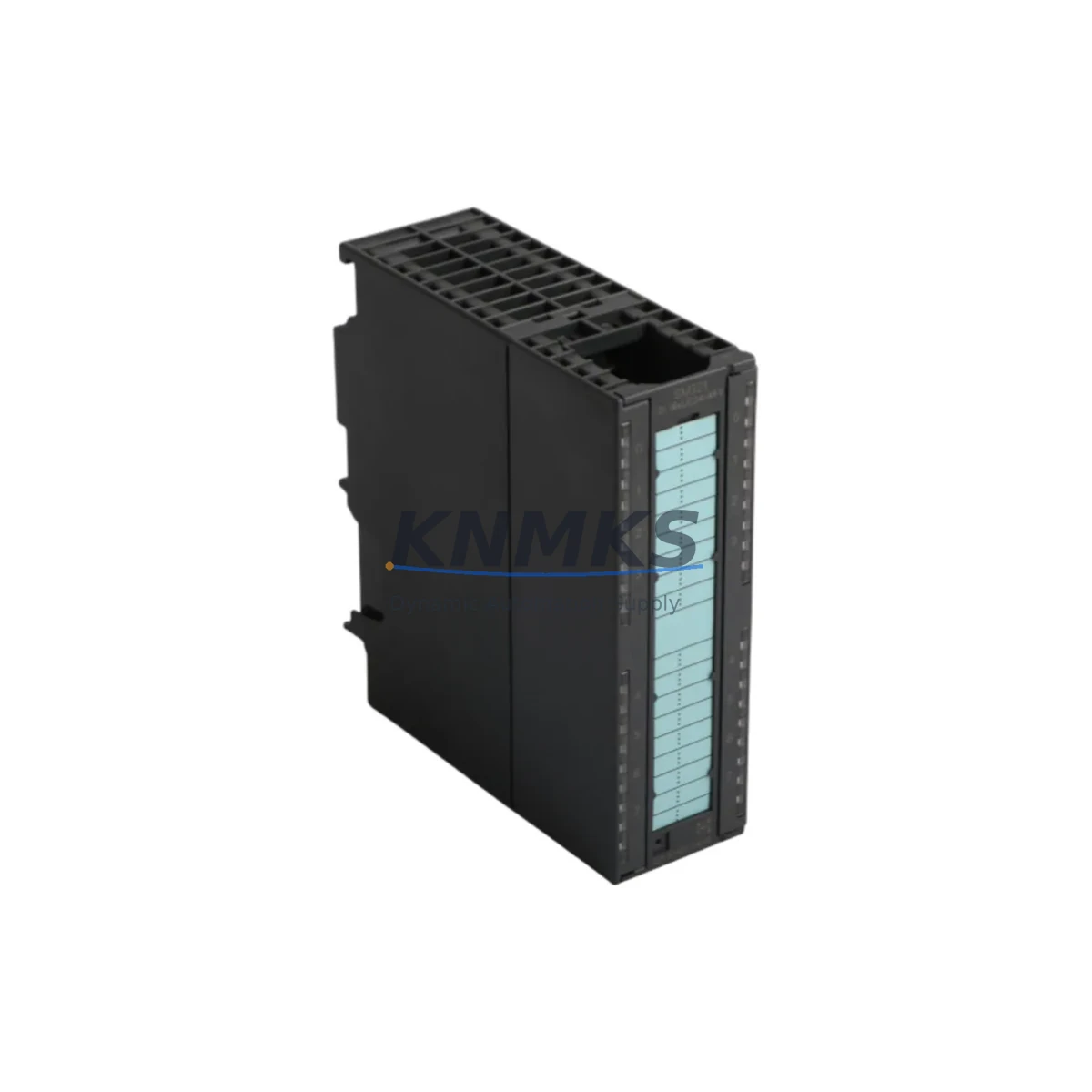

Siemens 6ES7321-1CH00-0AA0 Migration-Ready 16DI Module: Legacy S7-300 System Retrofit and Upgrade

The Siemens 6ES7321-1CH00-0AA0 is a 16-channel digital input module from the SM321 family, designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems approach end-of-life and original spare parts become increasingly scarce, this module serves as a critical component in retrofit projects, production line upgrades, and control cabinet modernization programs. Whether you are replacing a failed unit on an active line or building a long-term spare parts inventory for multi-site operations, the 6ES7321-1CH00-0AA0 delivers the electrical and mechanical compatibility required for seamless integration into existing S7-300 rack configurations.

Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both immediate emergency replacements and planned procurement cycles of 12 to 36 months, ensuring continuity for facilities that depend on uninterrupted automation performance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6ES7321-1CH00-0AA0 into an existing S7-300 control system requires a structured approach to avoid configuration errors and unplanned downtime. Before installation, engineers should confirm the available slot positions on the target rack — whether a CR2 central rack or an ER1/ER2 expansion rack connected via an IM361 interface module. The front connector wiring from the failed or decommissioned module can typically be transferred directly to the replacement unit, provided the terminal assignment has not been modified from the original project documentation.

Power budget verification is an essential pre-installation step. The S7-300 power supply module — commonly a PS307 5A or PS307 10A — must have sufficient 5 VDC backplane current headroom to support the replacement SM321 module alongside all other installed modules. This is particularly relevant in densely populated racks where I/O modules, communication processors such as a CP343-1 Ethernet module, and function modules share the same power rail.

For systems that include analog input modules such as the SM331 or mixed-signal racks combining digital outputs from an SM322 alongside the SM321 digital inputs, the hardware configuration in STEP 7 or TIA Portal must reflect the physical slot arrangement accurately. If the replacement module occupies the same slot as the original, no changes to the hardware configuration table are required, and the existing program logic — including all input address references in OB1 and associated function blocks — remains valid without modification.

In retrofit scenarios where the S7-300 CPU, such as a CPU315-2 DP or CPU317-2 PN/DP, communicates with an HMI panel via PROFIBUS DP or Industrial Ethernet, the communication link does not need to be interrupted during a module swap on the I/O rack. The CPU continues to execute the scan cycle, and the HMI screen data remains live throughout the replacement procedure, provided the CPU is not placed in STOP mode unnecessarily. Signal isolators installed upstream of the SM321 inputs should be verified for correct output voltage levels after reconnection to confirm field signal integrity.

For facilities managing multi-rack S7-300 configurations, it is advisable to maintain a documented spare parts list that includes not only the SM321 digital input modules but also associated components such as the IM360/IM361 rack interface modules, the PS307 power supply, and front connectors. This ensures that a single component failure does not cascade into a prolonged outage due to secondary part unavailability.

Downtime Control During System Migration

Minimizing production downtime during a module replacement or system migration is a primary concern for maintenance teams operating S7-300-based control systems. The 6ES7321-1CH00-0AA0 supports a hot-swap-adjacent replacement procedure: with the CPU placed in STOP mode, the front connector — carrying all field wiring — can be unplugged from the failed module, the module removed from the rack, the replacement inserted, and the front connector reattached, all within a matter of minutes. The CPU can then be returned to RUN mode, and normal operation resumes without any program download if the hardware configuration is unchanged.

To further protect program logic integrity, it is recommended to archive the current STEP 7 or TIA Portal project to an offline backup before beginning any hardware work. This ensures that the original I/O address mapping, network configuration, and HMI variable table can be restored immediately if an unexpected configuration discrepancy is detected during commissioning. For systems where the CPU memory card contains the active program, the program is retained independently of the module swap and does not require re-downloading.

Field commissioning after replacement should include a systematic input signal verification: activate each of the 16 input channels in sequence using the field device or a test signal source, and confirm correct status indication on the CPU diagnostic display or within the STEP 7 online monitor. This structured verification process, combined with pre-shipment functional testing of the replacement module, reduces the risk of commissioning delays caused by latent hardware defects and supports a controlled, documented return to production.

Retrofit Support FAQ

Q1: Is the 6ES7321-1CH00-0AA0 a direct drop-in replacement for other SM321 variants?
The 6ES7321-1CH00-0AA0 is the 16-channel 24VDC variant of the SM321 family. It is mechanically and electrically compatible with the same slot position as other 16-channel SM321 modules. However, channel count and input voltage specifications differ across SM321 variants — always verify the original module’s order number before substitution to confirm electrical compatibility with field devices.

Q2: Do I need to reconfigure the STEP 7 hardware table after replacing this module?
If the replacement module is installed in the same rack slot as the original, no hardware configuration changes are required. The CPU will recognize the module automatically upon returning to RUN mode. Reconfiguration is only necessary if the module is installed in a different slot or if the rack structure has been modified.

Q3: What pre-shipment testing is performed on each unit?
Each 6ES7321-1CH00-0AA0 unit undergoes functional I/O verification prior to dispatch. All 16 input channels are tested for correct signal detection at 24VDC, and the backplane connector is inspected for mechanical integrity. Units that do not pass verification are not shipped. All shipped units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: Can you support long-term spare parts procurement for multi-site operations?
Yes. We maintain stock to support procurement planning cycles of 12 to 36 months. For facilities managing multiple S7-300 installations across different sites, we can provide inventory reservation and phased delivery arrangements. Contact our sales team to discuss volume requirements and supply continuity agreements.
