Siemens 6ES7318-3EL00-0AB0 Fail-Safe CPU for S7-300 Control

Overview

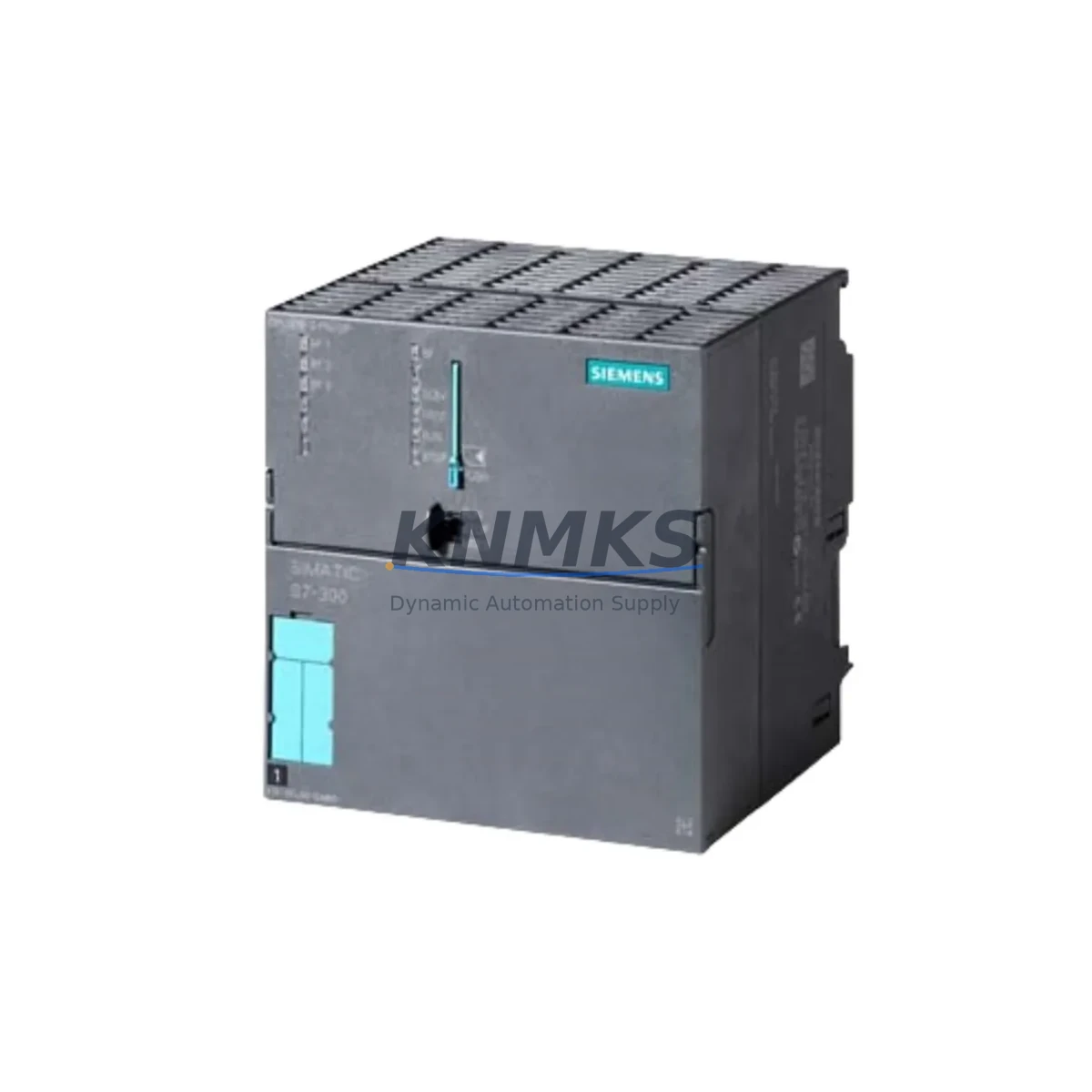

Siemens 6ES7318-3EL00-0AB0 Fail-Safe CPU for S7-300 Control

The Siemens 6ES7318-3EL00-0AB0, designated as the CPU 318-3 PN/DP, is a high-performance fail-safe central processing unit within the SIMATIC S7-300 programmable logic controller family. Engineered for mission-critical industrial environments, this CPU integrates dual PROFIBUS DP interfaces and one PROFINET interface, enabling seamless communication across complex distributed control architectures. For maintenance engineers and procurement specialists managing continuous production lines, chemical processing plants, power generation facilities, or heavy manufacturing operations, the 6ES7318-3EL00-0AB0 represents a proven, field-hardened solution that minimizes unplanned downtime and protects personnel and assets through robust fail-safe logic execution.

In high-stakes industrial settings — from petrochemical refineries and coal-fired power stations to port crane systems and water treatment facilities — control interruptions carry severe operational and safety consequences. The CPU 318-3 PN/DP is designed to sustain reliable operation under conditions of elevated electromagnetic interference, voltage fluctuation, mechanical vibration, and ambient temperature variation. Its integrated safety functions allow it to execute both standard and safety-related programs within a single CPU, reducing cabinet complexity and eliminating the need for separate safety PLCs in many retrofit and greenfield applications. This dual-mode capability is particularly valuable when upgrading aging S7-300 installations where cabinet space is constrained and wiring modifications must be minimized.

When replacing or commissioning the 6ES7318-3EL00-0AB0 in the field, maintenance teams should conduct a systematic inspection of the surrounding control cabinet components to ensure system-wide integrity. The CPU’s power supply — typically a Siemens PS 307 series power supply module — should be verified for output stability and ripple within specification, as voltage irregularities at the backplane can cause CPU faults or memory corruption. The S7-300 backplane bus connectors and rack should be inspected for oxidation, mechanical damage, or improper seating, as poor backplane contact is a common root cause of intermittent CPU communication errors. Signal modules such as SM 321 digital input modules and SM 331 analog input modules connected to the same rack should be checked for correct addressing and parameter assignment following any CPU replacement, since a new CPU may require re-downloading of the hardware configuration from STEP 7 or TIA Portal.

The PROFIBUS DP network connected to the CPU’s MPI/DP port should be tested for correct termination resistance at both ends of the bus segment, and all DP slave devices — including ET 200M distributed I/O stations and frequency inverters — should be verified for proper GSD file assignment and baud rate configuration. On the PROFINET side, the CPU’s IP address assignment and device name must be confirmed against the project engineering data to prevent address conflicts that can cause the CPU to enter STOP mode on startup. Communication modules such as the CP 343-1 Ethernet module, if present in the same rack, should also be checked for firmware compatibility with the replacement CPU’s firmware version.

Every 6ES7318-3EL00-0AB0 unit supplied by KNMKS undergoes pre-shipment functional testing that includes power-on verification, memory integrity check, and communication port validation. Units are sourced from verified supply channels and carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Long-term supply agreements are available for maintenance departments requiring guaranteed stock availability over 12 to 36-month planning horizons, supporting both scheduled annual overhauls and emergency replacement scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7318-3EL00-0AB0 as the central controller in a safety-critical cabinet requires a layered protection strategy that addresses power quality, signal integrity, and communication reliability simultaneously. The Siemens PS 307 10A power supply module should be installed with adequate derating margin to handle inrush current during cold-start conditions, particularly in cabinets operating in low-temperature environments such as outdoor substations or unheated pump houses. Surge protection devices rated for DC 24 V should be installed on the power feed to the CPU rack to guard against transient overvoltages caused by nearby switching of large inductive loads such as motor contactors or transformer tap changers.

For PROFIBUS DP segments connected to the CPU’s DP port, RS-485 repeaters should be used when the bus segment exceeds 32 nodes or when cable runs pass through areas with high electromagnetic interference from variable frequency drives or welding equipment. The PROFINET port should be connected through an industrial-grade managed switch — such as a Siemens SCALANCE X series switch — to enable port-level diagnostics and VLAN segmentation that isolates the PLC network from office IT traffic. Within the cabinet, signal cables for SM 321 and SM 331 I/O modules should be routed separately from power cables, with shielded cables grounded at one end to prevent ground loops that can introduce noise into analog measurement channels.

Fuse protection for each I/O group should be reviewed and replaced if fuses show signs of thermal stress or if the protected circuit has experienced a short-circuit event. Terminal blocks connecting field wiring to the I/O modules should be inspected for loose connections, which are a leading cause of intermittent signal faults in high-vibration environments such as compressor rooms or rolling mill drives. Where the CPU is used in safety interlock applications, the safety program’s F-address assignment and safety signature must be verified after any hardware replacement to ensure the safety function remains valid and the F-CPU does not enter a safe state due to a signature mismatch.

Critical Industrial Safety Applications

The Siemens 6ES7318-3EL00-0AB0 CPU 318-3 PN/DP is deployed across a broad range of critical industrial sectors where control system reliability directly impacts personnel safety and production continuity. In petrochemical and refinery operations, this CPU manages emergency shutdown sequences, burner management interlocks, and compressor protection logic where a control failure could result in fire, explosion, or toxic release. Its integrated fail-safe capability allows it to execute IEC 61508-compliant safety functions without requiring a separate safety relay system, simplifying the overall safety architecture and reducing the number of components that require periodic proof testing.

In electric power generation and transmission facilities, the CPU 318-3 PN/DP controls auxiliary systems including cooling water pumps, fuel handling conveyors, and transformer protection circuits. Its dual PROFIBUS DP interfaces allow simultaneous connection to both process instrumentation networks and drive control networks, enabling coordinated control of multiple subsystems from a single CPU. In mining and mineral processing operations, where dust, humidity, and mechanical vibration are constant challenges, the CPU’s industrial-grade construction and wide operating temperature range support reliable operation in surface and underground control rooms. Water and wastewater treatment plants rely on this CPU for continuous pump station control, chemical dosing automation, and SCADA communication, where unplanned CPU failures can result in regulatory non-compliance or environmental incidents. Port and terminal automation systems use the CPU 318-3 PN/DP to coordinate crane drives, conveyor systems, and weighing stations, where the PROFINET interface enables high-speed, deterministic communication with motion control systems.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the 6ES7318-3EL00-0AB0?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. The confirmed support period begins from the date of shipment. Units that fail within the confirmed support period are replaced or repaired at no additional cost, subject to inspection confirming the failure is not caused by improper installation, overvoltage, or physical damage.

Q2: How is each unit tested before shipment?
Each 6ES7318-3EL00-0AB0 undergoes a pre-shipment test protocol that includes power-on verification at rated DC 24 V supply voltage, memory read/write integrity check, and functional validation of all communication ports including PROFINET and PROFIBUS DP. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6ES7318-3EL00-0AB0 compatible with existing S7-300 racks and STEP 7 projects?
Yes. The CPU 318-3 PN/DP is fully compatible with standard SIMATIC S7-300 racks and can be configured using STEP 7 V5.5 or later, as well as TIA Portal V13 and above. When replacing an existing CPU in a running installation, the hardware configuration must be re-downloaded to the new CPU. Customers are advised to verify the firmware version of the replacement unit against the project’s hardware catalog entry to ensure parameter compatibility, particularly for safety program signature validation in F-CPU applications.

Q4: Can KNMKS support long-term supply requirements for this CPU model?
Yes. KNMKS offers long-term supply agreements for the 6ES7318-3EL00-0AB0 covering 12 to 36-month procurement horizons, suitable for maintenance departments managing multiple S7-300 installations or planning scheduled overhaul cycles. Reserved stock arrangements are available for customers with confirmed annual consumption requirements. Contact our technical sales team to discuss pricing, lead times, and consignment stock options tailored to your facility’s maintenance strategy.
