Siemens 6ES7318-2AJ00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7318-2AJ00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

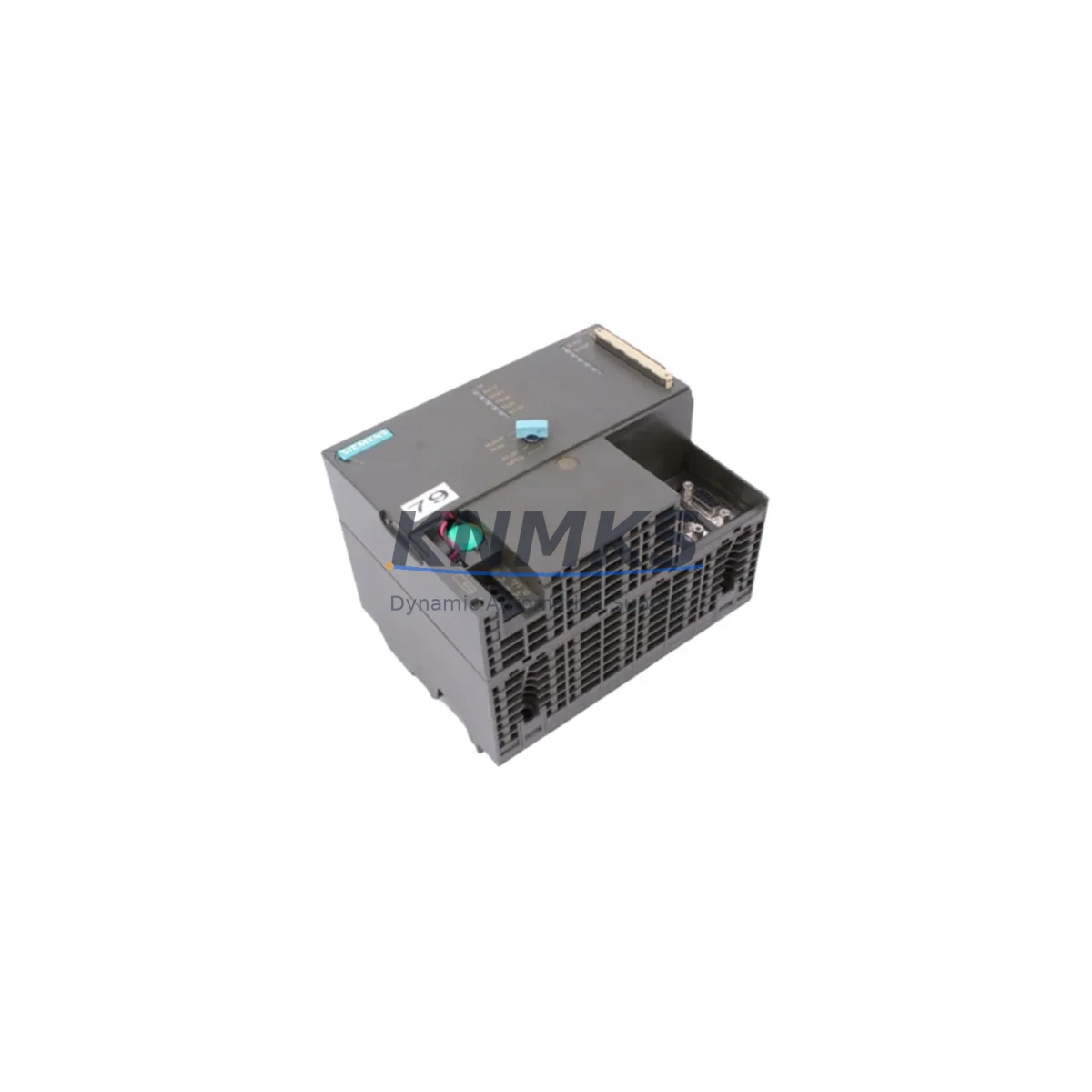

The Siemens 6ES7318-2AJ00-0AB0 is the CPU 318-2 DP central processing unit within the SIMATIC S7-300 programmable logic controller family — one of the most widely deployed automation platforms in global manufacturing, process control, and infrastructure industries. As production lines age and OEM support windows narrow, maintaining a verified, tested spare of this CPU module is a cornerstone of any responsible maintenance strategy. Whether you are managing a continuous process plant, a discrete assembly line, or a legacy control cabinet that must remain operational for another 5–10 years, the 6ES7318-2AJ00-0AB0 represents a high-priority line item in your spare parts inventory.

This unit ships from verified stock, undergoes pre-shipment functional testing, and is backed by a support terms confirmed by quotation. Every unit is inspected for firmware integrity, interface condition, and physical completeness before dispatch — ensuring that when you install it on-site, it performs to original Siemens specification without delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The CPU 318-2 DP sits at the heart of the S7-300 control cabinet, orchestrating I/O scanning, program execution, and fieldbus communication. When planning a replacement or building a preventive maintenance stock, experienced maintenance engineers know that the CPU is rarely the only component under stress. A thorough cabinet inspection and spare parts review should accompany any CPU replacement event.

Power Supply Module (e.g., 6ES7307-1EA01-0AA0 PS 307 5A): The CPU 318-2 DP draws its 24 V DC supply from the rack’s power supply module. Aging PS 307 units with capacitor wear or output ripple can cause intermittent CPU resets that mimic CPU faults. Always verify the power supply output under load before concluding the CPU is the root cause — and consider stocking a PS 307 spare alongside the CPU.

PROFIBUS-DP Communication Cables and Connectors: The dual DP interfaces on the 6ES7318-2AJ00-0AB0 connect to distributed I/O stations, drives, and remote panels via PROFIBUS-DP cabling. Damaged bus connectors (e.g., 6ES7972-0BB52-0XA0), degraded cable shielding, or incorrect termination resistor settings are common causes of DP bus faults that are incorrectly attributed to CPU failure. Inspect bus connectors and cable continuity as part of any CPU swap procedure.

Signal Modules — SM 321 / SM 322 / SM 331 / SM 332: Digital and analog signal modules mounted on the same rack share the backplane bus with the CPU. A shorted SM output channel or a failed analog input module can generate bus errors that stress the CPU. During annual maintenance, verify that all SM modules pass self-diagnostic checks and that terminal block connections are torqued to specification.

Interface Module (IM 360 / IM 361): In multi-rack S7-300 configurations, the interface modules linking expansion racks to the central rack are critical for system integrity. A failing IM 361 can cause partial I/O loss that appears as a CPU program fault. Confirm IM module status LEDs and rack cabling during any CPU-related troubleshooting.

Backup Memory Card (e.g., 6ES7953-8LJ31-0AA0 MMC): The CPU 318-2 DP uses a Micro Memory Card for program retention and CPU parameterization. When replacing the CPU, the MMC must be transferred to the new unit or a pre-programmed replacement card must be available. Maintain at least one spare MMC with the current project backup loaded and verified — this single step can reduce CPU swap downtime from hours to minutes.

Relay Output Modules and Fuse Protection: Output-side relay modules and associated fuse holders in the control cabinet are subject to contact wear and thermal stress. During a CPU replacement event, it is good practice to inspect relay output modules (e.g., SM 322 relay variants), check fuse continuity on output circuits, and verify that no downstream short circuit contributed to the original fault condition.

Building a structured spare parts kit around the 6ES7318-2AJ00-0AB0 — including the power supply, MMC, key SM modules, and PROFIBUS connectors — transforms a potential multi-day outage into a controlled, sub-shift recovery event.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Before powering down, use a SIMATIC programming device or TIA Portal to upload the current CPU program and hardware configuration to an offline backup. Confirm the MMC contains the latest project version. Document the current IP address, MPI node address, and DP master system configuration.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the 24 V DC supply to the rack via the PS 307 power supply. Confirm zero-energy state with a calibrated voltage tester before touching any module.

Step 3 — Module Removal: Release the CPU module locking screws, disconnect the MPI/DP bus connectors, and slide the CPU out of the rack slot. Note the slot position — the CPU 318-2 DP must be installed in slot 2 of the S7-300 rack.

Step 4 — Replacement Installation: Insert the replacement 6ES7318-2AJ00-0AB0 into slot 2. Transfer the MMC from the old CPU (or insert the pre-programmed spare MMC). Reconnect MPI and PROFIBUS-DP bus connectors, ensuring correct termination resistor settings on the last node of each DP segment.

Step 5 — Power-On and Verification: Restore 24 V DC supply. Observe CPU LED sequence — RUN/STOP, SF (System Fault), BF1/BF2 (Bus Fault) indicators should clear within the normal startup cycle. Use STEP 7 or TIA Portal to go online, confirm hardware configuration match, and verify all DP slave stations are communicating.

Step 6 — Functional Test: Execute a controlled I/O test sequence to confirm all signal modules, fieldbus devices, and HMI panels (e.g., SIMATIC TP or OP series) are responding correctly. Document the replacement event in the site maintenance log with the new unit serial number and MMC version.

This structured workflow minimizes re-commissioning risk and ensures the replacement CPU is fully validated before returning the line to production — protecting both equipment and personnel.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the 6ES7318-2AJ00-0AB0 supplied by KNMKS?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes a pre-shipment power-on test and interface verification. If a unit fails within the confirmed support period, KNMKS provides replacement or repair support with priority handling.

Q2: How do I verify compatibility with my existing S7-300 rack and software version?
The 6ES7318-2AJ00-0AB0 is compatible with standard S7-300 racks (e.g., 6ES7390-1AE80-0AA0) and is programmed using SIMATIC STEP 7 V5.4 or higher, or TIA Portal with the appropriate S7-300 support package. Confirm your existing hardware configuration file in STEP 7 references the correct CPU order number. If your project was created with an earlier CPU firmware version, a firmware update via MMC may be required — KNMKS technical support can advise on version compatibility.

Q3: Can KNMKS supply this CPU as part of a broader S7-300 spare parts kit?
Yes. KNMKS supports consolidated spare parts procurement for S7-300 control systems, including CPU modules, power supply modules, signal modules, communication processors, and memory cards. Consolidated orders reduce per-unit logistics costs, simplify incoming inspection, and ensure all components are sourced from the same verified supply chain. Contact [email protected] with your full BOM for a consolidated quotation.

Q4: What is the lead time and long-term supply availability for the 6ES7318-2AJ00-0AB0?
KNMKS maintains stock of the 6ES7318-2AJ00-0AB0 to support urgent replacement and planned maintenance procurement. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers managing long-lifecycle installations or planning annual maintenance shutdowns, KNMKS offers forward stock reservation and scheduled delivery programs to ensure supply continuity beyond standard OEM availability windows.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7 318-2AJ00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7 318-2AJ00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
