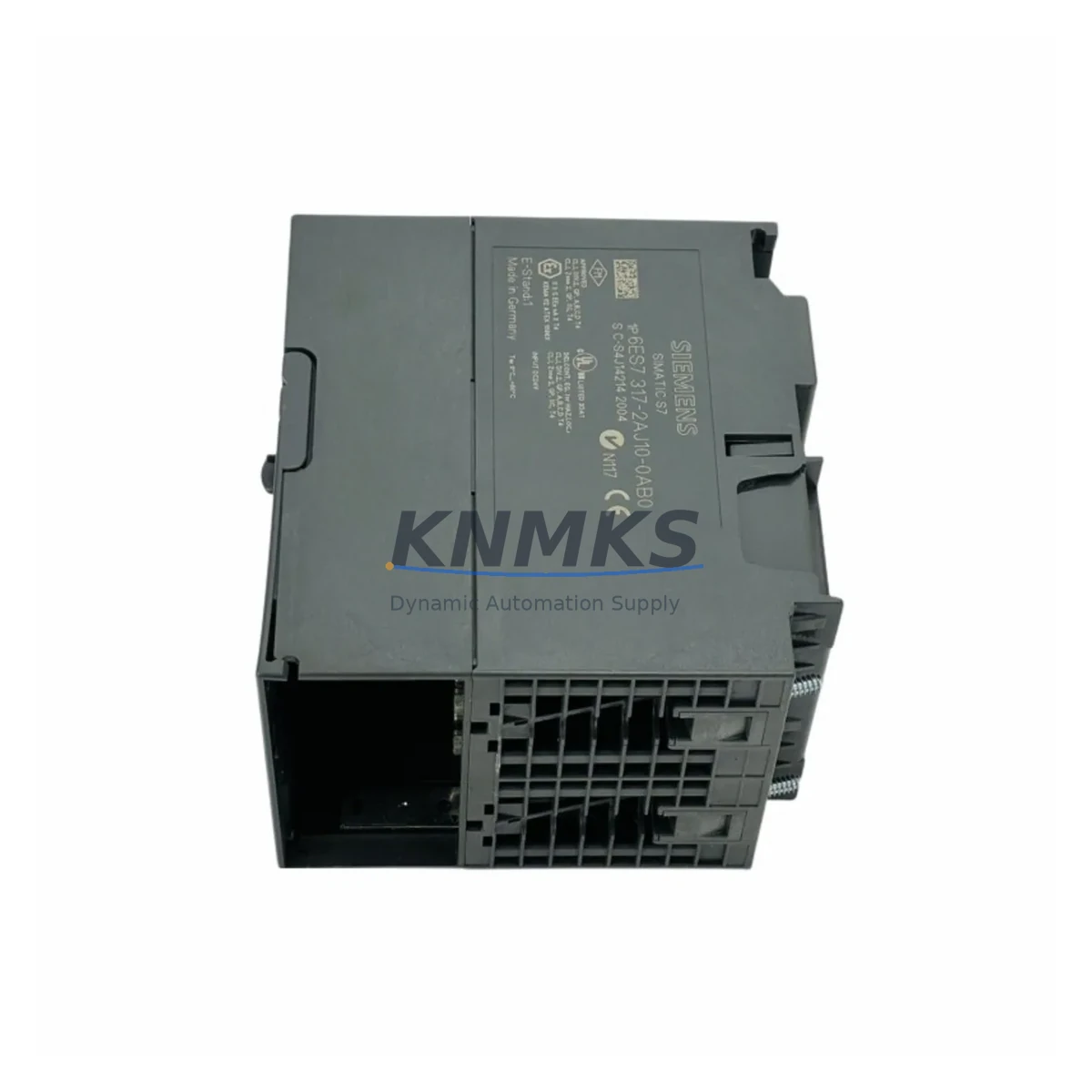

Siemens 6ES7317-2AJ10-0AB0 Maintenance Spare S7-300 CPU

Overview

Siemens 6ES7317-2AJ10-0AB0 Maintenance Spare S7-300 CPU

The Siemens 6ES7317-2AJ10-0AB0 (CPU317-2DP) is a high-performance central processing unit within the SIMATIC S7-300 programmable logic controller family. Designed for demanding industrial automation environments, this CPU module delivers the processing power and communication capability required to sustain continuous factory operations. For maintenance engineers managing aging S7-300 installations, holding a verified spare of the 6ES7317-2AJ10-0AB0 availability confirmed by RFQ is a proven strategy to minimize unplanned downtime and accelerate fault recovery when the primary unit fails.

This module integrates a PROFIBUS-DP master/slave interface directly on the CPU, eliminating the need for a separate communication processor in many standard configurations. With 512 KB working memory and support for up to 32 expansion modules, the CPU317-2DP is well-suited for mid-to-large scale process control, material handling, and discrete manufacturing lines. Its compatibility with the standard S7-300 backplane and STEP 7 / TIA Portal programming environments ensures that replacement can be completed without hardware redesign or software migration in most field scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CPU317-2DP fails in a production environment, the impact extends well beyond the CPU slot itself. A structured maintenance response requires engineers to inspect and verify the condition of all interdependent components before and after installing the replacement 6ES7317-2AJ10-0AB0. This approach prevents secondary failures and ensures the restored system operates reliably from the moment it is powered on.

Power Supply Verification: The S7-300 CPU draws 24 V DC from the rack power supply module. Before installing the replacement CPU, verify that the Siemens PS307 power supply module (e.g., 6ES7307-1EA01-0AA0) is delivering stable voltage within specification. An aging or overloaded power supply is a common root cause of repeated CPU faults and should be replaced proactively if output ripple or voltage drop is detected.

Backplane and Rack Integrity: Inspect the S7-300 mounting rack (e.g., 6ES7390-1AE80-0AA0) for corrosion, bent bus connectors, or mechanical damage. The CPU communicates with all expansion modules through the backplane bus; a damaged rack can cause intermittent faults that are difficult to diagnose and may be misattributed to the CPU itself.

PROFIBUS-DP Network and Cabling: The integrated PROFIBUS-DP interface on the 6ES7317-2AJ10-0AB0 connects to field devices, remote I/O stations, and distributed peripherals. After CPU replacement, verify PROFIBUS cable termination resistors, connector pin integrity, and bus segment lengths. Faulty PROFIBUS connectors (e.g., 6ES7972-0BB52-0XA0) or degraded shielded cable are frequent sources of communication errors that surface after a CPU swap.

Digital and Analog I/O Modules: Conduct a functional check of all SM300-series signal modules installed in the rack — including digital input/output modules (e.g., SM321, SM322) and analog I/O modules (e.g., SM331, SM332). Confirm that each module’s LED status indicators return to normal after the CPU restarts and that no channel faults are logged in the diagnostic buffer.

Interface Modules for Multi-Rack Expansion: If the installation uses multi-rack expansion, verify the IM360/IM361 interface modules connecting the central rack to expansion racks. These modules are often overlooked during CPU replacement but are critical for maintaining I/O availability across the full system.

Memory Card and Program Backup: The CPU317-2DP supports a Siemens MMC (Micro Memory Card) for program storage and retentive data. Before removing the failed CPU, note the MMC status. If the card is intact, transfer it to the replacement unit to restore the program without re-downloading from the engineering station. Always maintain an up-to-date program backup on the STEP 7 / TIA Portal project server.

Maintaining a consolidated spare parts kit — including the CPU module, power supply, key I/O modules, PROFIBUS connectors, and a spare MMC — is the most effective strategy for reducing mean time to repair (MTTR) on S7-300-based control systems.

Site Replacement Workflow

Step 1 — Safe Isolation: Follow site lockout/tagout (LOTO) procedures. De-energize the control cabinet and confirm zero voltage at the rack power supply terminals before opening the cabinet door.

Step 2 — Document Current Configuration: Record the CPU’s current operating mode (RUN/STOP), note any active fault LEDs, and photograph the wiring and module positions. If the MMC is accessible and undamaged, remove it carefully for reuse in the replacement unit.

Step 3 — Remove the Failed CPU: Disconnect the MPI/PROFIBUS cable from the CPU front connector. Release the module locking screws and slide the CPU out of the rack slot. Avoid touching the backplane bus connector pins.

Step 4 — Inspect and Prepare the Replacement: Verify the replacement 6ES7317-2AJ10-0AB0 matches the exact order number. Insert the MMC (with the existing program) into the new CPU before installation. Confirm firmware version compatibility if the site uses specific STEP 7 function blocks that depend on CPU firmware.

Step 5 — Install and Power On: Slide the replacement CPU into the rack, secure the locking screws, and reconnect the MPI/PROFIBUS front connector. Restore power and observe the CPU LED sequence. A successful startup will show the RUN LED active and no SF (system fault) or BF (bus fault) LEDs illuminated.

Step 6 — Functional Verification: From the STEP 7 or TIA Portal engineering station, go online with the CPU and verify that all I/O modules are recognized, the PROFIBUS-DP network is operational, and the program is executing without errors. Check the diagnostic buffer for any residual fault entries.

This workflow is applicable to direct like-for-like replacement of the 6ES7317-2AJ10-0AB0 and supports a controlled, low-risk return to production with minimal downtime.

Spare Parts Support FAQ

Q1: Is the 6ES7317-2AJ10-0AB0 still available as a new original spare, and what is the lead time?
Yes. We supply original Siemens 6ES7317-2AJ10-0AB0 units sourced from authorized channels. Standard lead time for in-stock units is 3–7 business days for international shipment. Each unit is tested and inspected before dispatch. Contact [email protected] for real-time stock confirmation and expedited shipping options.

Q2: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Every 6ES7317-2AJ10-0AB0 supplied by KNMKS undergoes power-on functional testing, communication interface verification, and visual inspection for physical damage or counterfeit indicators. The support terms confirmed by quotation cover hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental factors outside the module’s rated specifications.

Q3: Can this CPU replace an older CPU315-2DP or CPU316-2DP in an existing S7-300 rack?
In many cases, yes. The CPU317-2DP is hardware-compatible with the standard S7-300 rack and uses the same PROFIBUS-DP interface. However, program migration may require adjustments in STEP 7 for CPU-specific parameters such as memory allocation and OB organization. We recommend verifying firmware and hardware compatibility with your engineering team before committing to a cross-model substitution in a live production environment.

Q4: What is the recommended spare parts stocking strategy for S7-300 CPU modules?
For critical production lines, we recommend holding a minimum of one CPU spare per installed system, particularly for end-of-life or long-lead-time models. Pair the CPU spare with a compatible power supply module and a pre-programmed MMC to enable the fastest possible recovery. For multi-site operations, a centralized spare pool with documented part numbers and firmware versions reduces procurement complexity and ensures consistent replacement quality across all facilities.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7317-2AJ10-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7317-2AJ10-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
