Siemens 6ES7316-2AG00-0AB0 Migration-Ready CPU for Legacy Control Systems

Overview

Siemens 6ES7316-2AG00-0AB0 Migration-Ready CPU for Legacy Control Systems

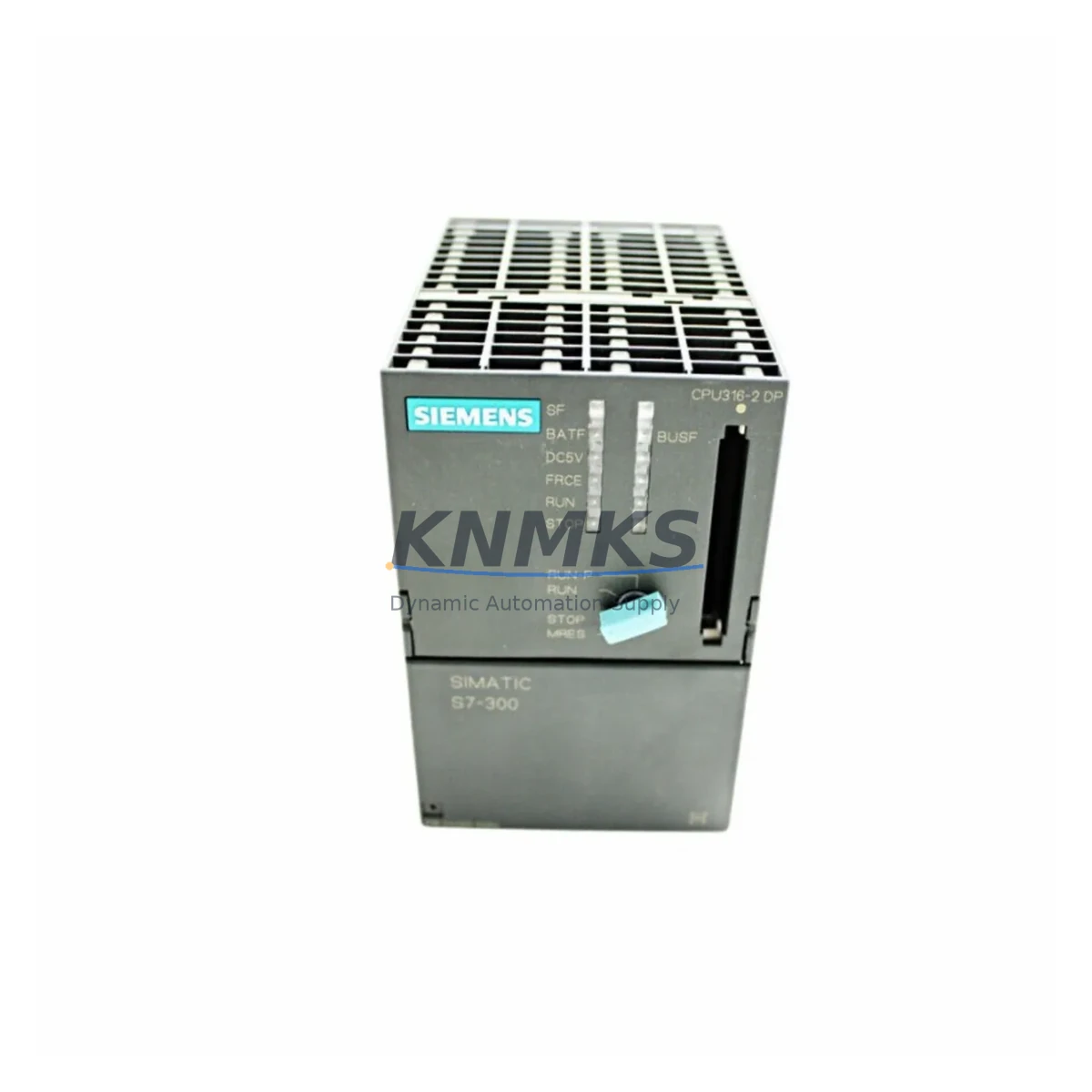

The Siemens 6ES7316-2AG00-0AB0 (CPU 316-2DP) is a high-performance central processing unit designed for the SIMATIC S7-300 programmable logic controller platform. As Siemens progressively phases out legacy S7-300 hardware in favor of the S7-1500 series, the 6ES7316-2AG00-0AB0 remains one of the most sought-after retrofit and replacement modules for engineers managing aging production lines, process control cabinets, and distributed automation architectures. Whether you are replacing a failed CPU, extending the operational life of an existing S7-300 rack, or executing a phased migration strategy, this module delivers the processing power, PROFIBUS DP connectivity, and program memory capacity required to maintain control continuity without a full system overhaul.

The CPU 316-2DP integrates two PROFIBUS DP interfaces — one MPI/DP and one dedicated DP master/slave port — making it directly compatible with existing PROFIBUS field device networks including distributed I/O stations, drives, and HMI panels. Engineers replacing a failed 6ES7315-2AG10-0AB0 or 6ES7314-6CG03-0AB0 will find the 6ES7316-2AG00-0AB0 a functionally superior drop-in candidate, provided that backplane slot addressing, rack configuration, and STEP 7 hardware configuration files are updated accordingly. The module supports up to 512 KB of work memory and accommodates complex ladder logic, function block diagrams, and structured text programs without requiring program restructuring in most retrofit scenarios.

Before installation, engineers should verify power supply capacity on the existing S7-300 rack. The PS 307 power supply modules — particularly the 6ES7307-1EA01-0AA0 (5A) and 6ES7307-1KA02-0AA0 (10A) variants — must be assessed to confirm they can support the current draw of the replacement CPU alongside installed signal modules and communication processors. Terminal wiring on the MPI/DP port should be inspected for correct shielding and bus termination, especially in installations where the CPU previously operated as a PROFIBUS DP master controlling remote ET 200M or ET 200S distributed I/O stations.

Backplane interface compatibility is a critical checkpoint. The 6ES7316-2AG00-0AB0 is designed for standard S7-300 DIN rail mounting and uses the standard S7-300 backplane bus connector. Module slot addressing must be reconfigured in STEP 7 (HW Config) to reflect the new CPU type. If the existing project was built on an older CPU variant, the hardware configuration must be updated and downloaded to the new module before the program can execute. Engineers should retain a backup of the original STEP 7 project, including symbol tables, data blocks, and network configurations, prior to any hardware swap.

HMI screen compatibility should be validated before commissioning. WinCC flexible or TIA Portal-based HMI panels connected via MPI or PROFIBUS DP will require a connection test after the CPU replacement. Tag addresses and communication drivers typically remain valid if the CPU slot and MPI address are preserved, but screen navigation and alarm configurations should be verified during the first powered test cycle. Communication modules such as the CP 343-1 Lean (6GK7343-1CX10-0XE0) for Industrial Ethernet connectivity should also be re-initialized if they were previously configured with CPU-specific parameters.

Firmware version compatibility is another consideration for installations involving newer signal modules or function modules. The 6ES7316-2AG00-0AB0 supports a defined range of SM and FM module firmware versions; engineers should cross-reference the module catalog entries in STEP 7 to confirm compatibility before finalizing the hardware configuration. In installations where the existing CPU was running a customized firmware version, the replacement unit should be updated to match or exceed that version using the SIMATIC Automation Tool or STEP 7 online functions.

Every 6ES7316-2AG00-0AB0 unit shipped from our inventory undergoes pre-shipment functional testing, including power-on verification, memory integrity check, and PROFIBUS DP port communication validation. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained to support urgent replacement requirements, with same-day dispatch available for confirmed orders placed before the daily cut-off time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current rack layout, including the slot positions of all installed SM 321/SM 322 digital I/O modules, SM 331/SM 332 analog I/O modules, and any FM 350 or FM 355 function modules. The 6ES7316-2AG00-0AB0 occupies slot 2 of the S7-300 rack — the designated CPU slot — and does not displace any existing signal modules, provided the rack has not been modified from its standard configuration.

Power budget verification is essential before committing to the replacement. The PS 307 5A power supply (6ES7307-1EA01-0AA0) is typically sufficient for racks with up to eight signal modules, but installations with high-density I/O or multiple communication processors may require the 10A variant (6ES7307-1KA02-0AA0). The CPU’s 5 VDC backplane current draw should be summed against all installed modules to confirm the power supply is not operating near its rated limit.

PROFIBUS DP network topology should be reviewed if the replacement CPU will serve as a DP master. Distributed I/O stations — such as ET 200M racks populated with SM modules or ET 200S compact stations — must retain their configured DP addresses. The IM 153-2 interface module used in ET 200M expansions is fully compatible with the 6ES7316-2AG00-0AB0 DP master interface. Engineers should also verify that PROFIBUS cable lengths, termination resistors, and baud rate settings are preserved during the swap to avoid communication faults on restart.

For installations that include a CP 343-1 or CP 343-1 Lean communication processor for PROFINET or Industrial Ethernet connectivity, the CP module configuration stored in STEP 7 should be exported and re-imported after the CPU replacement to ensure IP address assignments and connection table entries are correctly restored. If the control system interfaces with a SCADA platform via OPC or S7 protocol, the communication link should be tested independently before returning the line to production.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement requires preparation at three levels: program backup, hardware staging, and commissioning sequence planning. Before removing the existing CPU, engineers should perform a full online upload of the STEP 7 project from the running CPU to a programming device, capturing all current data block values, retentive memory contents, and diagnostic buffer entries. This upload serves as the restoration baseline if the replacement CPU requires program re-download.

Hardware staging involves pre-configuring the 6ES7316-2AG00-0AB0 offline in STEP 7 HW Config, assigning the correct MPI address, and compiling the hardware configuration before the physical swap. This approach reduces the time the rack spends in a non-operational state to the minimum required for the physical module exchange and program download. In installations where the CPU controls safety-critical processes, a planned maintenance window should be scheduled and field operators should be briefed on the expected control interruption duration.

After the physical installation, the commissioning sequence should follow a defined order: power-on the rack, verify the CPU reaches STOP mode without hardware faults, download the hardware configuration, download the program blocks, switch to RUN mode, and verify all I/O modules report correctly in the diagnostic buffer. PROFIBUS DP slave stations should be checked for active communication before releasing the system to production. HMI panels should be reconnected and tag communication verified on all critical process screens before the maintenance window is closed.

The support terms confirmed by quotation on this unit provides additional assurance during the commissioning phase. If the replacement CPU exhibits any operational anomaly during the initial run-in period, the unit is eligible for replacement or repair under support terms terms, reducing the financial risk associated with the retrofit investment.

Retrofit Support FAQ

Q: Is the 6ES7316-2AG00-0AB0 a direct replacement for the 6ES7315-2AG10-0AB0?
A: Functionally, yes — both are S7-300 CPUs with PROFIBUS DP capability and use the same backplane bus connector. However, the hardware configuration in STEP 7 must be updated to reflect the new CPU type, and the project must be re-downloaded. The 316-2DP offers expanded work memory and a second DP interface compared to the 315-2DP, which may require minor adjustments to the DP master configuration if both DP ports are to be used.

Q: What commissioning steps are required after installation?
A: The standard commissioning sequence includes: (1) update and download HW Config in STEP 7, (2) download all program blocks (OB, FB, FC, DB), (3) verify MPI/DP address assignments, (4) check PROFIBUS DP slave station status in the diagnostic buffer, (5) reconnect and test HMI communication, and (6) switch CPU to RUN mode and monitor for I/O faults during the first production cycle.

Q: Does the unit ship tested, and what does the support terms confirmed by quotation cover?
A: Yes. Every unit undergoes pre-shipment functional testing including power-on verification, memory check, and PROFIBUS DP port validation. The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial use. It does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification.

Q: What is the typical lead time and stock availability?
A: Units are maintained availability confirmed by RFQ to support urgent replacement requirements. Same-day dispatch is available for confirmed orders placed before the daily cut-off. Contact our sales team to confirm current inventory levels and delivery timelines for your region.
