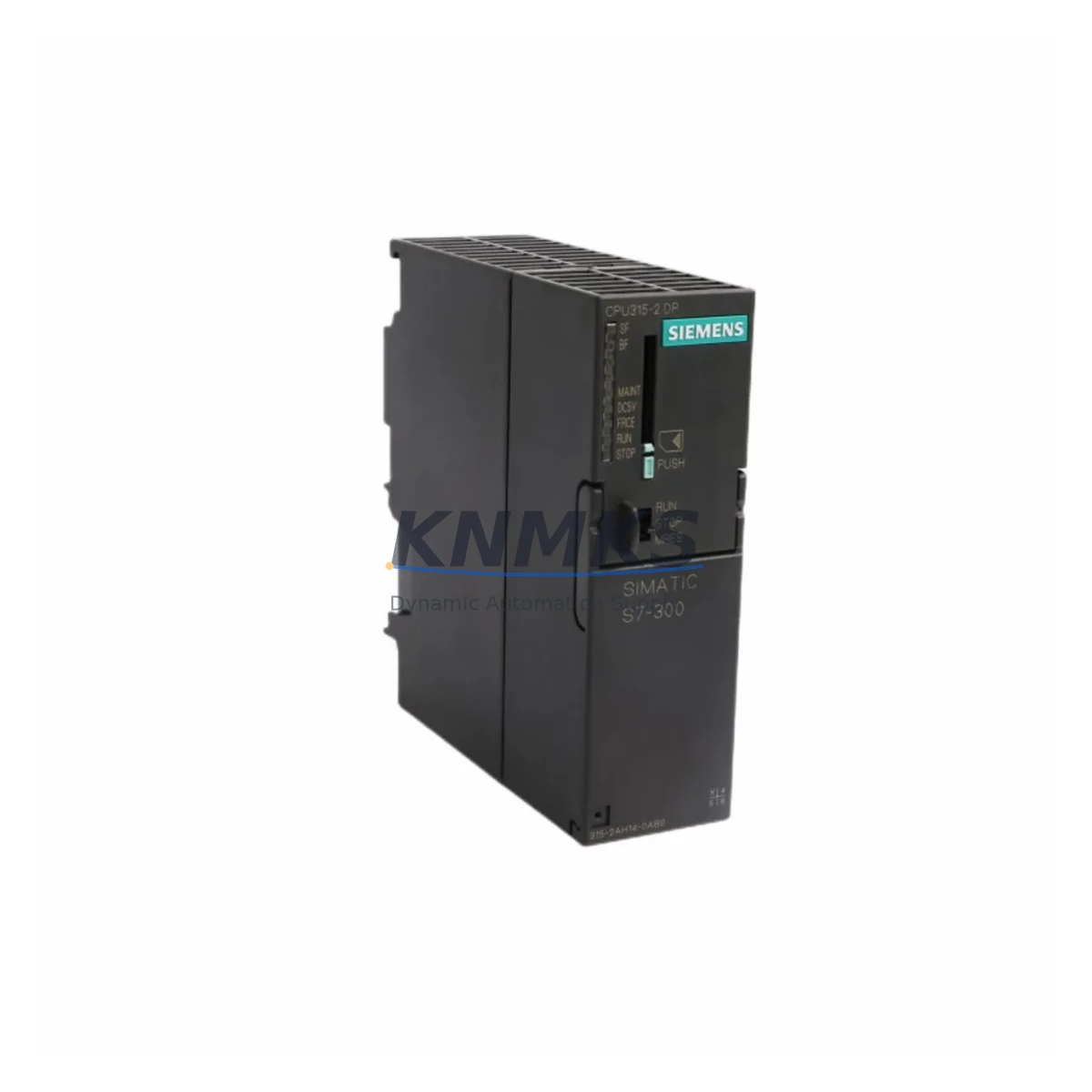

Siemens 6ES7315-2AH14-0AB0 Maintenance-Proven Spare Part – Model 6ES7315-2AH14-0AB0

Overview

Siemens 6ES7315-2AH14-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7315-2AH14-0AB0 is a CPU 315-2 DP central processing unit designed for the SIMATIC S7-300 programmable logic controller platform — one of the most widely deployed automation architectures in global manufacturing, process control, and utility infrastructure. For maintenance engineers managing aging S7-300 control cabinets, securing a verified replacement CPU is the single most critical step in minimizing unplanned downtime and restoring production continuity.

At KNMKS, every 6ES7315-2AH14-0AB0 unit is sourced from authorized supply chains, individually inspected, and tested prior to shipment. Our support terms confirmed by quotation cover functional performance under normal industrial operating conditions, giving procurement engineers the confidence to stock this CPU as a long-term spare without lifecycle risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7315-2AH14-0AB0 CPU fails or is flagged during a scheduled inspection, experienced maintenance engineers know that the CPU is rarely the only component requiring attention. A thorough cabinet audit during the replacement window dramatically reduces the risk of secondary failures and repeat downtime events.

Begin with the PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0 or 6ES7307-1KA02-0AA0) — verify output voltage stability under load before reinstalling the new CPU. A degraded power supply is a leading cause of premature CPU failure and intermittent PROFIBUS faults. Next, inspect the SM 321 / SM 322 digital I/O modules seated on the same rack; loose backplane connectors or oxidized bus connectors can generate spurious I/O errors that are misdiagnosed as CPU faults.

For systems using PROFIBUS-DP field devices, check the CP 342-5 or CP 343-1 communication processor modules for firmware currency and bus cable integrity. Termination resistors at both ends of the DP segment must be active — a common oversight during emergency replacements that causes intermittent slave dropouts after the new CPU is commissioned. If the cabinet includes a IM 360 / IM 361 interface module for multi-rack expansion, verify rack addressing and bus connector seating before powering up.

Signal integrity on analog loops should be confirmed via the SM 331 / SM 332 analog I/O modules; recalibrate zero and span after a CPU swap if the process values appear offset. For cabinets with SITOP PSU100S or SITOP modular power supplies feeding 24 VDC instrument loops, check output ripple and load capacity — undersized or aging SITOP units are a hidden source of CPU reset events under peak load. Finally, inspect fuse holders and miniature circuit breakers on the 24 VDC distribution rail; a blown fuse on the CPU supply circuit is sometimes the root cause of the original CPU fault rather than a CPU hardware failure.

Stocking a 6ES7315-2AH14-0AB0 as a critical spare, alongside a PS 307 power supply and at least one set of bus connectors (6ES7390-0AA00-0AA0), is the minimum recommended inventory posture for any facility running S7-300-based production lines.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Use STEP 7 or TIA Portal to upload the current CPU program, hardware configuration, and data blocks to a PC or MMC card. Confirm the MMC card is readable and the backup is complete before powering down.

Step 2 — Safe isolation: Switch the CPU to STOP mode, then de-energize the rack via the main isolator. Follow site LOTO (Lockout/Tagout) procedures. Label all PROFIBUS and MPI connectors before disconnecting.

Step 3 — Physical swap: Remove the failed 6ES7315-2AH14-0AB0 by releasing the front panel latches and sliding the module off the backplane bus connector. Insert the replacement unit, ensuring the bus connector engages fully. Reconnect MPI and DP cables in the correct order.

Step 4 — Firmware and configuration restore: Insert the MMC card with the backed-up program. Power on the rack and allow the CPU to load the configuration automatically. Verify the CPU transitions to RUN mode without fault LEDs.

Step 5 — Functional verification: Confirm all PROFIBUS slaves are online, I/O modules report correctly in the diagnostic buffer, and process values are within expected ranges. Document the replacement in the site maintenance log with the new unit’s serial number and the date.

This workflow is compatible with direct replacement of earlier S7-300 CPU variants including the 6ES7315-2AF03-0AB0 and 6ES7315-2AG10-0AB0, provided the hardware configuration is updated in STEP 7 to reflect the new order number before downloading.

Spare Parts Support FAQ

Q1: Is the 6ES7315-2AH14-0AB0 compatible with my existing S7-300 rack and I/O modules?
Yes. The CPU 315-2 DP mounts on any standard S7-300 DIN rail rack and is electrically and mechanically compatible with all SM 300-series I/O modules, CP communication modules, and FM function modules. Ensure your STEP 7 hardware configuration references the correct order number (6ES7315-2AH14-0AB0) to avoid configuration mismatch errors on startup.

Q2: What is included in the support terms confirmed by quotation and how does the pre-shipment test work?
Every unit shipped by KNMKS undergoes a power-on functional test covering CPU boot sequence, MPI/DP port communication, and memory integrity. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal industrial operating conditions (DC 24 V supply, 0–60 °C ambient). Support requests are processed via [email protected] with the original invoice and a fault description.

Q3: Can I use this CPU as a long-term inventory spare for an S7-300 system that Siemens has discontinued?
Yes. KNMKS maintains stock of end-of-life and discontinued Siemens S7-300 components specifically to support facilities extending the operational life of legacy control systems. The 6ES7315-2AH14-0AB0 is available for immediate shipment, and we can discuss blanket order arrangements for customers requiring guaranteed long-term supply.

Q4: How do I verify compatibility before committing to a purchase order?
Share your existing CPU order number, firmware version (visible on the CPU front label or in the STEP 7 diagnostic buffer), and rack configuration. Our technical team will confirm compatibility and advise on any firmware or configuration steps required for a seamless replacement. Contact us at [email protected] or +86 18359268345.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7315-2AH14-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7315-2AH14-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
