Siemens 6ES7315-2AG10-0AB0 Maintenance Spare Part for S7-300 Factory Uptime

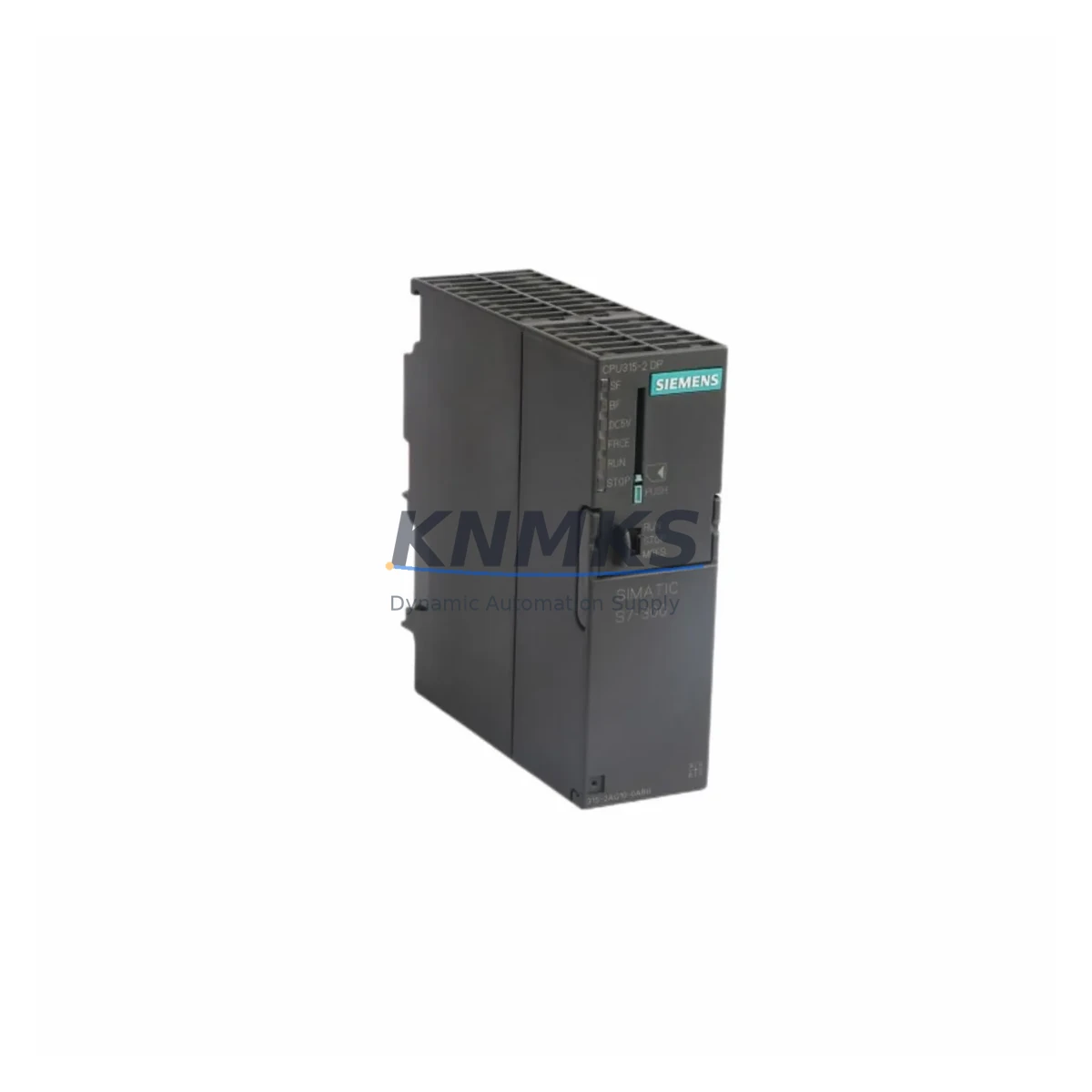

The Siemens 6ES7315-2AG10-0AB0 is a CPU 315-2DP central processing unit designed for the SIMATIC S7-300 programmable logic controller platform. As a maintenance-proven spare part, this module supports continuous factory operation in process automation, discrete manufacturing, and infrastructure control environments where unplanned downtime carries significant operational cost. Sourced as an original Siemens component, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned spare parts inventory.

The CPU 315-2DP integrates an onboard PROFIBUS-DP master/slave interface, enabling direct communication with distributed I/O stations, drives, and field devices without requiring an additional communications processor. With 256 KB work memory and support for up to 32 S7-300 I/O modules per rack, this CPU is well-suited for mid-range automation tasks including batch control, conveyor management, and multi-axis coordination. Its compatibility with STEP 7 V5.x and TIA Portal (via legacy project migration) ensures that maintenance engineers can restore system functionality using existing engineering tools without requalification.

For facilities operating legacy SIMATIC S7-300 lines, maintaining a stocked 6ES7315-2AG10-0AB0 spare reduces mean time to repair (MTTR) during CPU failure events. CPU faults in S7-300 systems typically manifest as STOP mode, red SF/BF LED indicators, or loss of PROFIBUS communication — all of which require immediate module swap to restore production. Having a tested, warranted spare on-site eliminates procurement lead time from the recovery equation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7315-2AG10-0AB0 in a live S7-300 cabinet, a structured inspection of the surrounding electrical environment is essential to prevent repeat failures and confirm system integrity before restart. Maintenance engineers should treat a CPU replacement as an opportunity for a broader cabinet health check.

Power Supply Verification: The S7-300 CPU draws 24 VDC from the rack power supply. Inspect the Siemens PS 307 (6ES7307 series) for output voltage stability, ripple, and thermal condition. An aging or undersized power supply is a common root cause of intermittent CPU faults and should be replaced or load-tested during the same maintenance window. Ensure the supply rail voltage is within ±5% of nominal before inserting the replacement CPU.

Backplane and Rack Integrity: Examine the S7-300 DIN rail mounting and the backplane bus connector on the CPU slot. Corroded or mechanically stressed bus connectors — particularly the 6ES7390-1AE80-0AA0 bus connector — can cause intermittent communication errors that mimic CPU faults. Clean contacts and verify secure seating of all modules.

PROFIBUS-DP Network Check: With the CPU 315-2DP acting as PROFIBUS master, verify termination resistors at both ends of the DP segment, cable shielding continuity, and connector integrity on all slave devices. Faulty PROFIBUS cables or improperly terminated segments will cause the replacement CPU to enter STOP mode immediately after startup. Check associated ET 200M or ET 200S distributed I/O stations for communication readiness.

Digital and Analog I/O Modules: Inspect co-installed SM 321 digital input, SM 322 digital output, and SM 331/SM 332 analog modules for blown fuses, damaged field wiring terminals, or overloaded output channels. A shorted output channel on an SM 322 can generate diagnostic interrupts that prevent the CPU from transitioning to RUN mode.

Signal Isolation and Fusing: For analog signal circuits, verify that signal isolators and loop-powered transmitters connected to SM 331 inputs are within specification. Check panel fuses (typically 2A–6A) protecting 24 VDC field circuits. Blown fuses often indicate wiring faults that should be resolved before restoring CPU operation.

MPI/PROFIBUS Communication Cables: If the cabinet includes a CP 342-5 or CP 343-1 communications processor for Ethernet or additional PROFIBUS segments, verify these modules are undamaged and their configuration matches the restored CPU program. Communication processor firmware versions should be compatible with the CPU firmware level.

MMC (Micro Memory Card): The 6ES7315-2AG10-0AB0 requires a Siemens MMC (e.g., 6ES7953-8LF31-0AA0) to retain the user program after power loss. Confirm the MMC is properly seated, not write-protected, and contains the correct, up-to-date program version before powering up the replacement CPU.

Site Replacement Workflow

A disciplined replacement workflow minimizes downtime and reduces the risk of configuration errors when swapping the 6ES7315-2AG10-0AB0 in a production environment:

1. Pre-Replacement Preparation: Back up the current CPU program from the MMC using STEP 7 or TIA Portal. Document the current hardware configuration (HW Config), including rack layout, module addresses, and PROFIBUS DP slave assignments. Photograph the cabinet wiring and module positions for reference.

2. Safe Isolation: Place the CPU in STOP mode via the mode selector switch. Isolate the 24 VDC supply to the rack using the appropriate panel isolator. Do not remove the CPU under power — the S7-300 backplane does not support hot-swap on the CPU slot.

3. Module Swap: Remove the faulty 6ES7315-2AG10-0AB0 by releasing the front panel latch and sliding the module off the rail. Transfer the MMC from the old CPU to the replacement unit, or insert a pre-programmed MMC into the new CPU. Seat the replacement module firmly onto the rail and reconnect the bus connector.

4. Power-Up and Verification: Restore 24 VDC supply. Observe LED indicators: RUN (green) should illuminate after successful program load from MMC. SF (red) and BF (red) should extinguish within the startup sequence. Connect STEP 7 or TIA Portal via MPI/USB adapter to verify online status, I/O diagnostics, and PROFIBUS DP slave communication.

5. Functional Test: Execute a controlled functional test of critical I/O points before releasing the line to production. Confirm analog input scaling, digital output actuation, and PROFIBUS slave response times are within specification. Document the replacement in the maintenance log with date, technician, and new module serial number.

Spare Parts Support FAQ

Q1: Is the 6ES7315-2AG10-0AB0 still available as a new original part, and what is the supply outlook?
The 6ES7315-2AG10-0AB0 is a mature SIMATIC S7-300 CPU that has been in production for an extended period. While Siemens has introduced successor platforms (S7-1500), the S7-300 installed base remains large globally, and original spare units continue to be available through authorized distribution and specialist industrial spare parts suppliers. For facilities with long-term S7-300 commitments, procuring 1–2 additional CPU spares is recommended to hedge against future availability constraints. Each unit supplied by KNMKS is original, pre-shipment tested, and covered by a support terms confirmed by quotation.

Q2: Can the 6ES7315-2AG10-0AB0 be replaced directly with a higher-spec S7-300 CPU without reprogramming?
Direct substitution with a higher-specification CPU (e.g., CPU 317-2DP or CPU 319-3PN/DP) requires hardware configuration changes in STEP 7 or TIA Portal and may require program adaptation if the replacement CPU has different memory addressing or instruction set extensions. For a like-for-like replacement with zero reprogramming, the 6ES7315-2AG10-0AB0 is the correct spare. Compatibility verification against the existing HW Config file is always recommended before ordering an alternative CPU model.

Q3: What pre-shipment testing is performed on the 6ES7315-2AG10-0AB0 before delivery?
Each 6ES7315-2AG10-0AB0 unit is powered up and functionally tested prior to shipment. Testing includes verification of CPU startup sequence, MPI communication, PROFIBUS-DP interface activity, and LED indicator response. Units that do not pass functional verification are not shipped. Test records are retained and can be provided upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as specified in the Siemens product datasheet. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside rated environmental parameters. To initiate a support terms claim, contact KNMKS with the order reference, module serial number, and a description of the fault symptom. Replacement or repair will be coordinated promptly to minimize impact on your maintenance schedule.
