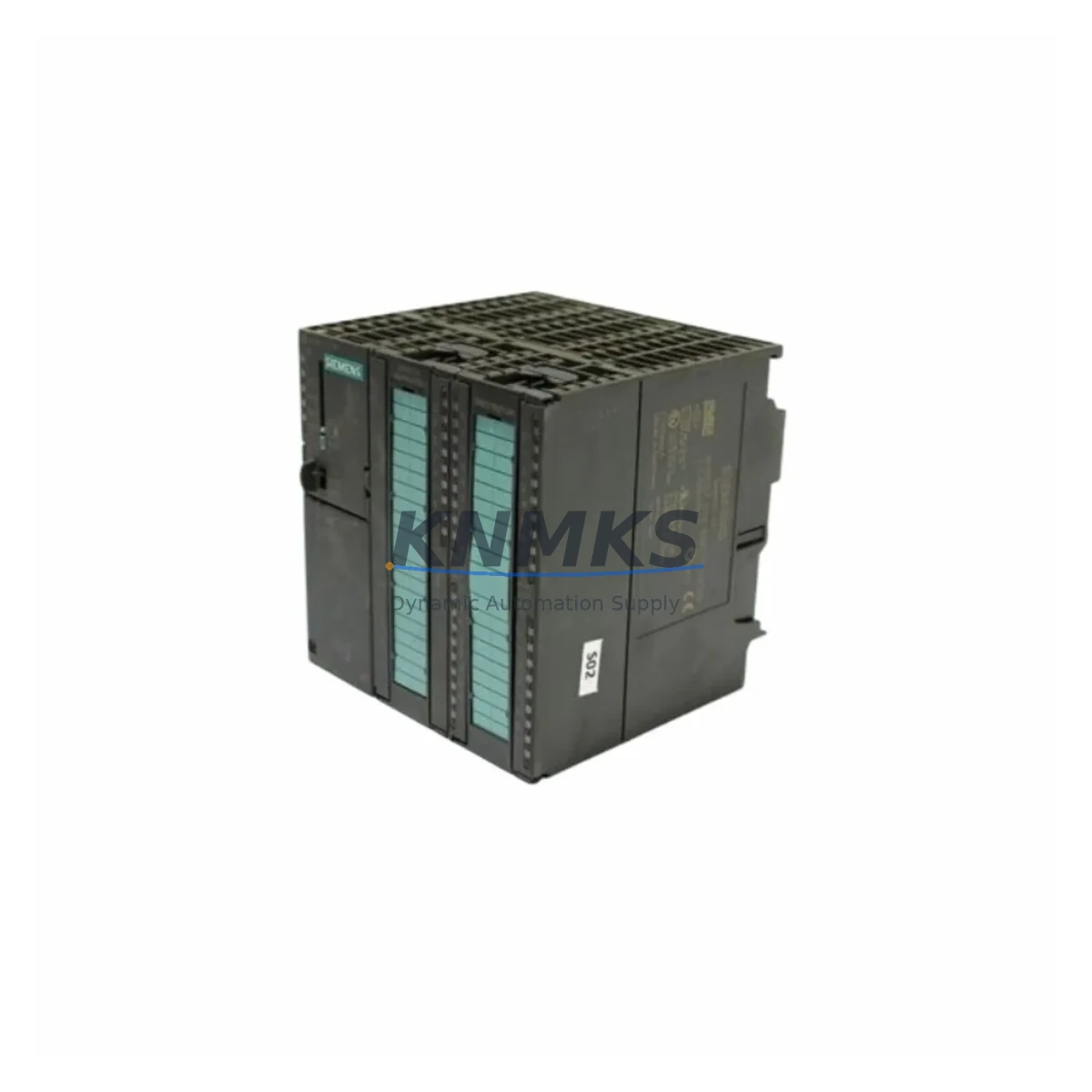

Siemens 6ES7314-6BF01-0AB0 Fail-Safe CPU for Industrial Control

Overview

Siemens 6ES7314-6BF01-0AB0 Fail-Safe CPU for Industrial Control Reliability

The Siemens 6ES7314-6BF01-0AB0 is a SIMATIC S7-300 series CPU 314C-2 PTP compact programmable logic controller module engineered for demanding industrial environments where control interruption is not an option. Designed with integrated digital and analog I/O, a high-speed point-to-point serial interface, and robust onboard processing, this CPU module delivers the fail-safe performance required in continuous production lines, critical safety interlocks, and high-load control cabinets operating under extreme electrical and environmental stress.

In petrochemical plants, power generation facilities, mining operations, and metallurgical processing sites, unplanned downtime carries severe operational and safety consequences. The 6ES7314-6BF01-0AB0 addresses these risks through its hardened architecture, which resists signal drift caused by electromagnetic interference, suppresses surge impulses from heavy motor switching, and maintains stable communication even in environments with significant vibration, dust ingress, and temperature cycling. Its onboard MPI/DP interface ensures reliable integration with PROFIBUS-based field devices, distributed I/O racks, and HMI panels without introducing communication anomalies under load.

For control cabinet designers and maintenance engineers, the CPU 314C-2 PTP provides a compact footprint that simplifies panel layout while delivering the processing headroom needed for complex ladder logic, function block diagrams, and structured text programs. When paired with a Siemens 6ES7307-1EA01-0AA0 PS 307 power supply module, the system achieves a stable 24 VDC rail with built-in short-circuit and overload protection, reducing the risk of cabinet-level power faults propagating to the CPU. Surge protection is further reinforced when the CPU operates alongside a Siemens 6ES7390-1AE80-0AA0 DIN rail assembly and properly grounded backplane bus connectors, which collectively minimize ground loop interference in high-EMI zones.

In safety interlock architectures, the 6ES7314-6BF01-0AB0 is frequently deployed alongside Siemens 6ES7321-1BL00-0AA0 SM 321 digital input modules to monitor emergency stop circuits, pressure switches, and flow sensors in real time. The CPU’s fast scan cycle and deterministic response time ensure that safety-critical signals are processed within the required reaction window, preventing false trips and missed shutdowns. For analog process control loops — such as temperature regulation in furnace control or pressure management in compressor stations — the integrated analog I/O channels reduce the need for additional SM 331 or SM 332 expansion modules, lowering the component count and potential failure points within the cabinet.

Communication reliability is a key concern in distributed control architectures. The 6ES7314-6BF01-0AB0’s PTP (point-to-point) serial interface supports direct connection to drives, weighing systems, barcode readers, and third-party controllers using protocols such as ASCII, 3964(R), and RK 512, without requiring additional CP communication processors in straightforward topologies. In more complex networks, it integrates seamlessly with Siemens 6GK7343-1EX30-0XE0 CP 343-1 Ethernet modules to extend connectivity to SCADA systems and MES platforms over Industrial Ethernet, maintaining data integrity under high-cycle polling conditions.

For facilities managing end-of-life equipment or executing phased modernization programs, maintaining a verified stock of 6ES7314-6BF01-0AB0 units is a proven strategy for reducing mean time to repair (MTTR) during unplanned failures. Each unit supplied undergoes pre-shipment functional testing covering power-on diagnostics, I/O channel verification, communication interface checks, and firmware version confirmation, ensuring that replacement units are field-ready without requiring additional bench testing on arrival. Long-term supply commitment for this SKU supports multi-year maintenance contracts and capital spares programs across global industrial sites.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-300 control cabinet built around the 6ES7314-6BF01-0AB0 requires a coordinated protection strategy across power, I/O, communication, and mechanical layers. The Siemens 6ES7307-1EA01-0AA0 PS 307 5A power supply module provides a regulated 24 VDC bus with integrated overload and short-circuit protection, forming the first line of defense against power rail instability. For cabinets installed near variable frequency drives or large contactors, transient voltage suppression at the incoming AC supply — using appropriately rated surge protection devices — prevents impulse energy from reaching the CPU backplane.

Digital input signals from field devices such as proximity sensors, limit switches, and safety relays should be routed through Siemens 6ES7321-1BL00-0AA0 SM 321 input modules with proper cable shielding and grounding at a single point to prevent ground loops. Analog signals feeding the CPU’s onboard AI channels benefit from shielded twisted-pair cabling and, where necessary, signal isolators to eliminate common-mode noise from long cable runs in high-EMI zones such as motor control centers. The Siemens 6ES7390-1AE80-0AA0 DIN rail and backplane bus connector system ensures mechanical rigidity and reliable electrical continuity across all modules in the rack, reducing the risk of intermittent faults caused by vibration-induced connector loosening in mobile or high-vibration installations such as offshore platforms or mining conveyors.

For sites requiring Ethernet connectivity to SCADA or historian systems, the Siemens 6GK7343-1EX30-0XE0 CP 343-1 communication processor integrates directly into the S7-300 rack, providing Industrial Ethernet access without burdening the CPU’s MPI port. Cabinet thermal management — achieved through proper module spacing, directed airflow, and where necessary, cabinet air conditioning units — ensures that the CPU operates within its rated 0–60 °C range even in high-ambient-temperature environments such as steel mills or cement plants, preventing thermally induced processing errors and premature component aging.

Critical Industrial Safety Applications

The 6ES7314-6BF01-0AB0 is deployed across a wide range of safety-critical and continuous-process industrial environments:

Petrochemical and Refinery Plants: Used in burner management systems, emergency shutdown (ESD) pre-processing layers, and compressor anti-surge control, where deterministic scan times and reliable I/O response are essential to prevent hazardous process deviations.

Power Generation and Substation Automation: Integrated into turbine auxiliary control panels and transformer protection relay coordination systems, where stable MPI communication and surge-hardened I/O prevent nuisance trips during switching transients.

Mining and Mineral Processing: Applied in conveyor drive sequencing, crusher interlock control, and slurry pump management in environments with heavy dust, moisture, and vibration, where the CPU’s IP20-rated housing and vibration-rated mounting provide reliable long-term operation.

Water and Wastewater Treatment: Deployed in pump station automation, dosing control, and SCADA-connected remote outstations, where the PTP serial interface enables direct communication with flow meters and analytical instruments without additional communication hardware.

Metallurgy and Steel Production: Used in rolling mill auxiliary drives, furnace temperature control loops, and ladle handling automation, where high-ambient temperatures and electromagnetic interference from induction heating systems demand robust CPU performance.

Port and Marine Logistics: Integrated into crane control systems, ship-to-shore loader automation, and ballast water management panels aboard vessels, where compact module size and vibration resistance are critical installation requirements.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7314-6BF01-0AB0?
The support terms confirmed by quotation cover manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during field installation or operation. Support requests are supported by pre-shipment test records provided with each unit, enabling rapid fault attribution and replacement processing without extended RMA delays.

Q2: What pre-shipment testing is performed before dispatch?
Each 6ES7314-6BF01-0AB0 unit undergoes a structured pre-shipment test protocol including power-on self-diagnostics, digital and analog I/O channel functional verification, MPI and PTP interface communication checks, and firmware version confirmation. Test results are documented and available upon request to support incoming inspection and quality records.

Q3: Is this CPU compatible with existing S7-300 racks and STEP 7 programs?
Yes. The 6ES7314-6BF01-0AB0 is fully compatible with the SIMATIC S7-300 backplane bus system and can be programmed using STEP 7 V5.x or TIA Portal with the appropriate hardware configuration. It is a direct functional replacement for earlier CPU 314C-2 PTP variants in most applications, subject to firmware and hardware revision review for safety-critical installations.

Q4: Can long-term supply be arranged for maintenance contracts and capital spares programs?
Yes. Long-term supply agreements for the 6ES7314-6BF01-0AB0 are available to support multi-year maintenance contracts, planned shutdown spares kits, and capital spares programs for facilities operating legacy S7-300 infrastructure. Inventory reservation and scheduled delivery options can be arranged to align with planned maintenance windows and budget cycles.
