Siemens 6ES7314-1AG13-0AB0 Migration-Ready CPU for S7-300

Overview

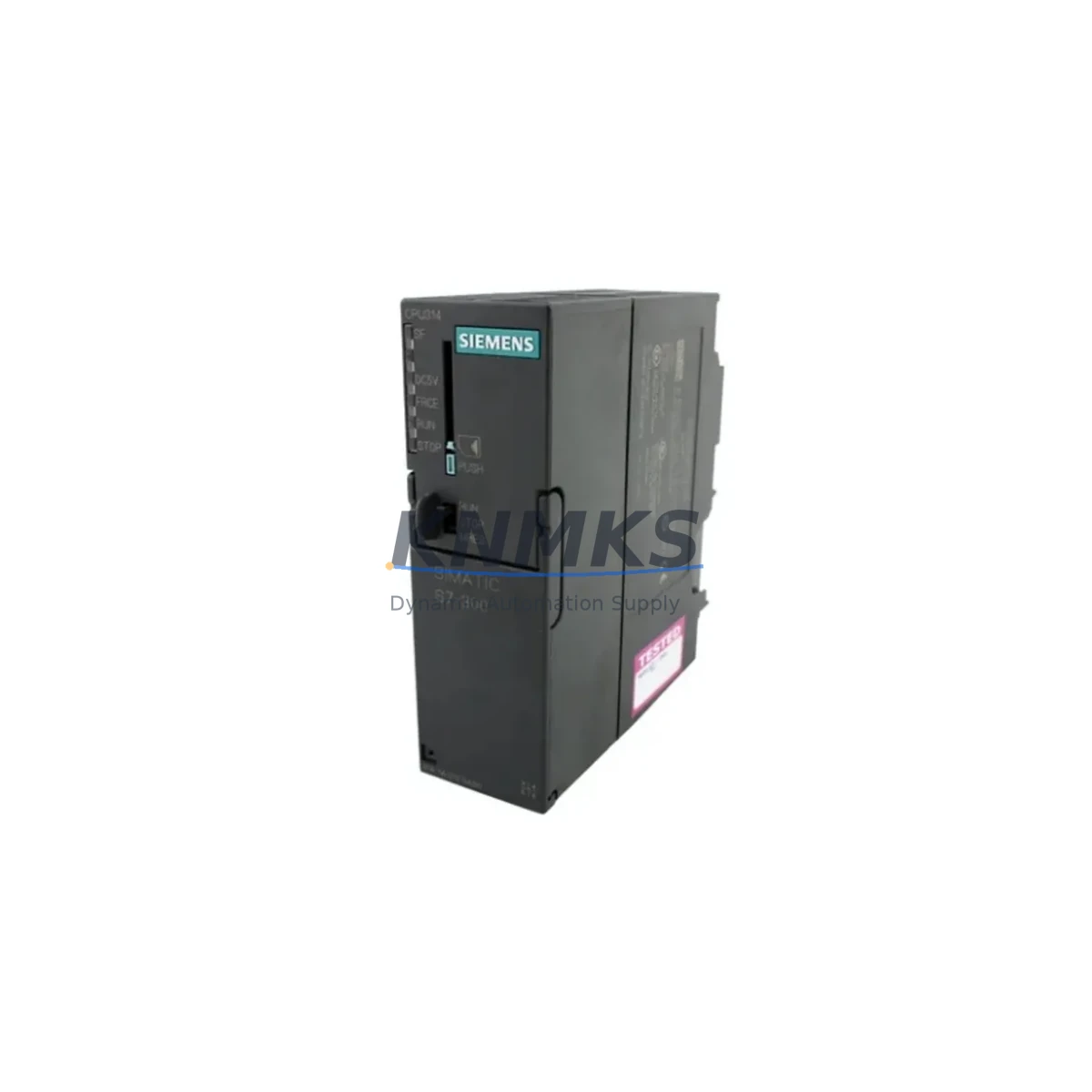

Siemens 6ES7314-1AG13-0AB0 Migration-Ready CPU for Legacy S7-300 Systems

The Siemens 6ES7314-1AG13-0AB0 is a CPU 314 module designed for the SIMATIC S7-300 programmable logic controller platform — one of the most widely deployed control architectures in global industrial automation. As legacy S7-300 installations approach end-of-life and original Siemens production of this CPU has been discontinued, plant engineers and system integrators face increasing pressure to source verified replacement units that maintain full backward compatibility with existing hardware configurations, field wiring, and control programs.

This migration-ready CPU 314 module is stocked, tested, and shipped with a support terms confirmed by quotation, making it a reliable choice for emergency spare parts procurement, planned system upgrades, and long-term maintenance contracts. Whether you are managing a single-line retrofit or coordinating a multi-cabinet modernization across a production facility, the 6ES7314-1AG13-0AB0 provides a direct, low-risk path to restoring or extending the operational life of your S7-300 control system.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6ES7314-1AG13-0AB0 into an existing S7-300 installation requires careful pre-migration planning across several interdependent system layers. Before removing the legacy CPU, engineers should document the current rack configuration, including the slot assignments of all installed signal modules such as SM 321 digital input modules and SM 331 analog input modules, as well as any installed communication processors.

Power budget verification is a critical first step. The PS 307 power supply module feeding the rack must be confirmed to provide sufficient current capacity for the replacement CPU plus all installed I/O and communication modules. Undersized power supplies are a common cause of intermittent faults following CPU replacement and should be addressed before commissioning the new unit.

Terminal wiring on the S7-300 front connectors is mechanically retained and can typically be transferred directly to the replacement CPU without rewiring, provided the terminal block assignments match the original configuration. This significantly reduces field labor time and the risk of wiring errors during the changeover window.

For systems using PROFIBUS DP networks, the CP 342-5 or CP 343-5 communication processor modules installed in adjacent rack slots will continue to operate normally after CPU replacement, provided the MPI address and PROFIBUS station address assignments are preserved in the replacement CPU’s configuration data. Engineers should export and archive the complete hardware configuration from SIMATIC Manager or TIA Portal before beginning the swap.

Where the legacy system includes an IM 360 / IM 361 interface module pair for multi-rack expansion, the replacement CPU must be configured with the same rack and slot addressing scheme to ensure that remote I/O modules on expansion racks remain addressable after restart. Similarly, any ET 200M distributed I/O stations connected via PROFIBUS DP should be verified against the CPU’s I/O address map prior to the first program scan.

HMI panels connected via MPI — including TP 177, OP 177, or MP 277 series operator panels — will reconnect automatically after CPU restart provided the MPI node address is unchanged. If the HMI project references specific CPU data blocks or variable addresses, a compatibility check against the restored program is recommended before returning the system to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any CPU replacement on a live production line. A structured changeover procedure for the 6ES7314-1AG13-0AB0 should begin with a full backup of the existing CPU program, including all OBs, FBs, FCs, DBs, and the hardware configuration, using SIMATIC Manager’s upload function or a memory card transfer. This backup should be verified on an offline engineering station before the physical swap begins.

Where production schedules permit, the replacement CPU should be pre-loaded with the verified program and hardware configuration offline, so that the on-site changeover is limited to the physical module swap and a single controlled restart. This approach reduces the live intervention window to under 30 minutes in most standard S7-300 rack configurations.

After restart, the CPU’s diagnostic buffer should be reviewed for any startup faults related to I/O module addressing, communication timeouts, or configuration mismatches. The STEP 7 online diagnostic view provides real-time module status for all rack-mounted signal modules and communication processors, enabling rapid fault isolation if any module fails to initialize correctly.

For systems where continuous process control is required, a hot-standby or redundant CPU architecture using the S7-400H platform may be a longer-term consideration. However, for the majority of S7-300 applications, a well-prepared cold-swap procedure with pre-loaded program data achieves acceptable downtime targets without requiring architectural changes to the control system.

All units are subject to pre-shipment functional testing and are dispatched with documentation confirming test completion. A support terms confirmed by quotation cover manufacturing defects and module failures under normal operating conditions, providing assurance for both emergency procurement and planned maintenance budgets.

Retrofit Support FAQ

Q: Is the 6ES7314-1AG13-0AB0 a direct drop-in replacement for earlier CPU 314 variants?
A: In most cases, yes. The 6ES7314-1AG13-0AB0 uses the standard S7-300 backplane interface and is physically and electrically compatible with UR1 and UR2 racks. Program compatibility depends on the STEP 7 version used to create the original project. We recommend verifying the hardware configuration in SIMATIC Manager before commissioning.

Q: What commissioning steps are required after installing the replacement CPU?
A: After physical installation, download the verified hardware configuration and program to the CPU via MPI or PROFIBUS. Confirm that all I/O modules initialize without fault in the diagnostic buffer, verify communication links to any connected HMI panels and PROFIBUS DP devices, and perform a controlled test run before returning the system to automatic mode.

Q: Can this CPU be used with existing CP communication modules and ET 200M remote I/O?
A: Yes. CP 342-5 and CP 343-5 communication processors, as well as ET 200M distributed I/O stations connected via PROFIBUS DP, are fully compatible provided the station addresses and hardware configuration are preserved from the original system. No changes to field wiring or network topology are required.

Q: What support terms and stock availability can I expect?
A: All units are availability confirmed by RFQ and available for immediate dispatch. Each module is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and operational failures under standard industrial operating conditions. Pre-shipment testing is performed on every unit before dispatch.
