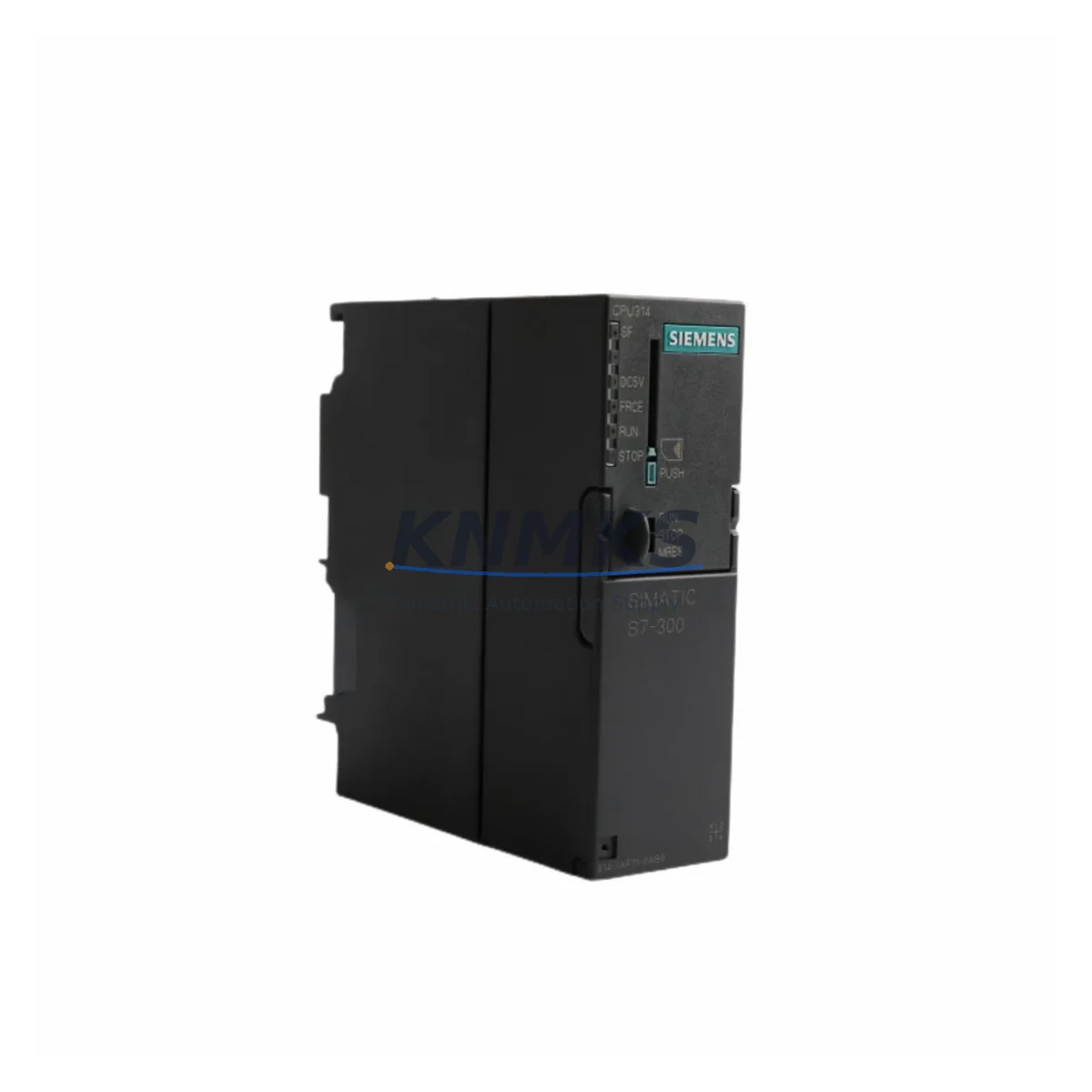

The Siemens 6ES7314-1AF11-0AB0 is a CPU 314 central processing unit designed for the SIMATIC S7-300 modular PLC platform — one of the most widely deployed control architectures in discrete manufacturing, process automation, and utility infrastructure worldwide. As production lines age and OEM support windows close, maintaining a verified stock of the 6ES7314-1AF11-0AB0 is a frontline strategy for maintenance engineers who cannot afford unplanned downtime. This unit is sourced as an original Siemens spare, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering operational defects under normal industrial use conditions.

For facilities running legacy S7-300 racks, the CPU 314 occupies the central slot of the rail assembly and coordinates all I/O scanning, program execution, and communication tasks. A failed or degraded CPU is a full-line stop event. Keeping a tested replacement on the shelf — or securing a committed long-term supply agreement — is the most direct way to compress mean time to repair (MTTR) when a fault occurs. This listing supports both emergency replacement and planned annual maintenance procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7314-1AF11-0AB0 in a live S7-300 cabinet, the CPU swap is only one element of a complete maintenance review. Experienced maintenance engineers treat a CPU replacement as a trigger for a broader cabinet inspection to prevent secondary failures and ensure the restored system operates reliably through the next maintenance interval.

Start with the power supply module — typically a Siemens PS 307 (e.g., 6ES7307-1BA01-0AA0 or 6ES7307-1EA01-0AA0) — and verify output voltage stability under load before inserting the replacement CPU. A degraded PSU is a common root cause of repeated CPU faults and is frequently overlooked during emergency replacements. Inspect the backplane bus connector on the rack (6ES7390-1AE80-0AA0 series) for oxidation or mechanical damage, as poor bus contact can cause intermittent CPU errors that are difficult to diagnose after the fact.

Review the digital and analog signal modules (SM 321, SM 322, SM 331, SM 332 series) connected to the rack. Verify that all field wiring terminal blocks are secure and that no I/O channels show persistent fault flags in the diagnostic buffer. If the system uses a CP 343-1 or CP 343-5 communication processor for Profibus DP or Industrial Ethernet connectivity, confirm that network parameters are retained on the MMC and that the CP module firmware is compatible with the replacement CPU revision.

For systems with distributed I/O via ET 200M or ET 200S remote stations, validate that the DP master configuration in the CPU project matches the physical field installation after the swap. Signal isolators and barriers in intrinsically safe zones should also be checked for drift or degradation during the same maintenance window. Fuse protection on 24 V DC supply rails feeding the CPU and I/O modules should be inspected and replaced on a scheduled basis — not only during fault events.

If the facility operates an HMI panel (such as a Siemens TP700 Comfort or KTP900 Basic) connected via MPI or Profibus, verify communication re-establishment after CPU restart and confirm that the HMI project tag addresses remain consistent with the restored CPU program. Document the MMC part number and firmware version as part of the post-replacement record to support future audits and support requests.

Site Replacement Workflow

Step 1 — Preparation: Obtain the replacement 6ES7314-1AF11-0AB0 and confirm the MMC (Micro Memory Card) containing the current project is present and readable. Back up the program via STEP 7 or TIA Portal before powering down the rack.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Disconnect the 24 V DC supply to the CPU slot. Do not remove the CPU under power.

Step 3 — Module Swap: Remove the existing CPU by releasing the front panel latch and sliding the module off the backplane bus connector. Insert the replacement 6ES7314-1AF11-0AB0, ensuring the bus connector seats fully. Transfer the MMC from the old CPU to the replacement unit.

Step 4 — Power-Up and Diagnostics: Restore power and observe the CPU LEDs (SF, BF, DC5V, FRCE, RUN/STOP). A clean startup shows RUN green with no SF or BF faults. Use STEP 7 online diagnostics to confirm all configured modules are recognized and no I/O errors are present.

Step 5 — Functional Verification: Run a controlled test cycle of the affected process section before returning the line to full production. Confirm HMI communication, Profibus DP slave status, and any safety interlock logic is operating as expected.

Step 6 — Documentation: Record the replacement date, old CPU serial number, new CPU serial number, MMC part number, and technician sign-off in the site maintenance log. Initiate a reorder for the next spare unit to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the 6ES7314-1AF11-0AB0 compatible with all S7-300 racks and signal modules?
The CPU 314 is designed for the standard S7-300 rail system and is compatible with the full range of S7-300 signal modules (SM), function modules (FM), and communication processors (CP) that conform to the S7-300 backplane bus specification. Compatibility with specific FM or CP modules should be verified against the CPU firmware revision and the module’s hardware compatibility list in the Siemens product documentation.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes functional power-on verification, LED status confirmation, and MPI communication interface testing prior to shipment. Units that do not pass testing are not dispatched. A test report summary is available upon request for quality assurance documentation purposes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial use conditions from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified operating parameters. Support requests are processed via [email protected] with the original order reference and a fault description.

Q4: Can long-term supply agreements be arranged for this SKU?
Yes. For facilities with ongoing S7-300 maintenance programs or multi-site procurement requirements, long-term supply commitments for the 6ES7314-1AF11-0AB0 can be arranged. Contact the sales team to discuss volume, lead time, and consignment stocking options that align with your annual maintenance budget cycle.
