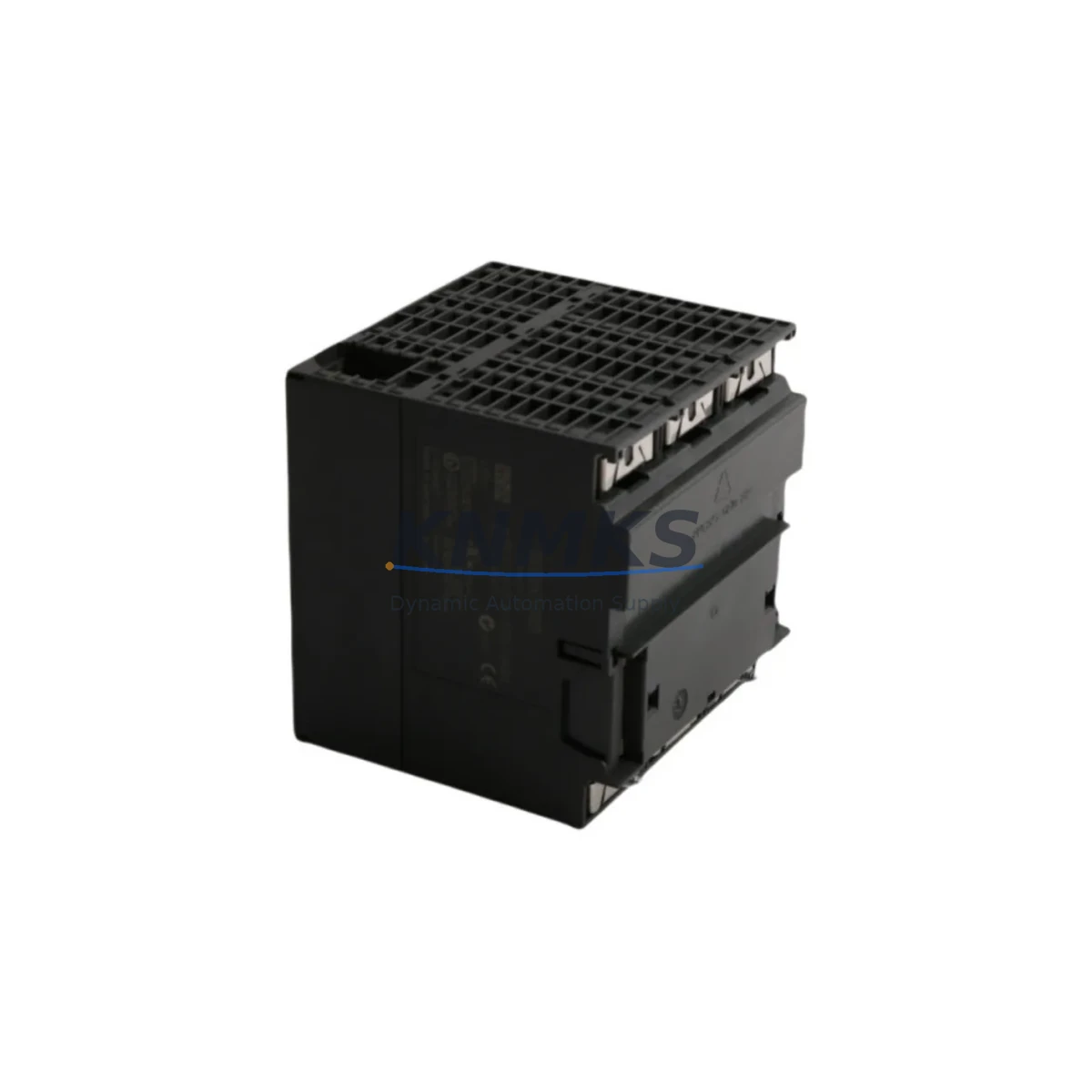

Siemens 6ES7313-6CE00-0AB0 Migration-Ready CPU for S7-300

Overview

Siemens 6ES7313-6CE00-0AB0 Migration-Ready CPU for Legacy S7-300 Control Systems

The Siemens 6ES7313-6CE00-0AB0 (CPU 313C-2 DP) is a compact, high-performance programmable logic controller module purpose-built for the SIMATIC S7-300 rack architecture. As legacy automation lines age and original Siemens CPU modules reach end-of-life or become discontinued, the 6ES7313-6CE00-0AB0 serves as a proven migration-ready replacement that preserves existing program logic, retains PROFIBUS DP communication links, and minimizes engineering rework during system modernization. Whether you are upgrading a decade-old production line, restoring a failed control cabinet, or extending the service life of an S7-300 platform, this CPU module delivers the compatibility and reliability that industrial retrofit projects demand.

Sourced from verified supply channels and fully tested prior to shipment, each unit is backed by a support terms confirmed by quotation covering hardware defects and functional failures. Global logistics support ensures delivery details confirmed by RFQ to manufacturing sites across Asia, Europe, and the Americas, helping maintenance teams control downtime and meet production recovery targets.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit with the 6ES7313-6CE00-0AB0 begins well before the module arrives on site. Engineers must audit the existing S7-300 rack to confirm available slot positions, verify that the installed power supply module — typically a PS 307 5A or 10A — can sustain the additional current draw introduced by the replacement CPU and any newly added signal modules. In many legacy cabinets, the original power budget was calculated for a smaller CPU variant, so a power margin review is essential before committing to the swap.

Terminal wiring on the integrated I/O channels of the 6ES7313-6CE00-0AB0 follows the standard S7-300 front connector pinout, which means existing field wiring connected to SM 321 digital input modules or SM 331 analog input modules in the same rack can typically remain undisturbed. However, engineers should cross-reference the original wiring diagram against the new CPU’s integrated I/O terminal assignments to avoid signal conflicts, particularly on analog channels where scaling parameters may differ between the old and replacement CPU generations.

The PROFIBUS DP interface on the 6ES7313-6CE00-0AB0 supports both DP master and DP slave operation, making it directly compatible with existing PROFIBUS networks that connect distributed I/O stations, variable frequency drives, and remote HMI panels. When migrating from an older CPU that operated as a DP master, the GSD files for all connected slave devices — including ET 200S distributed I/O stations and third-party field devices — must be re-imported into the new hardware configuration in STEP 7 or TIA Portal to ensure correct address mapping and diagnostic behavior.

For systems that include an IM 360 / IM 361 interface module pair connecting expansion racks, the 6ES7313-6CE00-0AB0 maintains full compatibility with the S7-300 multi-rack architecture. Module addresses assigned to SM 323 combination I/O modules, SM 332 analog output modules, and CP 343-1 Ethernet communication processors in expansion racks are preserved in the hardware configuration file and do not require reassignment after the CPU swap, provided the rack and slot structure remains unchanged.

HMI integration is another critical checkpoint. SIMATIC HMI panels connected via MPI or PROFIBUS DP — including TP 177B and MP 277 operator panels — communicate with the CPU using configured DB and variable addresses. Before going live, the HMI project should be validated against the updated PLC program to confirm that all screen tags, alarm triggers, and recipe data blocks reference the correct memory areas in the new CPU. A mismatch between HMI variable addresses and PLC data block structure is one of the most common causes of extended commissioning time during retrofit projects.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement requires a structured pre-migration checklist executed before the control cabinet is de-energized. The first priority is a complete backup of the existing CPU program using a Micro Memory Card (MMC) or STEP 7 online upload, capturing all OBs, FBs, FCs, DBs, and system data blocks. This backup serves as the restore point if commissioning reveals unexpected behavior after the swap.

Once the backup is confirmed, the replacement 6ES7313-6CE00-0AB0 should be pre-configured offline in STEP 7 or TIA Portal using the saved hardware configuration. Downloading the hardware configuration and program to the new CPU before installation — using a programming cable connected to the MPI port — allows engineers to verify firmware compatibility and confirm that the program compiles without errors against the new CPU’s memory map. This offline pre-load step can reduce on-site commissioning time from several hours to under thirty minutes in straightforward replacement scenarios.

During the physical swap, the PROFIBUS DP bus connector should be removed from the old CPU before powering down to prevent bus termination errors from propagating to other network nodes. After installing the 6ES7313-6CE00-0AB0 and reconnecting the bus, the CPU should be brought to STOP mode before the first program download to allow the DP master system to re-initialize all slave connections in a controlled sequence. Field I/O outputs should remain inhibited until the operator confirms that all process values are reading correctly and that no diagnostic alarms are active in the CPU’s diagnostic buffer.

For continuous-process applications where even brief interruptions carry significant cost, a parallel run strategy — where the new CPU is configured and tested on a bench rack using the same program and a simulated I/O environment — provides an additional layer of risk mitigation before the live cutover. This approach is particularly valuable when the control system manages safety-critical interlocks or when the production schedule does not permit extended maintenance windows.

Retrofit Support FAQ

Q1: Is the 6ES7313-6CE00-0AB0 a direct drop-in replacement for the 6ES7313-5BF03-0AB0?
Yes. The 6ES7313-6CE00-0AB0 installs in the same CPU slot (Slot 2) on any standard S7-300 rack and uses the same backplane bus interface. The existing STEP 7 hardware configuration will require an update to reflect the new CPU order number, but the program logic, DB structure, and I/O module addresses in expansion racks remain valid without modification.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7313-6CE00-0AB0 unit undergoes a full functional test before dispatch, including power-on self-test verification, MPI and PROFIBUS DP interface checks, integrated I/O channel validation, and memory card read/write confirmation. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can the existing PROFIBUS DP network configuration be reused without reconfiguration?
In most cases, yes — provided the DP master address and baud rate settings in the STEP 7 hardware configuration are retained. GSD files for all connected slave devices must be present in the STEP 7 hardware catalog. If the original project file is available, the hardware configuration can be updated by simply replacing the CPU entry and re-downloading, without modifying the DP slave assignments or network topology.

Q4: What is the stock availability and lead time?
The 6ES7313-6CE00-0AB0 is held availability confirmed by RFQ and available for immediate dispatch. Standard international shipping typically delivers within 3–7 business days depending on destination. For urgent retrofit requirements, expedited freight options are available. Contact our sales team to confirm current inventory levels and arrange priority shipment.
