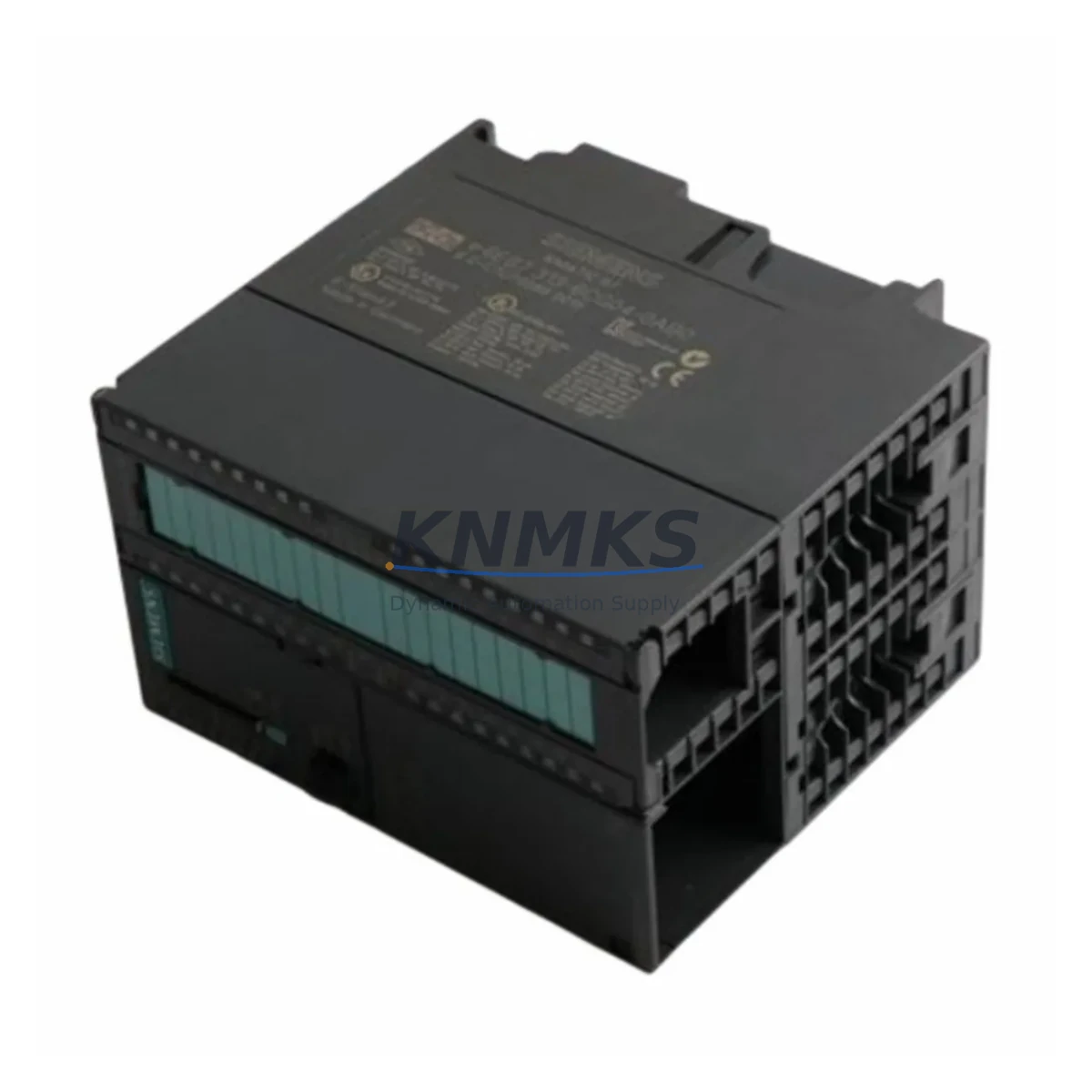

Siemens 6ES7313-5BE01-0AB0 Migration-Ready CPU for Legacy S7-300

Overview

Siemens 6ES7313-5BE01-0AB0 Migration-Ready CPU for Legacy S7-300 Control Systems

The Siemens 6ES7313-5BE01-0AB0 CPU 313C is a compact, integrated CPU module designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 installations approach end-of-life and original Siemens production of certain CPU variants is discontinued, the 6ES7313-5BE01-0AB0 remains a critical spare part for maintenance engineers managing aging automation infrastructure across manufacturing, process control, and utilities sectors.

This CPU module integrates 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs directly on-board, reducing the need for additional I/O expansion modules in compact control cabinet configurations. Its MPI communication interface supports direct connection to SIMATIC HMI panels such as the TP177 and OP177 series, as well as programming via STEP 7 software using a standard MPI/PC adapter or PC Adapter USB A2.

For retrofit projects, the 6ES7313-5BE01-0AB0 is a direct form-fit-function replacement for earlier CPU 313C variants including the 6ES7313-5BE00-0AB0. Terminal block wiring, slot addressing, and rack mounting dimensions are preserved, allowing in-place substitution without cabinet modification. Engineers should verify the firmware version loaded on the replacement unit against the existing STEP 7 project to confirm program compatibility before going live.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 6ES7313-5BE01-0AB0 in an operating S7-300 system requires a structured pre-migration checklist. Begin by auditing the existing rack configuration: confirm the slot assignments of all installed modules including the PS 307 power supply module, the CPU itself, and any SM 321 digital input, SM 322 digital output, SM 331 analog input, or SM 332 analog output signal modules occupying downstream slots. Slot addresses are hardware-defined in S7-300 and must not shift during replacement.

Before removing the existing CPU, back up the complete STEP 7 project from the MMC (Micro Memory Card) using a card reader or via online upload through the MPI/PC adapter. The replacement 6ES7313-5BE01-0AB0 ships without a pre-loaded program; the MMC from the original unit can typically be transferred directly to the replacement CPU, provided the firmware version is compatible. If the MMC is not transferable, the program must be downloaded fresh via STEP 7 after hardware installation.

For systems where the S7-300 communicates upstream to a SCADA or DCS via PROFIBUS DP using a CP 342-5 communications processor, verify that the DP master address and GSD file configuration remain unchanged after CPU swap. Similarly, if an ET 200M distributed I/O station is connected via PROFIBUS, confirm that the IM 153-2 interface module firmware and station address are unaffected. MPI network topology — including termination resistors and cable lengths — should be re-verified after the CPU is reseated to prevent communication dropouts during commissioning.

Control cabinet space is rarely a constraint for this replacement, as the 6ES7313-5BE01-0AB0 occupies the same physical footprint as its predecessor. However, engineers should inspect the 24 VDC load power supply feeding the integrated I/O section and confirm that the current budget accommodates the replacement module’s consumption profile, particularly if additional SM modules have been added to the rack since the original installation.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement on an active S7-300 line requires preparation that begins well before the maintenance window. The most effective approach is to pre-stage the replacement 6ES7313-5BE01-0AB0 with the correct firmware version and a verified copy of the STEP 7 program loaded onto a spare MMC. This allows the physical swap to be completed in under 30 minutes, with the majority of the maintenance window consumed by controlled shutdown, wiring verification, and restart sequencing rather than software troubleshooting.

Preserve the original program logic by maintaining a version-controlled STEP 7 archive on an offline engineering workstation before any hardware change. If the system uses a SIMATIC HMI panel connected via MPI, confirm that the HMI project’s PLC connection parameters — station address, baud rate, and slot number — match the replacement CPU configuration. Mismatched MPI addresses are a common cause of post-swap HMI communication failures that extend downtime unnecessarily.

For process-critical applications where even brief interruptions are costly, consider staging the replacement CPU in a test rack with representative I/O simulation before the live cutover. This validates program execution, analog scaling, and any PID loop configurations without risk to the production process. Once field commissioning begins, a structured I/O force test — verifying each digital and analog channel against the physical field device — confirms wiring integrity before returning the system to automatic mode.

All units supplied are pre-tested under power prior to shipment, reducing the risk of DOA failures during the maintenance window. In-stock inventory ensures same-week dispatch for urgent replacement requirements, supporting maintenance teams operating under tight MTTR targets.

Retrofit Support FAQ

Q: Is the 6ES7313-5BE01-0AB0 a direct replacement for the 6ES7313-5BE00-0AB0?
A: Yes. The -5BE01- revision supersedes the -5BE00- variant with identical mechanical dimensions, terminal wiring, and backplane interface. The front connector and MMC slot are physically compatible. Firmware and STEP 7 project compatibility should be confirmed before go-live, but no cabinet or wiring modifications are required.

Q: Can the existing MMC from the old CPU be reused in the replacement unit?
A: In most cases, yes. The Micro Memory Card (MMC) is removable and stores the user program independently of the CPU hardware. Transfer the MMC from the original 6ES7313-5BE00-0AB0 or earlier -5BE01- unit to the replacement module. If the firmware version on the new CPU differs significantly, a STEP 7 online download may be required to ensure full compatibility.

Q: What pre-shipment testing is performed on this unit?
A: Each 6ES7313-5BE01-0AB0 is powered on and functionally verified prior to dispatch. Basic communication via MPI and integrated I/O channel integrity are confirmed. Units are shipped with original-style packaging and include a support terms confirmed by quotation covering hardware defects under normal operating conditions.

Q: What is the stock availability and lead time?
A: Units are held availability confirmed by RFQ and available for immediate dispatch. Standard international shipping lead times apply depending on destination. For urgent maintenance requirements, expedited shipping options are available — contact the sales team directly to confirm current stock levels and dispatch schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7313-5BE01-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7313-5BE01-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
