Siemens 6ES7313-5BE00-0AB0 Migration-Ready CPU for Legacy Control Systems

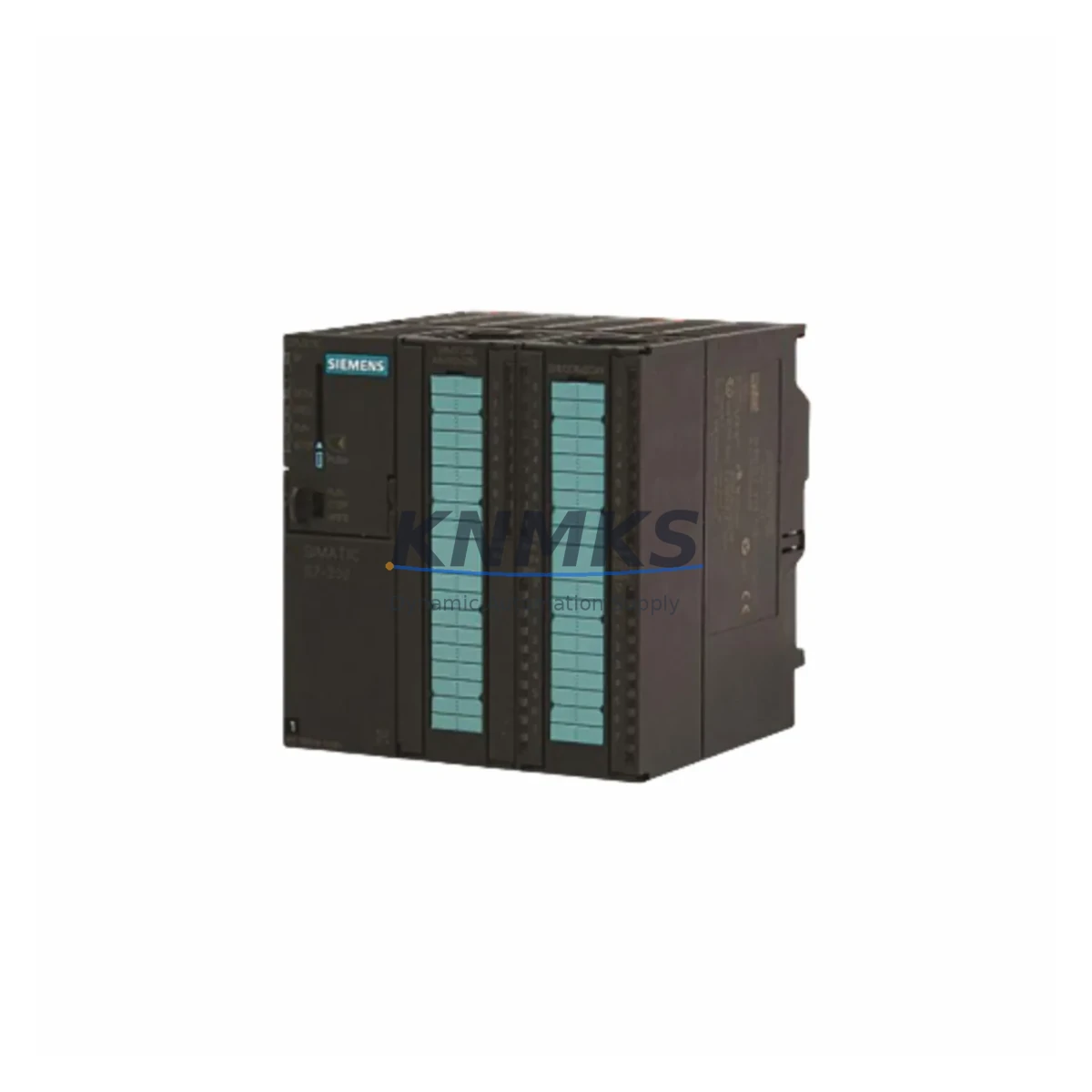

The Siemens 6ES7313-5BE00-0AB0 (CPU 313C-2 DP) is a compact, high-performance central processing unit from the SIMATIC S7-300 series, purpose-built for industrial automation environments where legacy system continuity and migration readiness are critical. As production lines age and original equipment manufacturers discontinue support for older S7-300 configurations, the 6ES7313-5BE00-0AB0 serves as a direct, drop-in replacement that preserves existing program logic, I/O addressing, and PROFIBUS DP network topology without requiring a full control system redesign.

This CPU integrates 24 digital inputs and 16 digital outputs onboard, along with 4 analog inputs and 2 analog outputs, reducing the need for additional signal modules in compact control cabinet installations. Its integrated PROFIBUS DP master/slave interface supports baud rates up to 12 Mbit/s, making it fully compatible with existing distributed I/O networks built around ET 200M, ET 200S, or third-party PROFIBUS field devices. Engineers migrating from earlier CPU 312 or CPU 314 variants will find that the 6ES7313-5BE00-0AB0 supports the same STEP 7 programming environment, enabling direct program upload and minimal re-commissioning effort.

For facilities managing phased modernization projects, this CPU is frequently deployed alongside the SM 321 digital input module and SM 322 digital output module to extend I/O capacity within the existing S7-300 rack. Power supply compatibility with the PS 307 (24 VDC, 5 A or 10 A) should be verified against the total current draw of the populated rack before installation. The CPU’s MPI/PROFIBUS port also supports direct connection to SIMATIC HMI panels such as the TP 177B or MP 277, preserving existing operator interface screens and variable mappings without HMI project migration.

When replacing a failed or end-of-life CPU in an active production environment, engineers should document the current memory card contents using a Siemens MPI programming cable (PC Adapter USB) before removal. The 6ES7313-5BE00-0AB0 uses a standard Siemens MMC (Micro Memory Card) for program retention, and the replacement unit must be loaded with the same firmware version to ensure compatibility with existing function blocks and organization blocks. Firmware version mismatches between the CPU and installed signal modules — particularly CP 343-1 Ethernet communication processors — can cause startup faults that delay return to service.

Backplane slot addressing must be confirmed prior to installation. In multi-rack S7-300 configurations using IM 360/IM 361 interface modules, the CPU’s rack and slot number assignments directly affect the hardware configuration in STEP 7 HW Config. Any deviation from the original configuration will require a hardware reconfiguration download, which in turn may trigger a cold restart and temporary loss of process control. Planning this step during a scheduled maintenance window is strongly recommended to minimize unplanned downtime.

All units supplied are pre-tested prior to shipment, verified for correct firmware operation, and covered by a support terms confirmed by quotation. Multi-region stock is maintained to support both emergency replacement orders and scheduled outage planning across global facilities.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7313-5BE00-0AB0 begins with a thorough audit of the existing S7-300 rack configuration. Engineers should record the current slot assignments of all installed modules — including SM 321 digital input modules, SM 331 analog input modules, and any CP 343-1 Lean Ethernet communication processors — before initiating any hardware changes. This documentation forms the basis for the replacement hardware configuration in STEP 7 HW Config and ensures that module addresses are preserved after the CPU swap.

Power budget verification is a critical pre-installation step. The PS 307 power supply feeding the rack must have sufficient current headroom to support the 6ES7313-5BE00-0AB0 alongside all installed signal and communication modules. The CPU draws approximately 800 mA from the 5 VDC backplane bus; adding this to the current consumption of co-installed modules will confirm whether the existing PS 307 5A unit is adequate or whether an upgrade to the PS 307 10A variant is required.

For systems with distributed I/O connected via PROFIBUS DP — such as ET 200M remote I/O stations or third-party valve terminal controllers — the DP master configuration stored in the CPU must be re-downloaded after replacement. Engineers should retain a backup of the PROFIBUS network configuration, including GSD files for all connected field devices, to accelerate re-commissioning. Signal isolators installed between the CPU’s I/O terminals and field instruments should also be inspected for correct input/output range settings, as these directly affect analog signal accuracy after the CPU replacement.

Where the existing installation includes a SIMATIC HMI panel connected via MPI, the HMI project’s communication settings — including the CPU’s MPI address and baud rate — must match the replacement unit’s configuration. If the original CPU was configured with a non-default MPI address, this setting must be replicated on the 6ES7313-5BE00-0AB0 using a PC Adapter USB programming cable before connecting the HMI to avoid communication faults on startup.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement requires a structured pre-outage preparation process. Before the maintenance window begins, engineers should perform a full online backup of the S7-300 program using STEP 7, saving all blocks — OBs, FBs, FCs, DBs, and SFBs — to an offline project archive. The MMC from the original CPU should be retained as a fallback restore medium in case the replacement unit requires re-flashing.

During the physical swap, the rack should be de-energized at the PS 307 power supply rather than at the main panel breaker, allowing field instruments and distributed I/O stations to remain powered where process safety permits. This approach preserves the last known output states on ET 200M stations and reduces the risk of process upsets caused by simultaneous loss of multiple control signals.

After installing the 6ES7313-5BE00-0AB0 and loading the program from the MMC, engineers should perform a controlled warm restart and monitor the CPU’s diagnostic buffer for any startup faults before re-enabling process control outputs. Verifying PROFIBUS DP bus status, checking HMI communication links, and confirming analog input readings against field reference values are the key commissioning steps that confirm the replacement is operating correctly before handing control back to the process.

With pre-tested units and multi-region stock availability, the 6ES7313-5BE00-0AB0 can typically be on-site within 24–72 hours for emergency replacement scenarios, significantly reducing the total duration of unplanned outages caused by CPU failure in legacy S7-300 systems.

Retrofit Support FAQ

Q: Is the 6ES7313-5BE00-0AB0 a direct replacement for the CPU 313C-2 DP in my existing S7-300 rack?
A: Yes. The 6ES7313-5BE00-0AB0 is the standard order number for the CPU 313C-2 DP and fits directly into any S7-300 DIN rail rack. No mechanical modifications are required. The existing STEP 7 hardware configuration can be reused without changes to module slot assignments.

Q: Do I need to reconfigure my PROFIBUS DP network after replacing the CPU?
A: The PROFIBUS DP master configuration is stored in the CPU’s program. After loading the program from the MMC or via STEP 7 download, the DP network will resume normal operation. If the replacement CPU has a different firmware version, verify that all DP slave GSD files are compatible before going online.

Q: What pre-shipment testing is performed on each unit?
A: Every 6ES7313-5BE00-0AB0 unit undergoes functional testing prior to dispatch, including power-on verification, firmware version confirmation, and I/O channel integrity checks. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Q: Can I use the existing MMC from my failed CPU in the replacement unit?
A: In most cases, yes. The MMC is a standard Siemens Micro Memory Card and is interchangeable between CPU 313C-2 DP units of the same firmware generation. If the MMC is damaged or unreadable, the program can be reloaded from a STEP 7 project archive via the PC Adapter USB programming cable. Contact our technical team if you need assistance with program recovery.
