Siemens 6ES7288-3AR04-0AA0 Fail-Safe Analog Input Module

Overview

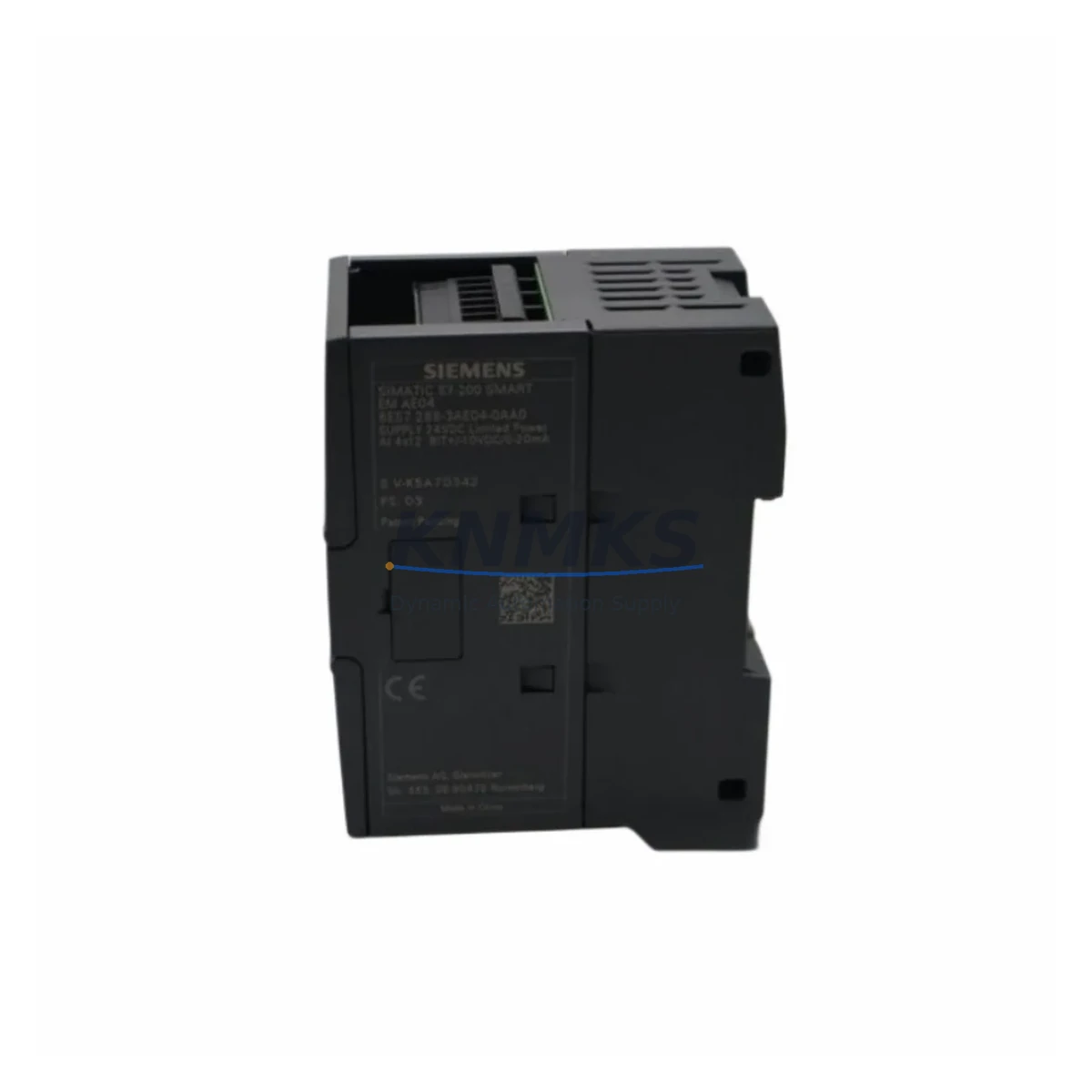

Siemens 6ES7288-3AR04-0AA0 Fail-Safe Analog Input Module for Industrial Control Reliability

The Siemens 6ES7288-3AR04-0AA0 is a 4-channel analog input expansion module designed for the SIMATIC S7-200 SMART PLC platform. Built to deliver fail-safe signal acquisition in demanding industrial environments, this module is engineered to maintain control loop integrity under conditions of high electromagnetic interference, power fluctuation, mechanical vibration, and extreme temperature variation. Whether deployed in continuous process manufacturing, critical interlock circuits, or high-load control cabinets, the 6ES7288-3AR04-0AA0 provides the signal fidelity and operational stability that safety-critical applications demand.

Industrial facilities operating in petrochemical refining, electric power generation, mining extraction, water treatment, metallurgical processing, port logistics, and marine automation routinely expose control hardware to conditions that challenge standard-grade components. The 6ES7288-3AR04-0AA0 addresses these challenges through robust analog front-end design, onboard surge suppression, and shielded signal conditioning circuitry that minimizes signal drift and false triggering — two of the most common causes of unplanned shutdowns in field-level control systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7288-3AR04-0AA0 within a well-engineered control cabinet architecture significantly reduces the risk of control interruption. In practice, this module is most effective when paired with a properly sized SIMATIC S7-200 SMART CPU — such as the ST40 or SR60 — which provides the processing backbone for analog loop management and PID regulation. The CPU’s integrated digital I/O handles discrete interlocks while the 6ES7288-3AR04-0AA0 manages the analog measurement layer, creating a clean separation of signal types that reduces cross-interference within the cabinet.

Power quality is a critical factor in analog signal accuracy. Pairing this module with a Siemens SITOP PSU100S 24 V DC stabilized power supply ensures that voltage ripple and transient spikes — common in heavy industrial environments — do not propagate into the analog measurement chain. For cabinets located near variable frequency drives, welding equipment, or large motor starters, additional surge protection devices on the 24 V DC bus are strongly recommended to protect both the CPU and expansion modules.

In multi-module expansion configurations, the S7-200 SMART analog expansion bus supports sequential chaining of additional modules such as the 6ES7288-3AQ02-0AA0 analog output module, enabling closed-loop control of actuators, control valves, and variable speed drives directly from the same CPU. For applications requiring temperature measurement, the 6ES7288-3AT04-0AA0 thermocouple input module can be added to the same rack without additional wiring infrastructure.

Communication reliability is equally important in safety-sensitive installations. The S7-200 SMART platform supports Ethernet-based communication via the CPU’s built-in port, and in distributed architectures, a PROFIBUS DP communication module or PROFINET adapter can extend the control network to remote I/O stations. Ensuring that the communication link between the CPU and SCADA or HMI — such as a Siemens SMART LINE HMI panel — remains stable under load is essential for maintaining operator visibility during critical process events.

For field signal conditioning, particularly in long cable runs or high-noise environments, signal isolators and loop-powered transmitter barriers should be installed between field instruments and the 6ES7288-3AR04-0AA0 input terminals. This prevents ground loop currents and common-mode noise from corrupting the 4–20 mA signals that the module relies on for accurate process measurement.

Critical Industrial Safety Applications

In petrochemical and refining facilities, the 6ES7288-3AR04-0AA0 is commonly used to monitor pressure transmitters, flow meters, and temperature sensors in process loops where signal loss or drift could trigger emergency shutdown sequences. The module’s surge suppression capability is particularly valuable in outdoor or semi-outdoor installations where lightning-induced transients on cable shields are a recurring concern.

Electric power generation plants — including thermal, hydroelectric, and wind installations — rely on analog input modules of this class to monitor generator output parameters, cooling system temperatures, and transformer load conditions. The module’s ability to maintain signal integrity under high electromagnetic field conditions, typical near large transformers and switchgear, makes it well-suited for substation automation and generator protection panels.

In mining and mineral processing, where vibration from crushers, conveyors, and blasting operations is constant, the 6ES7288-3AR04-0AA0’s mechanical robustness and wide operating temperature range support reliable operation in both underground and surface control rooms. Water treatment facilities benefit from the module’s resistance to humidity and condensation, which are persistent challenges in pump stations and chemical dosing control panels.

Metallurgical and steel production environments subject control hardware to radiated heat, heavy dust, and aggressive chemical atmospheres. The 6ES7288-3AR04-0AA0, when installed in properly sealed and ventilated control enclosures, provides the analog measurement stability needed for furnace temperature control, rolling mill speed regulation, and cooling water flow monitoring. Port and marine automation applications similarly demand hardware that can withstand salt air, humidity cycling, and vibration from vessel movement or crane operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the 6ES7288-3AR04-0AA0?
Every unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional testing to verify analog channel accuracy, signal isolation integrity, and bus communication before dispatch.

Q2: Is the 6ES7288-3AR04-0AA0 compatible with all S7-200 SMART CPU variants?
Yes. The module is compatible with the full range of SIMATIC S7-200 SMART CPUs, including the ST20, ST30, ST40, ST60, SR20, SR30, SR40, and SR60. It connects via the right-side expansion bus and is automatically recognized by STEP 7-Micro/WIN SMART software without additional configuration drivers.

Q3: How should the module be wired in high-EMI environments to prevent signal errors?
Use shielded twisted-pair cable for all analog signal wiring, with the shield grounded at one end only (preferably at the control cabinet entry point). Maintain physical separation between analog signal cables and power cables or digital I/O wiring. For 4–20 mA loops, verify that the field transmitter and the module share a common 24 V DC reference to avoid ground loop errors.

Q4: What is the typical lead time and stock availability?
The 6ES7288-3AR04-0AA0 is maintained availability confirmed by RFQ for immediate dispatch. Standard orders ship within 1–3 business days. For large-quantity procurement or long-term supply agreements supporting ongoing maintenance programs, contact our sales team to discuss dedicated inventory allocation and scheduled delivery arrangements.
