Siemens 6ES7288-3AR02-0AA0 Fail-Safe RTD Input

Overview

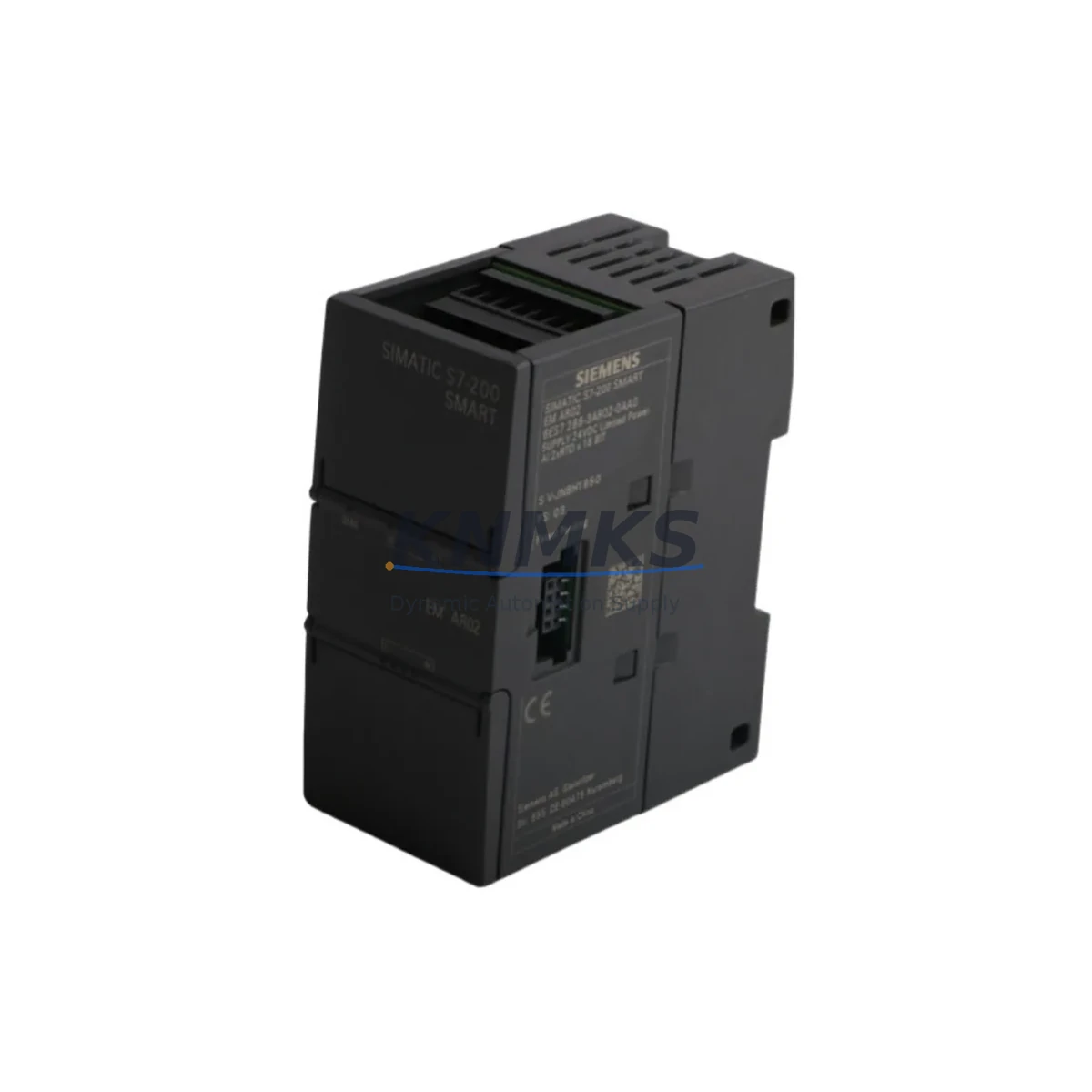

Siemens 6ES7288-3AR02-0AA0 Fail-Safe RTD Input Module for Industrial Control Reliability

The Siemens 6ES7288-3AR02-0AA0 is a 2-channel RTD analog input module designed for the S7-200 SMART PLC platform, engineered to deliver fail-safe temperature measurement and signal integrity in the most demanding industrial environments. Whether deployed in continuous process manufacturing, critical interlock loops, or high-EMI control cabinets, this module provides the measurement accuracy and fault-tolerance that modern industrial safety strategies demand.

Built to IEC 61131-2 standards, the 6ES7288-3AR02-0AA0 supports PT100 and PT1000 resistance temperature detectors across a wide measurement range, making it suitable for applications from cryogenic storage to high-temperature furnace monitoring. Its onboard signal conditioning circuitry actively rejects common-mode noise, electromagnetic interference, and surge transients — protecting the integrity of temperature feedback loops even in environments with heavy motor drives, arc welding equipment, or high-frequency switching power supplies nearby.

In control cabinets where space is limited and thermal density is high, the module’s compact S7-200 SMART form factor integrates directly onto the CPU expansion bus without additional interface hardware. This eliminates potential signal degradation points and reduces the overall component count in safety-critical measurement chains. When paired with the S7-200 SMART CPU SR40 or ST60 series controllers, the 6ES7288-3AR02-0AA0 forms a tightly integrated measurement and control loop capable of sub-second fault response.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7288-3AR02-0AA0 within a well-designed control cabinet protection strategy significantly reduces the risk of unplanned shutdowns caused by temperature measurement faults. In high-density cabinets, the module is typically installed alongside the S7-200 SMART CPU and complementary expansion modules such as the 6ES7288-3AE04-0AA0 analog input module for voltage and current signals, allowing a single compact rack to handle both RTD and standard analog I/O without cross-interference.

For cabinets operating in environments with significant power line disturbances — such as those found in mining substations or port crane control rooms — pairing the 6ES7288-3AR02-0AA0 with a SITOP PSU100S 24 VDC stabilized power supply ensures that voltage fluctuations and transient surges on the incoming supply do not propagate into the measurement circuitry. The SITOP series provides active buffering and selective current limiting, which protects both the CPU and the RTD module from brownout-induced measurement drift.

In applications where the RTD sensors are located at significant distances from the control cabinet — common in water treatment plants and metallurgical facilities — signal isolation becomes critical. A SIMATIC S7-200 SMART EM AM06 mixed analog module or a dedicated signal isolator/repeater in the field junction box prevents ground loop currents from corrupting the 4-wire RTD measurement. This is particularly important when the sensor cable runs parallel to high-voltage power cables or through areas with strong magnetic fields from large motors or transformers.

Communication integrity is equally important in safety-oriented architectures. The S7-200 SMART platform supports PROFINET and Modbus TCP/RTU communication, and when the 6ES7288-3AR02-0AA0 is part of a distributed temperature monitoring system, ensuring the CPU’s Ethernet port is connected through an industrial-grade managed switch — such as the SCALANCE X series — prevents network storms or cable faults from disrupting the temperature control loop. Redundant communication paths further reduce the risk of a single network failure causing a process shutdown.

Critical Industrial Safety Applications

The 6ES7288-3AR02-0AA0 is deployed across a broad range of safety-critical industrial sectors where temperature measurement accuracy directly affects process safety and equipment protection.

In petrochemical and refinery applications, the module monitors reactor vessel temperatures and heat exchanger outlet conditions, feeding data into interlock logic that triggers emergency shutdown sequences if temperatures exceed safe operating limits. The module’s surge protection and EMC compliance ensure reliable operation even in areas classified as Zone 2 hazardous locations when installed in appropriately rated enclosures.

In electric power generation and substation control, the 6ES7288-3AR02-0AA0 monitors transformer winding temperatures and cooling system performance. Accurate RTD measurement allows predictive maintenance algorithms to detect thermal anomalies before they escalate into transformer failures, reducing both safety risk and unplanned outage costs.

In mining and mineral processing, the module is used to monitor motor bearing temperatures on conveyor drives, crushers, and ball mills. Early detection of bearing overheating allows maintenance teams to schedule interventions during planned downtime rather than responding to catastrophic failures that can damage equipment and endanger personnel.

In water and wastewater treatment, the module monitors pump motor temperatures and process fluid temperatures in chemical dosing systems, ensuring that both equipment protection and process chemistry remain within safe operating bands across seasonal temperature variations.

In continuous steel and aluminum manufacturing, the 6ES7288-3AR02-0AA0 provides temperature feedback for cooling water systems, furnace atmosphere control, and rolling mill lubrication temperature monitoring — all applications where a measurement fault could result in product quality loss or equipment damage.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7288-3AR02-0AA0?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. Prior to dispatch, each module undergoes functional testing including channel verification, signal accuracy checks, and communication bus integrity validation to ensure it meets Siemens specification on arrival.

Q2: Is the 6ES7288-3AR02-0AA0 compatible with all S7-200 SMART CPU variants?
Yes. The module is compatible with the full S7-200 SMART CPU range including SR20, SR40, SR60, ST20, ST40, and ST60 variants. It connects via the standard expansion bus and is configured through STEP 7-Micro/WIN SMART software without requiring additional drivers or firmware updates in most standard firmware revisions.

Q3: Can this module be used as a direct replacement for legacy S7-200 EM231 RTD modules?
The 6ES7288-3AR02-0AA0 is the S7-200 SMART generation equivalent for RTD input functionality. While the S7-200 SMART platform is not backward-compatible with the original S7-200 hardware bus, for sites migrating from S7-200 to S7-200 SMART, this module provides equivalent 2-channel RTD input capability with improved EMC performance and a more compact form factor.

Q4: What is the long-term supply availability for this module?
We maintain dedicated inventory of the 6ES7288-3AR02-0AA0 to support long-term spare parts programs for industrial facilities. For customers requiring guaranteed supply over 12–36 month horizons, we offer scheduled procurement agreements to ensure continuity of spare parts availability without exposure to spot market shortages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7288-3AR02-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7288-3AR02-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
