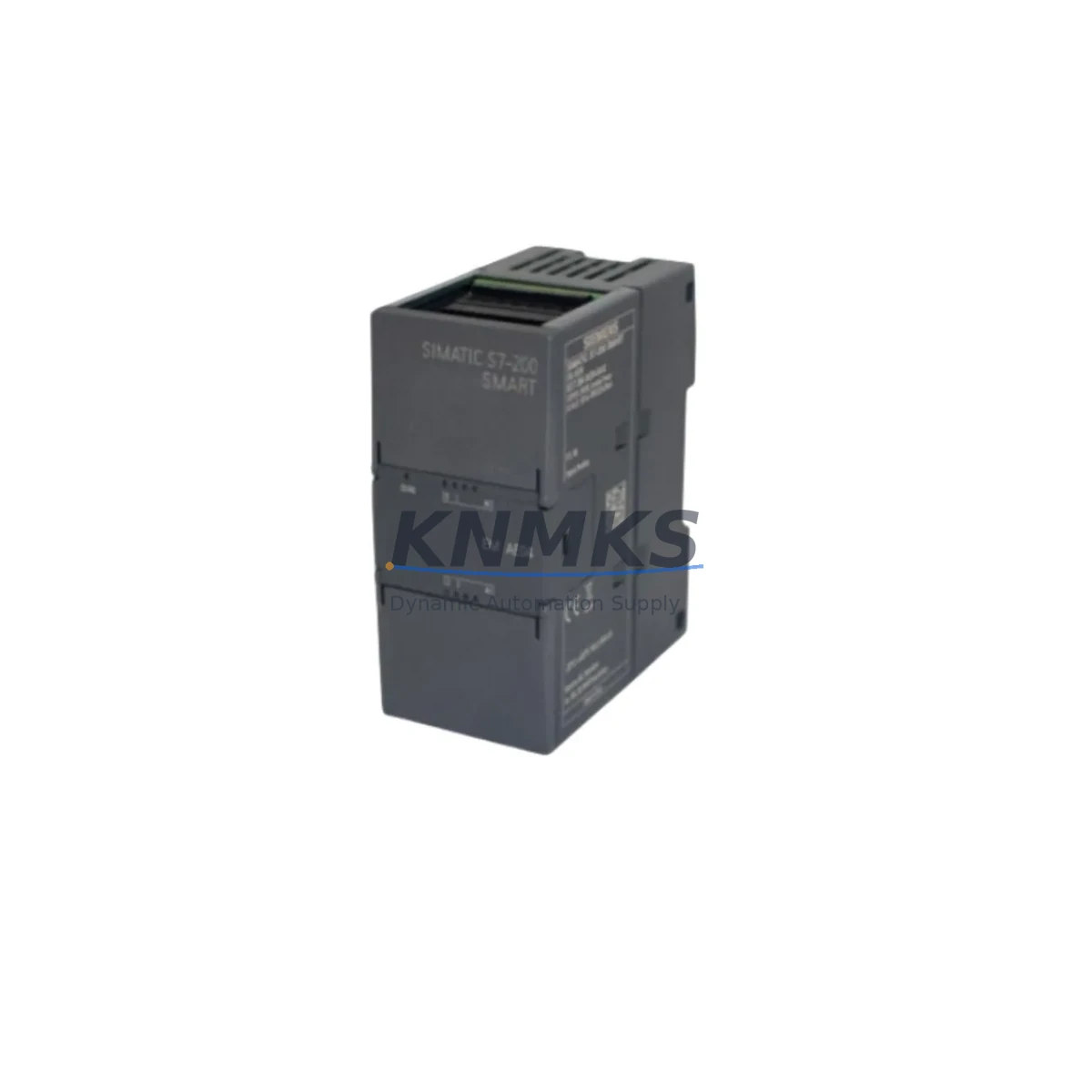

Siemens 6ES7288-3AE04-0AA0 Spare Part for Factory Uptime

Overview

Siemens 6ES7288-3AE04-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7288-3AE04-0AA0 is the EM AE04 analog input expansion module for the S7-200 SMART PLC series — a compact, high-resolution 4-channel analog input module widely deployed in process control, packaging lines, water treatment facilities, and petrochemical field panels. Sourced as an original spare, this module is pre-shipment tested and backed by a support terms confirmed by quotation, making it a reliable choice for maintenance engineers managing aging S7-200 SMART installations or building strategic spare parts inventories.

For maintenance teams operating in industries where unplanned downtime carries significant operational and financial risk, having a validated 6ES7288-3AE04-0AA0 on the shelf is a proven strategy. The EM AE04 handles 4 analog input channels (voltage or current), integrates directly into the S7-200 SMART CPU expansion bus, and supports standard 0–10 V and 4–20 mA signal ranges — the backbone of most field sensor loops in industrial automation environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or stocking the 6ES7288-3AE04-0AA0, a thorough control cabinet inspection is essential to prevent repeat failures and ensure system stability. Maintenance engineers should simultaneously verify the condition of the S7-200 SMART CPU module (such as the CPU ST40 or CPU CR40) — the host controller that powers and communicates with the EM AE04 via the expansion bus. A degraded CPU can cause erratic analog readings even after a module swap.

The 24 V DC power supply feeding the S7-200 SMART system deserves close attention. Voltage ripple or insufficient current capacity is a leading cause of analog module faults in field panels. Inspect the power supply output under load and consider stocking a replacement unit alongside the EM AE04. Similarly, the expansion bus cable and connector between the CPU and expansion modules should be inspected for corrosion, mechanical stress, or intermittent contact — a common failure point in high-vibration environments such as mining or port operations.

For signal integrity, review the analog signal wiring and shielding at the terminal block. Unshielded or improperly grounded sensor cables introduce noise that degrades 4–20 mA loop accuracy. If the installation includes signal isolators or signal conditioners between field transmitters and the EM AE04 inputs, verify their calibration and output range compatibility. In legacy systems, aging terminal blocks and I/O wiring may also need replacement during the same maintenance window to avoid nuisance faults after the module is restored.

Where the S7-200 SMART system interfaces with an HMI panel (such as a Siemens SMART LINE or KTP series), confirm that the HMI communication link remains stable after module replacement — analog scaling parameters in the PLC program may need verification. If the control cabinet includes digital output modules (EM QR16 or EM QT16) or digital input modules (EM DE08/DE16) in the same expansion chain, inspect their connectors and status LEDs as part of the same service visit to maximize uptime between maintenance cycles.

Site Replacement Workflow

Replacing the 6ES7288-3AE04-0AA0 on-site is a straightforward procedure when the correct spare is pre-staged and the replacement workflow is followed systematically:

1. Power down safely: Isolate the 24 V DC supply to the S7-200 SMART system. Follow site LOTO (Lockout/Tagout) procedures before opening the control cabinet.
2. Document current wiring: Photograph or record all analog input terminal connections (channel assignment, signal type, cable labels) before disconnecting.
3. Remove the faulty module: Disconnect the expansion bus connector and remove the EM AE04 from the DIN rail. Note the module position in the expansion chain — order matters for address mapping.
4. Install the replacement 6ES7288-3AE04-0AA0: Mount on DIN rail, reconnect the expansion bus, and re-terminate all analog signal cables per the original wiring documentation.
5. Power up and verify: Restore 24 V DC supply, confirm the CPU recognizes the new module (check expansion bus LED status), and verify analog input readings in the HMI or STEP 7 Micro/WIN SMART programming software.
6. Functional test: Apply known reference signals to each channel and confirm correct scaling and engineering unit display before returning the system to production.

This workflow minimizes downtime and reduces the risk of configuration errors that can extend outages. Pre-staging a tested spare — rather than sourcing on emergency — is the single most effective strategy for reducing mean time to repair (MTTR) in S7-200 SMART installations.

Spare Parts Support FAQ

Q1: Is the 6ES7288-3AE04-0AA0 still available as a new original spare?
Yes. KNMKS maintains stock of original Siemens 6ES7288-3AE04-0AA0 modules. Each unit is pre-shipment tested and ships with a support terms confirmed by quotation. Long-term supply is supported for customers managing multi-site S7-200 SMART installations or annual maintenance contracts.

Q2: How do I confirm compatibility with my existing S7-200 SMART system?
The 6ES7288-3AE04-0AA0 (EM AE04) is compatible with all S7-200 SMART CPU variants that support analog expansion modules. Verify your CPU firmware version and expansion module slot count in STEP 7 Micro/WIN SMART. The module occupies one expansion slot and is addressed automatically by the CPU upon power-up.

Q3: What pre-shipment testing is performed before dispatch?
All 6ES7288-3AE04-0AA0 units are powered up and functionally tested prior to shipment. Analog input channel accuracy, bus communication, and LED status indicators are verified. A test report is available upon request for customers with quality assurance requirements.

Q4: Can KNMKS support long-term spare parts supply for S7-200 SMART components?
Yes. KNMKS provides long-term spare parts support for the full S7-200 SMART product family, including CPU modules, digital I/O expansion modules, analog modules, and communication modules. Customers can arrange blanket orders or scheduled deliveries to maintain on-site inventory levels aligned with their planned maintenance cycles.
