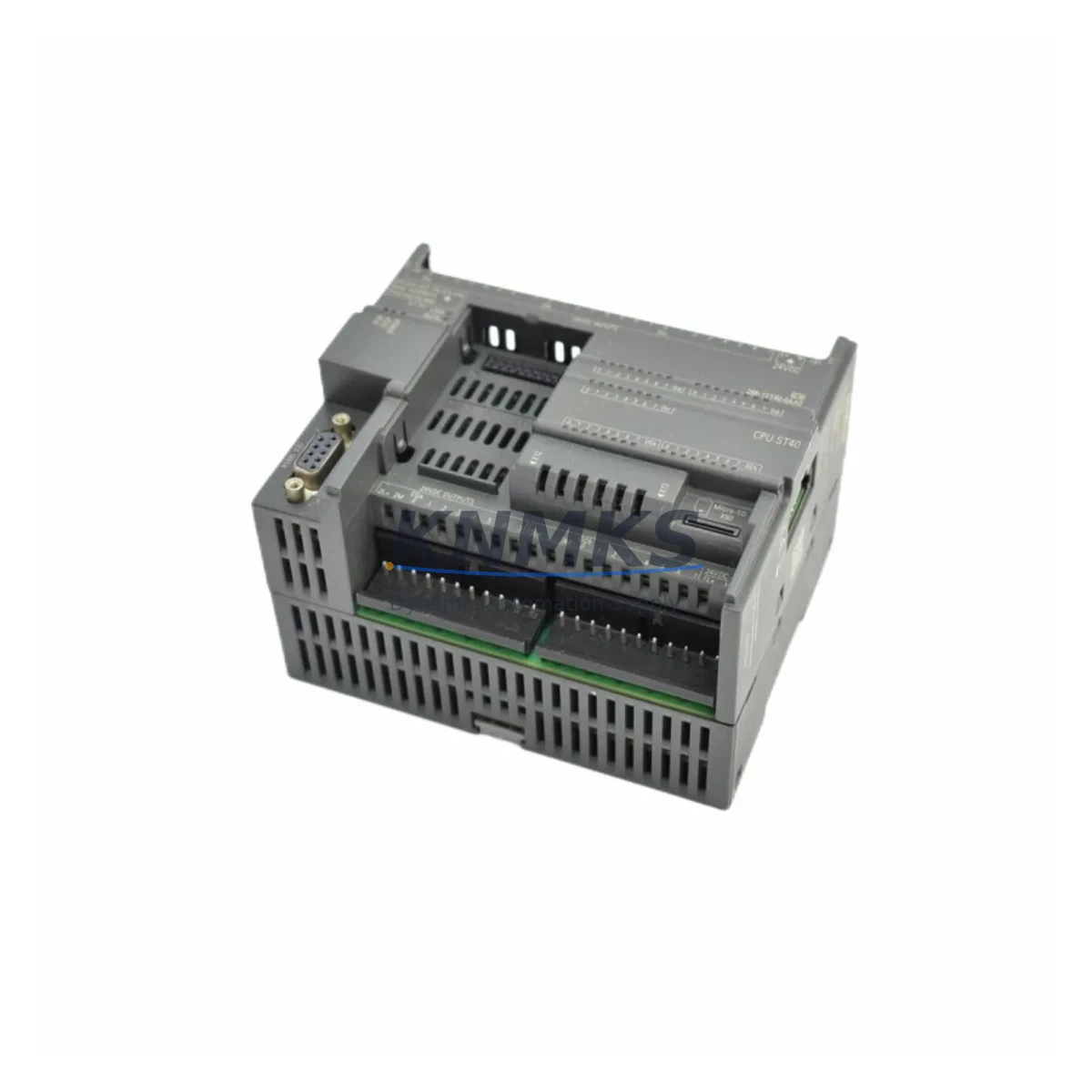

Siemens 6ES7288-1ST40-0AA0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7288-1ST40-0AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7288-1ST40-0AA0 is a high-performance CPU module from the S7-200 SMART series, engineered for compact automation applications in manufacturing, process control, and machine-level automation. As a maintenance-proven spare part, this unit is stocked and dispatched to support rapid line recovery, scheduled annual overhauls, and proactive spare parts inventory programs. Whether you are responding to an unplanned CPU failure or building a resilient spare parts cabinet for a critical production line, the 6ES7288-1ST40-0AA0 delivers the original Siemens performance your system was designed around.

With 40 onboard I/O points (24 digital inputs, 16 digital outputs), integrated Ethernet port, and support for up to 6 expansion modules, this CPU is the control backbone of many S7-200 SMART installations across automotive, food and beverage, pharmaceutical, and general manufacturing sectors. Maintenance engineers and procurement teams rely on original Siemens spare parts to eliminate compatibility risk, reduce commissioning time, and maintain system support terms integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7288-1ST40-0AA0 in the field, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the 24 VDC power supply module — a degraded or undersized power supply is a leading cause of CPU instability and premature failure in S7-200 SMART systems. Check output voltage under load and replace if ripple or voltage drop is detected.

Next, inspect all connected expansion modules in the EM series (such as EM DE08, EM DR08, or EM AE04 analog input modules). Loose backplane connectors or corroded bus contacts can cause I/O communication errors that are often misdiagnosed as CPU faults. Signal boards (SB) mounted directly on the CPU — including SB AQ01 analog output boards or SB CM01 RS485/RS232 communication boards — should be reseated or replaced if communication errors persist after CPU swap.

For systems using Ethernet-based SCADA or HMI connectivity, verify the network switch port, Ethernet cable integrity, and IP address configuration after installing the replacement CPU. If the system communicates with a Siemens KTP series HMI panel (such as KTP700 Basic or KTP1200 Basic), re-establish the HMI connection and confirm tag mapping is intact. Systems using Modbus RTU or USS protocol over RS485 should have their communication parameters re-verified against the original project documentation.

Fuse and circuit protection components in the control cabinet should also be inspected during any CPU replacement event. Check the 24 VDC branch circuit fuses, terminal block integrity, and any surge protection devices on the I/O wiring. Relay output modules connected to the CPU’s digital outputs — particularly those driving motor contactors or solenoid valves — should be tested for contact wear and replaced if cycle counts are high. Maintaining a spare set of relay output expansion modules alongside the CPU spare significantly reduces total downtime during emergency recovery.

For facilities running multiple S7-200 SMART stations, a standardized spare parts kit including one 6ES7288-1ST40-0AA0 CPU, one 24 VDC power supply, one EM digital I/O module, and one SB communication board provides comprehensive coverage for the most common failure scenarios. This approach is widely adopted in automotive assembly, bottling lines, and packaging machinery environments where unplanned downtime carries significant production cost.

Site Replacement Workflow

Replacing the 6ES7288-1ST40-0AA0 on-site is a structured process that, when followed correctly, minimizes downtime and eliminates configuration errors. Before beginning, retrieve the original STEP 7-Micro/WIN SMART project file from your backup server or engineering workstation. If no backup exists, use the upload function in STEP 7-Micro/WIN SMART to read the program from the existing CPU before powering down — this is critical for systems without a documented backup.

Power down the control cabinet and disconnect the 24 VDC supply to the CPU. Remove all expansion module connectors from the left side of the CPU, label each connector position, and carefully extract the CPU from the DIN rail. Install the replacement 6ES7288-1ST40-0AA0, reconnect expansion modules in the original sequence, and restore power. Use STEP 7-Micro/WIN SMART to download the project file, configure the Ethernet IP address to match the original settings, and perform a full I/O force test before returning the machine to production.

This replacement procedure is compatible with all S7-200 SMART CPU variants in the ST and SR series, making the 6ES7288-1ST40-0AA0 a versatile spare for facilities managing mixed S7-200 SMART installations. The original Siemens firmware and hardware ensure zero compatibility risk with existing expansion modules, signal boards, and HMI configurations — eliminating the re-engineering cost associated with third-party or counterfeit replacements.

Spare Parts Support FAQ

Q1: Is the 6ES7288-1ST40-0AA0 compatible with all S7-200 SMART expansion modules?
Yes. The 6ES7288-1ST40-0AA0 is fully compatible with the complete S7-200 SMART EM expansion module range, including digital I/O, analog I/O, and temperature modules, as well as SB signal boards. Always verify firmware version compatibility when mixing older and newer hardware revisions.

Q2: What is included in the support terms confirmed by quotation?
Every 6ES7288-1ST40-0AA0 unit shipped from KNMKS is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify CPU boot, I/O response, and Ethernet communication before dispatch.

Q3: How quickly can this spare part be shipped for emergency downtime recovery?
KNMKS maintains stock of the 6ES7288-1ST40-0AA0 for priority dispatch. Emergency orders are processed same-day when placed before the daily cutoff. Contact [email protected] or call +86 18359268345 for urgent availability confirmation and expedited shipping options.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers long-term supply agreements for the 6ES7288-1ST40-0AA0 and related S7-200 SMART components, supporting annual maintenance contracts, MRO procurement programs, and OEM spare parts kits. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7288-1ST40-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7288-1ST40-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
