Siemens 6ES7288-1ST30-0AA0 Spare Part for Factory Uptime

Overview

Siemens 6ES7288-1ST30-0AA0 Spare Part for Factory Uptime

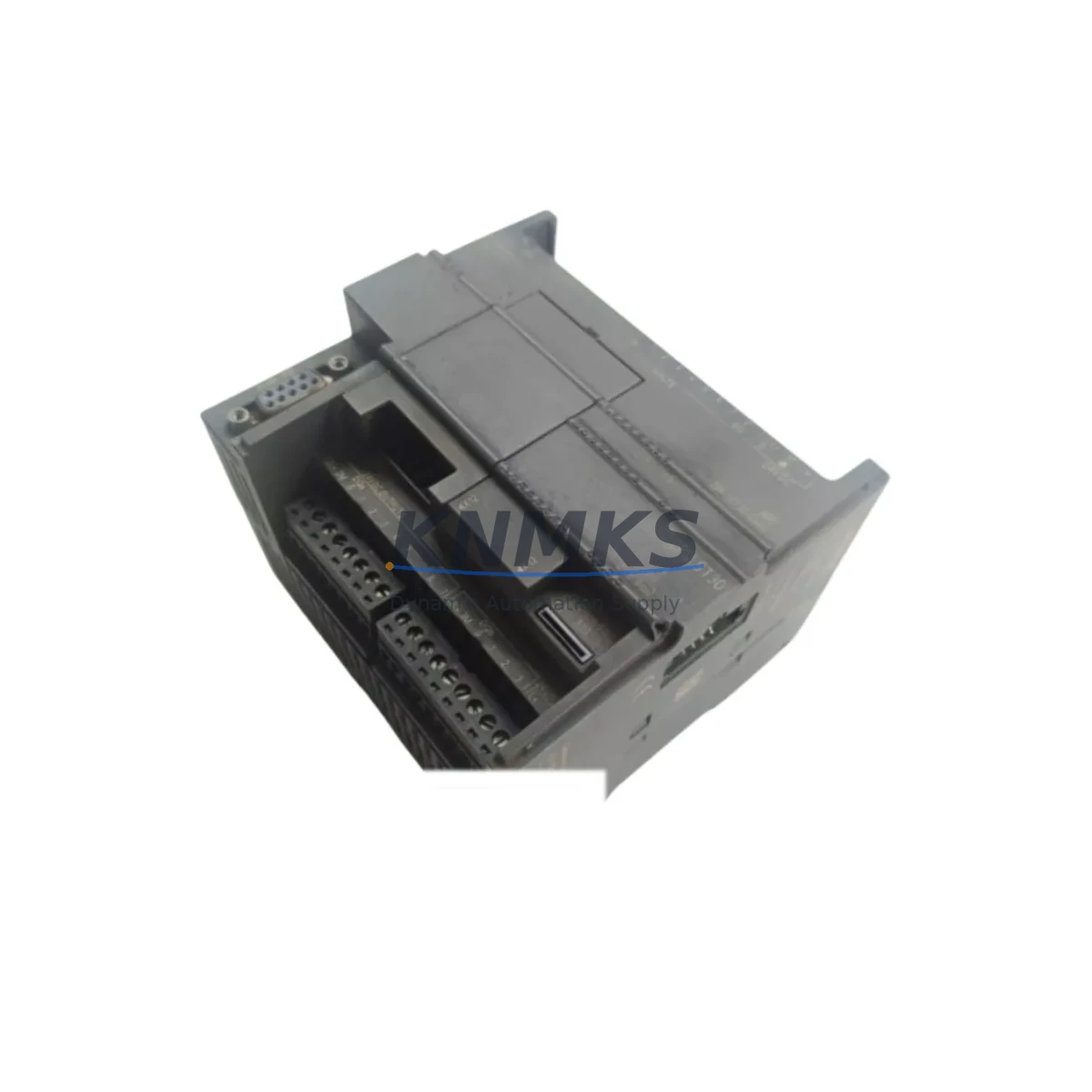

The Siemens 6ES7288-1ST30-0AA0 is an SM ST30 digital combination I/O module designed for the S7-200 SMART PLC platform. With 18 digital inputs and 12 digital outputs integrated into a single compact module, it is a critical component in machine control panels, conveyor automation, packaging lines, and process control cabinets across manufacturing facilities worldwide. When this module fails or degrades, production lines halt — making a verified, ready-to-ship spare part an essential element of any maintenance strategy.

At KNMKS, every 6ES7288-1ST30-0AA0 unit is sourced as an original Siemens spare, inspected, and tested before shipment. We support maintenance engineers and procurement teams with reliable stock, fast dispatch, and a support terms confirmed by quotation on all units — ensuring your facility can recover from unplanned downtime with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7288-1ST30-0AA0 in a live control cabinet is rarely an isolated task. Maintenance engineers working on S7-200 SMART systems should treat this module replacement as an opportunity to inspect the broader electrical environment and prevent secondary failures that could cause repeat downtime.

Begin with the 24 VDC power supply feeding the expansion bus. A degraded or undersized power supply — such as a Siemens SITOP PSU100S or equivalent — can cause intermittent I/O faults that mimic module failure. Verify output voltage stability under full load before commissioning the replacement module. At the same time, inspect the CPU module (e.g., S7-200 SMART CPU ST40 or SR60) for firmware version compatibility with the SM ST30 expansion, as mismatched firmware can prevent proper I/O mapping after module swap.

Check all terminal blocks and wiring harnesses connected to the 18 DI and 12 DO points. Loose or corroded terminals are a leading cause of intermittent signal faults in high-vibration environments. If the cabinet includes signal isolation modules between field sensors and PLC inputs, verify that isolation barriers are within their rated operating range — degraded isolators can introduce noise that triggers false input states on the new module.

For output circuits driving inductive loads such as solenoid valves or motor contactors, inspect the flyback diodes or surge suppressors on each output channel. A failed suppressor can damage transistor outputs on the new SM ST30 within hours of installation. Additionally, review any intermediate relay modules (such as Phoenix Contact or Weidmüller relay terminals) in the output circuit — worn relay contacts increase output load and reduce module lifespan.

If the system includes a Siemens SMART LINE HMI panel (e.g., SMART 700 IE or SMART 1000 IE) communicating with the CPU via Ethernet, confirm that the HMI program’s I/O tag addresses remain valid after the module replacement. A module slot change can shift I/O addresses in the STEP 7 Micro/WIN SMART configuration, causing HMI display errors that appear as system faults. Finally, if the cabinet uses a PROFIBUS DP or RS485 communication module (e.g., Siemens 6ES7288-3MC30-0AA0 CM01) alongside the SM ST30, verify bus termination and cable shielding integrity — communication errors often surface after physical disturbance during module replacement.

Stocking a second 6ES7288-1ST30-0AA0 unit alongside a spare CPU module and a replacement 24 VDC SITOP power supply forms a practical minimum spare parts kit for S7-200 SMART-based production lines, reducing mean time to repair (MTTR) from hours to under 30 minutes.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before powering down, record the current I/O status via the STEP 7 Micro/WIN SMART status monitor. Note any active output states that must be restored after replacement to avoid process upsets.

Step 2 — Safe isolation: De-energize the 24 VDC supply to the expansion bus. Do not rely solely on the CPU STOP mode — physically isolate the power supply to the module rail to prevent residual voltage on output terminals.

Step 3 — Module removal: Disconnect the wiring harness connectors from the SM ST30 module. Label each connector if not already marked. Release the DIN rail locking tab and slide the module free from the expansion bus connector.

Step 4 — Replacement installation: Align the new 6ES7288-1ST30-0AA0 with the expansion bus connector and press firmly until the bus connector seats fully. Secure the DIN rail latch. Reconnect all wiring harness connectors in the correct sequence.

Step 5 — Power-up and verification: Restore 24 VDC power. Place the CPU in RUN mode and verify all 18 DI and 12 DO points respond correctly using the STEP 7 Micro/WIN SMART I/O monitor. Confirm HMI displays reflect correct field status before resuming production.

Step 6 — Documentation: Record the replacement date, unit serial number, and post-replacement test results in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit.

This workflow is compatible with all S7-200 SMART CPU variants and requires no hardware configuration changes when replacing a like-for-like SM ST30 module in the same expansion slot.

Spare Parts Support FAQ

Q1: Is the 6ES7288-1ST30-0AA0 compatible with all S7-200 SMART CPU models?
Yes. The SM ST30 expansion module is compatible with all S7-200 SMART CPU variants, including the ST20, ST30, ST40, ST60, SR20, SR30, SR40, and SR60. No firmware or hardware modification is required for like-for-like replacement in the same expansion slot position.

Q2: How is each unit tested before shipment?
Every 6ES7288-1ST30-0AA0 unit supplied by KNMKS undergoes functional verification of all digital input and output channels prior to dispatch. Units are inspected for physical integrity, connector condition, and correct labeling. A test report is available upon request for critical maintenance applications.

Q3: What is the support terms coverage and how is a claim handled?
All units carry a support terms confirmed by quotation from the date of shipment. In the event of a verified module failure within the confirmed support period, KNMKS will provide a replacement unit or issue a credit note. Support requests require the original order reference and a brief description of the fault condition. Contact [email protected] to initiate a claim.

Q4: Can KNMKS support long-term or blanket order arrangements for this part?
Yes. For facilities operating multiple S7-200 SMART systems or managing annual maintenance schedules, KNMKS offers blanket order agreements to reserve stock at fixed pricing. This eliminates procurement lead-time risk and ensures spare availability for planned shutdowns and emergency replacements. Contact our team to discuss volume and scheduling requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
